Rear Seat Assembly: Installation
WARNING: This page is about a different car, the 2003 Lexus ES 300 and 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For installation, reverse the removal procedure except where noted below.

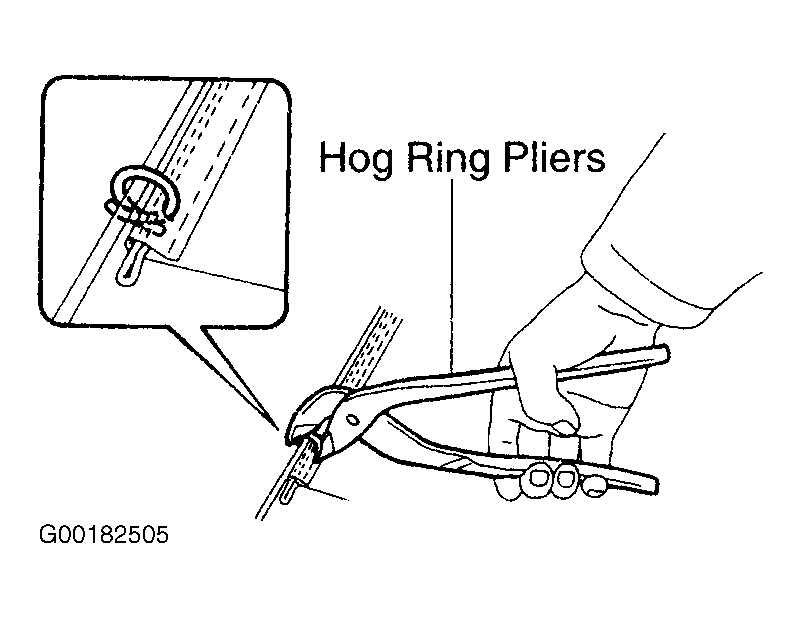

- Install the bench type rear seat cushion cover. Using hog ring pliers, install the hog rings. See Fig 1.
- Install the bench type rear seat back cover.
- Install the rear seat back assembly with 4 bolts. Tighten the bolts to 13 ft. lbs. (18.1 N.m).

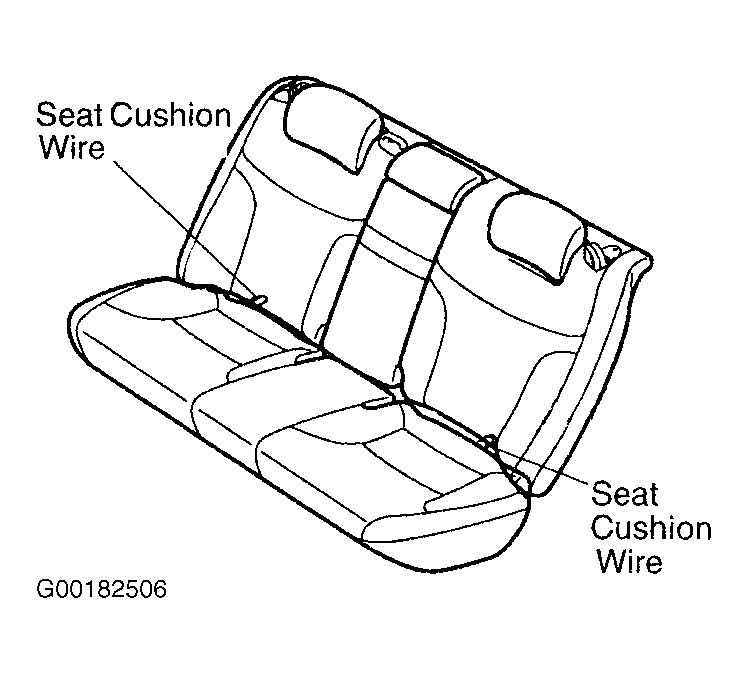

- Install the rear seat cushion assembly. Securely engage the rear seat cushion wire to the pipe child restraint seat anchor bracket sub-assembly. See Fig 2.
CAUTION:
Be careful not to damage the cover. When installing hog rings, take care to prevent wrinkles as little as possible.
