Rear Sun Shade Switch
WARNING: This page is about a different car, the 2003 Lexus ES 300 and 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

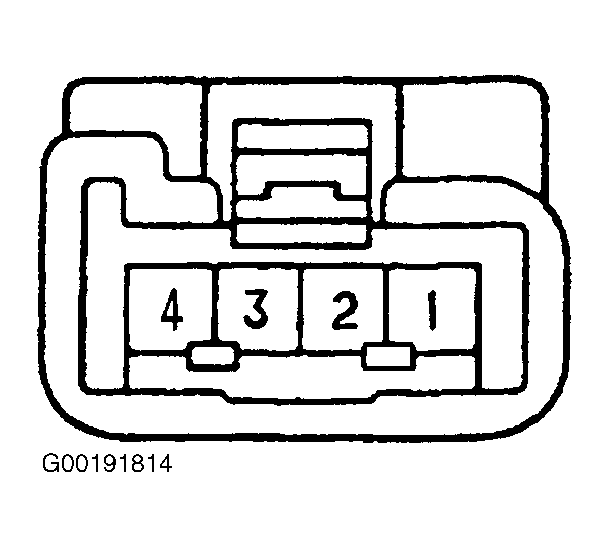

- Inspect the rear sun shade switch continuity. See INSPECTING REAR SUN SHADE SWITCH CONTINUITY table. See Fig 1.
- If continuity is not as specified, replace the rear sun shade switch assembly.
INSPECTING REAR SUN SHADE SWITCH CONTINUITY
| Switch Position | Tester Connection | Specified Condition |
|---|---|---|
| ON | 1 & 4 | Continuity |
| OFF | ..... | No Continuity |
