Moon Roof Drive Gear
WARNING: This page is about a different car, the 2003 Lexus ES 300 and 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

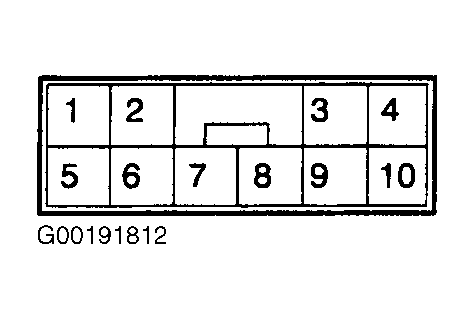

- Inspect the moon roof relay and switch operation. Disconnect the connector from the moon roof relay. See Fig 1. Check continuity or voltage between each terminal of the wire harness side connector. See INSPECTING MOON ROOF DRIVER GEAR OPERATION table. If the value is not as specified, there may be a malfunction in the wire harness side.INSPECTING MOON ROOF DRIVER GEAR OPERATION
Tester Connection Condition Specified Condition 7 (E) - Ground Constant Continuity 1 (E1) - Ground Constant Continuity 5 (+B) - 7 (E) Constant 10-14 Volts 2 (PWS) - 7 (E) Ignition ON - OFF (43 Seconds) 10-14 Volts - 0 Volt 8 (IG) - 7 (E) Ignition Switch OFF - ON 0 Volt - 10-14 Volts 9 (OPEN/DOWN) - 7 (E) Moon Roof Switch - OPEN Or DOWN No Continuity - Continuity 10 (CLOSE/UP) - 7 (E) Moon Roof Switch - CLOSE Or UP No Continuity - Continuity - Connect the moon roof relay connector and check the voltage and continuity between each terminal of the wiring harness connector and body ground. See INSPECTING MOON ROOF DRIVER GEAR VOLTAGE & CONTINUITY table. See Fig 1. If the value is not as specified, the moon roof drive gear or the communication line may be defective.INSPECTING MOON ROOF DRIVER GEAR VOLTAGE & CONTINUITY
Tester Connection Condition Specified Condition 3 (WOPN) - 7 (E) Turning Driver's Door Lock From Neutral To Unlock By Key For 2.5 Seconds Or More 0 Volt - 6-14 Volts 9 (OPEN/DOWN) - 7 (E) Ignition Switch OFF - ON, Moon Roof Switch - OPEN/DOWN 10-14 Volts - 0 Volt 10 (CLOSE/UP) - 7 (E) Ignition Switch OFF - ON, Moon Roof Switch - CLOSE/UP 10-14 Volts - 0 Volt
