Daytime Running Lights (DRL)

WARNING: This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

This system, which is directly connected to the high-beam headlights, is designed to automatically activate them in the daytime in order to keep the vehicle highly visible to other vehicles. See Fig 1.

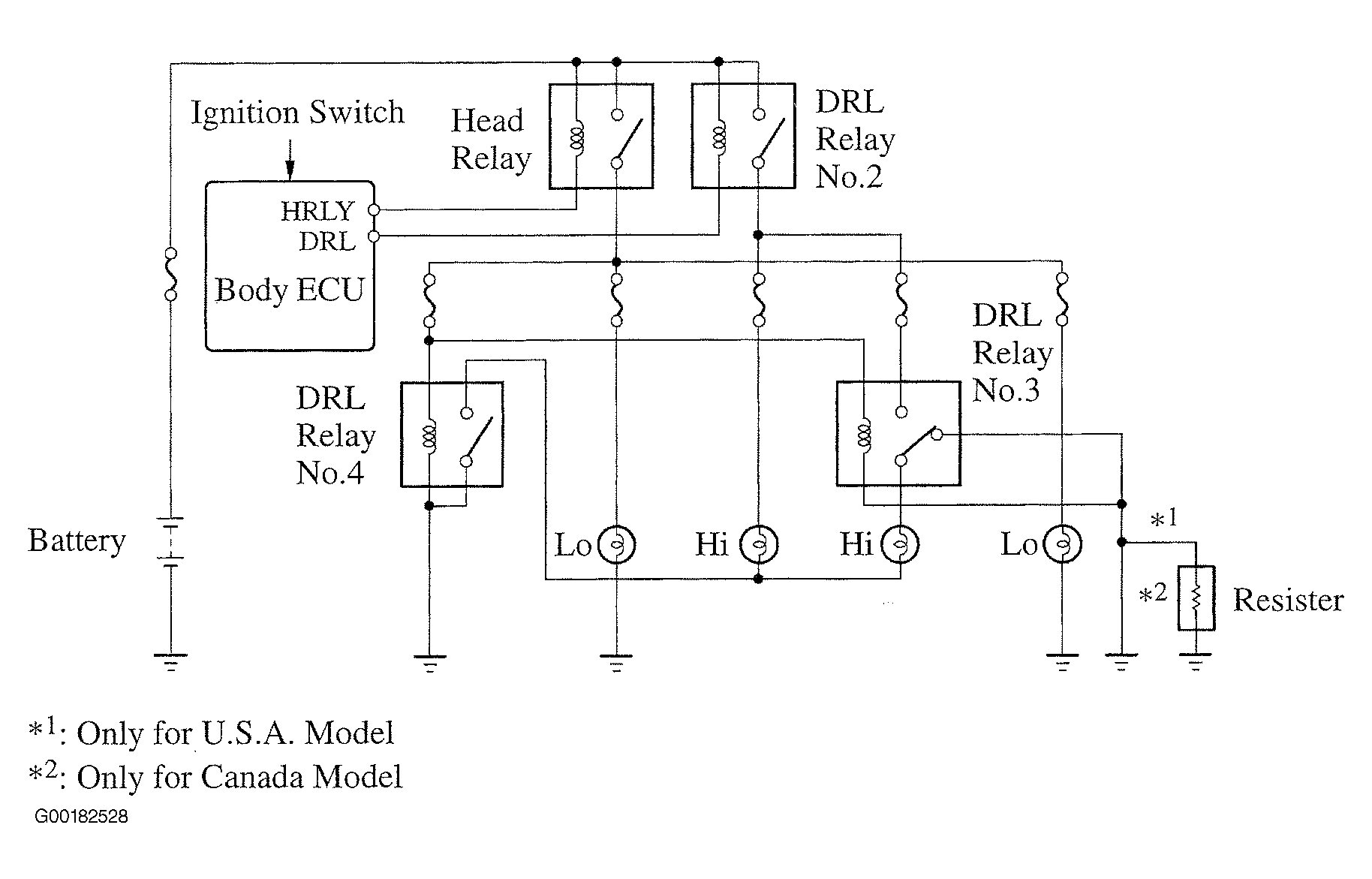

Fig 1: Identifying Daytime Running Light System Diagram
G00182528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
