Windshield Wiper Motor Assembly: Removal

WARNING: This page is about a different car, the 2003 Lexus ES 300 and 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the windshield wiper arm cover.
  2. Remove the LH front wiper arm. Operate the wiper and stop the windshield wiper motor assembly at the automatic stop position.
  3. Remove the RH front wiper arm.
  4. Remove the RH cowl top ventilator louver by removing the 6 clips. See Fig 1.
  5. Remove the windshield wiper link assembly by disconnecting the connector and removing 4 bolts. See Fig 2.
    6. NOTE: Turning the crank arm by hand prior to the operation will make removal of the wiper motor easier.
  6. Remove the windshield wiper motor assembly by disengaging the meshing of the rod at the clank arm pivot of the windshield wiper motor assembly. See Fig 3. Remove the 3 bolts and windshield wiper motor assembly from the windshield wiper link assembly. See Fig 4.

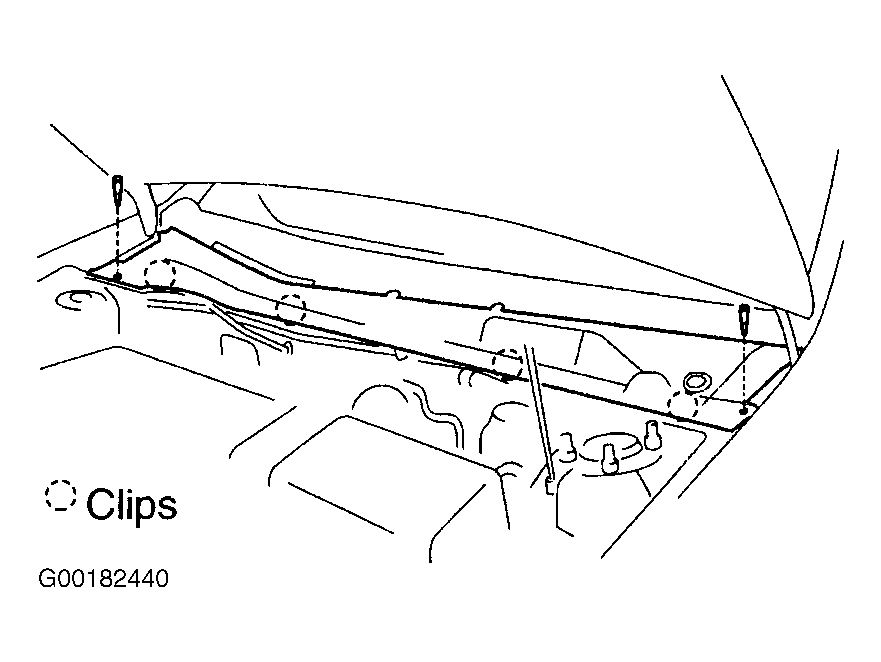

Fig 1: Removing RH Cowl Top Ventilator Louver
G00182440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Removing Windshield Wiper Link Assembly
G00182441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

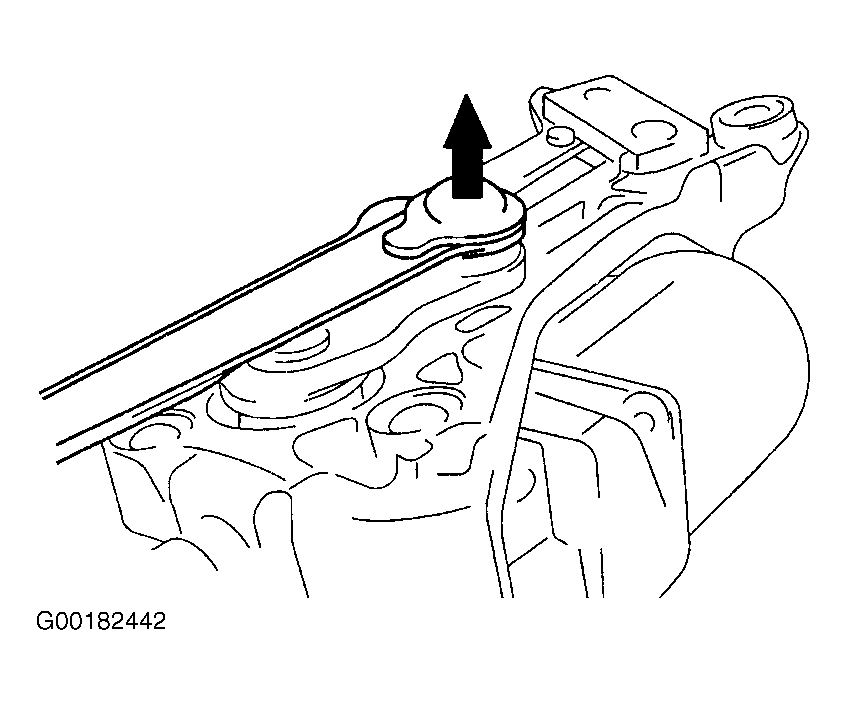

Fig 3: Disengaging Windshield Wiper Motor Rod
G00182442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

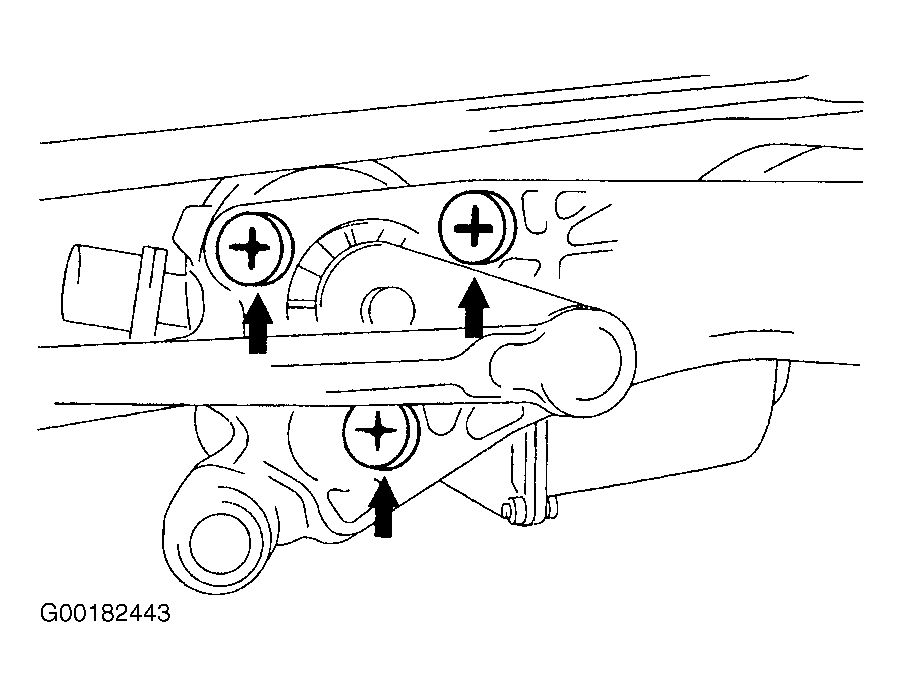

Fig 4: Removing Windshield Wiper Motor Bolts
G00182443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
