Rain Sensor: Removal
WARNING: This page is about a different car, the 2003 Lexus ES 300 and 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

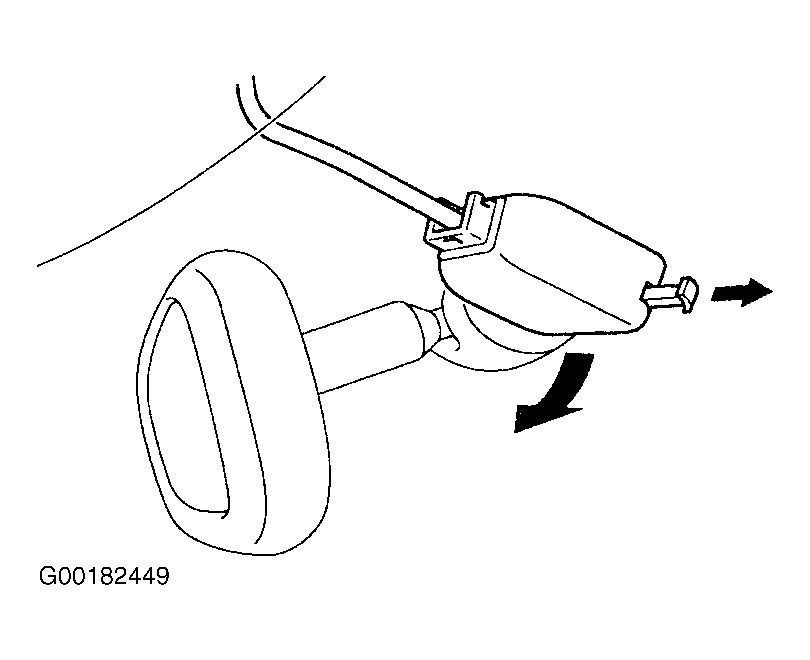

- Release the rain sensor cover. See Fig 1.

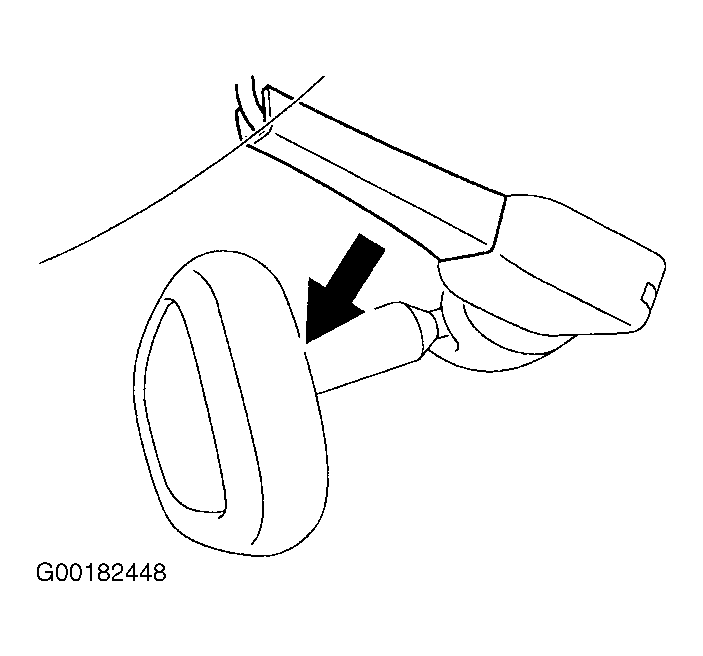

- Pull out the stopper and release the lock. See Fig 2.
- Disconnect the connector and remove the rain sensor.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
