Daytime Running Light Relay No. 1
WARNING: This page is about a different car, the 2003 Lexus ES 300 and 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

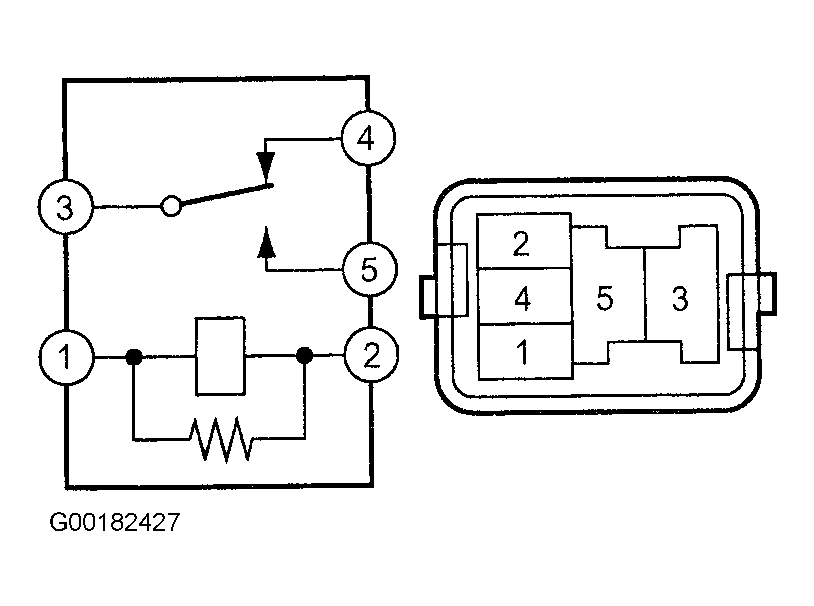

Inspect relay continuity. See Fig 1 and INSPECTING DAYTIME RUNNING LIGHT NO. 1 RELAY CONTINUITY table. If continuity is not as specified, replace relay
INSPECTING DAYTIME RUNNING LIGHT NO. 1 RELAY CONTINUITY
| Condition | Tester Connection | Continuity |
|---|---|---|
| Constant | 1 & 3; 2 & 4 | Yes |
| Apply B+ (Voltage) Between Terminals No. 1 & 3 | 4 & 5 | Yes |
