Combination Meter Safety Pad Sub-Assembly: Removal

WARNING: This page is about a different car, the 2003 Lexus ES 300 and 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. On vehicles with a CD changer, perform ship mode setting. Take out all of the CDs (if they cannot be taken out, do not attempt to take them out forcibly and send the unit for repair). While simultaneously pressing the SEEK UP and DISC switches, turn the ignition switch to ACC. When the ship mode has been set, SHIP must be displayed. See Fig 1. Turn the ignition switch to OFF and disconnect the battery negative terminal. Connecting the battery negative terminal automatically finishes the ship mode.
  2. Disconnect the battery negative terminal.
  3. Place the front wheels facing straight ahead.
  4. Remove the lower steering wheel cover No. 2.
  5. Remove the connector cover by using a screwdriver to disengage the 3 claws. See Fig 2. Remove the steering pad switch by removing the 2 screws and disconnecting the connector. See Fig 3.
  6. Remove the horn button assembly. See REMOVAL & INSTALLATION of DRIVER-SIDE AIR BAG MODULE in appropriate AIR BAG RESTRAINT SYSTEMS article. For installation, see step  6 and  7 .
  7. Remove the steering wheel assembly. Remove the steering wheel assembly set nut. Place matchmarks on the steering wheel assembly and steering wheel main shaft assembly. See Fig 4. Using the Puller C Set, remove the steering wheel assembly. See SPECIAL TOOLS . For installation, see steps  3,  4 and  5 .
  8. Remove the left hand front door scuff plate by disengaging the tape, 3 clips, 7 claws. See Fig 5.
  9. Remove the right hand front door scuff plate.
  10. Remove the upper combination meter sub-assembly. Disconnect the hood lock control cable. Remove bolt B and screw I or J. See Fig 6. Disengage the 3 clips, claw and remove the upper combination meter sub-assembly then disconnect the connectors. See Fig 7.
  11. Remove the left hand lower combination meter insert sub-assembly. Remove the 4 B bolts. See Fig 6. Disengage the 2 claws and remove the left hand lower combination meter sub-assembly. See Fig 8.
  12. Remove the lower steering column cover No. 2. See Fig 9.
  13. Remove the steering column cover by removing the 3 screws. See Fig 10.
  14. Remove the headlamp dimmer switch assembly. See appropriate STEERING COLUMN SWITCHES article.
  15. Remove the windshield wiper switch assembly. See appropriate WIPER/WASHER SYSTEMS article.
    16. NOTE: Tape the screwdriver tip before use.
  16. Remove the combination meter register assembly No. 1. Using a screwdriver, lever up the 2 claws on the combination meter safety pad sub-assembly from inside of the registers. See Fig 11. Disengage the 2 claws and remove the combination meter register assembly No. 1.
  17. Remove the combination meter register assembly No. 3.
  18. Remove the combination meter finish panel sub-assembly. Remove the 2 clips. See Fig 12. Disengage the 2 clips and remove the combination meter finish panel sub-assembly.
  19. Remove the combination meter assembly. Remove the 4 G or H screws. See Fig 6 and Fig 13 . Pull out the combination meter assembly, then disconnect the connectors.
  20. Remove the combination meter under cover sub-assembly No. 1. Disengage the 3 claws and disconnect the connector. See Fig 14. Disengage the pin and remove the combination meter under cover sub-assembly No. 1.
  21. Remove the lower combination meter sub-assembly. Remove the 3 H screws and 2 B bolts. See Fig 6 and Fig 15 . Disengage the clip and remove the lower combination meter sub-assembly.
  22. Remove the upper console panel sub-assembly. Disengage the 4 clips. See Fig 16. Pull out the console panel sub-assembly, then disconnect the connectors.
  23. Remove the upper rear console panel. Using a moulding remover, disengage the 6 clips and 2 claws. See Fig 17. Remove the console upper rear with the upper front console panel.
  24. Remove the console box carpet.
  25. Remove the rear console box. Remove the 2 C or D bolts and 2 G screws. See Fig 6 and Fig 18 . Disengage the 2 claws and remove the rear console box assembly, then disconnect the connector.
  26. Remove the left hand end combination meter finish panel. Remove the I or J screw. See Fig 6 and Fig 19 . Disengage the 2 clips and remove the left hand end combination meter.
  27. Remove the right hand end combination meter finish panel.
  28. Remove the air conditioning control assembly. Using a moulding remover, disengage the 5 clips and 3 claws. See Fig 20. Pull out the air conditioner control assembly, then disconnect the connectors.
  29. On vehicles with the Lexus navigation system, remove the combination meter finish panel sub-assembly center. Remove the 4 bolts. See Fig 21. Using a moulding remover, disengage the 4 clips and remove the combination meter finish panel sub-assembly center with the radio receiver assembly, then disconnect the connectors.
  30. On vehicles without the Lexus navigation system, remove the radio receiver panel. Remove the 4 bolts. See Fig 22. Using a moulding remover, disengage the 4 clips, 3 claws and remove the radio receiver panel with the radio receiver assembly, then disconnect the connectors.
  31. On vehicles with a CD changer, perform ship mode confirmation. See the back side of the radio receiver assembly and check that the window provided for mode checking is red. See Fig 23. If it is not red, perform the ship mode setting again; see step  1.
  32. Remove the left hand front pillar garnish. Remove a part of the left hand front door opening weather strip. Strongly press the positions where the special clips are used and release the clips. See Fig 24. Disengage the 2 clips and 2 claws, pull the left hand front pillar garnish backwards of the vehicle and remove. Remove the clip that is not reusable. For installation, see step  2.
  33. Remove the right hand front pillar garnish.
  34. Remove the combination meter finish plate.
  35. Disconnect the passenger air bag connector. See appropriate AIR BAG RESTRAINT SYSTEMS article.
    36. NOTE: Tape screwdriver tip before use.
  36. Using a screwdriver, remove the combination meter safety pad cap. See Fig 25.
  37. Remove the combination meter safety pad sub-assembly. Remove the 2 A and E bolts, the 2 F and G screws and the K nut. See Fig 6 and Fig 26 . Disconnect the connectors. Disengage the 2 pins and remove the combination meter safety pad sub-assembly. For installation, see step  1.
  38. Remove the combination meter moulding No. 2. Using a moulding remover, disengage the 6 claws and remove the combination meter moulding No. 2. See Fig 27.
  39. Remove the switch hole base No. 1 by disengaging the 4 claws.
  40. Remove the glove box lamp assembly by disengaging the 2 claws.
    41. CAUTION: Do not pry the automatic light control sensor off from the upper position.
    NOTE: Tape the screwdriver tip before use.
  41. Using a screwdriver, remove the automatic light control sensor. See Fig 28.
  42. Remove the side defroster nozzle duct No. 2 by removing a G screw.
  43. Remove the side defroster nozzle duct No. 1 by removing a G screw.
  44. Remove the defroster nozzle assembly, by removing 5 G screws.
  45. Remove the heater to register duct No. 2 by removing 2 G screws.
  46. Remove the heater to register duct No. 1 by removing 2 G screws.
  47. Remove the heater to register duct No. 3 by removing 2 G screws.
  48. Remove the defroster nozzle garnish No. 1.
  49. Remove the side defroster nozzle No. 1 by disengaging the claw.
  50. Remove the side defroster nozzle No. 2 by disengaging the claw.
  51. Remove the combination meter pin No. 1 by removing 2 G screws.
  52. Remove the combination meter passenger L/door air bag assembly. See REMOVAL & INSTALLATION of PASSENGER-SIDE AIR BAG MODULE in appropriate AIR BAG RESTRAINT SYSTEMS article.

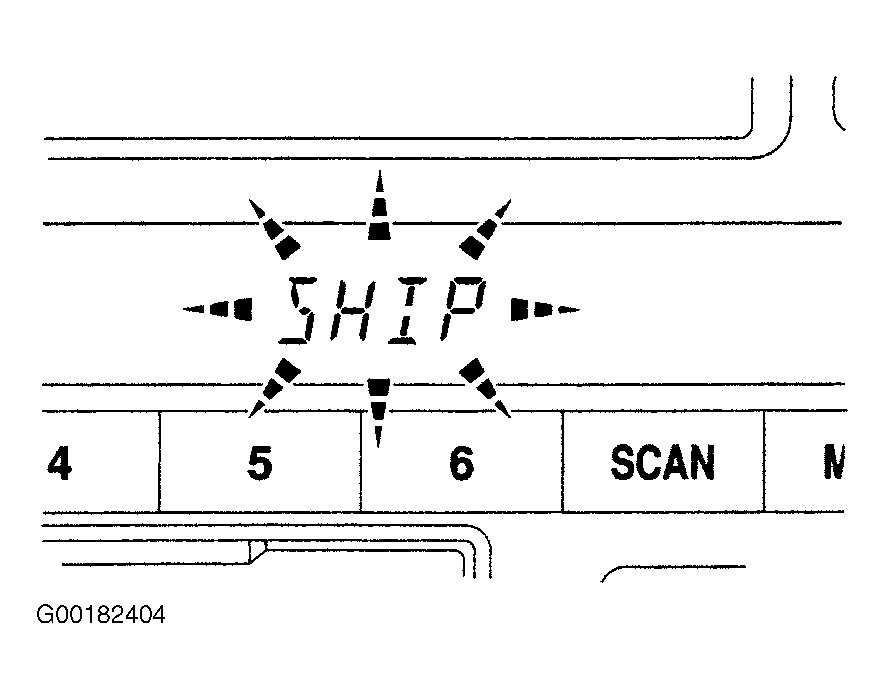

Fig 1: Setting SHIP Mode
G00182404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

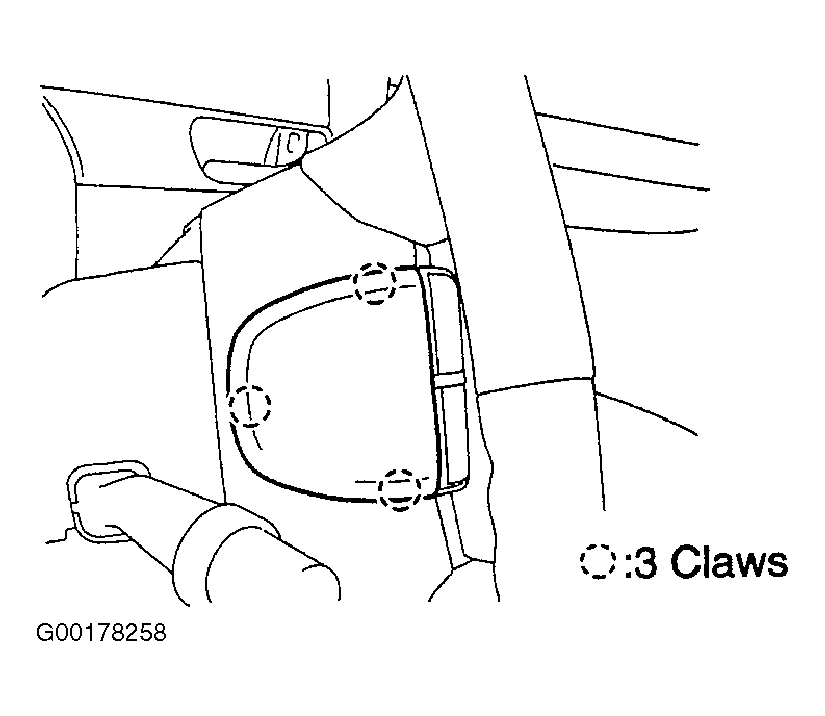

Fig 2: Removing Connector Cover
G00178258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

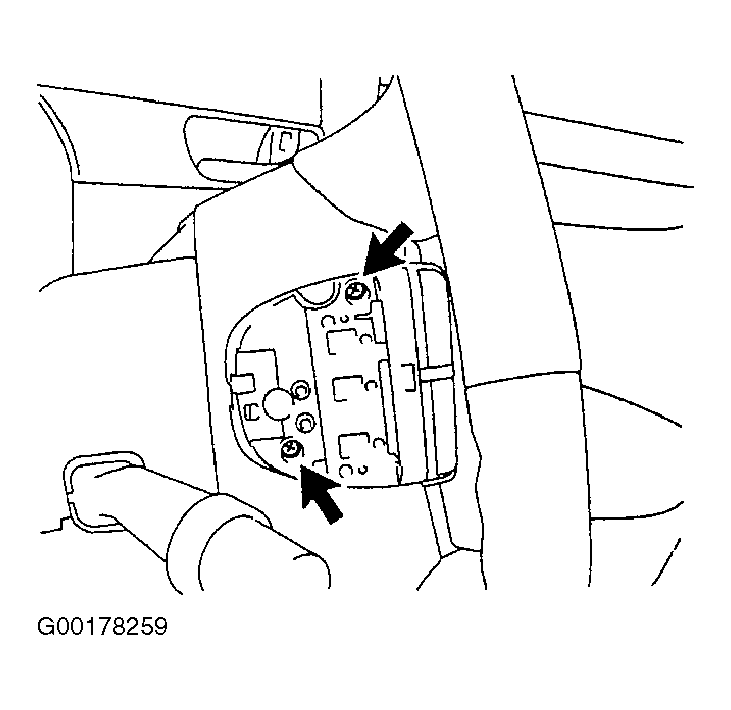

Fig 3: Removing Steering Pad Switch
G00178259Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Removing Steering Wheel Assembly
G00178264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

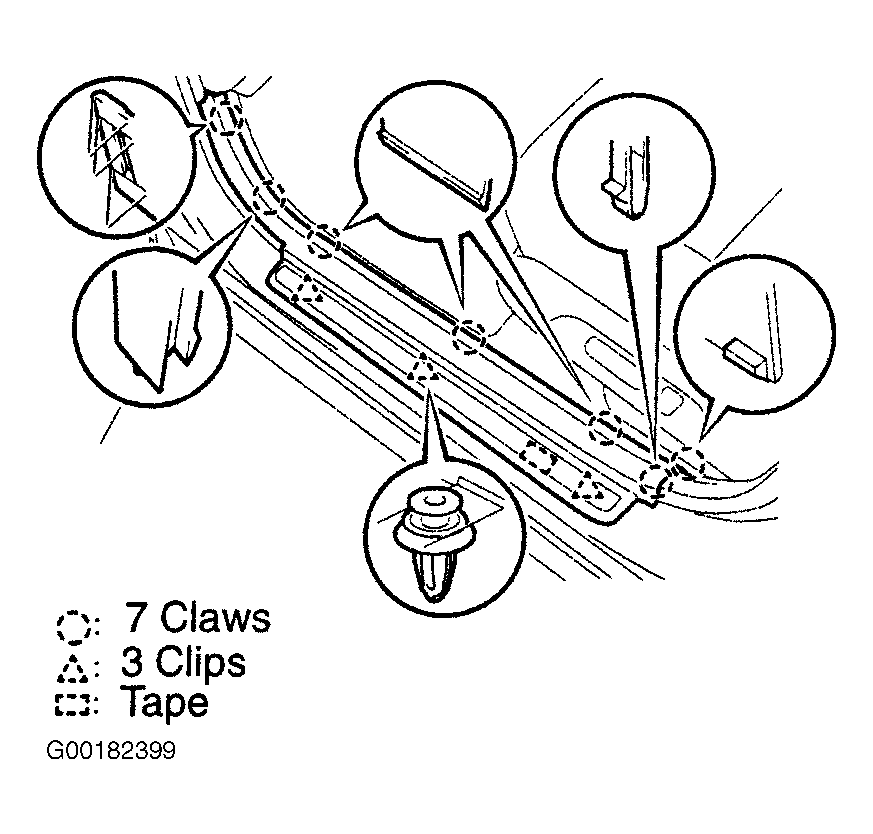

Fig 5: Removing LH Front Door Scuff Plate
G00182399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

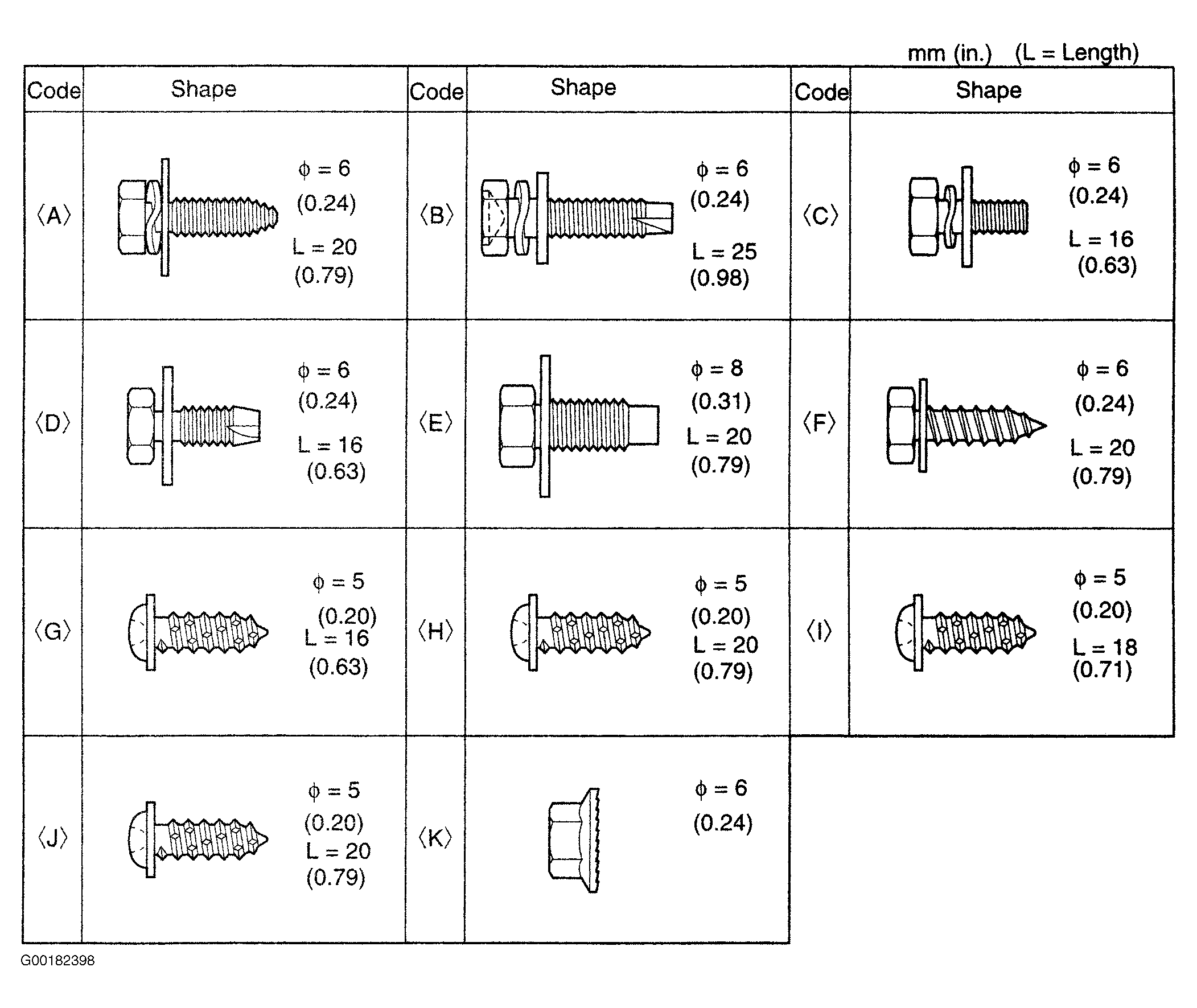

Fig 6: Identifying Combination Meter Bolt, Screws & Nuts
G00182398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

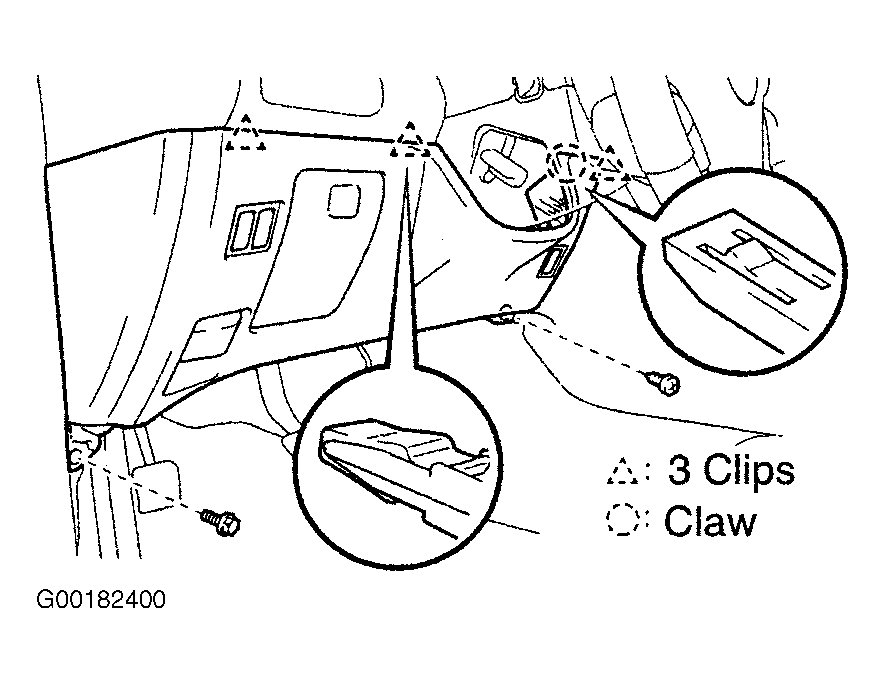

Fig 7: Removing Upper Combination Meter Sub-Assembly
G00182400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

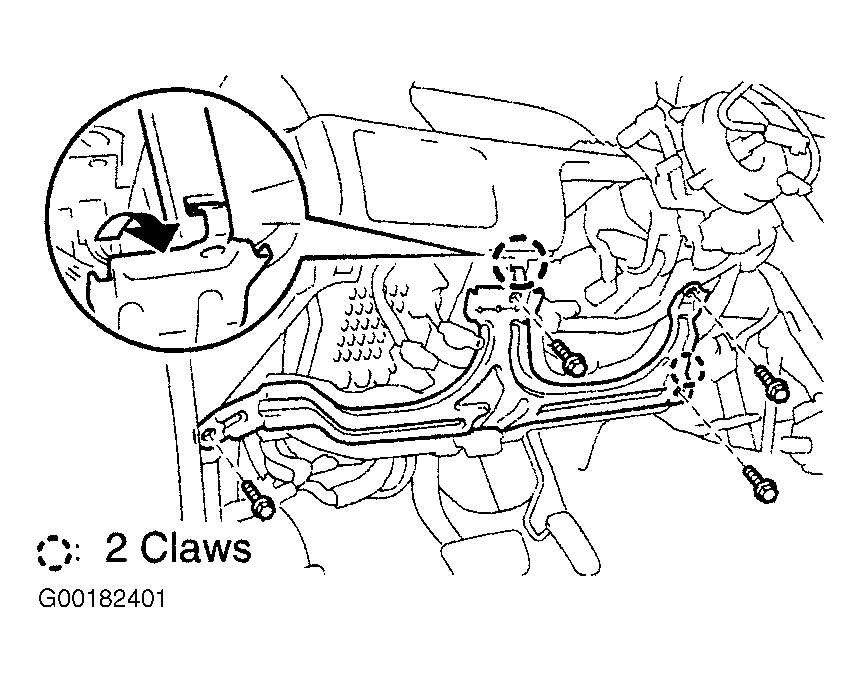

Fig 8: Removing LH Lower Combination Meter Insert Sub-Assembly
G00182401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Removing Lower Steering Column Cover No. 2
G00182402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

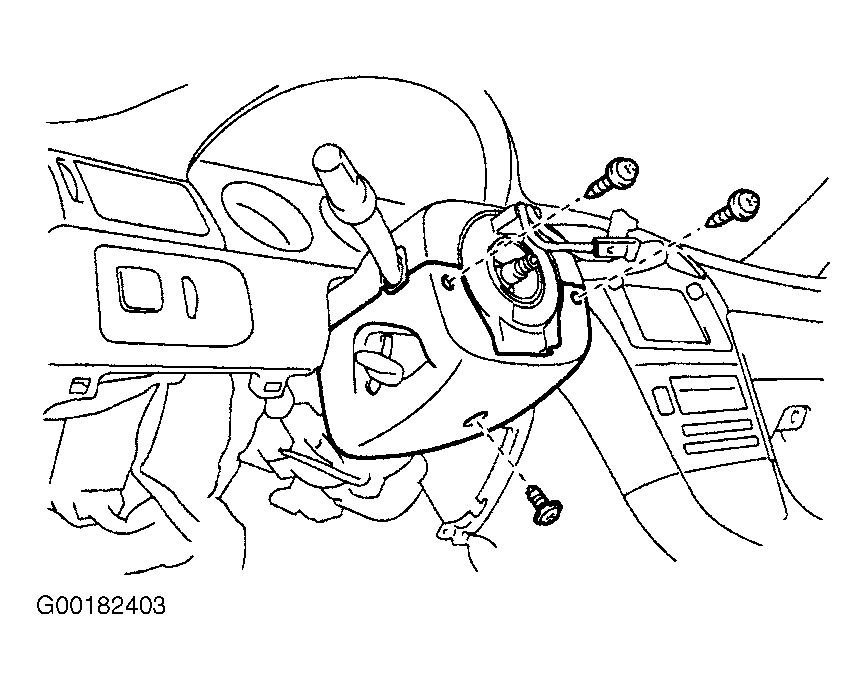

Fig 10: Removing Steering Column Cover
G00182403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

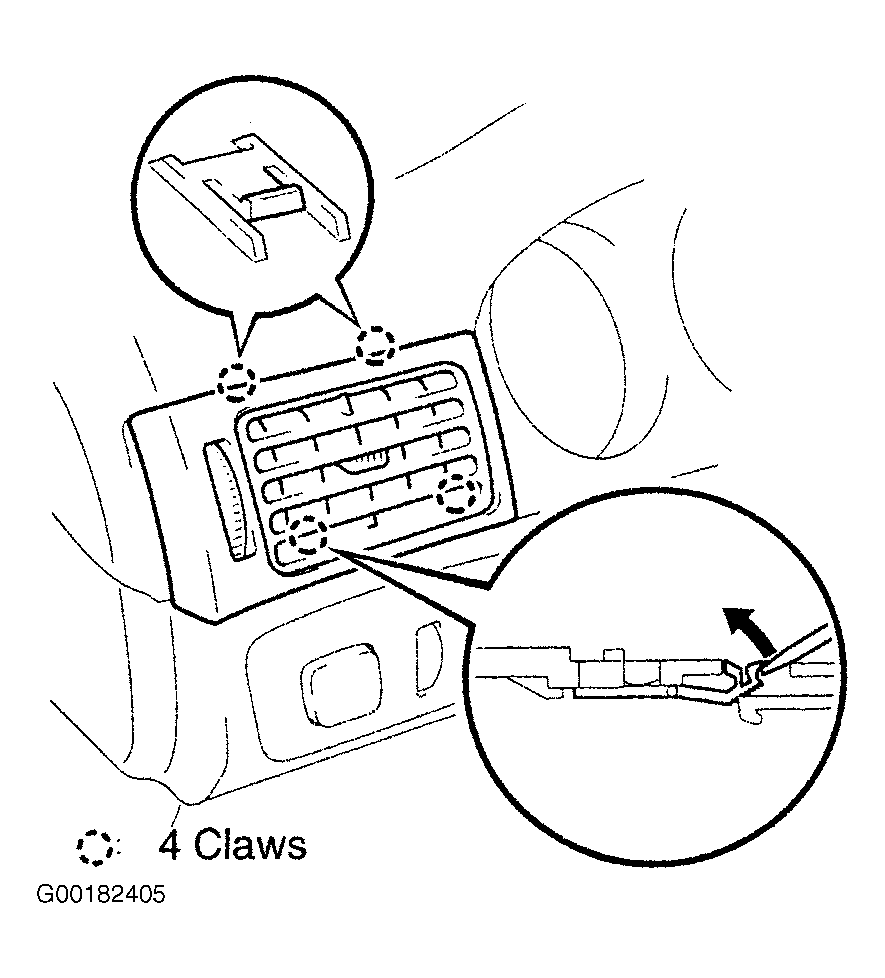

Fig 11: Removing Combination Meter Register Assembly No. 1
G00182405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

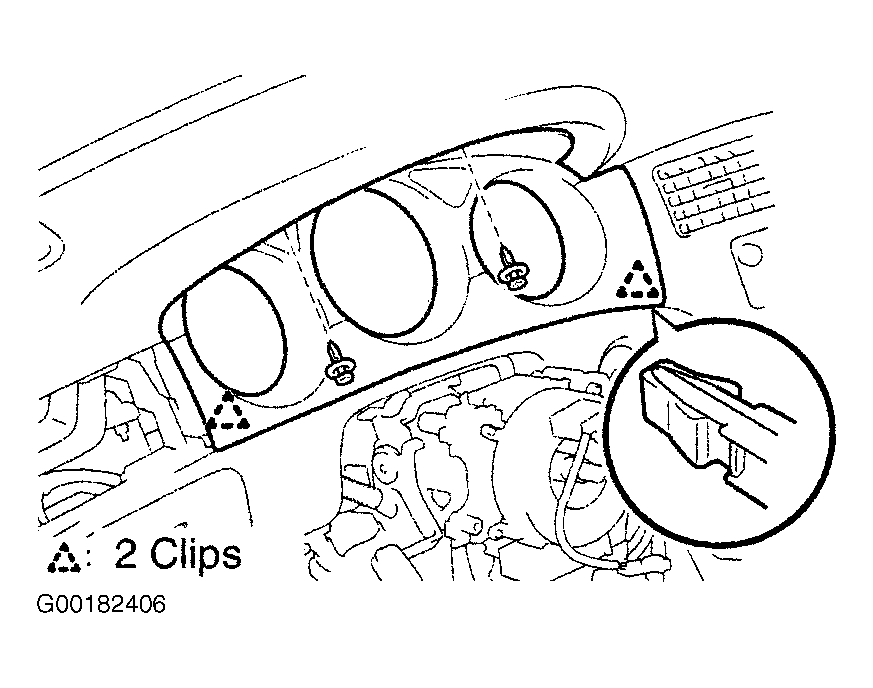

Fig 12: Removing Combination Meter Finish Panel Sub-Assembly
G00182406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

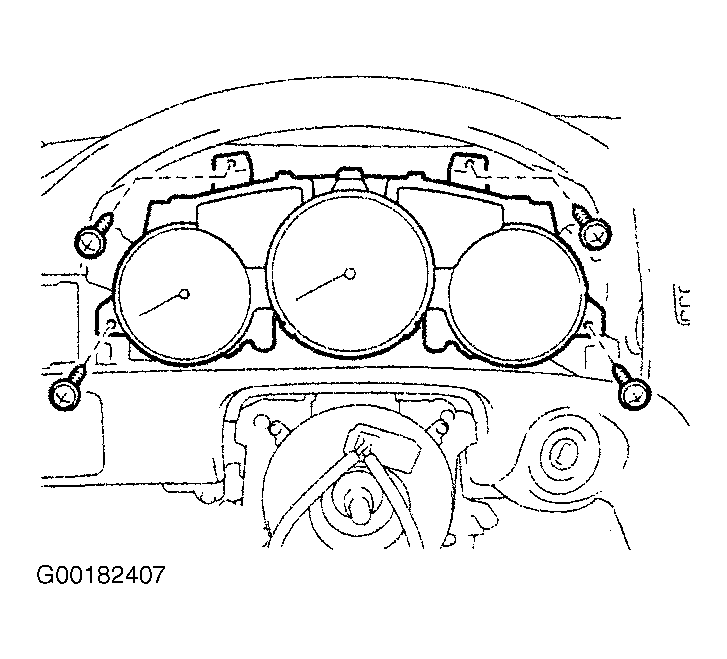

Fig 13: Removing Combination Meter Assembly
G00182407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

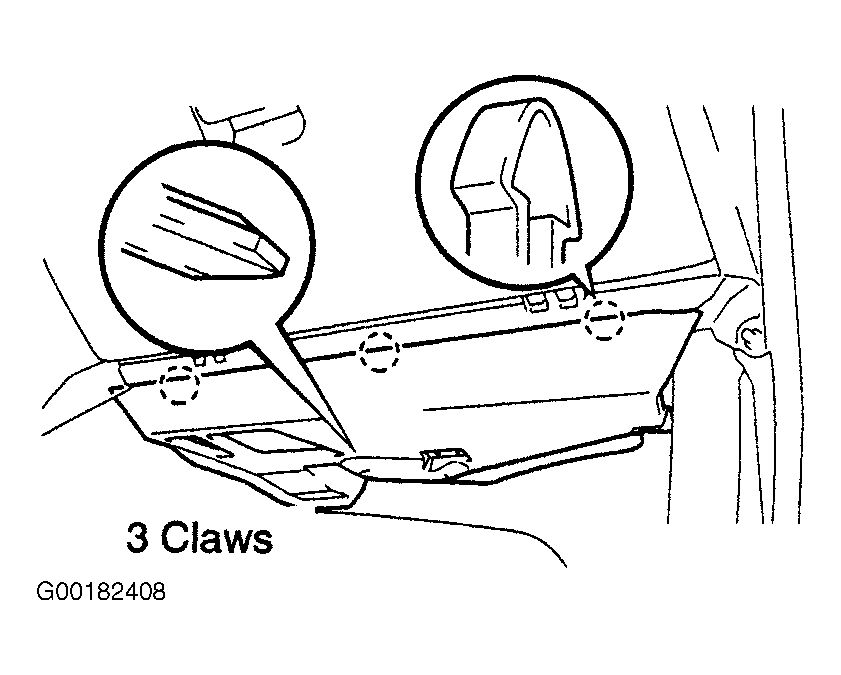

Fig 14: Removing Combination Meter Under Cover Sub-Assembly No. 1
G00182408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

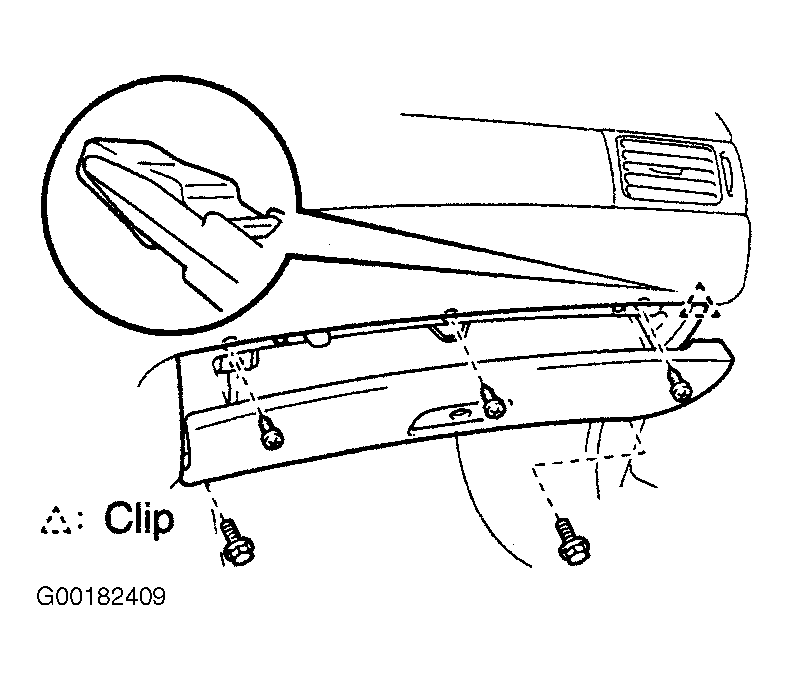

Fig 15: Removing Lower Combination Meter Sub-Assembly
G00182409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

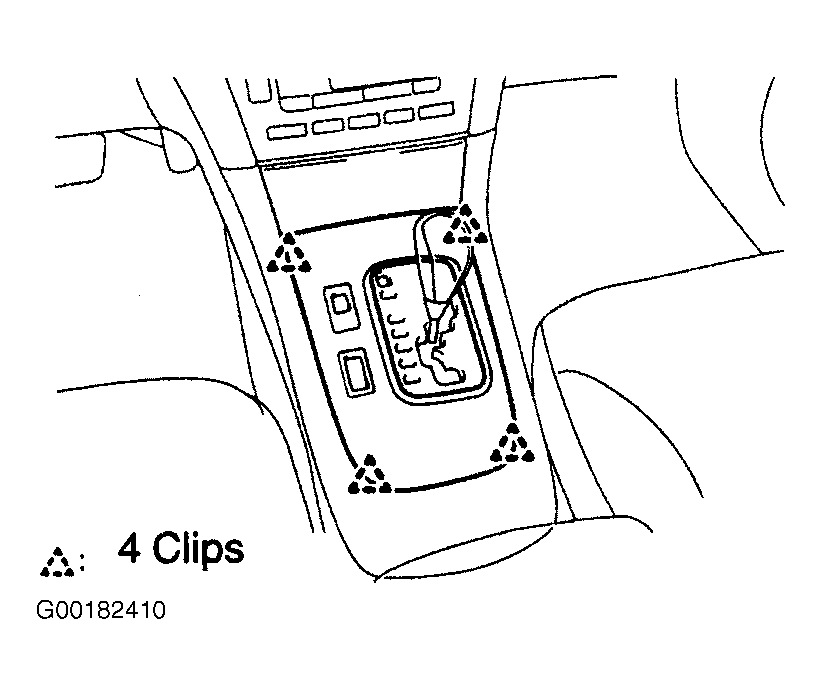

Fig 16: Removing Upper Console Panel Sub-Assembly
G00182410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

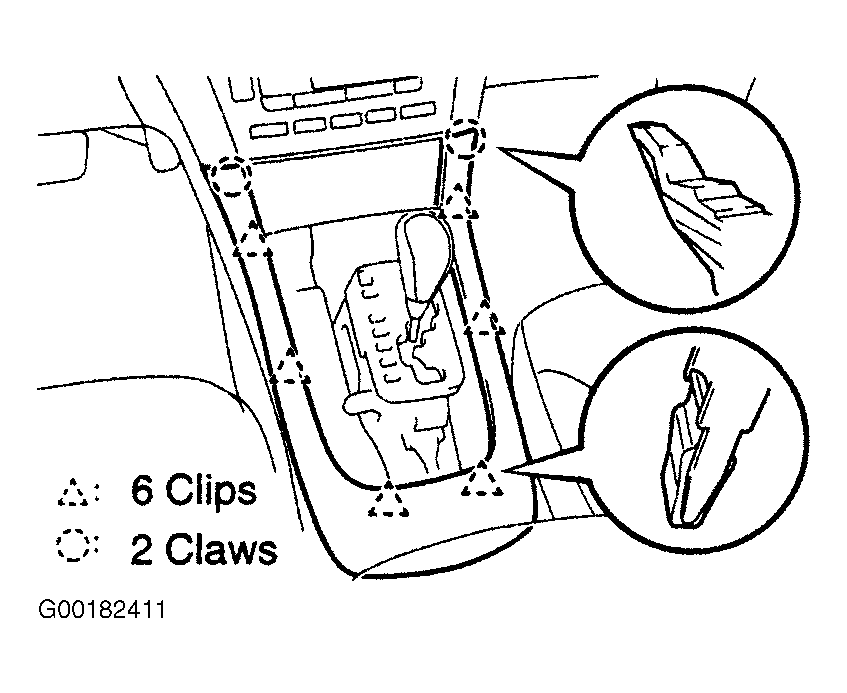

Fig 17: Removing Upper Rear Console Panel
G00182411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

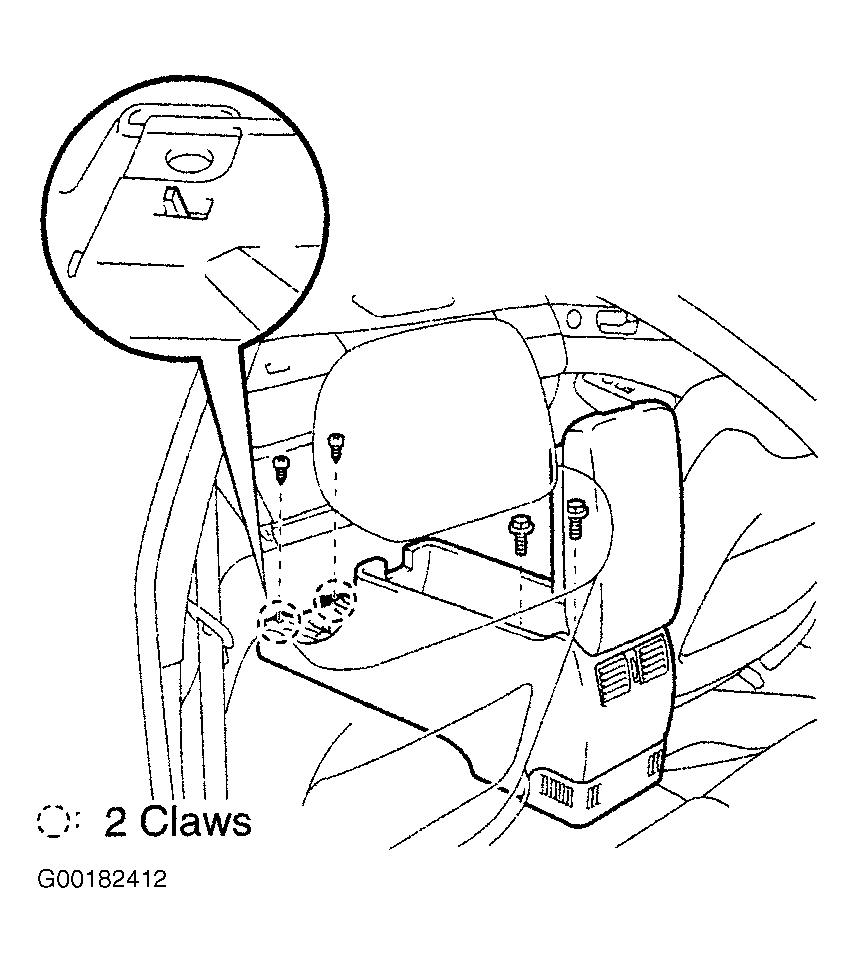

Fig 18: Removing Rear Console Box
G00182412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

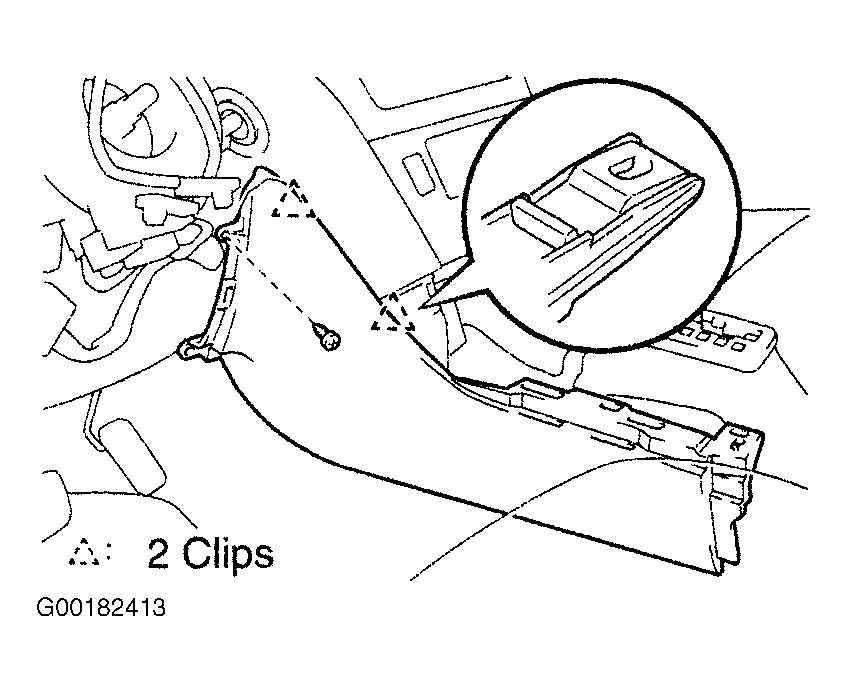

Fig 19: Removing LH End Combination Meter Finish Panel
G00182413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

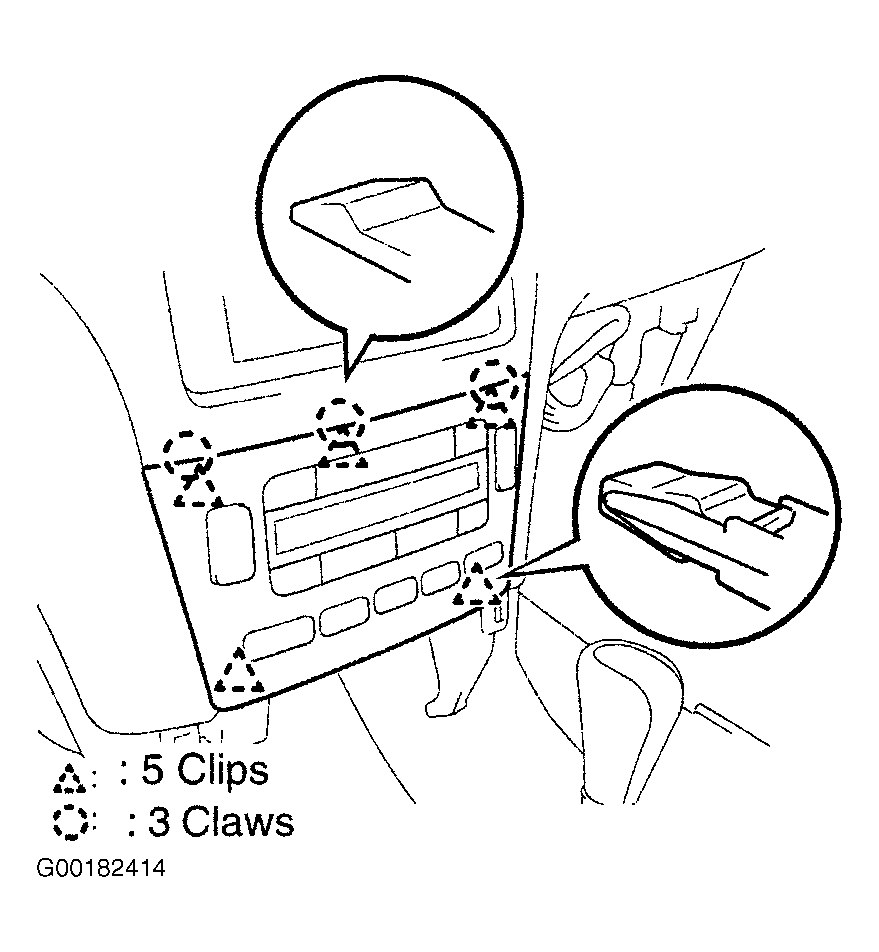

Fig 20: Removing Air Conditioning Control Assembly
G00182414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

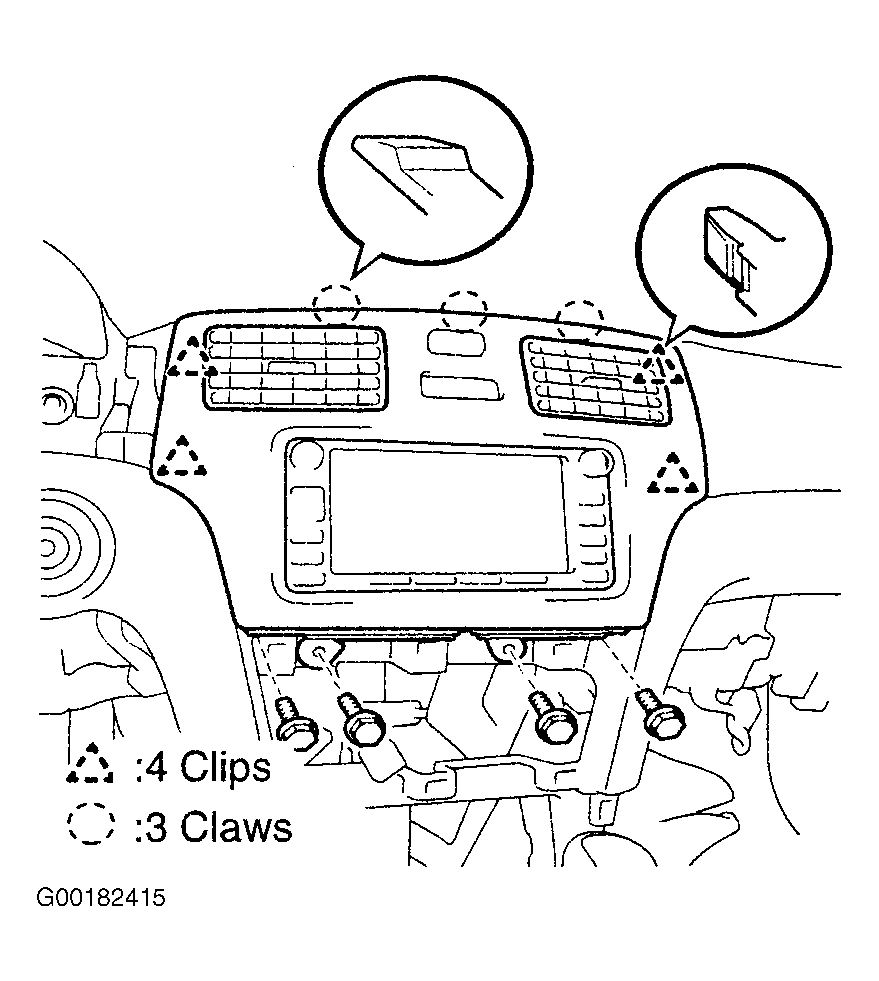

Fig 21: Removing Combination Meter Finish Panel Sub-Assembly Center (W/ Lexus Navigation System)
G00182415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

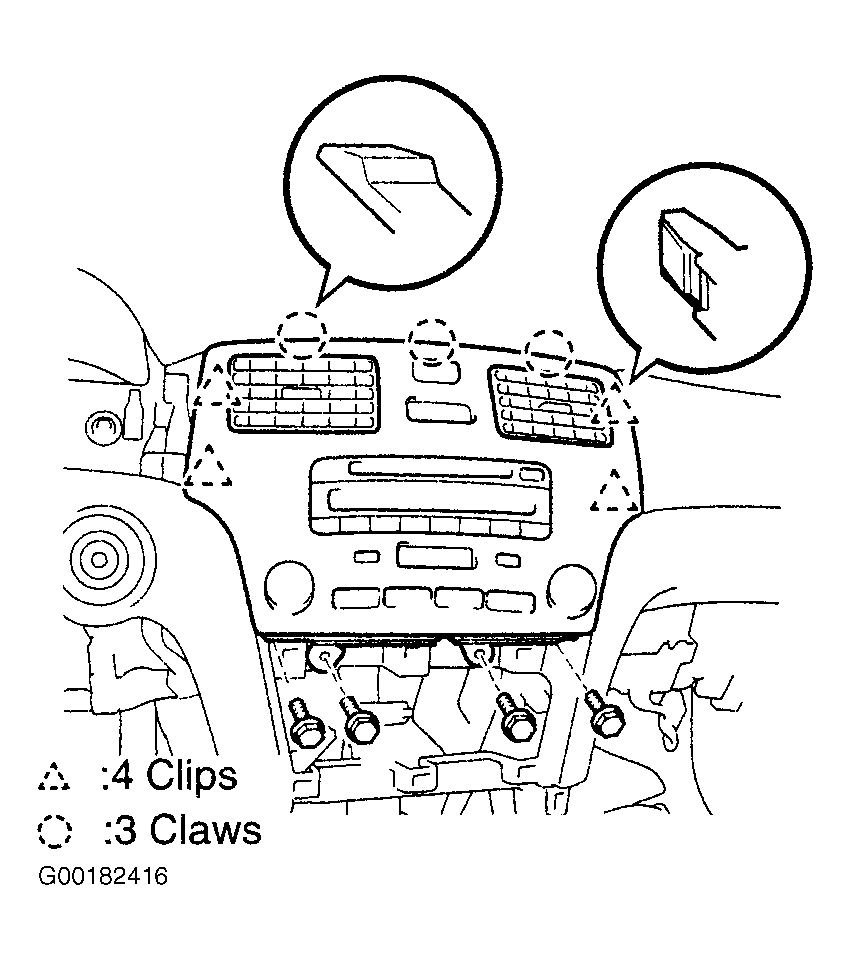

Fig 22: Removing Radio Receiver Panel (W/O Lexus Navigation System)
G00182416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

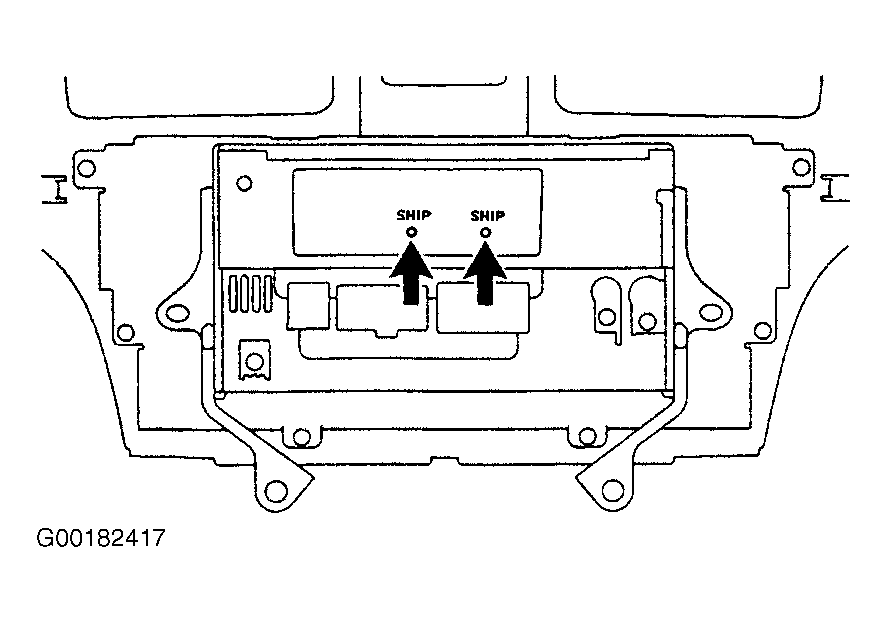

Fig 23: Performing Ship Mode Confirmation (W/ CD Changer)
G00182417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

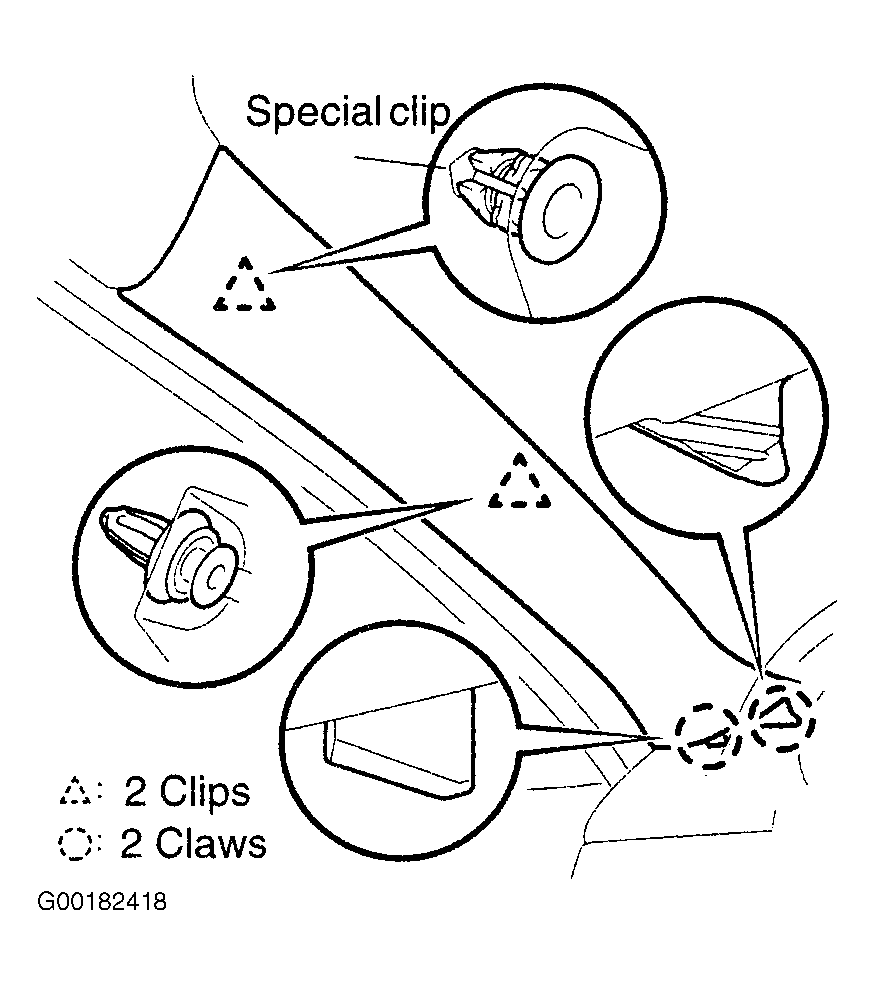

Fig 24: Removing LH Front Pillar Garnish
G00182418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

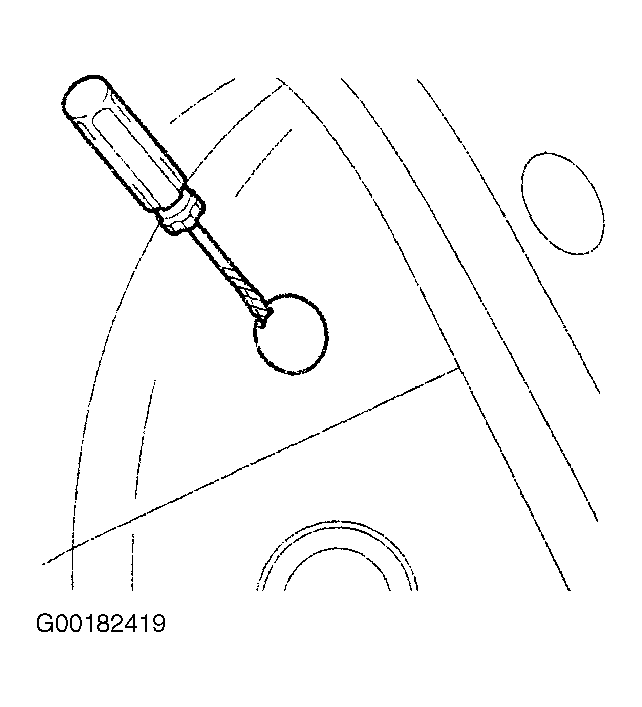

Fig 25: Removing Combination Meter Safety Pad Cap
G00182419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

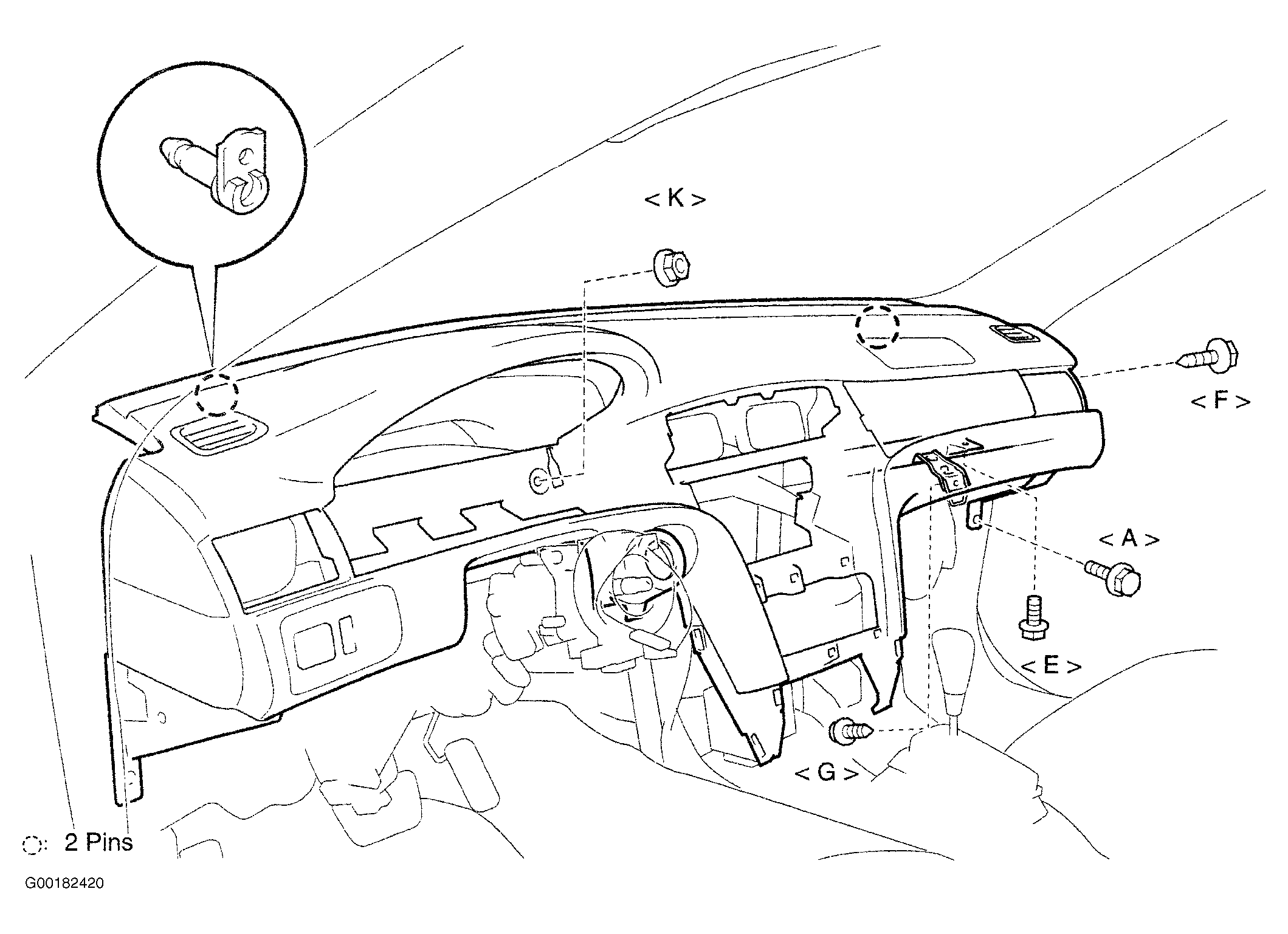

Fig 26: Removing Combination Meter Safety Pad Sub-Assembly
G00182420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

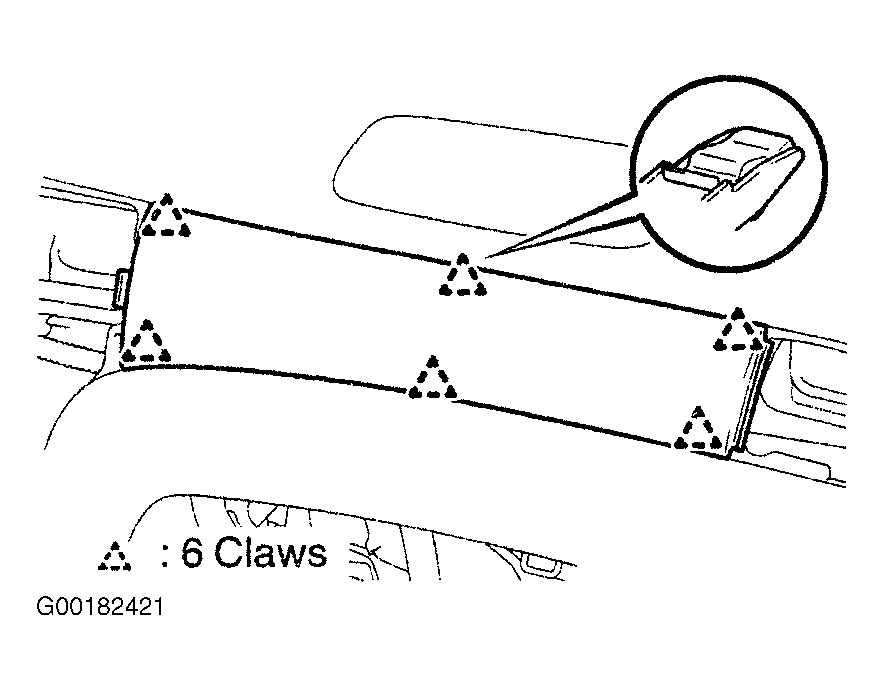

Fig 27: Removing Combination Meter Moulding No. 2
G00182421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

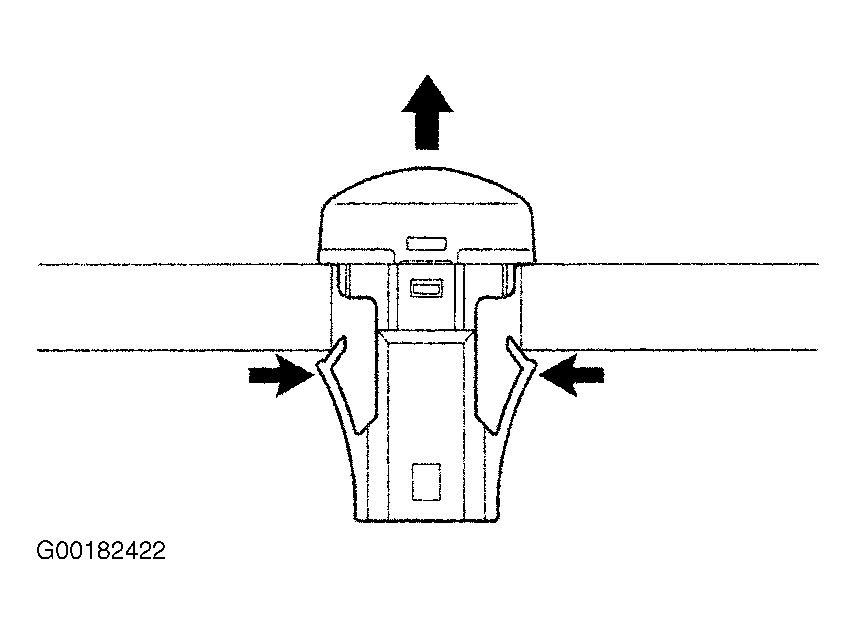

Fig 28: Removing Automatic Light Control Sensor
G00182422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
