Seat Heater (Seat Cushion): Installation
WARNING: This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For installation, reverse removal procedure except where noted below.

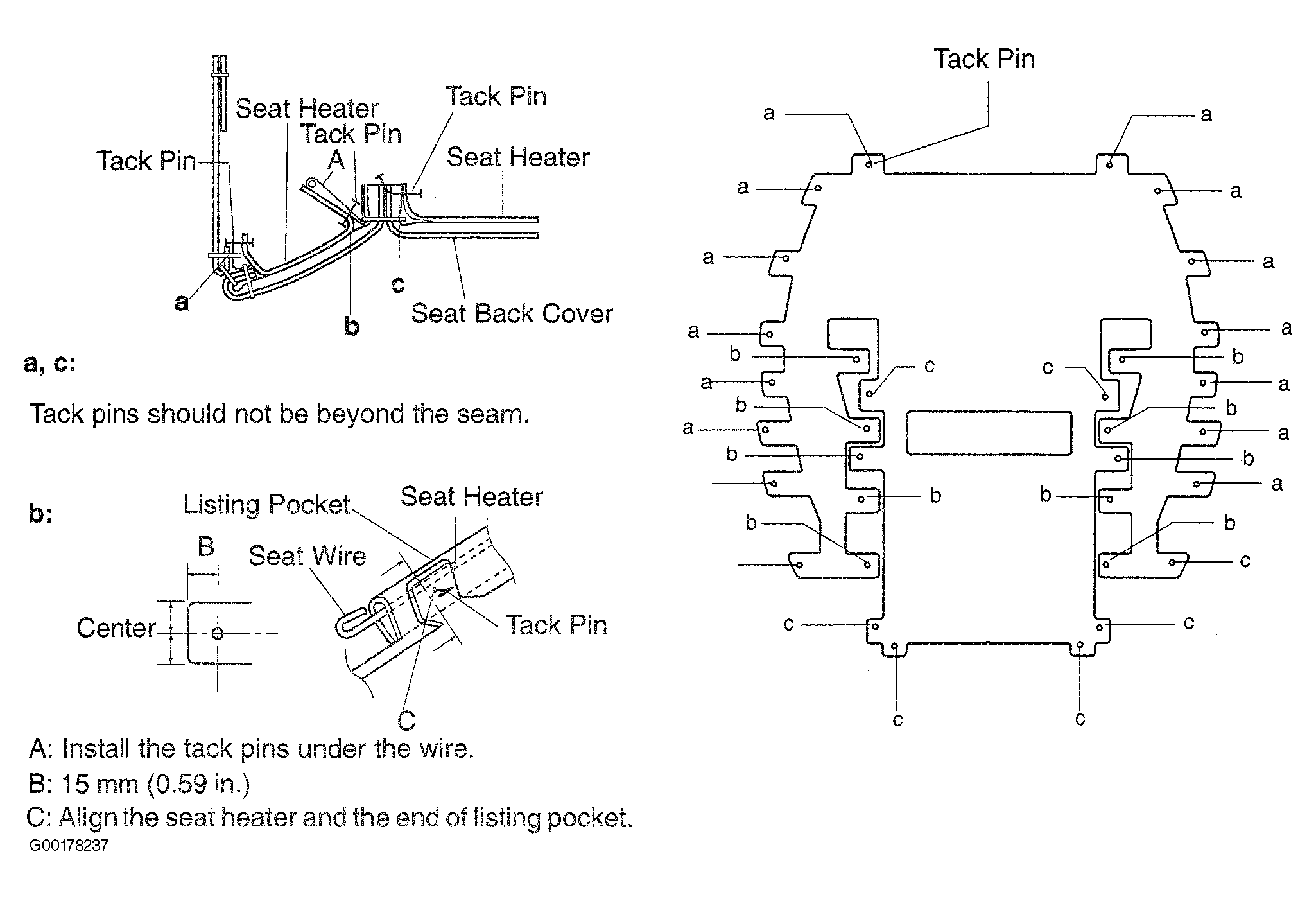

- Set the seat heater to the seat cushion cover. Install the seat heater to the seat cushion with 32 tack pins. See Fig 1. Install the left hand front seat cushion heater assembly.
- Using hog ring pliers, install the hog rings. See Figure. Install the separate type front seat cushion cover.
CAUTION:
Do not substitute other metal parts for tack pins.
CAUTION:
Be careful not to damage the cover. When installing the hog rings, take care to prevent wrinkles as little as possible.
