Removal & Installation (Camry & Camry Solara)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

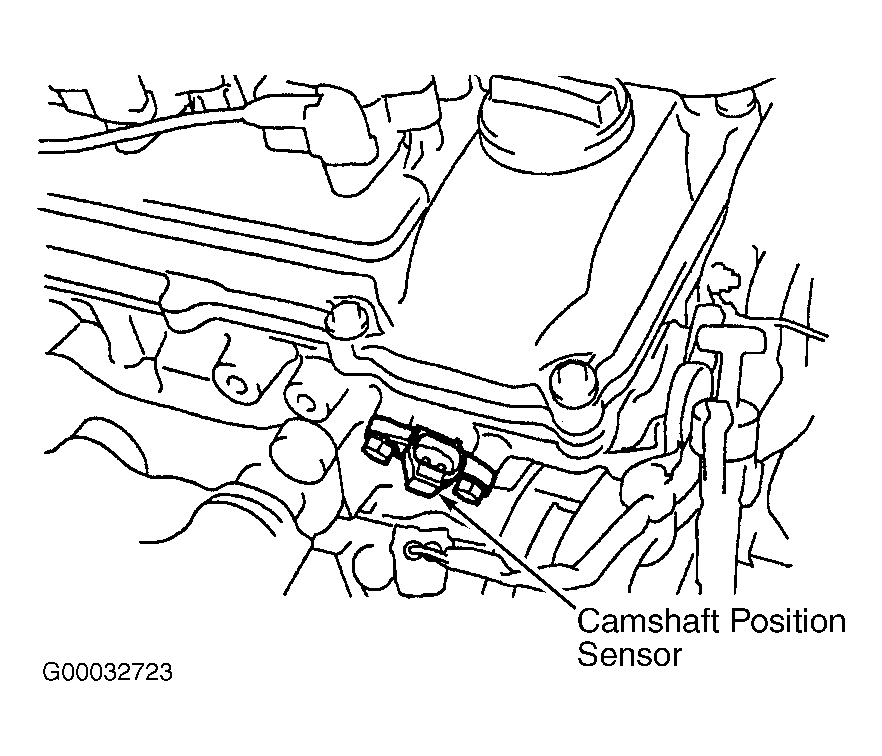

- Camshaft position sensor is located at flywheel end of front (radiator side) cylinder head, just below valve cover. See Fig 1. Disconnect electrical connector at camshaft position sensor.
- Remove bolts and camshaft position sensor from cylinder head.
- To install, reverse removal procedure. Tighten bolts to specification. See TORQUE SPECIFICATIONS .
