Removal (Camry - Up To Jan. 2003 Production)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
- Drain cooling system.
- Remove air cleaner hose along with upper cap on air cleaner assembly.
- Remove suspension upper brace. Suspension upper brace fits between strut towers and is bolted to top of each strut tower.

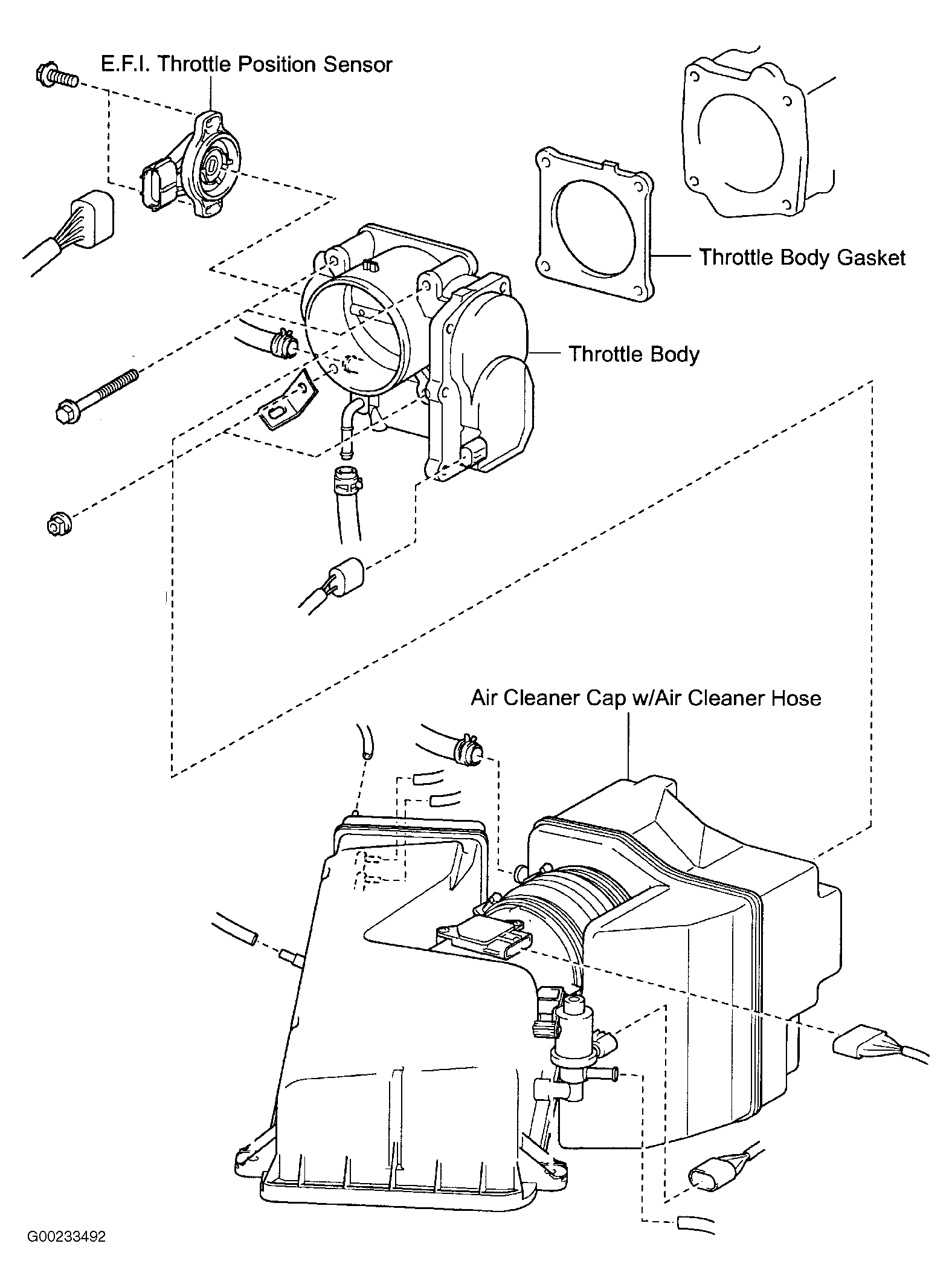

- Disconnect coolant hoses and electrical connectors at throttle body. See Fig 1
- Remove bolts/nuts, throttle body and gasket.
