Removal (Camry - Jan. 2003 & Later Production)

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain cooling system.
  2. Remove suspension upper brace. Suspension upper brace fits between strut towers and is bolted to top of each strut tower.
  3. Remove "V" bank cover.
  4. Disconnect necessary electrical connectors, vacuum hoses and emission tube fuel hose.
  5. Remove fuel vapor feed hose and 2 hose clamps. See Fig 1.
  6. Remove air cleaner assembly and remove air cleaner filter.
  7. Disconnect electrical connector for throttle motor.
  8. Disconnect necessary water by-pass hose. See Fig 2.
  9. Remove bolts/nuts and throttle body. Remove gasket from intake air control valve.

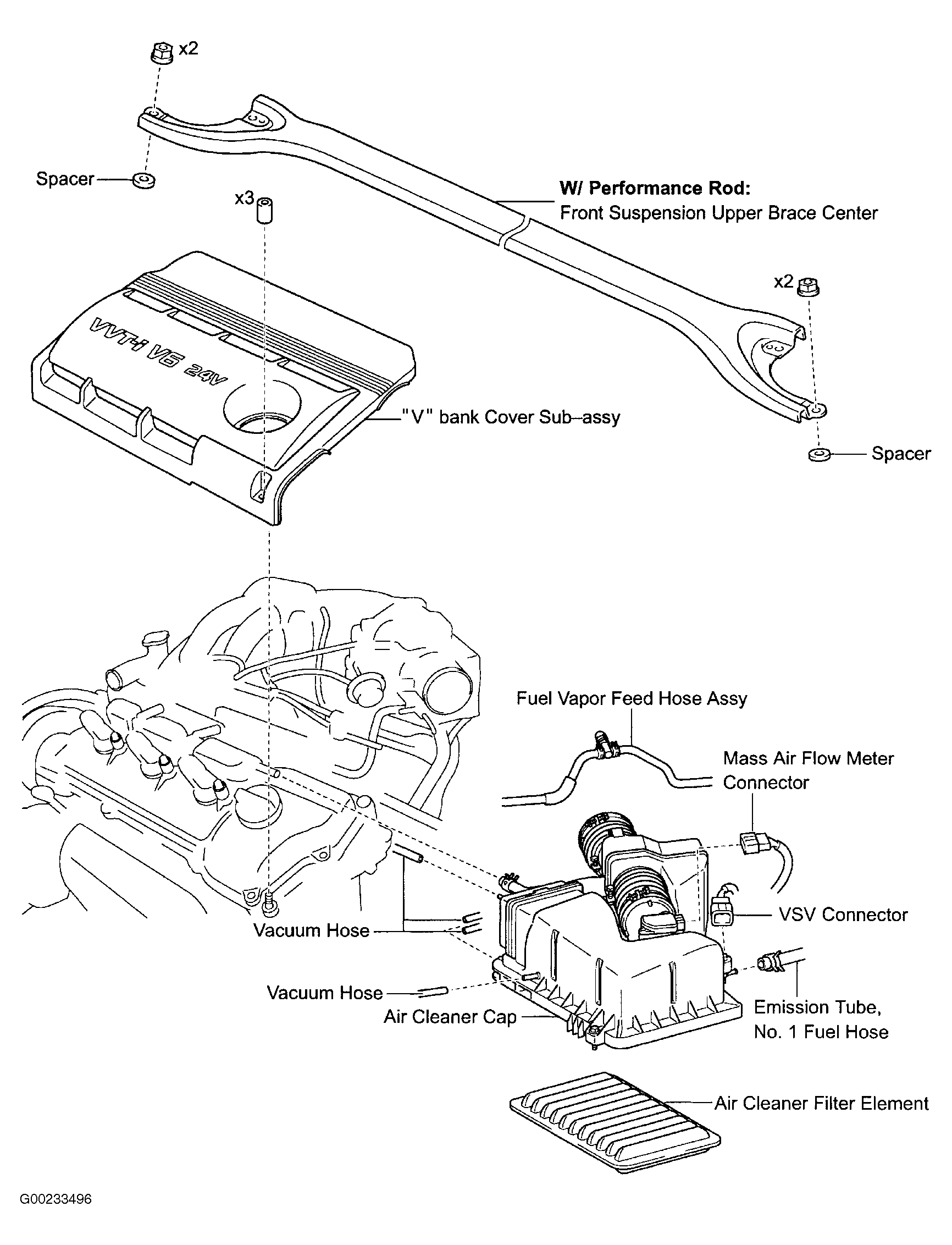

Fig 1: Exploded View Of Air Cleaner Assembly Components (Camry - Jan. 2003 & Later Production)
G00233496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Locating Throttle Body (Camry - Jan. 2003 & Later Production)
G00233500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
