Removal (4Runner 4.0L)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
- Drain cooling system.
- Remove "V" bank cover.

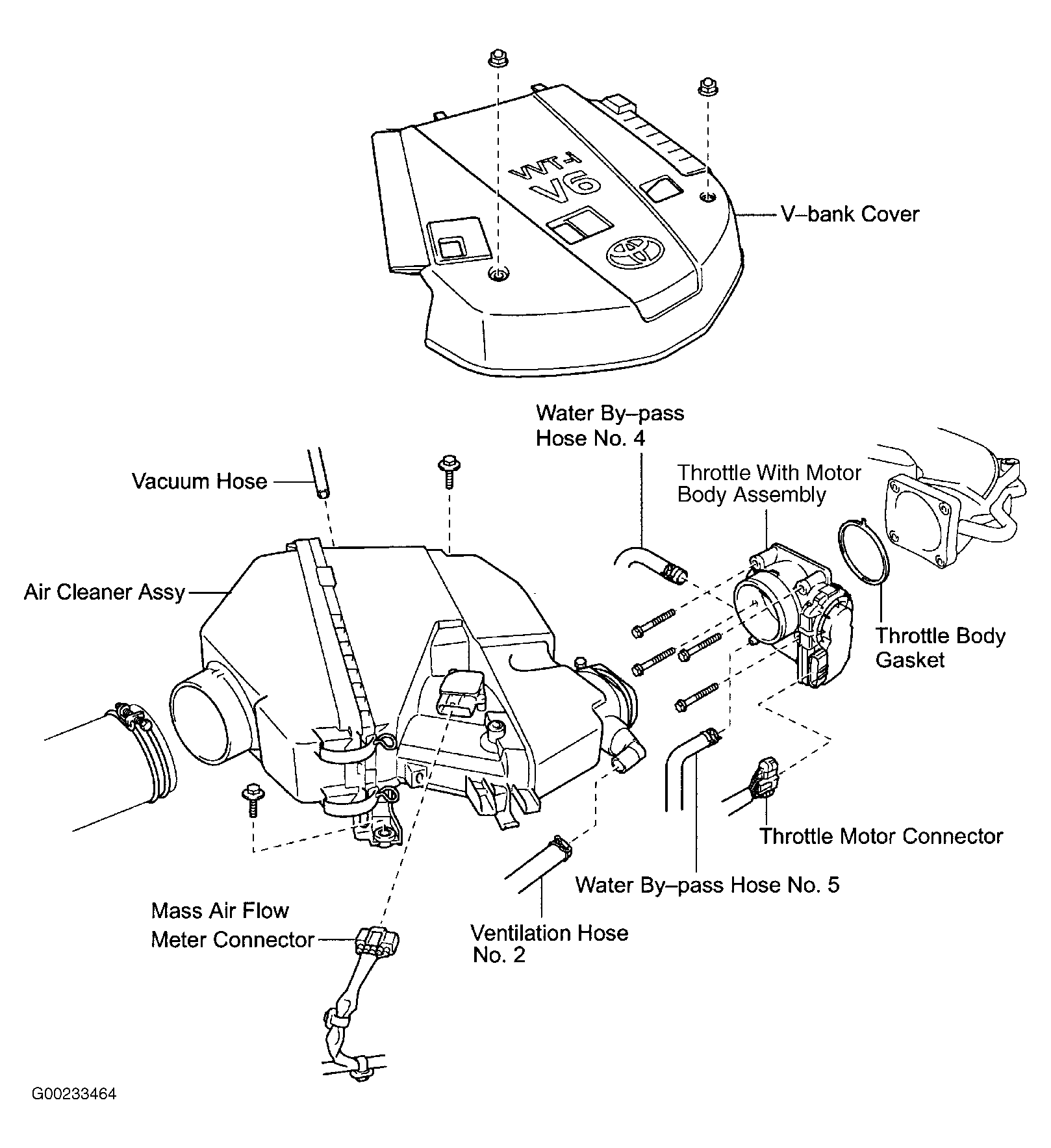

- Remove air cleaner assembly and air cleaner hose located between air cleaner and throttle body. See Fig 1.
- Remove necessary water by-pass hose.
- Disconnect electrical connector from throttle motor.
- Remove 4 bolts, throttle body with throttle control motor and gasket.
