Removal & Installation (Camry)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

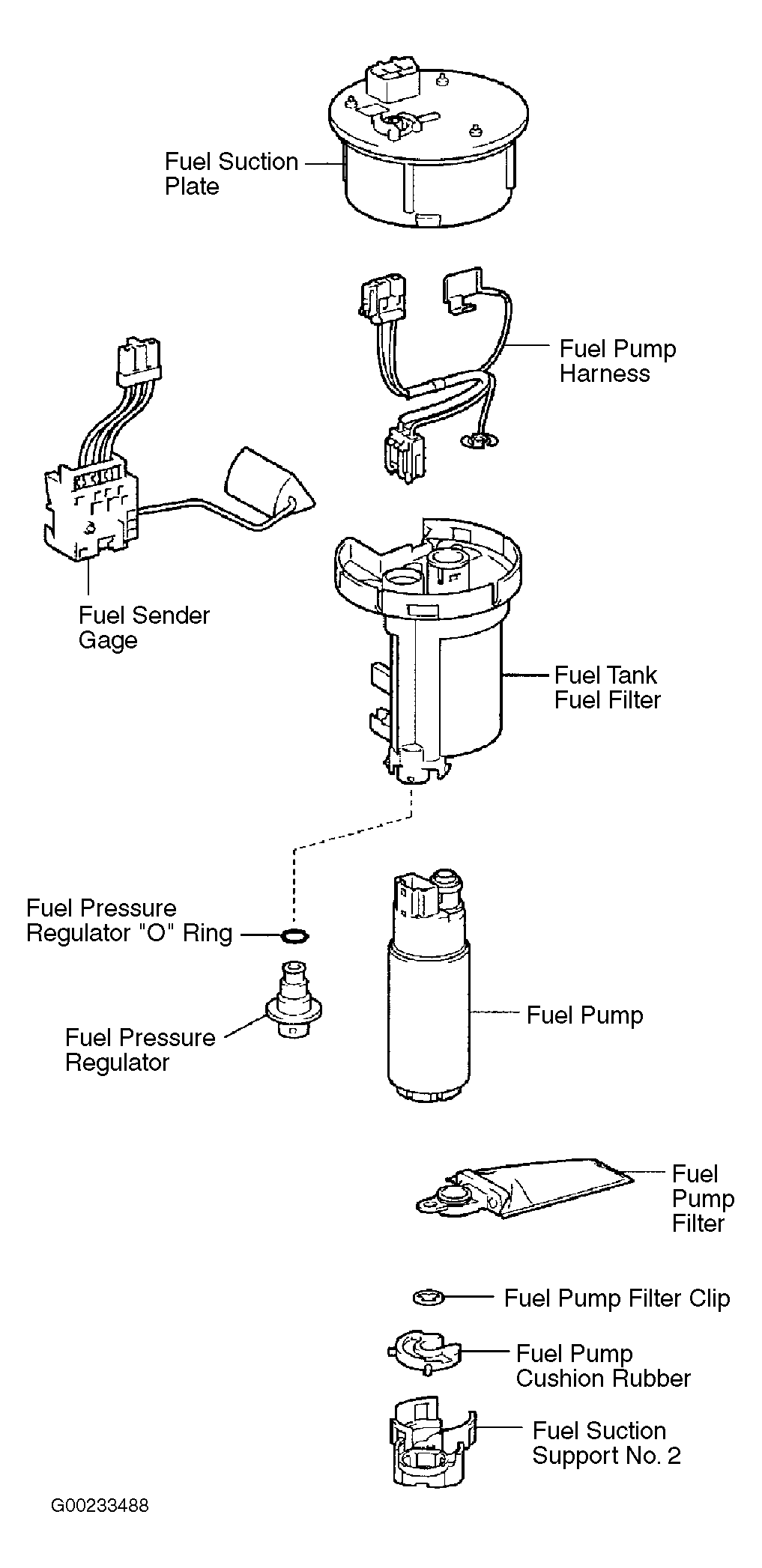

- Fuel pressure regulator is located on fuel pump assembly in the fuel tank. Remove fuel pump from fuel tank. See FUEL PUMP . See Figure.
- Using screwdriver, release snap fit areas on No. 2 fuel suction support and remove No. 2 fuel suction support from bottom of fuel pump. Remove rubber cushion from bottom of fuel pump. See Figure and Figure .
- Remove fuel pressure regulator with "O" ring. Remove "O" ring from fuel pressure regulator. See Figure and Figure .
- To install, reverse removal procedure using NEW "O" ring. Coat "O" ring with gasoline before installing fuel pressure regulator. Reinstall fuel pump.
