Removal & Installation (4Runner 4.0L)

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

Power steering pressure switch is screwed into top of vane pump assembly. Disconnect electrical connector at power steering pressure switch. Remove power steering pressure switch. See Fig 1.
To install, reverse removal procedure. Tighten power steering pressure switch to specification. See TORQUE SPECIFICATIONS .
Fill power steering pump with Dexron-III ATF.

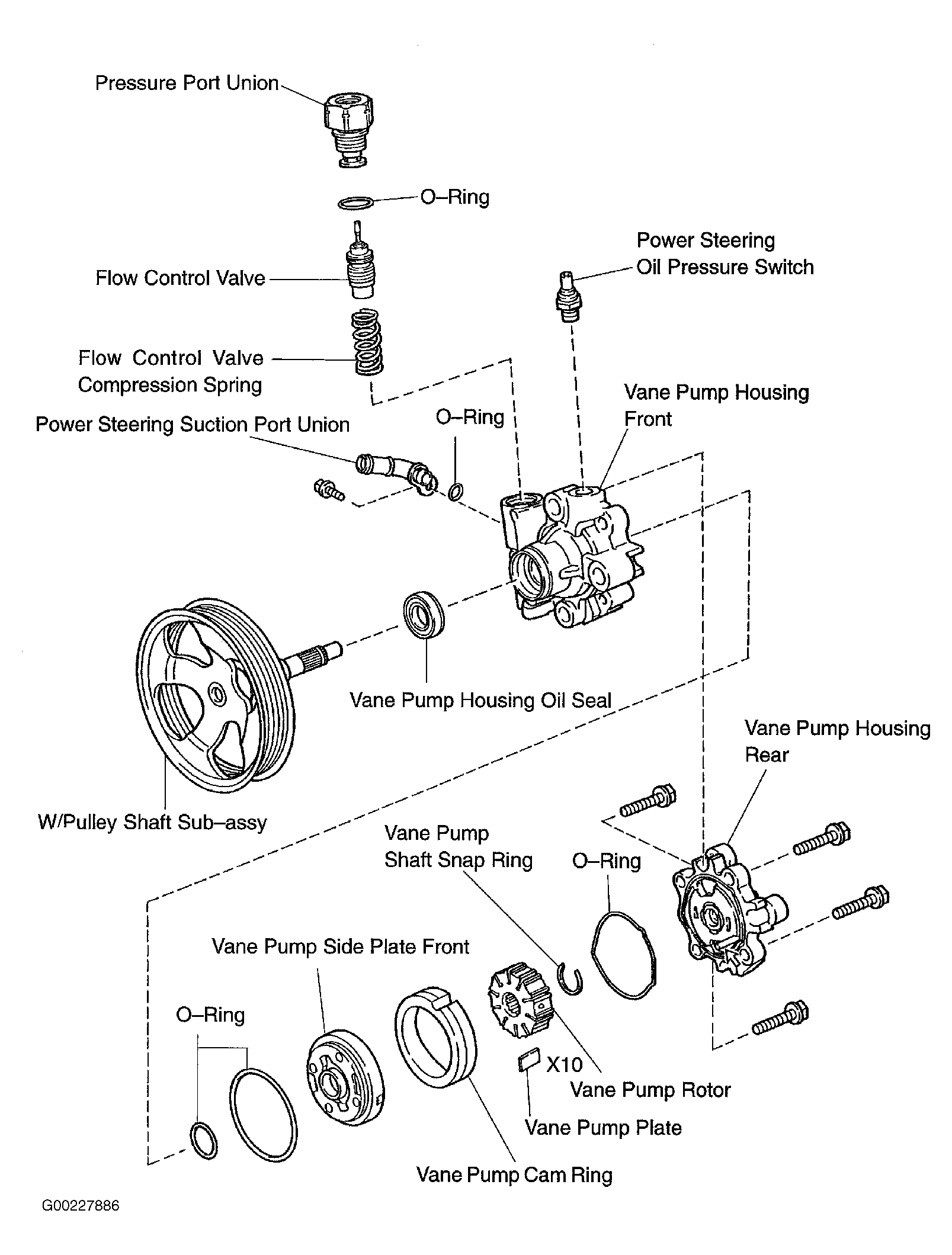

Fig 1: Locating Power Steering Oil Pressure Switch (4Runner 4.0L)
