Removal (4Runner 4.0L)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
- Release fuel pressure. See FUEL SYSTEM PRESSURE RELEASE under FUEL SYSTEMS.
- Drain cooling system.
- Remove "V" bank cover.
- Disconnect electrical connectors, vacuum hose and ventilation hose from air cleaner assembly. Remove air cleaner assembly
- Disconnect the 2 VSV connectors, disconnect the throttle motor connector and disconnect fuel vapor feed hose from air intake chamber. Remove the 3 wire harness clamps and hose clamp. See Fig 1.
- Remove the 3 upper bolts which are used to secure the 2 surge tank stays and throttle body bracket.
- Remove the 4 bolts. Remove the 2 nuts, air intake chamber and gasket with throttle body attached.
- Remove fuel pipe clamps on opposite sides of intake manifold. Pinch tube connector then pull out fuel pipe.
- Disconnect fuel injector connectors. Remove bolts, intake manifold and gaskets.

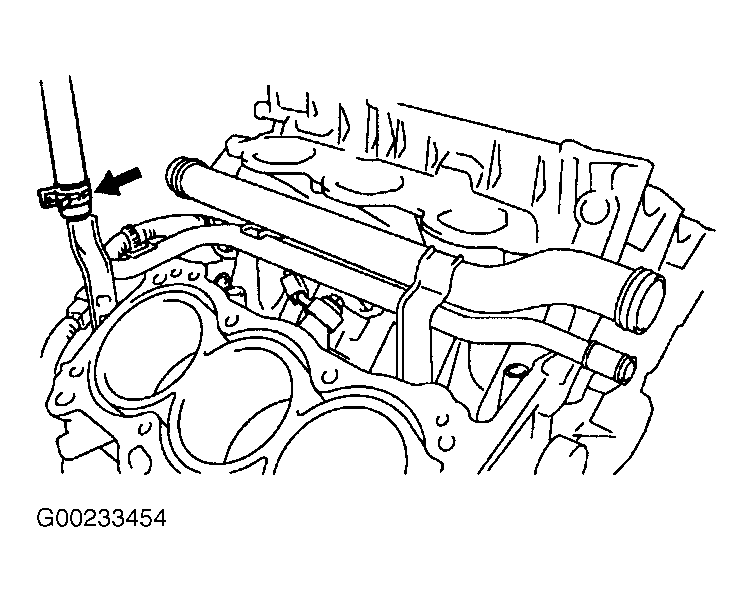

- Remove cylinder heads. See appropriate article in ENGINES. Disconnect heater water inlet hose. See Fig 2.

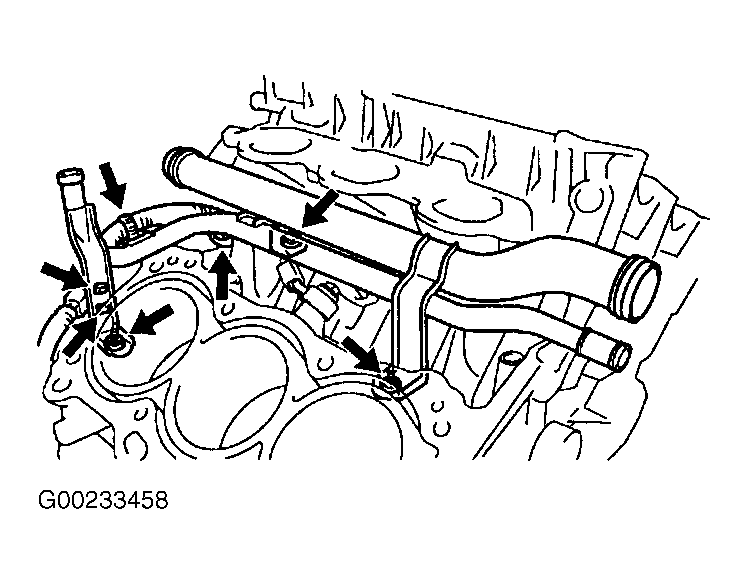

- Remove 4 wire harness clamps. Remove bolt/nuts and water outlet pipe. See Fig 3.
- Disconnect 2 knock sensor connectors. Remove the 2 bolts and 2 knock sensors.
