Removal & Installation (Camry & Camry Solara)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

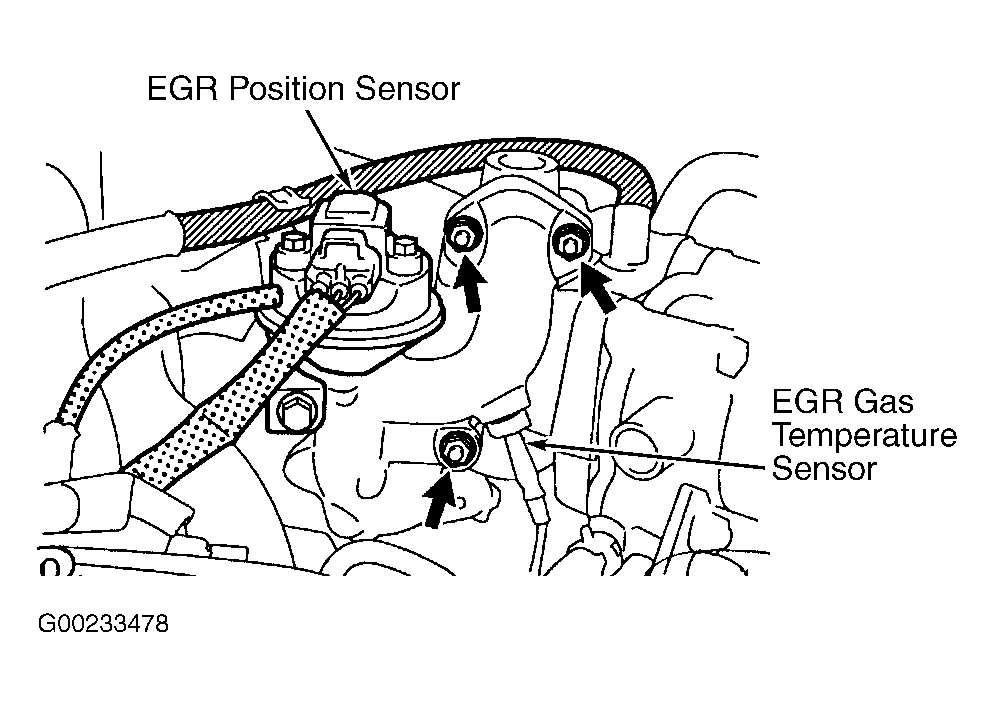

- Disconnect electrical connector at EGR position sensor. EGR position sensor is located on top of EGR valve. See Fig 1.
- Remove EGR position sensor-to-EGR valve nuts. Remove EGR position sensor from EGR valve.
- To install, reverse removal procedure. Tighten EGR position sensor-to-EGR valve nuts to specification (if available). See TORQUE SPECIFICATIONS .
