Intake Air Control Valve: Installation
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

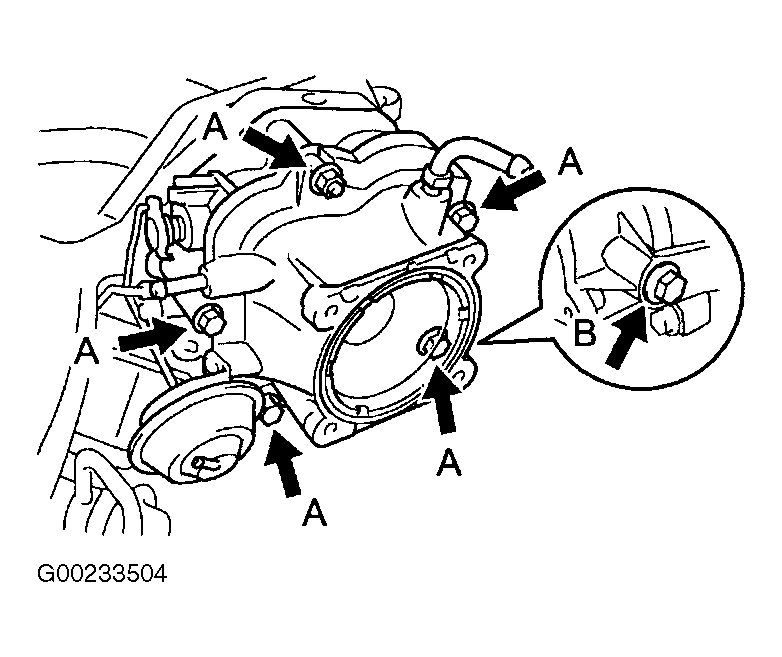

- To install No. 2 intake air control valve on end of air intake chamber, reverse removal procedure using NEW gasket. Apply Seal Packing (08826-00080) or equivalent at designated areas and a light coat of engine oil at rubber area on No. 2 intake air control valve before installing. See Fig 1. Tighten No. 2 intake air control valve nuts to specification. See TORQUE SPECIFICATIONS .
- To install No. 1 intake air control valve on throttle bodies, reverse removal procedure using NEW gaskets and "O" rings. Tighten throttle body-to-No. 1 intake air control valve bolts to specification. See TORQUE SPECIFICATIONS .
- Ensure proper procedure is followed when installing throttle bodies. See THROTTLE BODY under FUEL SYSTEMS.
To install, reverse removal procedure using NEW gasket. Apply Seal Packing (08826-00080) or equivalent at designated areas and a light coat of engine oil at rubber area on intake air control valve before installing. See Figure. Tighten intake air control valve nuts to specification. See TORQUE SPECIFICATIONS .
- To install No. 2 intake air control valve on end of air intake chamber, reverse removal procedure using NEW gasket. Tighten No. 2 intake air control valve bolts/nuts to specification. See TORQUE SPECIFICATIONS .
- To install No. 1 intake air control valve on throttle bodies, reverse removal procedure using NEW gaskets. Tighten throttle body-to-No. 1 intake air control valve bolts/nuts to specification. See Fig 1. See TORQUE SPECIFICATIONS .
- Ensure proper procedure is followed when installing throttle body. See THROTTLE BODY under FUEL SYSTEMS.
