Removal & Installation (Camry & Highlander)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2003 Toyota Tacoma, 2003 Toyota RAV4, 2003 Toyota Prius, 2003 Toyota Matrix, and 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

Remove battery and air cleaner assembly.
Disconnect NT vehicle speed sensor connector. See Fig 1 or Fig 2 .
Disconnect NC vehicle speed sensor connector. See Fig 3 or Fig 4 .
Remove bolts on both speed sensors to remove sensors from transaxle. Remove and discard "O" rings.
When proceeding to install, coat NEW "O" rings with ATF and install on transaxle. See TORQUE SPECIFICATIONS .
Connect appropriate sensor connectors to appropriate sensors. See Fig 1-Fig 4 .

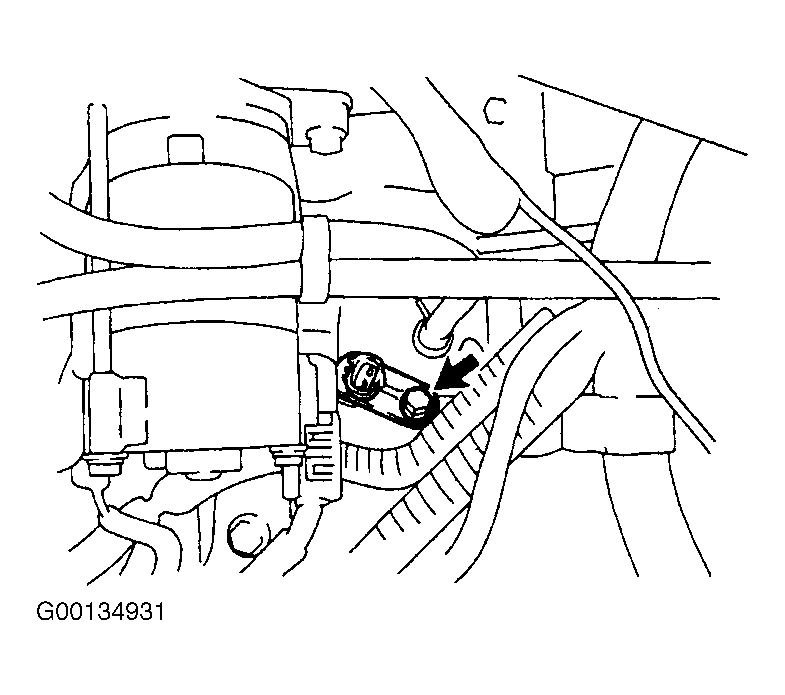

Fig 1: Locating Vehicle Speed Sensor (NT Sensor - Camry)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

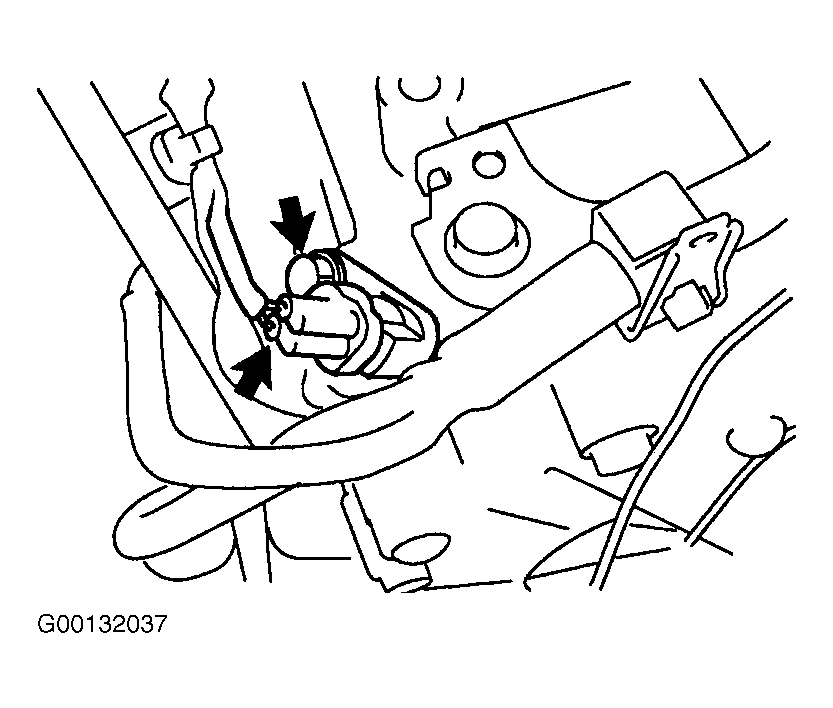

Fig 2: Locating Vehicle Speed Sensor (NT Sensor - Highlander)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

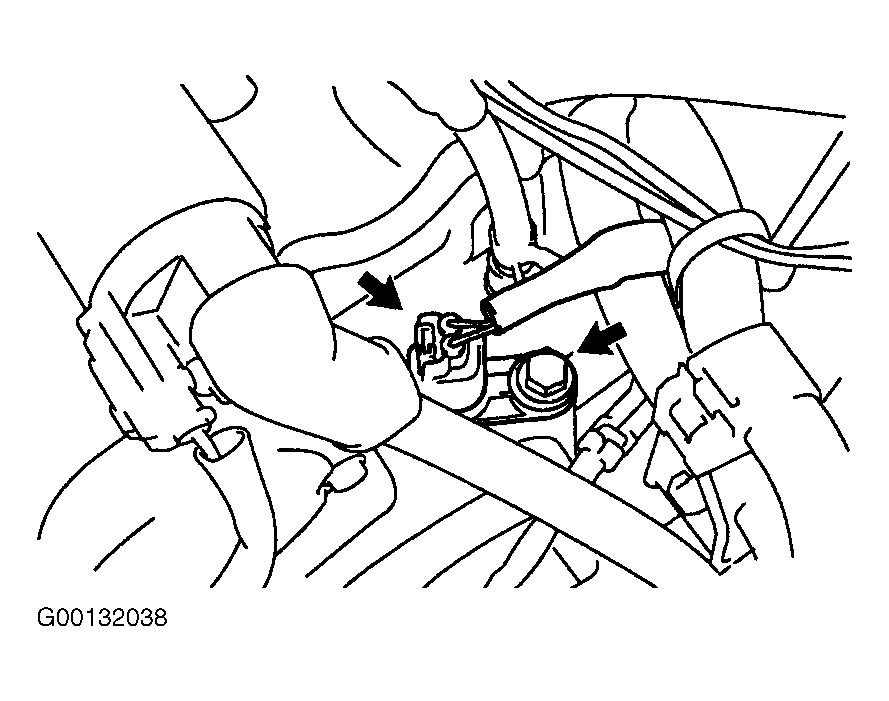

Fig 3: Locating Vehicle Speed Sensor (NC Sensor - Camry)

Fig 4: Locating Vehicle Speed Sensor (NC Sensor - Highlander)
