Vehicle Speed Sensor: Installation

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2003 Toyota Tacoma, 2003 Toyota RAV4, 2003 Toyota Prius, 2003 Toyota Matrix, and 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure using NEW "O" ring. Coat "O" ring with Dexron-III ATF (A/T models) or gear oil (M/T models) before installing on vehicle speed sensor. Tighten retaining bolt to specification. See TORQUE SPECIFICATIONS .

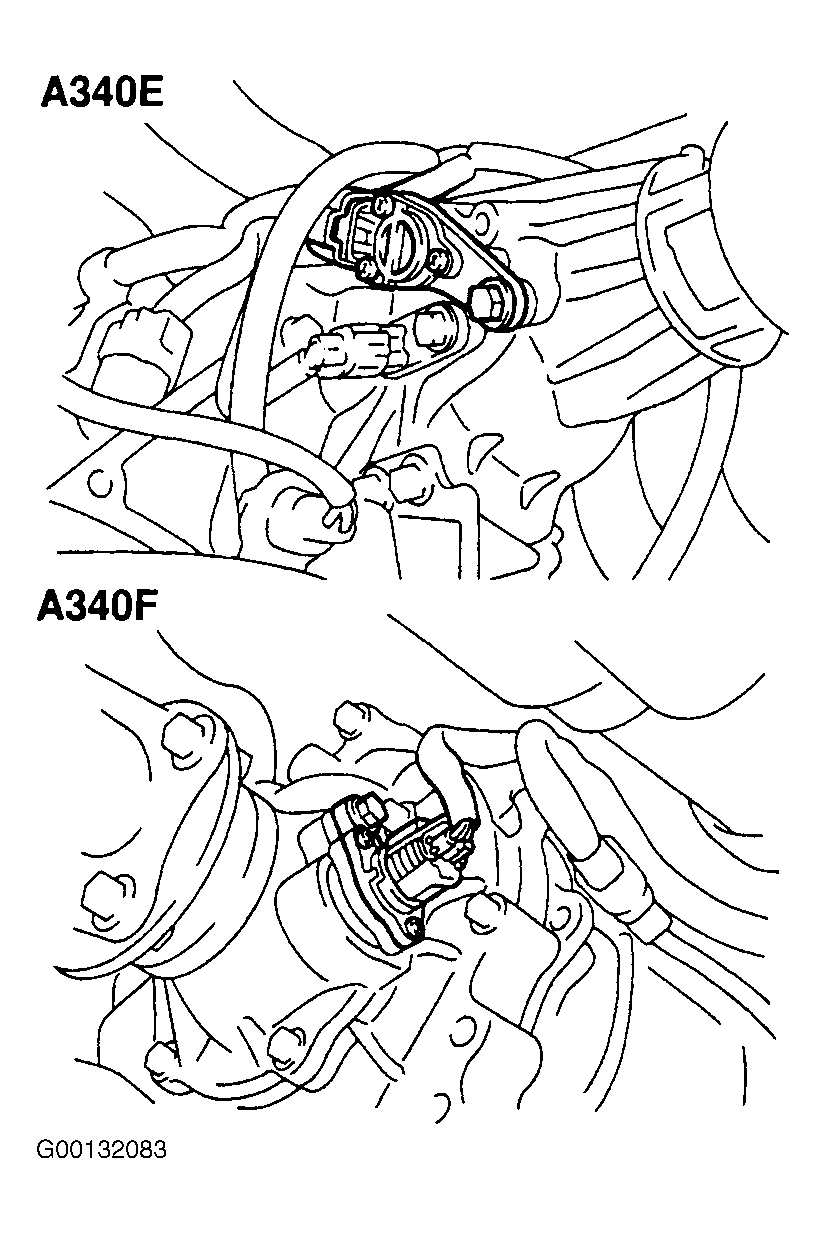

Fig 1: Locating Vehicle Speed Sensor (Camry Solara, Celica, Corolla, ECHO, Matrix & RAV4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

To install on all models, reverse removal procedure using NEW "O" rings. Coat "O" ring with Dexron-III ATF (A/T models) or gear oil (M/T models) before installing on vehicle speed sensor. Tighten retaining bolt to specification. See TORQUE SPECIFICATIONS .

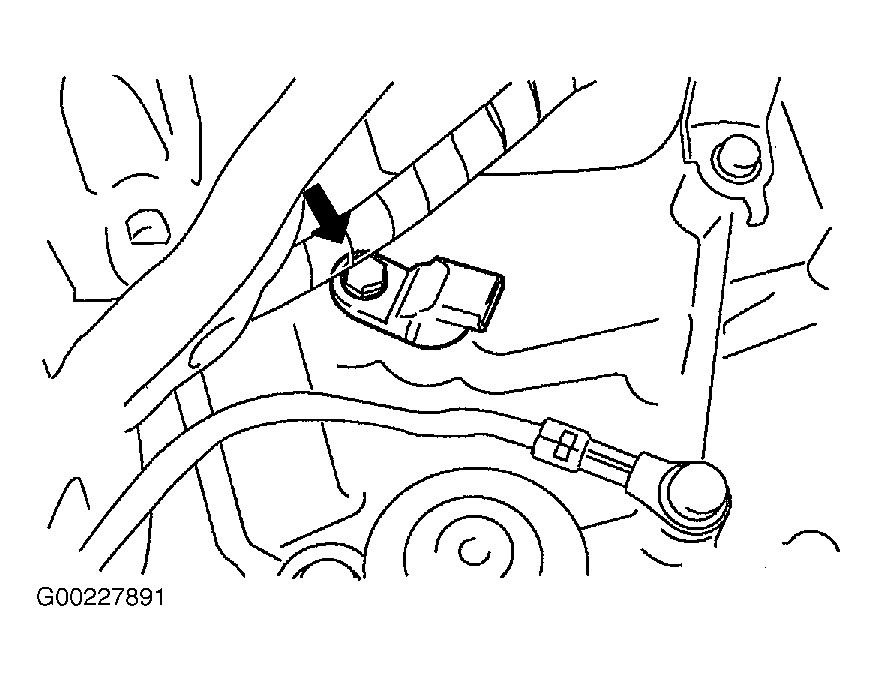

Fig 1: Locating Vehicle Speed Sensor (NT Sensor - Matrix Equipped WithU240E Transaxle)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Locating Vehicle Speed Sensor (NC Sensor - Matrix Equipped With U240E Transaxle)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Locating Vehicle Speed Sensor (Matrix Equipped With U341F Transaxle)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Locating Vehicle Speed Sensor (Tacoma 2.4L)

Fig 2: Locating No. 1 Vehicle Speed Sensor (Tacoma 2.7L)

Fig 3: Locating No. 2 Vehicle Speed Sensor (Tacoma 2.7L)
