Removal & Installation (Tacoma)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2003 Toyota Tacoma, 2003 Toyota RAV4, 2003 Toyota Prius, 2003 Toyota Matrix, and 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

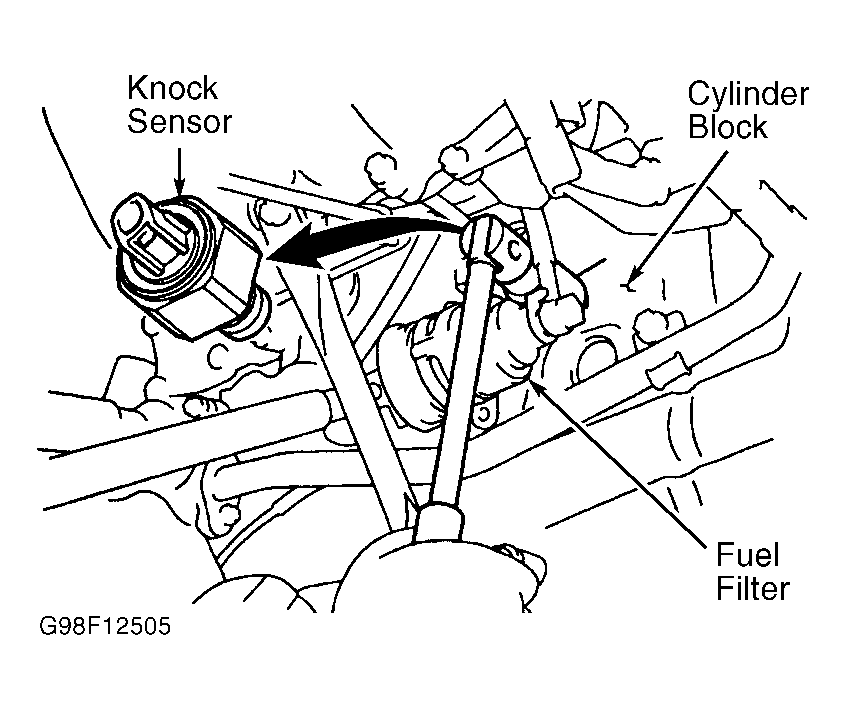

- Remove starter and fuel filter mounting bolts to access knock sensor. Knock sensor is located on side of cylinder block. See Fig 1.
- Disconnect electrical connector at knock sensor. Using Oil Pressure Switch Socket (SST 09817-16011) or equivalent socket, remove knock sensor from cylinder block.
- To install, reverse removal procedure. Tighten knock sensor, fuel filter mounting bolts and starter bolts to specification. See TORQUE SPECIFICATIONS .
