Removal & Installation (ECHO)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2003 Toyota Tacoma, 2003 Toyota RAV4, 2003 Toyota Prius, 2003 Toyota Matrix, and 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.
- Power steering pressure sensor is located on side of power steering pump.

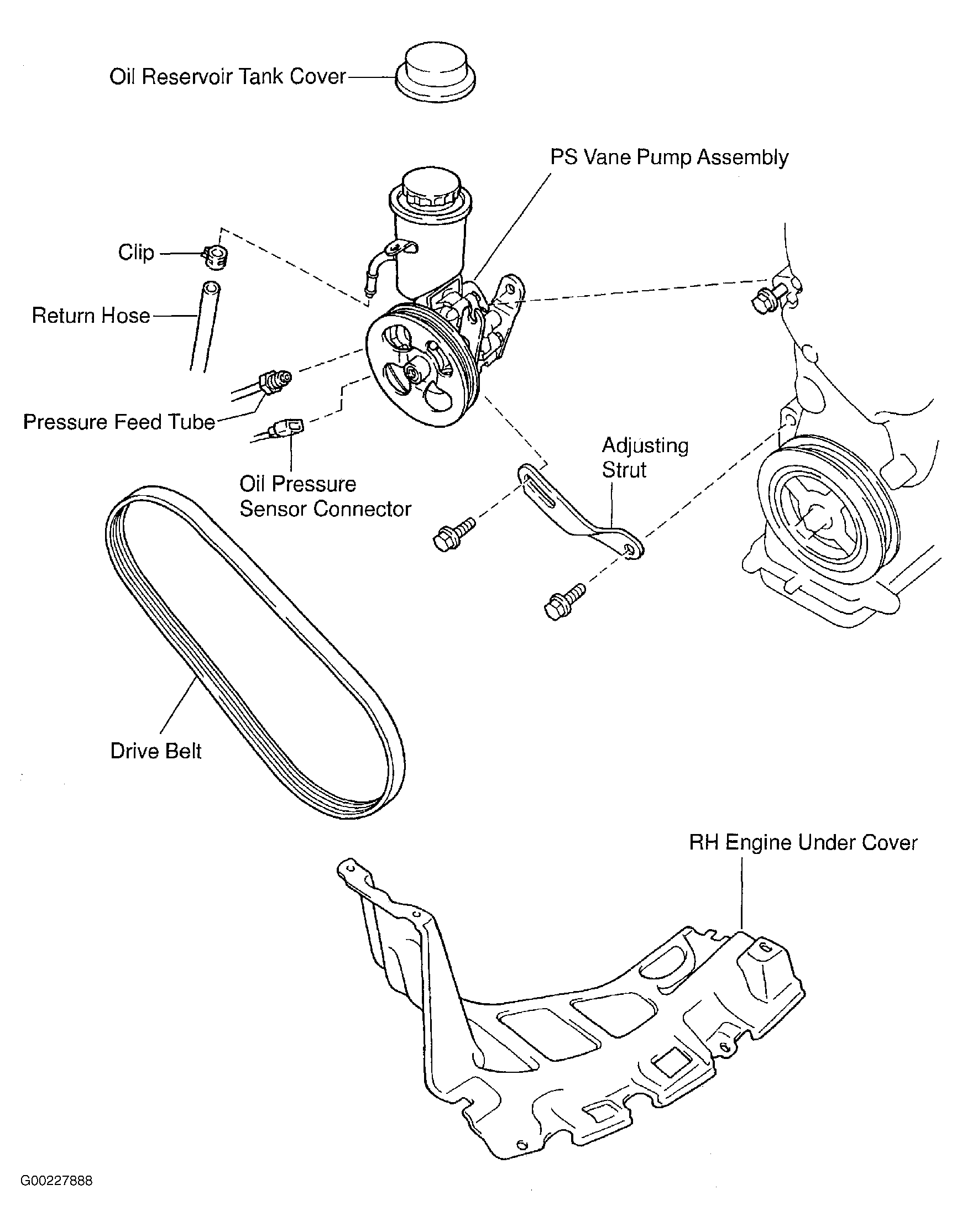

- Disconnect electrical connector at power steering pressure sensor. See Fig 1.
- Remove power steering pressure sensor with "O" ring from power steering pump.
- To install, reverse removal procedure using NEW "O" ring. Coat "O" ring with Dexron-III ATF before installing power steering pressure sensor. Tighten power steering pressure sensor to specification. See TORQUE SPECIFICATIONS .
- Fill power steering pump with Dexron-III ATF.
