Sequoia & Tundra
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tundra, 2002 Toyota Tacoma, 2002 Toyota Sienna, 2002 Toyota Sequoia, and 2002 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
- Start engine and warm engine to normal operating temperature. Shut engine off.

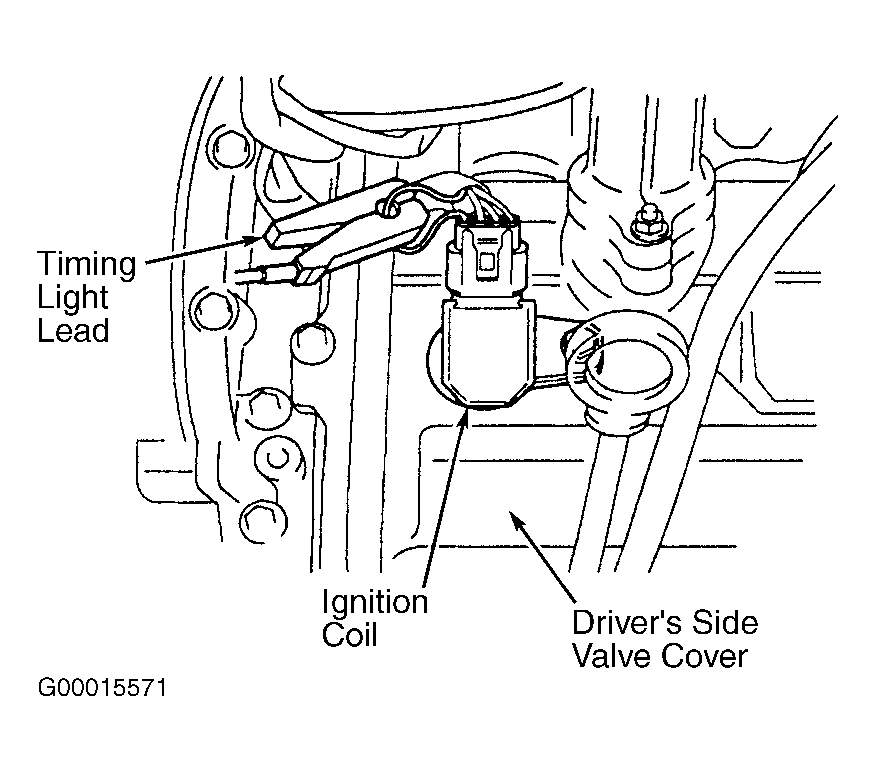

- Connect timing light lead to wire at ignition coil on top of driver's side valve cover at cylinder No. 1. See Fig 1. Cylinder No. 1 is front cylinder on left side of engine when viewed from flywheel end of engine. See Figure.
- Connect Toyota hand-held tester or scan tool to data link connector No. 3 at driver's side of instrument panel. See Figure and Fig 2 . Hand-held tester or scan tool is used to read engine RPM.
- Apply parking brake. Place transmission in Neutral. Start engine and maintain engine at 2500 RPM for 90 seconds and then allow engine to idle. Ensure idle speed is 650-750 RPM.
- Shut engine off. Remove hand-held tester or scan tool. Install Jumper Wire (SST 09843-18020 or SST 09843-18040) between terminals No. 4 (CG) and 13 (TC) on data link connector No. 3. See Figure. Start engine and allow engine to idle.
- Check ignition timing with engine idling. Timing marks are located on timing belt cover, near crankshaft pulley. Ensure base ignition timing is 5-15 degrees BTDC on Sequoia or 8-12 degrees BTDC on Tundra with engine idling. Shut engine off. Remove jumper wire and timing light.
