Land Cruiser, Sequoia, Tundra 4.7L & 4Runner
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
- Ensure ignition is off. Remove fuel pump relay from fuse/relay box at driver's side front corner of engine compartment. See Figure, Figure, Figure and Figure

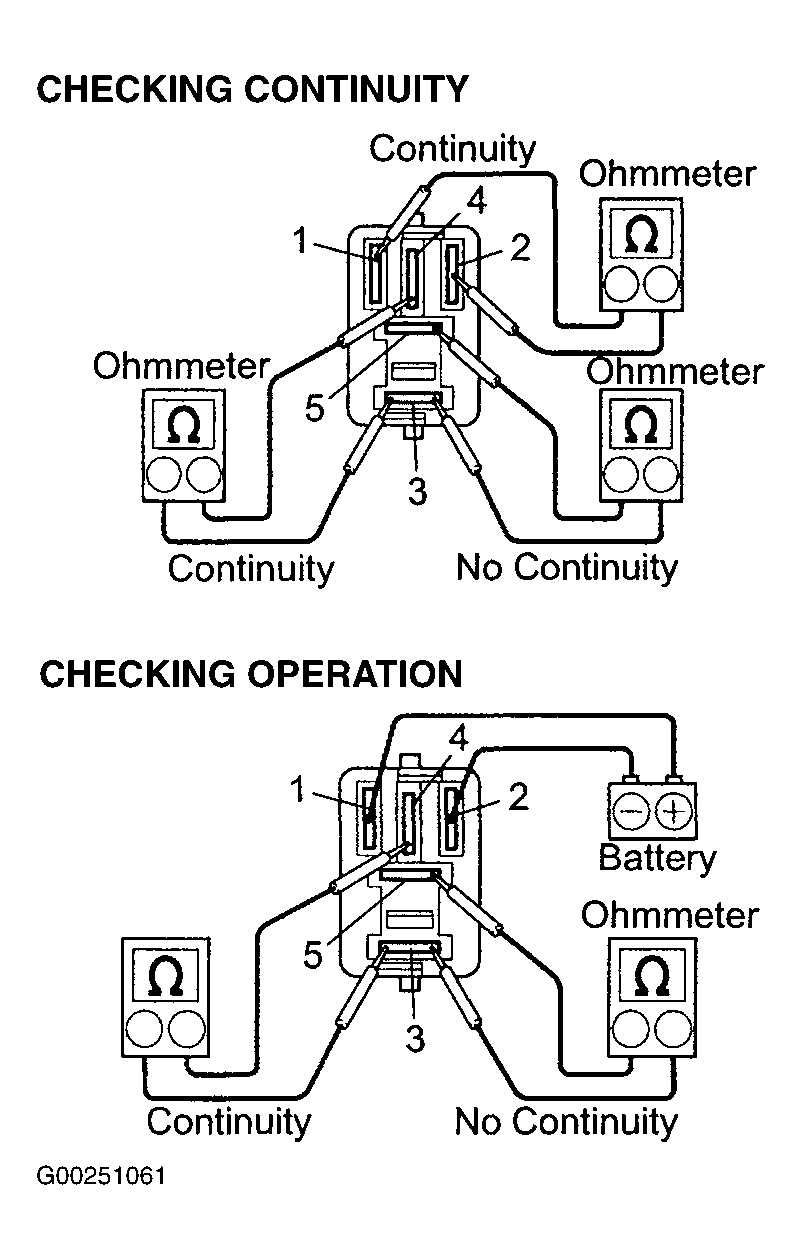

- To test fuel pump relay continuity, using ohmmeter, check for continuity and no continuity between specified terminals on fuel pump relay. See Fig 1 and Fig 2 .
- To test fuel pump relay operation, apply battery voltage and ground to fuel pump relay and use ohmmeter to check for continuity between specified terminals on fuel pump relay. See Fig 1 and Fig 2 . Replace fuel pump relay if defective.
