Fuel Pump Resistor (Land Cruiser, Sequoia, Tundra 4.7L & 4Runner)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

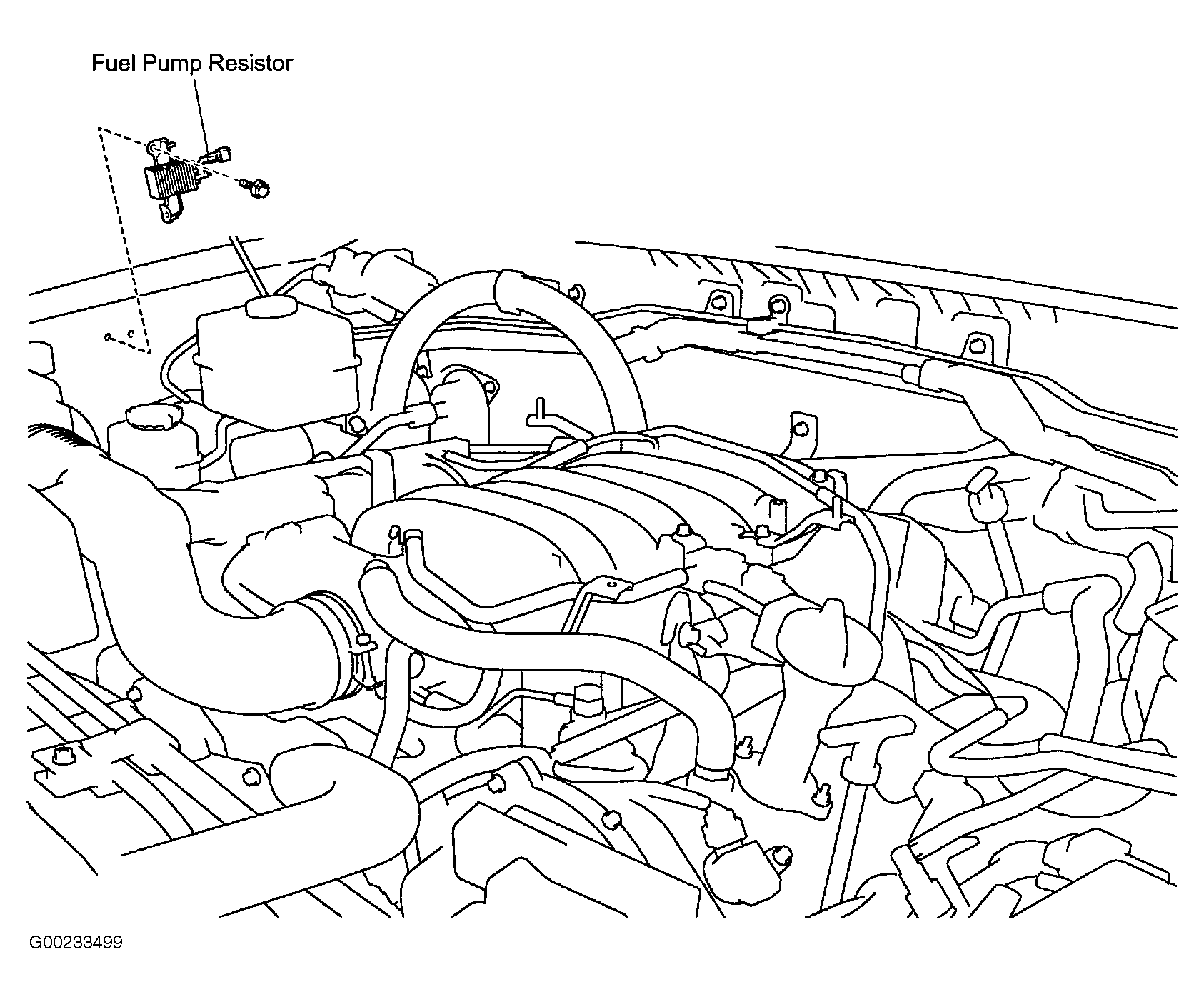

- On Land Cruiser, fuel pump resistor is located on passenger side of engine compartment. See Fig 1. On Sequoia and Tundra, fuel pump resistor is located at driver's side front corner of engine compartment, near end of fuse/relay box. See Fig 2. On 4Runner, fuel pump resistor is located at driver's side front corner of engine compartment, near center of fuse/relay box. Manufacturer lists testing procedure with fuel pump resistor removed. Disconnect electrical connector at fuel pump resistor.
- Remove bolt and fuel pump resistor. Using ohmmeter, check resistance between electrical terminals on fuel pump resistor. Replace fuel pump resistor if resistance is not.70-.76 ohms at 68°F (20°C). Reinstall fuel pump resistor.
