For throttle position sensor circuit inspection and wiring diagram, see Fig 1-Fig 7 . For circuit identification, see ENGINE PERFORMANCE in appropriate SYSTEM WIRING DIAGRAMS article in ELECTRICAL. Before replacing ECM, check ECM connectors and ground circuits. See ENGINE CONTROL MODULE POWER & GROUND CIRCUITS under COMPUTERIZED ENGINE CONTROLS. To replace throttle control motor and sensor, see THROTTLE CONTROL MOTOR under MOTORS in REMOVAL & INSTALLATION - V6 & V8.

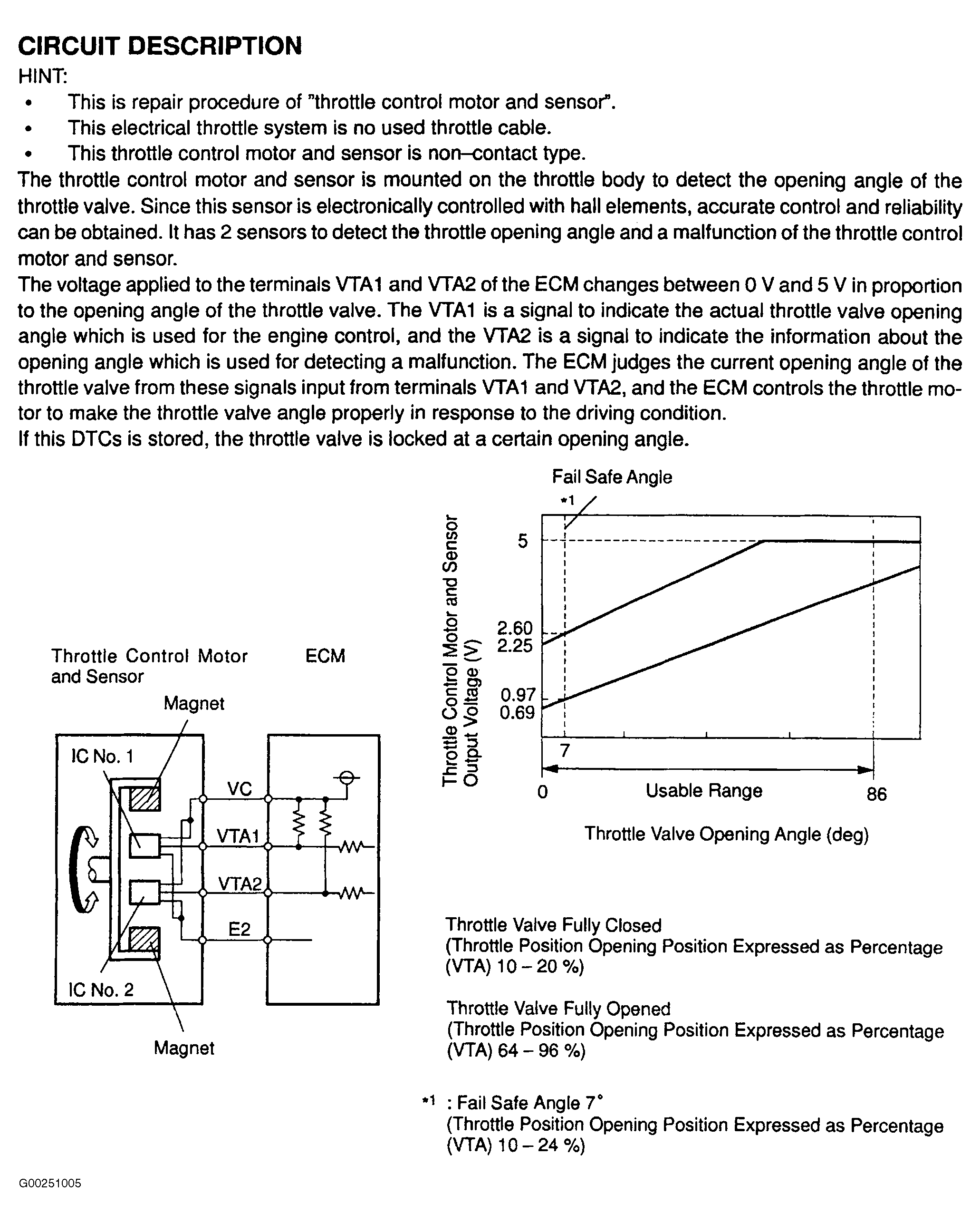

Fig 1: Testing Throttle Position Sensor - Circuit Description (Land Cruiser)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

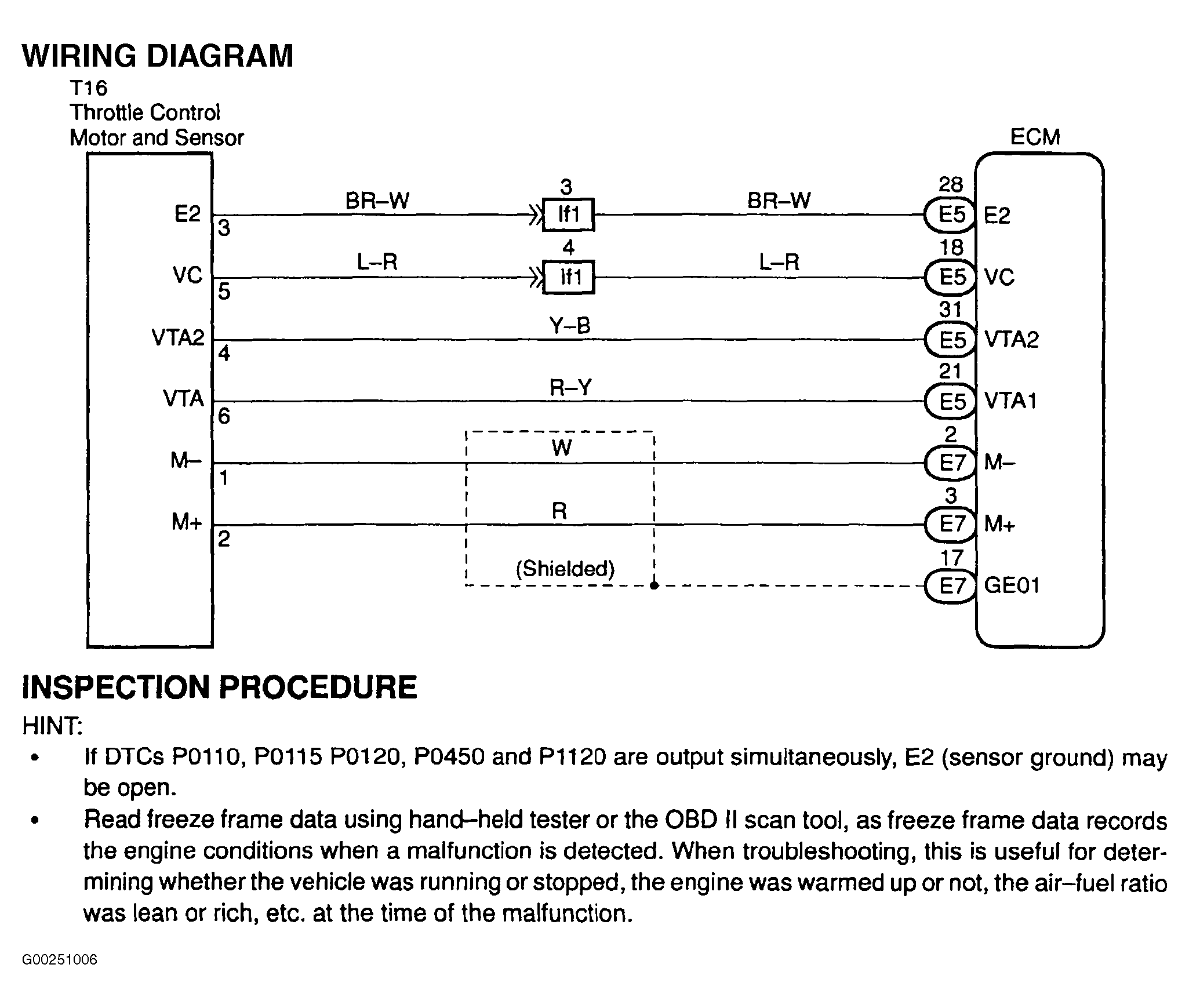

Fig 2: Testing Throttle Position Sensor - Wiring Diagram (Land Cruiser)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Testing Throttle Position Sensor Using Hand-Held Tester - Steps 1-2 (Land Cruiser)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

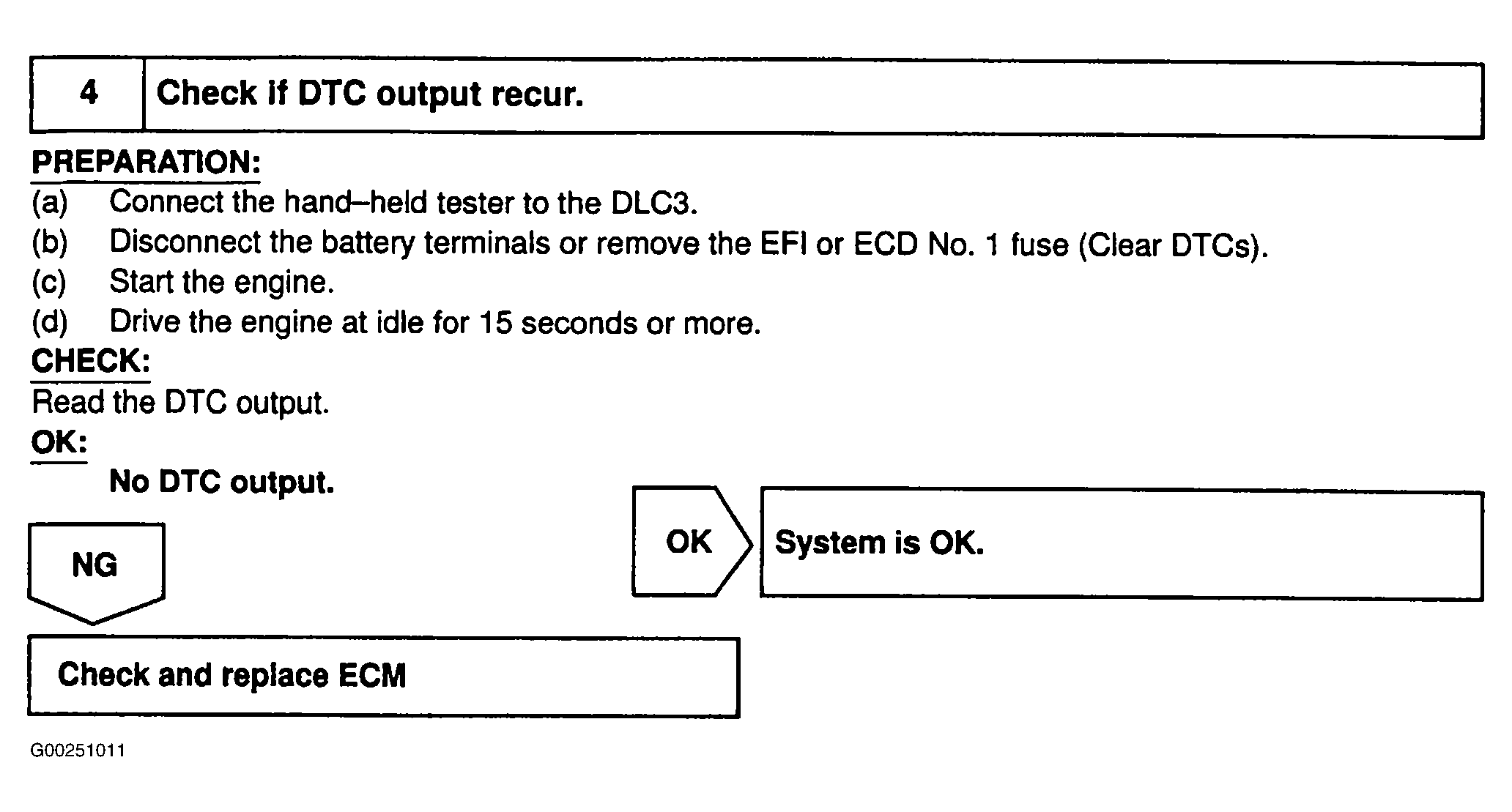

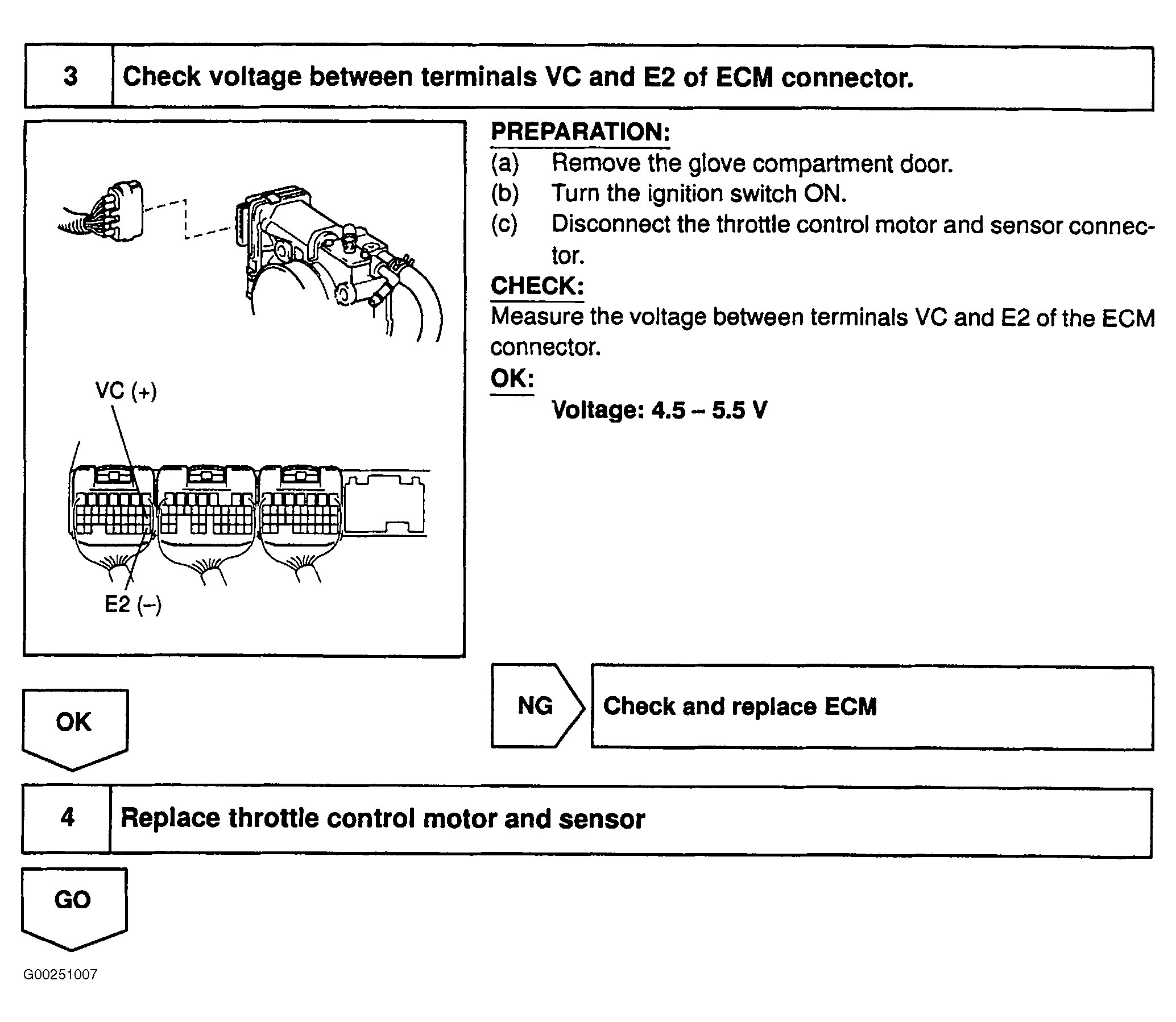

Fig 4: Testing Throttle Position Sensor Using Hand-Held Tester - Steps 2-4 (Land Cruiser)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

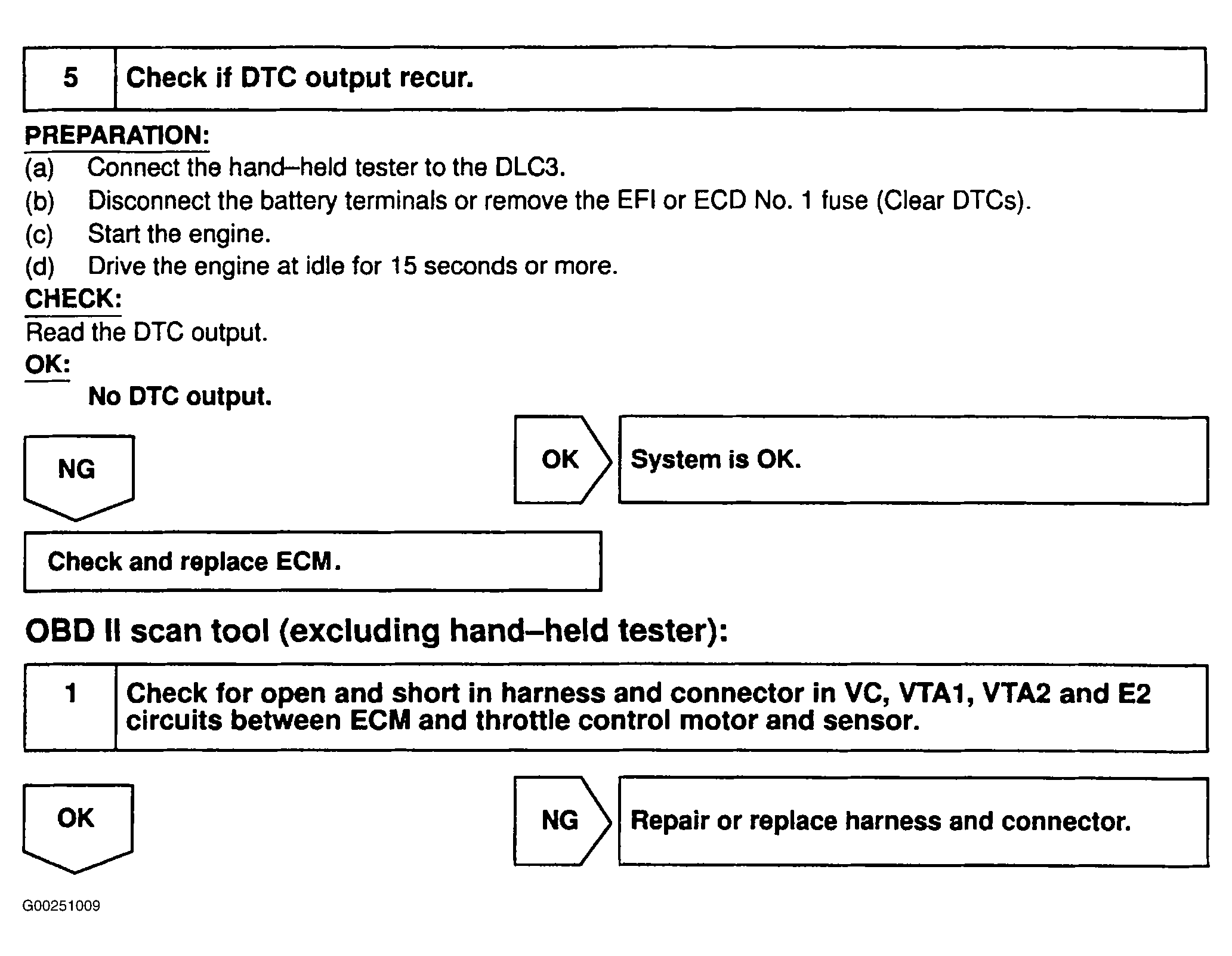

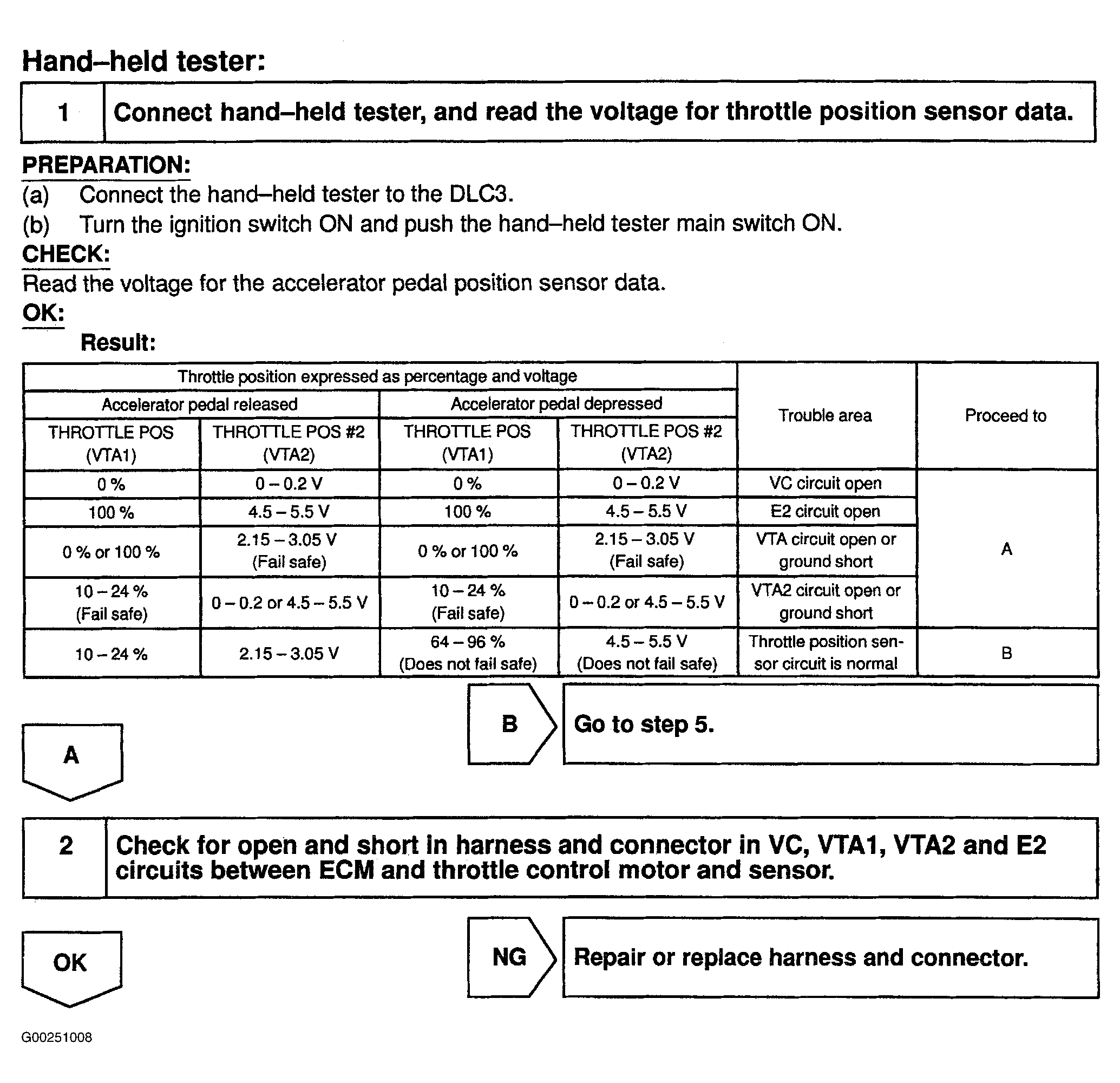

Fig 5: Testing Throttle Position Sensor Using Hand-Held Tester - Step 5; Using OBD II Scan Tool - Step 1 (Land Cruiser)

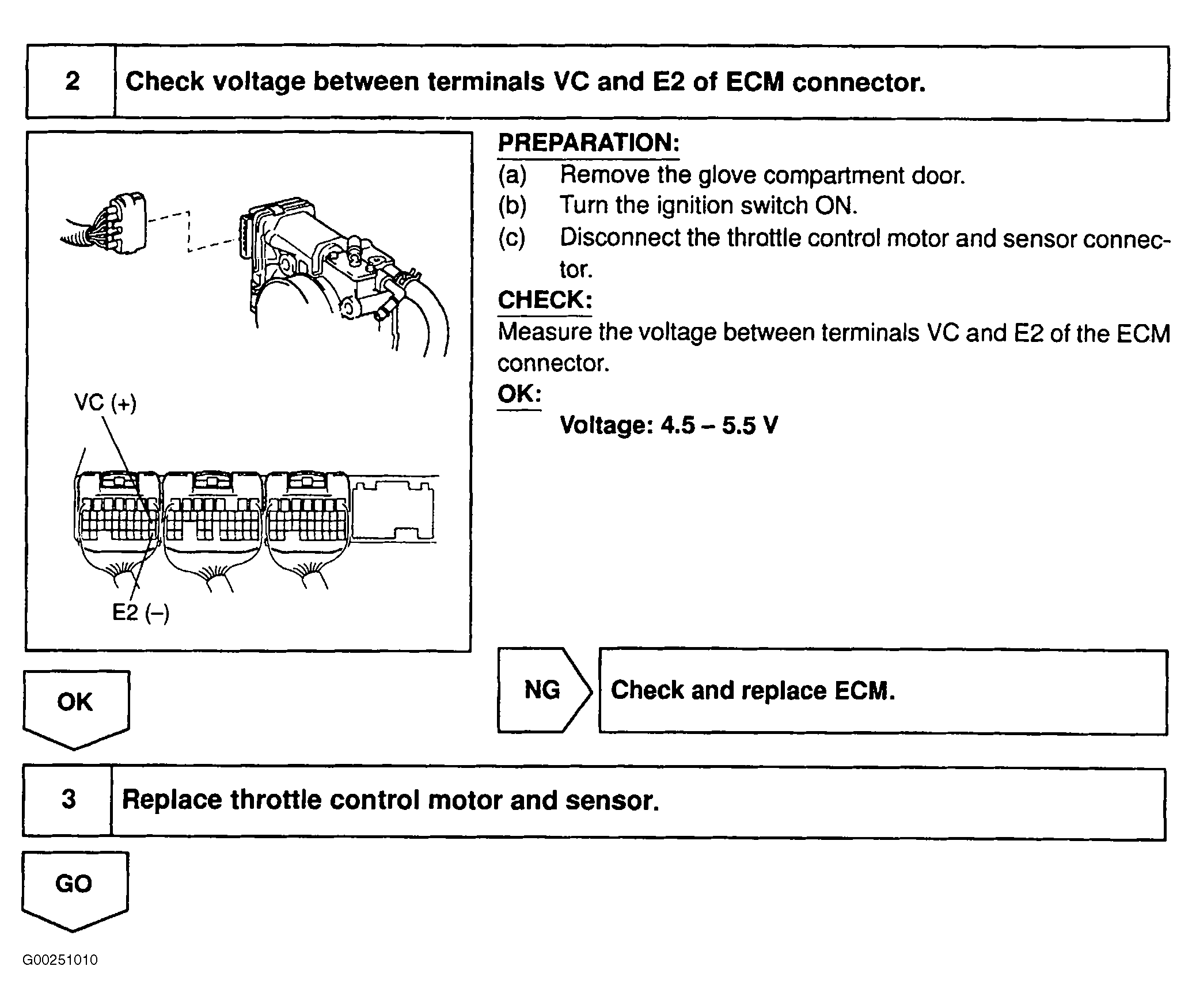

Fig 6: Testing Throttle Position Sensor Using OBD II Scan Tool - Steps 2-3 (Land Cruiser)

Fig 7: Testing Throttle Position Sensor Using OBD II Scan Tool - Step 4 (Land Cruiser)
