4Runner 4.0L

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

Knock sensors No. 1 and 2 are located below intake manifold on cylinder block. See Fig 1. Manufacturer recommends removing knock sensor from cylinder block before testing. See KNOCK SENSOR under ENGINE SENSORS & SWITCHES in REMOVAL & INSTALLATION - V6 & V8.
Using an ohmmeter, measure the resistance between the knock sensor terminals. Resistance should be 120-280 k/ohms at 68°F (20°C). See Fig 2. If the resistance is not as specified, replace the knock sensor. See KNOCK SENSOR under ENGINE SENSORS & SWITCHES in REMOVAL & INSTALLATION - V6 & V8.

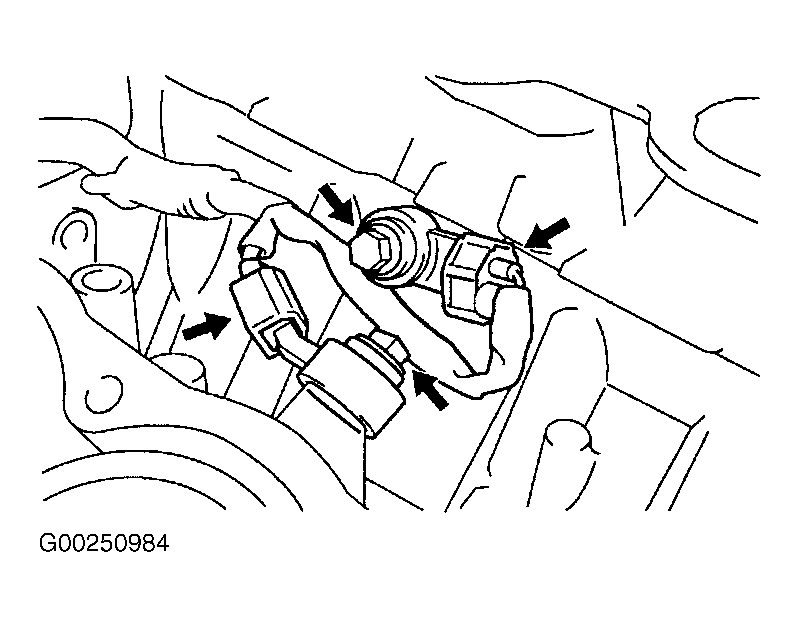

Fig 1: Locating Knock Sensors (4Runner 4.0L)

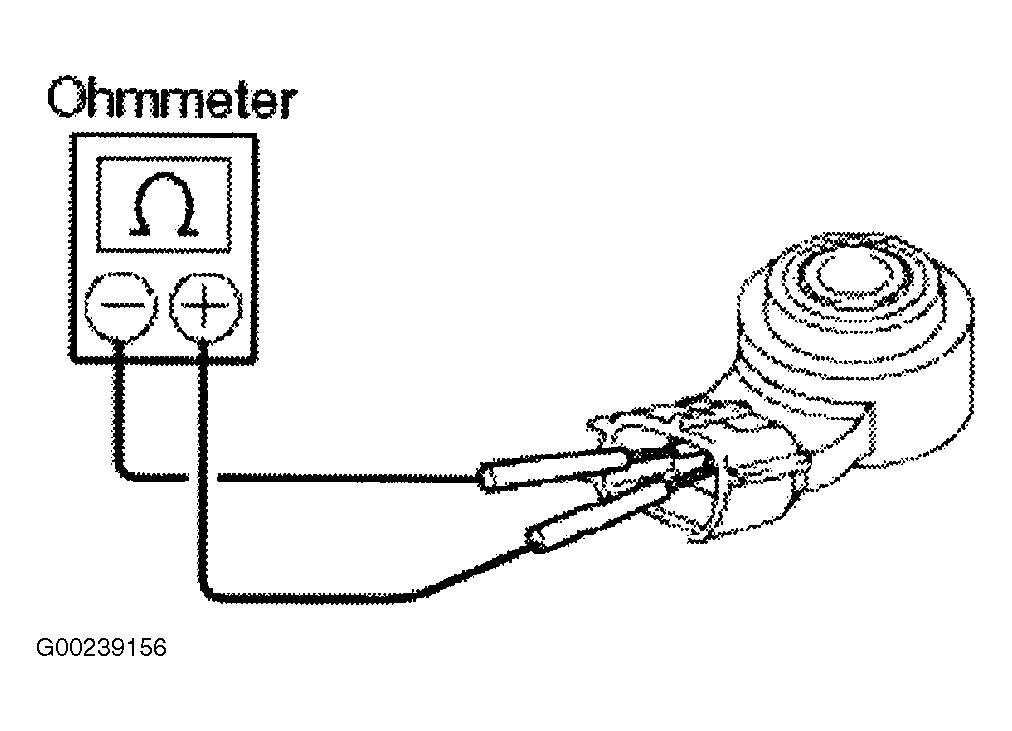

Fig 2: Testing Knock Sensor (4Runner 4.0L)
