EVAP Vacuum Switching Valve (All Models)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
- Remove EVAP Vacuum Switching Valve (VSV). For location of EVAP VSV, see EVAP VSV LOCATIONS table and Figure-Figure .
- Using ohmmeter, ensure continuity exists between electrical terminals on EVAP VSV and that resistance is within specification. See EVAP VSV RESISTANCE table. Replace EVAP VSV if no continuity exists or resistance is not within specification.
- Using ohmmeter, ensure no continuity exists between each electrical terminal and body of EVAP VSV. Replace EVAP VSV if continuity exists between electrical terminal and body of EVAP VSV.

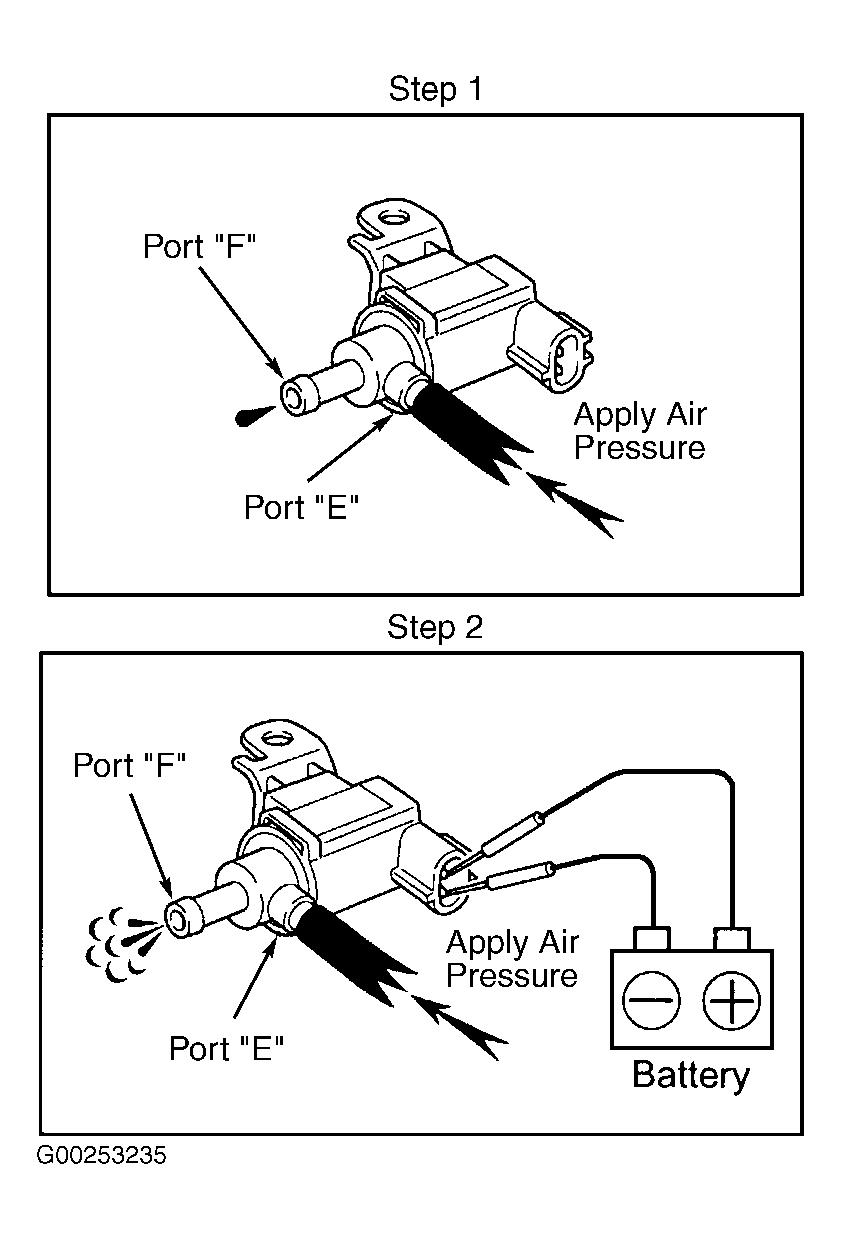

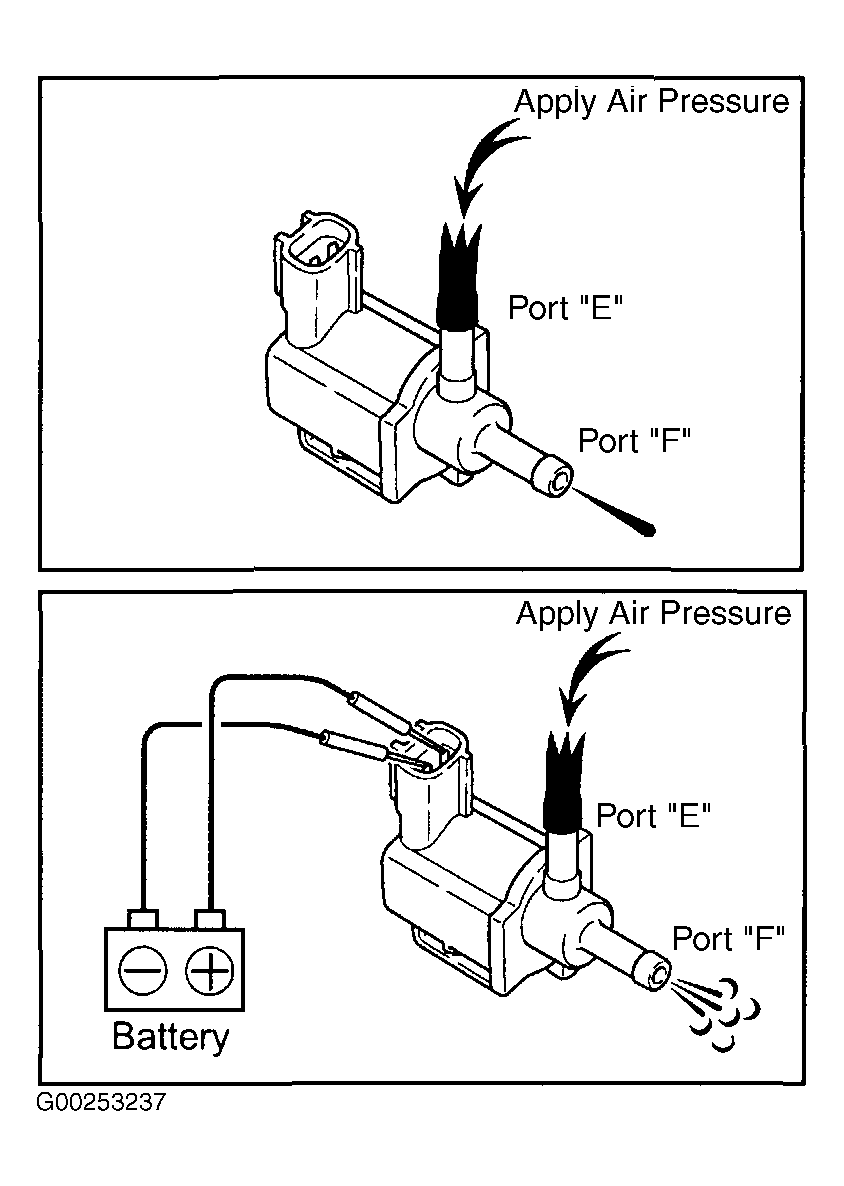

- To test EVAP VSV operation, apply air pressure to port "E". Ensure air does not flow from port "F". Perform STEP 1 in illustration. See Fig 1-Fig 5 .
- Apply battery voltage and ground to electrical terminals on EVAP VSV. Apply air pressure to port "E". Ensure air flows from port "F". Perform STEP 2 in illustration. See Fig 1-Fig 5 . Replace EVAP VSV if defective.
EVAP VSV LOCATIONS
| Application | Location | |
|---|---|---|
| Avalon | Front VSV On Emission Control Valve Set On Top Of Engine, Near Intake Manifold & Contains 2-Pin Electrical Connector With Black & Black/White Wires | |
| Camry | Front VSV On Emission Control Valve Set On Top Of Engine, Near Intake Manifold & Contains 2-Pin Electrical Connector With Light Green & Black/White Wires | |
| Camry Solara | Front VSV On Emission Control Valve Set On Top Of Engine, Near Intake Manifold & Contains 2-Pin Electrical Connector With Light Green & Black/Yellow Wires | |
| Highlander | Front VSV On Emission Control Valve Set On Top Of Engine, Near Intake Manifold & Contains 2-Pin Electrical Connector With Black/Red & Black/White Wires | |
| Land Cruiser | At Driver's Side Center Of Intake Manifold Below Intake Manifold Cover & Contains 2-Pin Electrical Connector With Blue/Black & Black/Yellow Wires | |
| Sequoia | At Driver's Side Center Of Intake Manifold & Contains Black 2-Pin Electrical Connector With Green/Red & White/Green Wires | |
| Sienna | Front VSV On Emission Control Valve Set On Top Of Engine, Near Intake Manifold & Contains 2-Pin Electrical Connector With Light Green & Black/Yellow Wires | |
| Tacoma | On Bracket Bolted To Inside Of Driver's Side Front Fender Panel & Contains 2-Pin Electrical Connector With White/Red & White/Green Wires | |
| Tundra | ||
| 3.4L | At Driver's Side Rear Corner Of Air Intake Chamber & Contains 2-Pin Electrical Connector With White/Blue & White/Green Wires | |
| 4.7L | At Driver's Side Center Of Intake Manifold & Contains 2-Pin Electrical Connector With Red & White/Green Wires | |
| 4Runner | ||
| 4.0L | At Driver's Side Center Of Air Intake Chamber Manifold & Contains 2-Pin Electrical Connector With Black & Green/Yellow Wires | |
| 4.7L | At Driver's Side Center Of Intake Manifold & Contains 2-Pin Electrical Connector With Blue/White & Yellow/Red Wires | |
EVAP VSV RESISTANCE
| Application | Ohms @ 68°F (20°C) | |
|---|---|---|
| Avalon, Camry, Camry Solara, Highlander & Sienna | 27-33 | |
| Land Cruiser, Sequoia & Tacoma | 30-34 | |
| Tundra & 4Runner | 26-30 | |
