Canister Closed Valve Vacuum Switching Valve (Tundra & 4Runner)
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2003 Toyota Tundra, 2003 Toyota Tacoma, 2003 Toyota Sienna, 2003 Toyota Sequoia, and 2003 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
On 4Runner models, if CCV VSV is not operating as specified in procedure, replace charcoal canister.

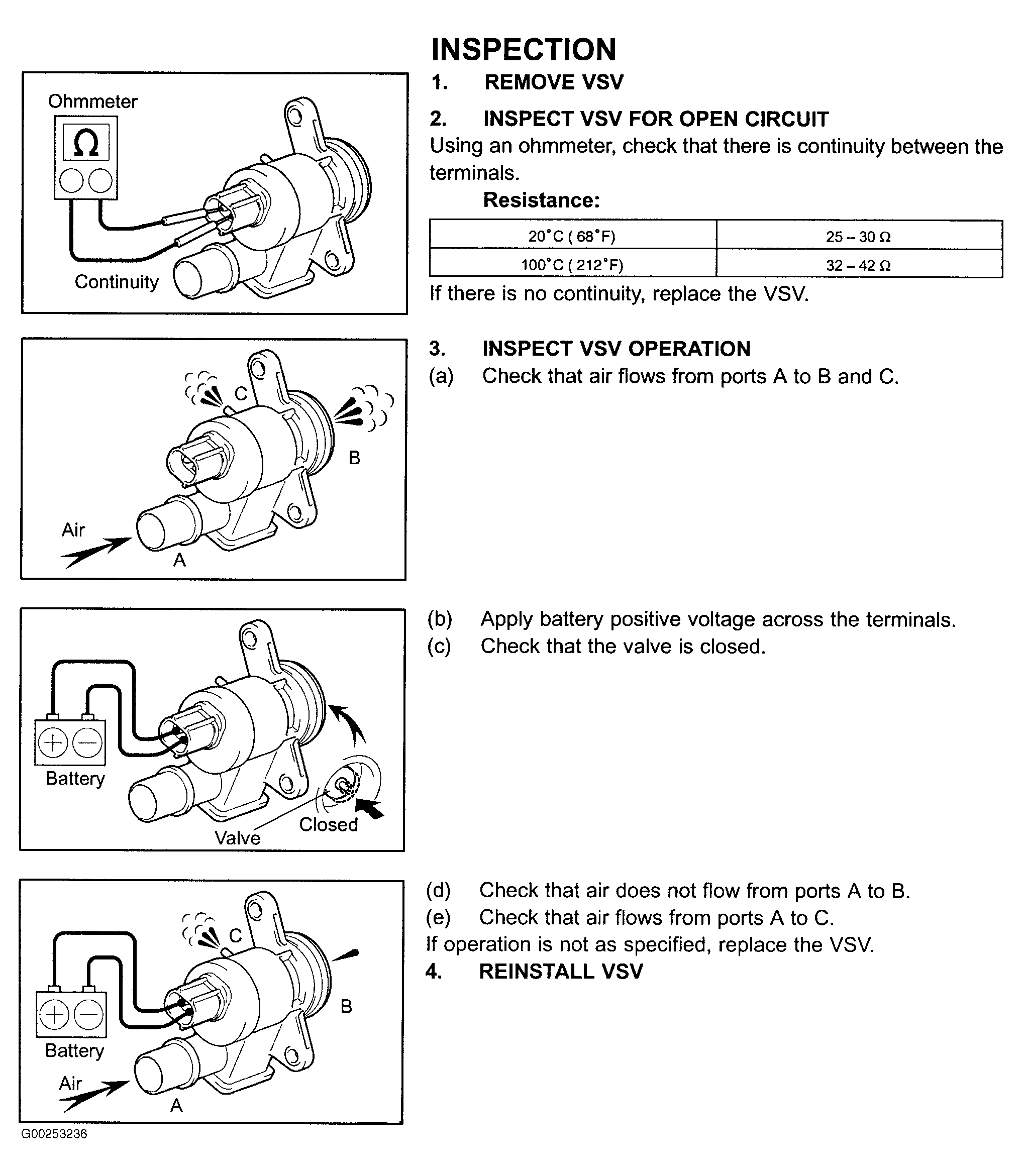

For canister closed valve vacuum switching valve test, see Fig 1.
