Celica (With VIN "Y")

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2003 Toyota Tacoma, 2003 Toyota RAV4, 2003 Toyota Prius, 2003 Toyota Matrix, and 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

For throttle body inspection procedure, see Fig 1-Fig 2 .

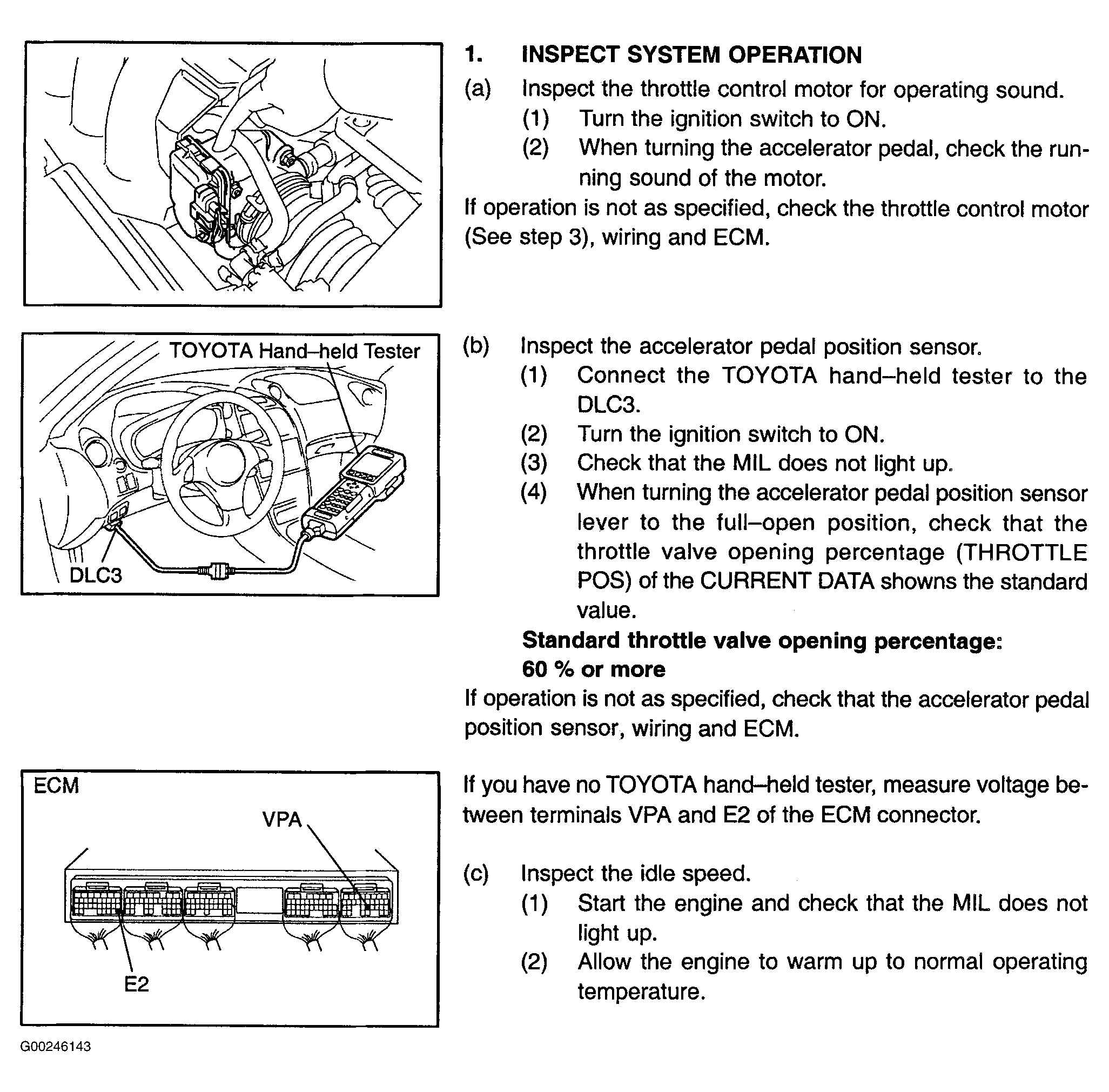

Fig 1: Inspecting Throttle Body - 1 Of 2 (Celica VIN "Y")
G00246143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

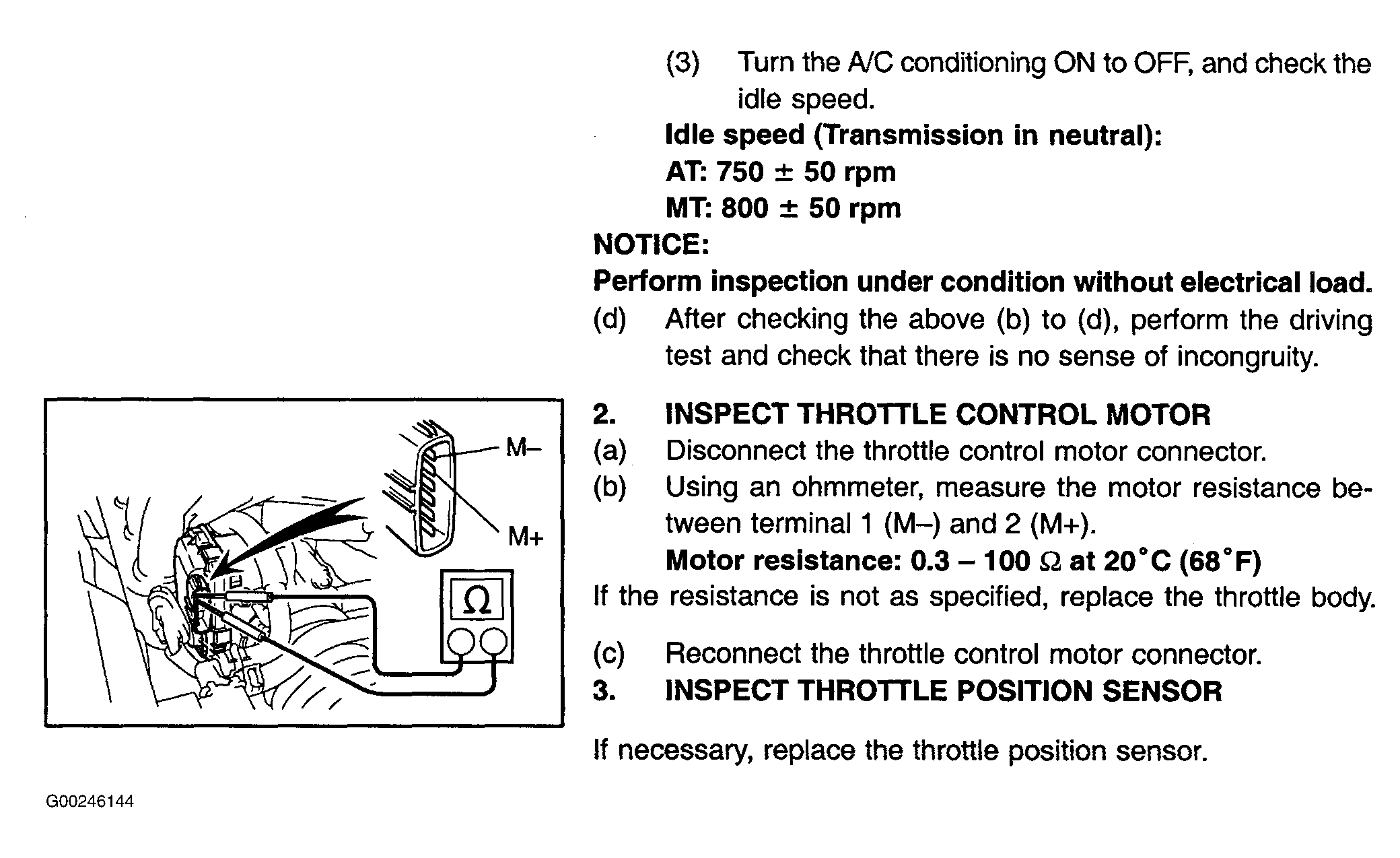

Fig 2: Inspecting Throttle Body - 2 Of 2 (Celica VIN "Y")
G00246144Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
