MR2 (With SMT)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2003 Toyota Tacoma, 2003 Toyota RAV4, 2003 Toyota Prius, 2003 Toyota Matrix, and 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

For testing of throttle position sensor, see Fig 1-Fig 5 . To check for intermittent problems, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article. Before replacing ECM, check ECM connectors and ground circuits. See ENGINE CONTROL MODULE POWER & GROUND CIRCUITS under COMPUTERIZED ENGINE CONTROLS.

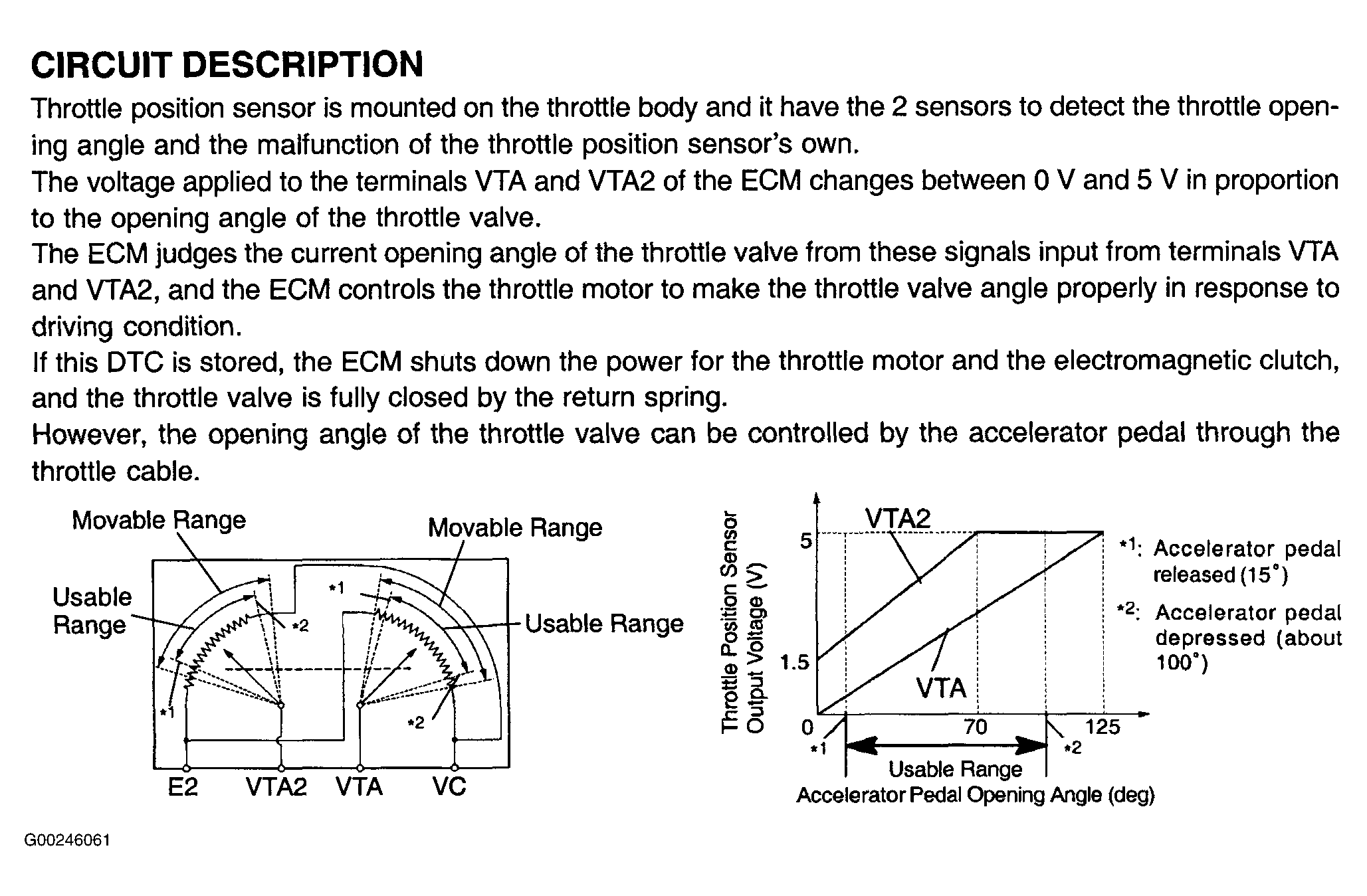

Fig 1: Testing Throttle Position Sensor - Circuit Description (MR2 With SMT)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

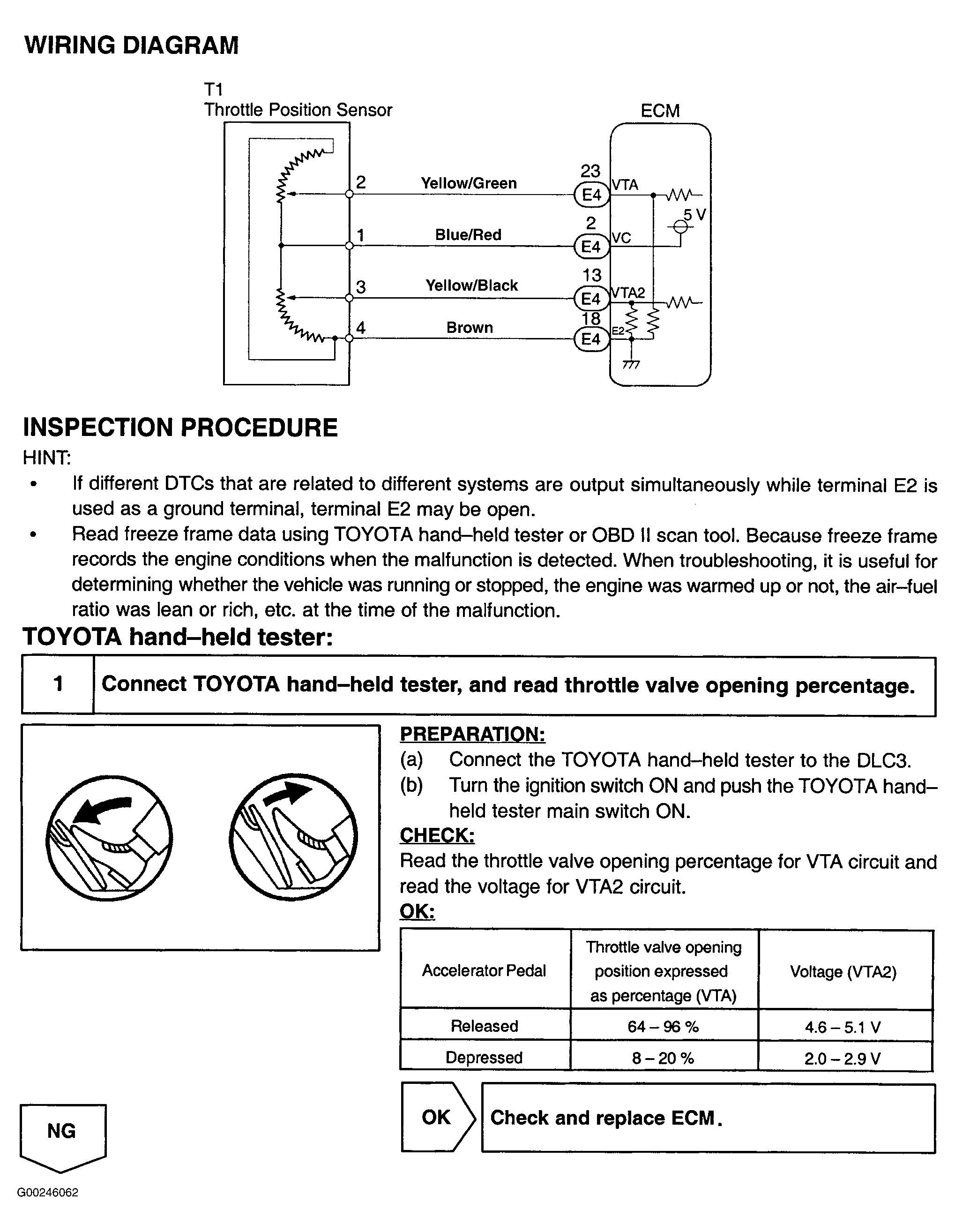

Fig 2: Testing Throttle Position Sensor - Wiring Diagram & Step 1 Using Toyota Hand-Held Tester (MR2 With SMT)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

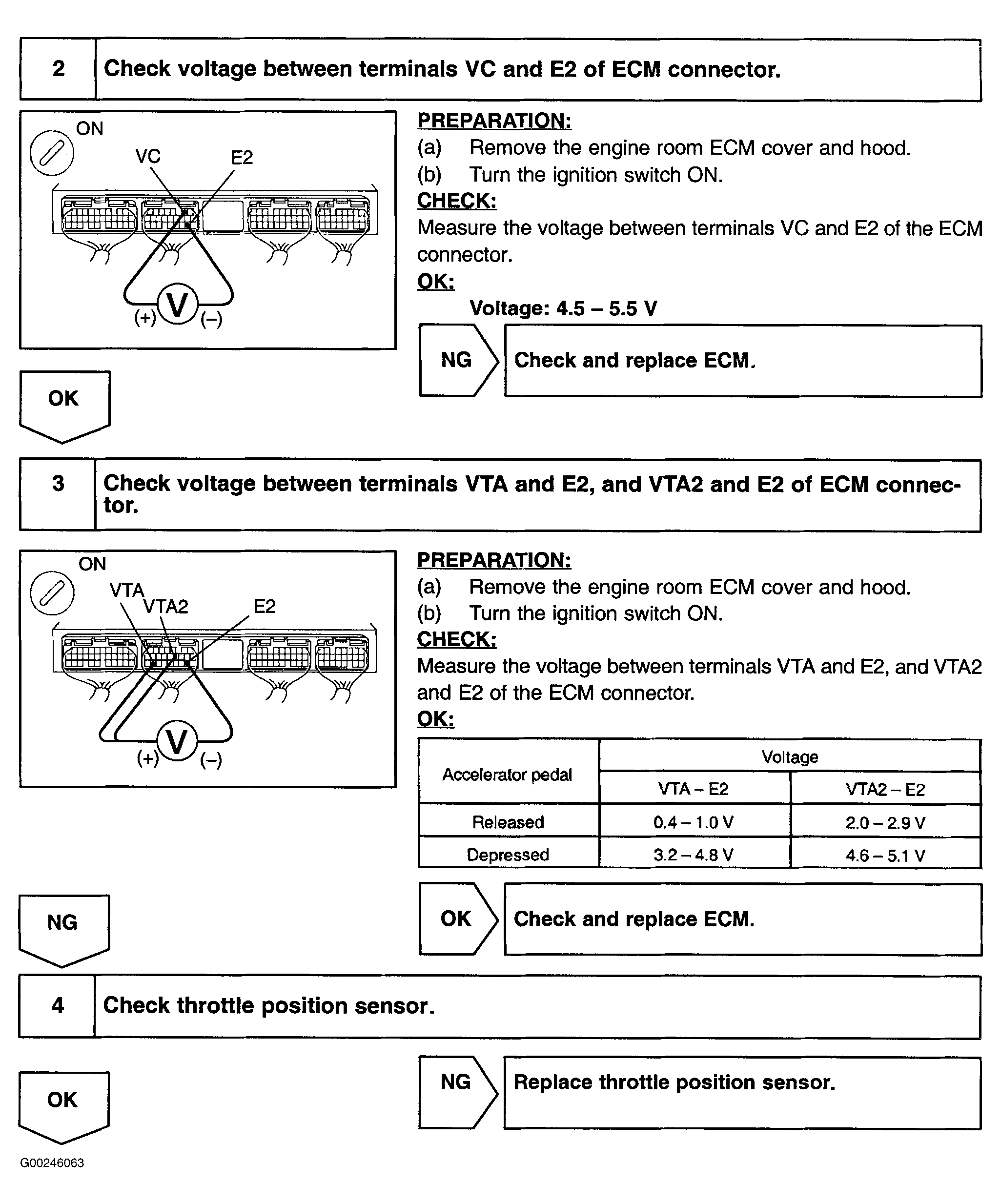

Fig 3: Testing Throttle Position Sensor Using Toyota Hand-Held Tester - Steps 2-4 (MR2 With SMT)

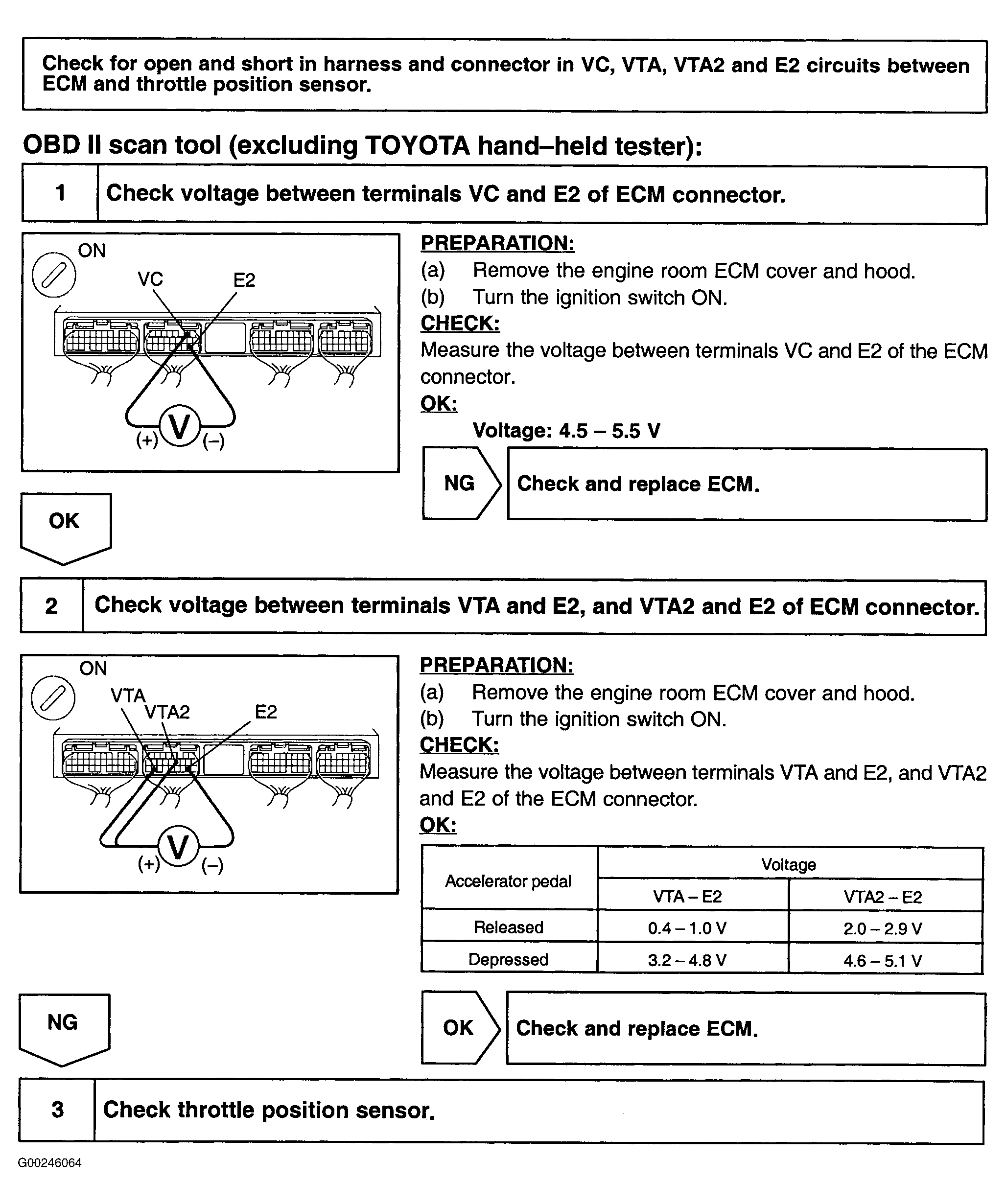

Fig 4: Testing Throttle Position Sensor Using Toyota Hand-Held Tester - Step 4 Cont.; Using OBD II Scan Tool - Steps 1-3 (MR2 With SMT)

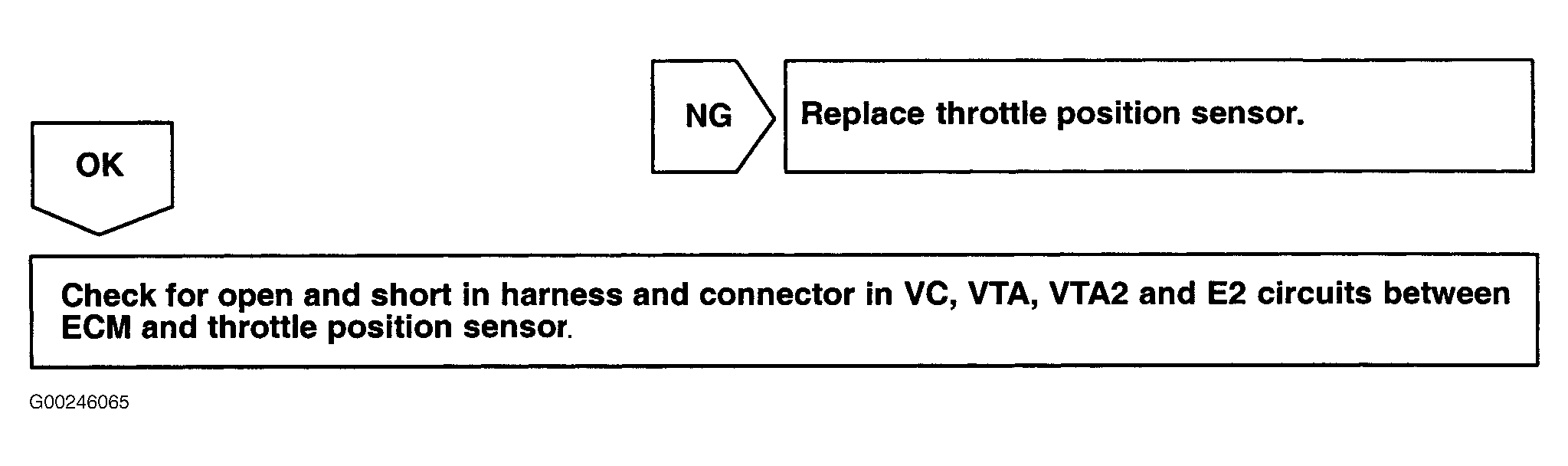

Fig 5: Testing Throttle Position Sensor Using OBD II Scan Tool - Step 3 Cont. (MR2 With SMT)
