For testing of throttle position sensor, see Fig 1-Fig 7. Before replacing ECM, check ECM connectors and ground circuits. See ENGINE CONTROL MODULE POWER & GROUND CIRCUITS under COMPUTERIZED ENGINE CONTROLS.

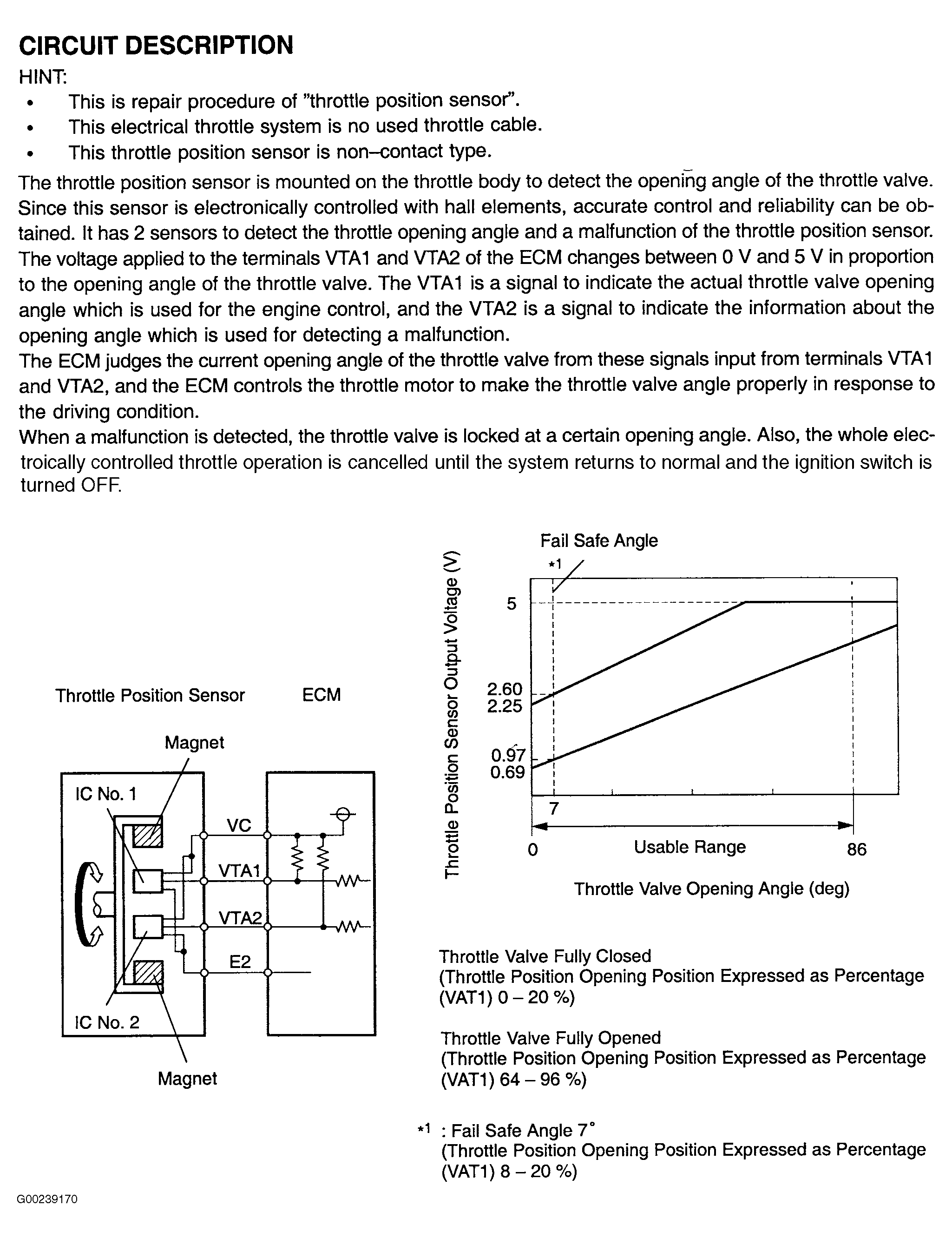

Fig 1: Testing Throttle Position Sensor - Circuit Description (Celica VIN Y)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

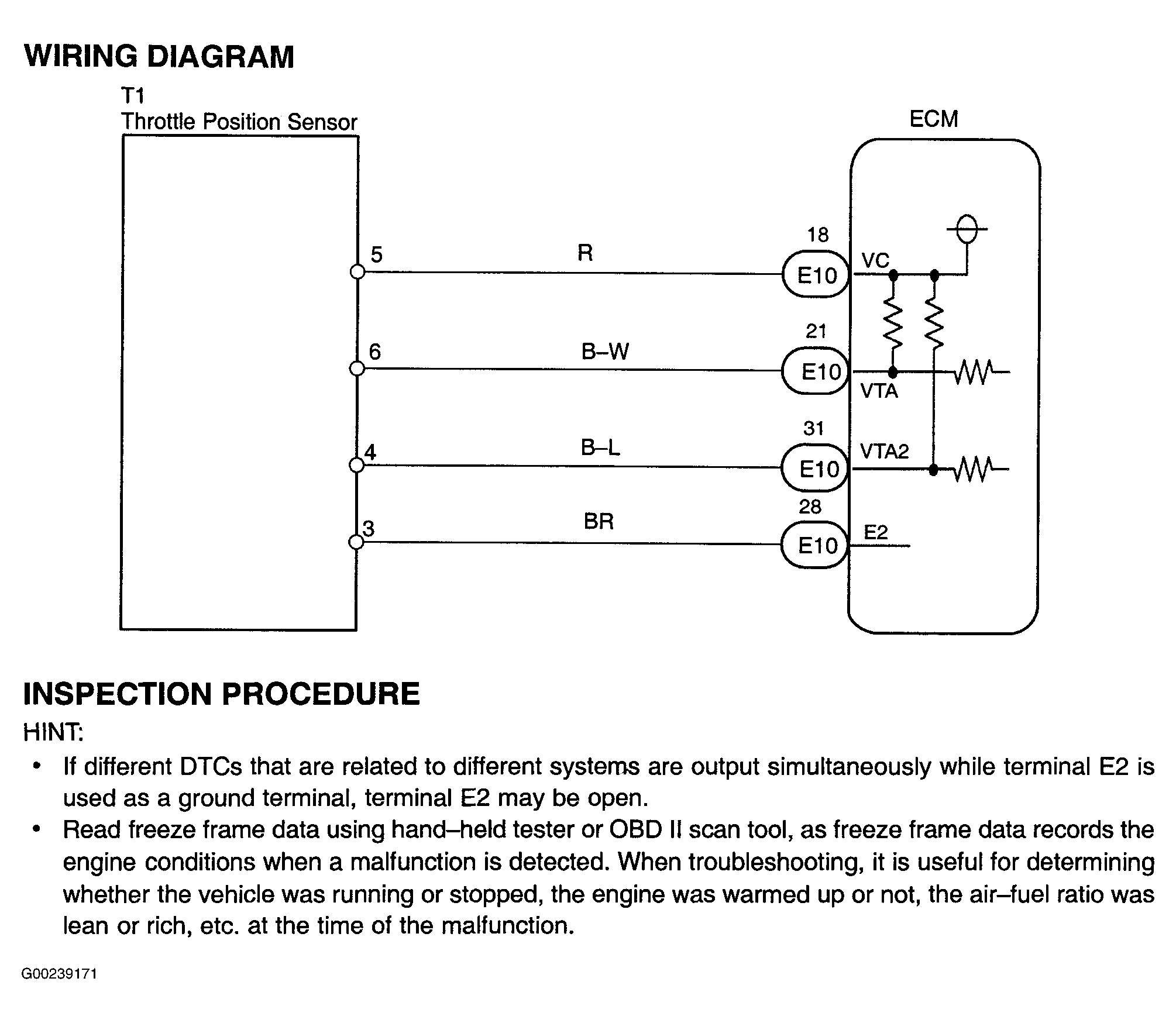

Fig 2: Testing Throttle Position Sensor - Wiring Diagram (Celica VIN Y)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

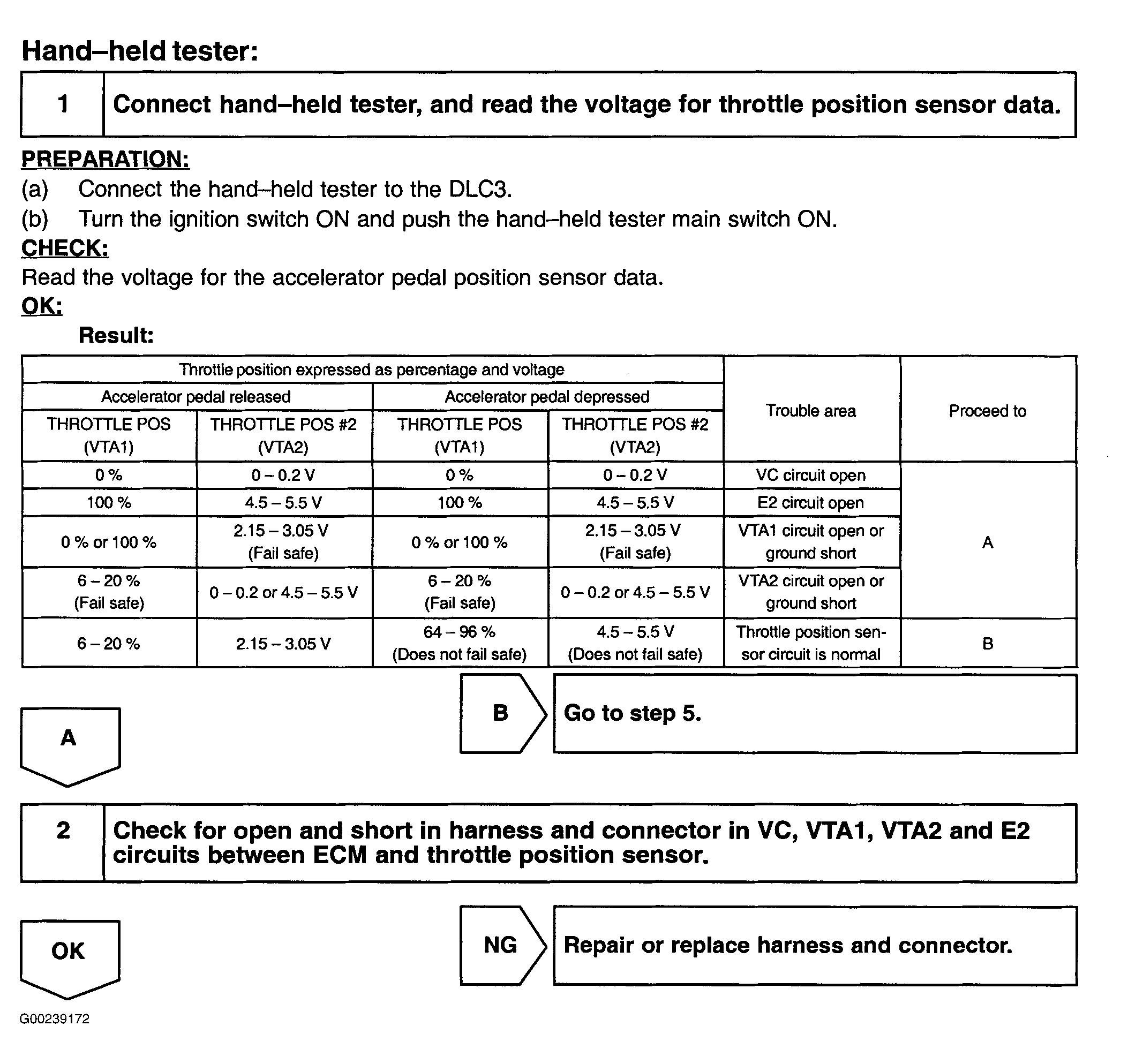

Fig 3: Testing Throttle Position Sensor Using Toyota Hand-Held Tester - Steps 1-2 (Celica VIN Y)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

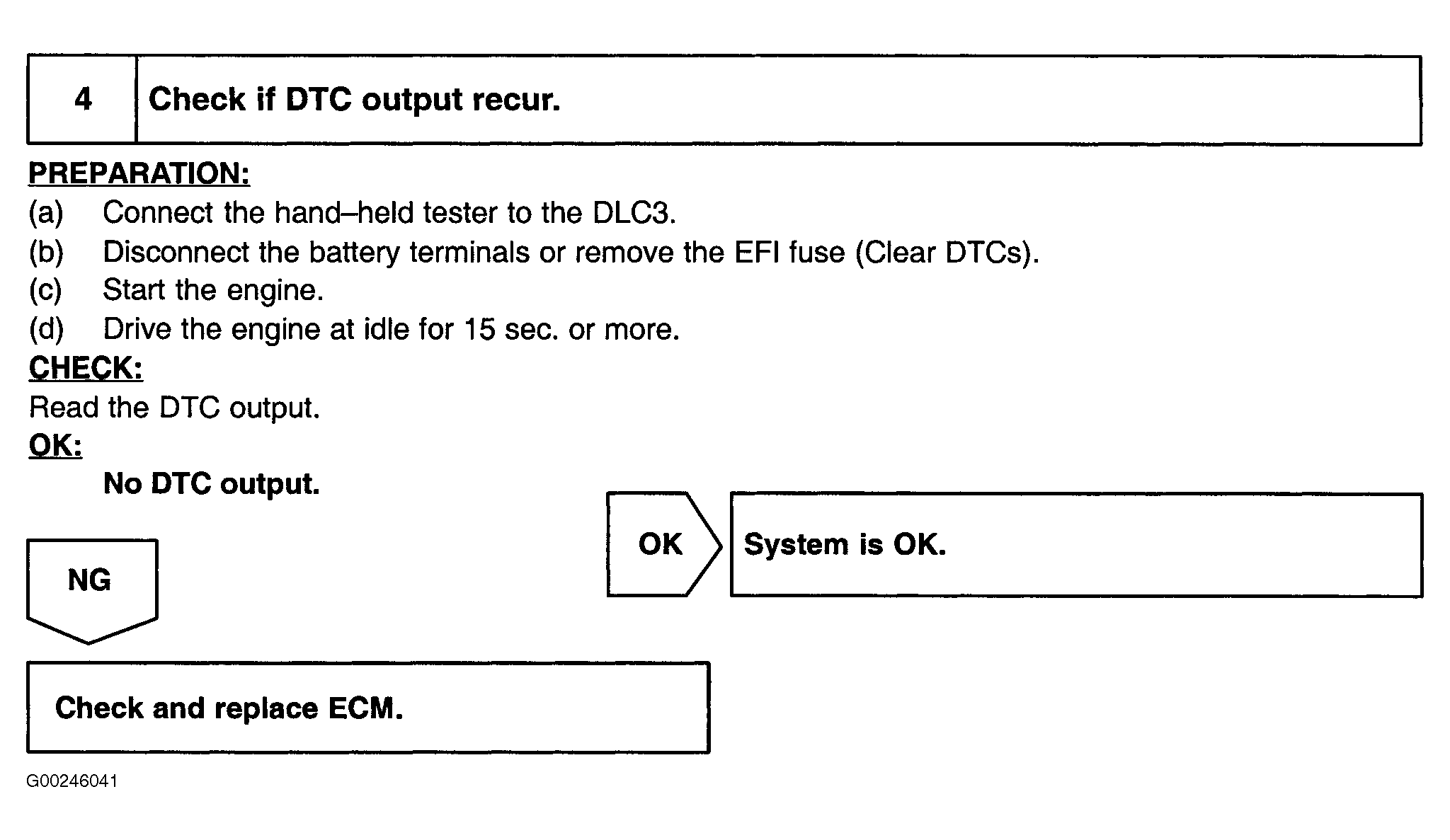

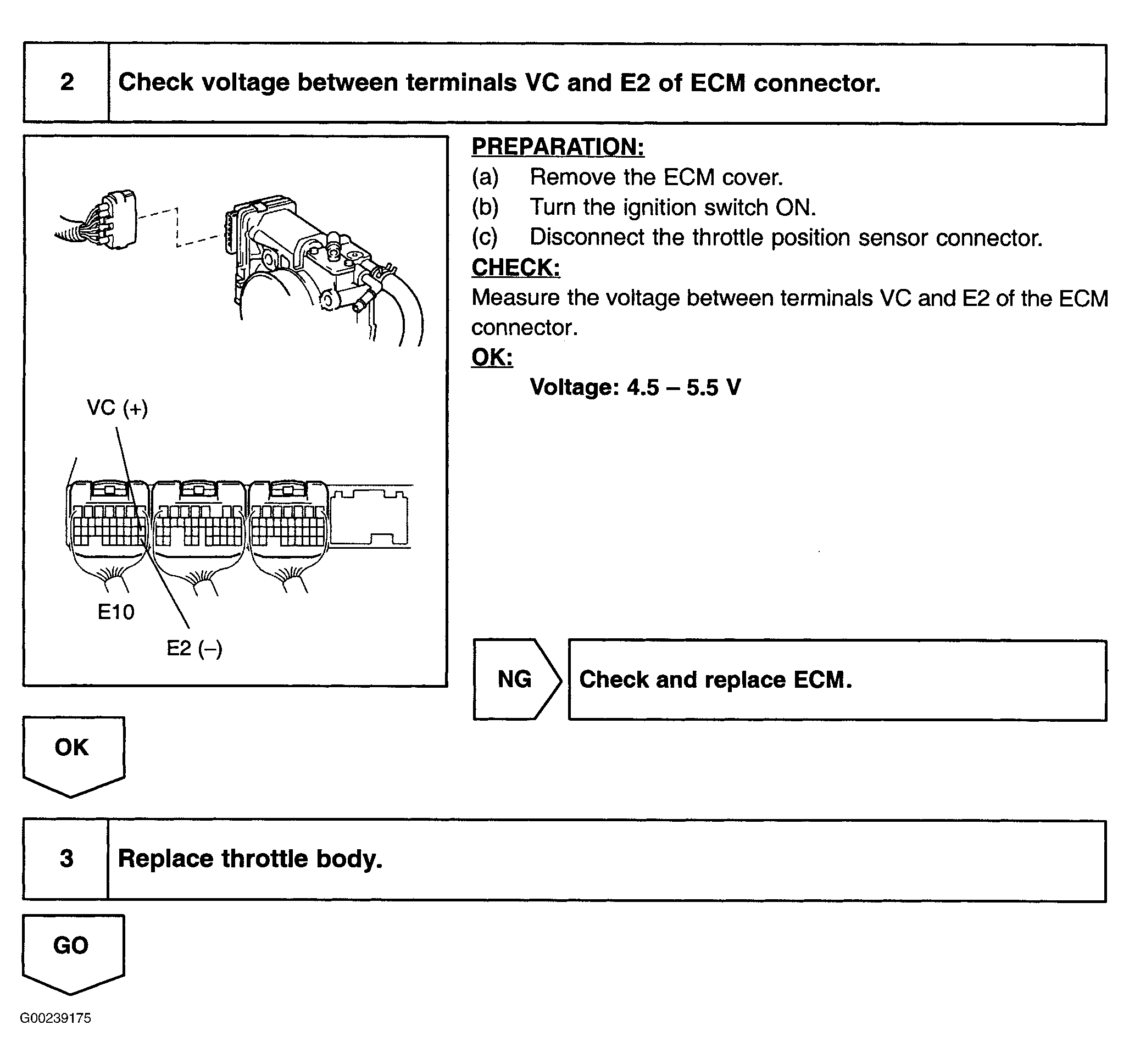

Fig 4: Testing Throttle Position Sensor Using Toyota Hand-Held Tester - Steps 3-4 (Celica VIN Y)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

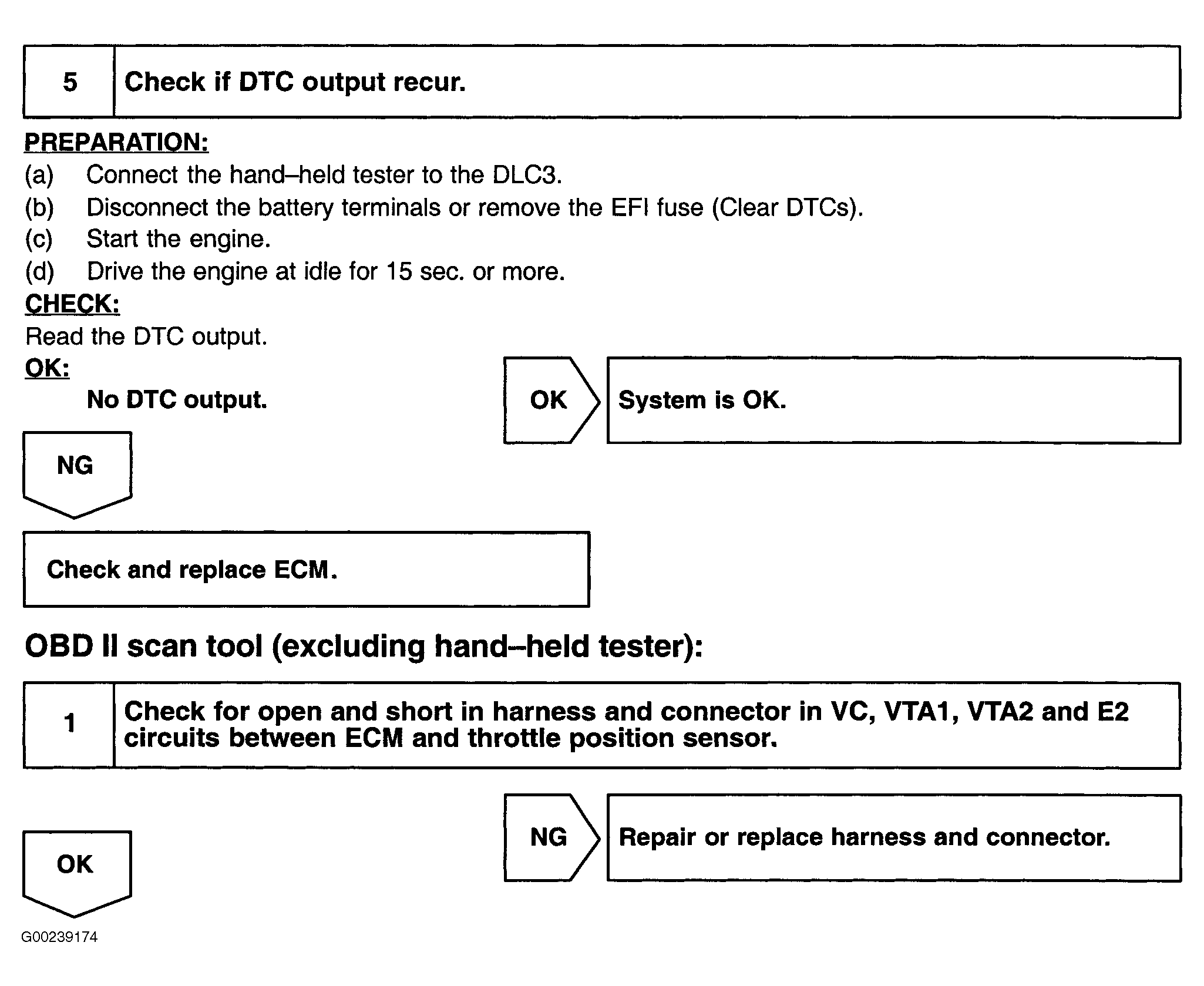

Fig 5: Testing Throttle Position Sensor Using Toyota Hand-Held Tester - Step 5; Using OBD II Scan Tool - Step 1 (Celica VIN Y)

Fig 6: Testing Throttle Position Sensor Using OBD II Scan Tool - Steps 2-3 (Celica VIN Y)

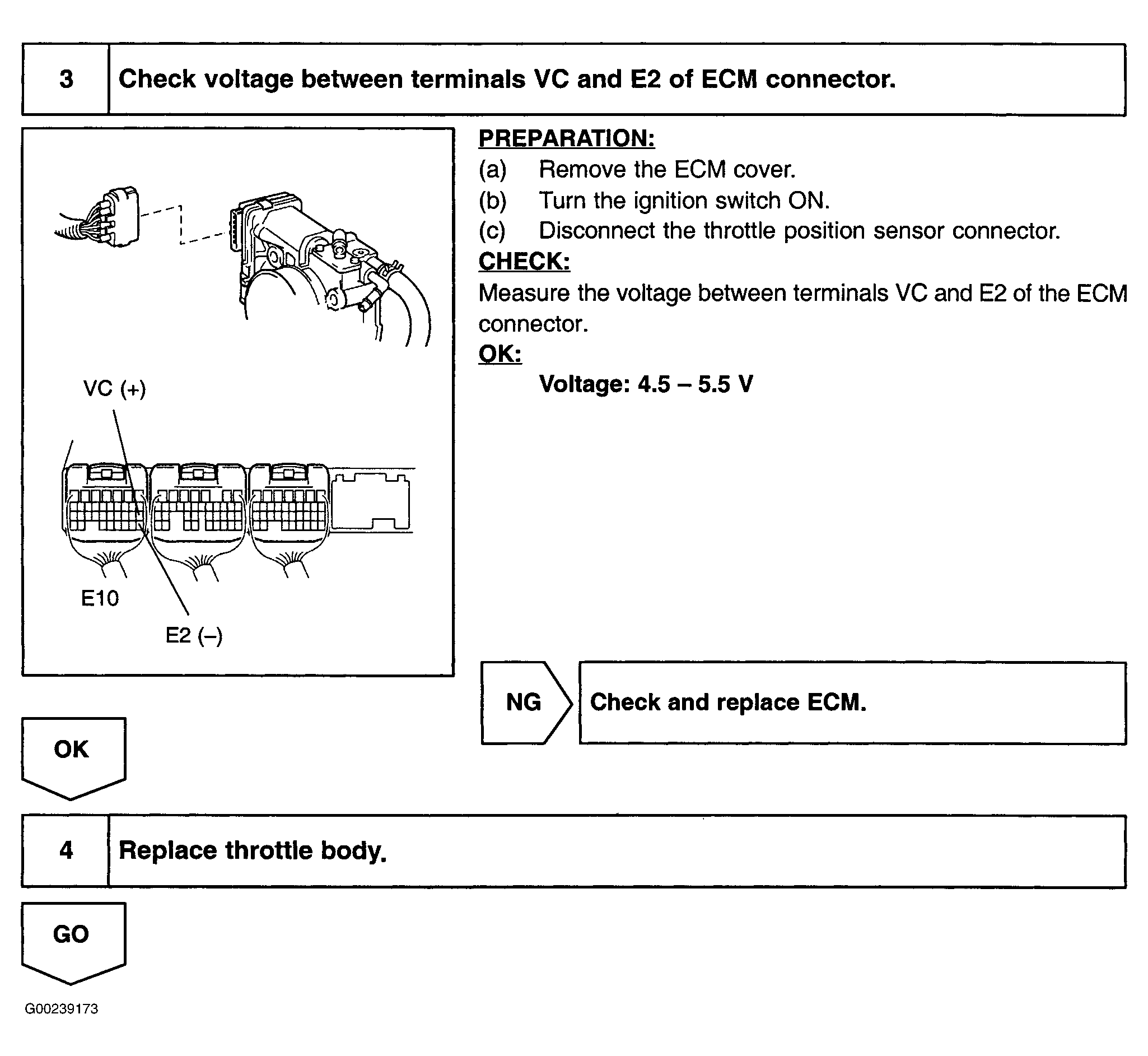

Fig 7: Testing Throttle Position Sensor Using OBD II Scan Tool - Step 4 (Celica VIN Y)
