Power Steering Pressure Switch: Highlander

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2003 Toyota Tacoma, 2003 Toyota RAV4, 2003 Toyota Prius, 2003 Toyota Matrix, and 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

For power steering pressure sensor inspection procedures, see Fig 1.

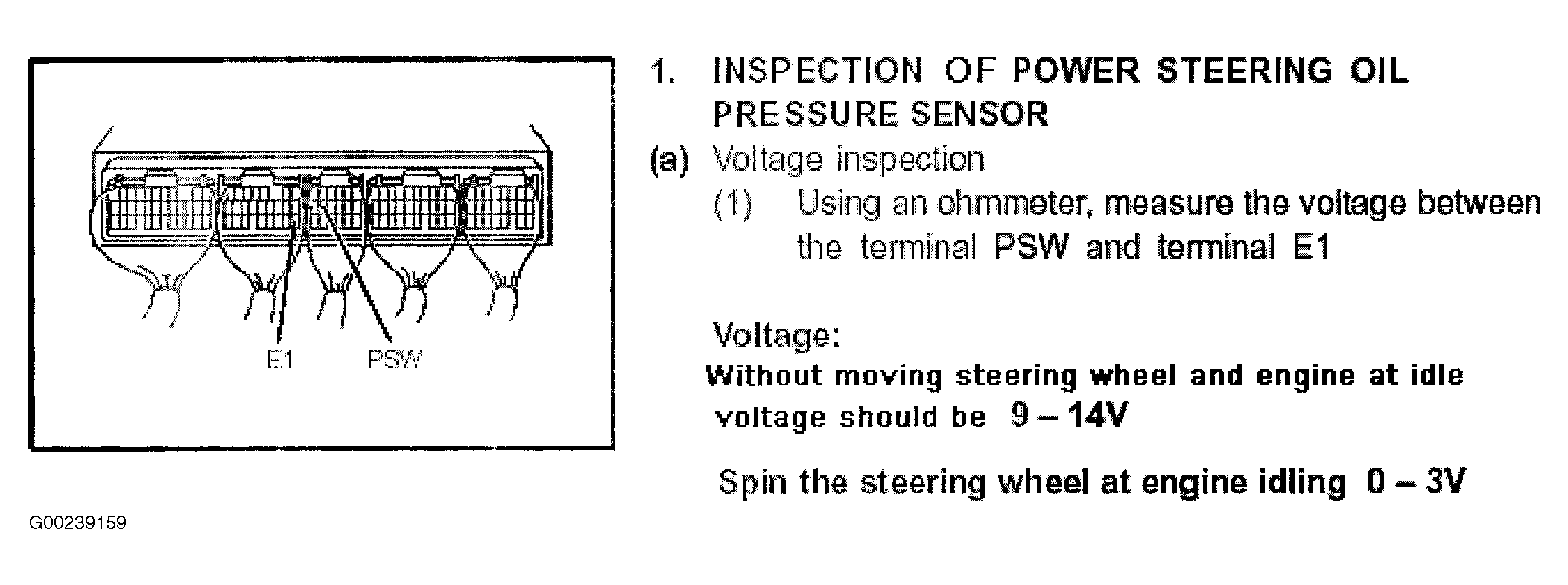

Fig 1: Testing Power Steering Pressure Switch (Highlander)
G00239159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
