Power Steering Pressure Sensor: Echo
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2003 Toyota Tacoma, 2003 Toyota RAV4, 2003 Toyota Prius, 2003 Toyota Matrix, and 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

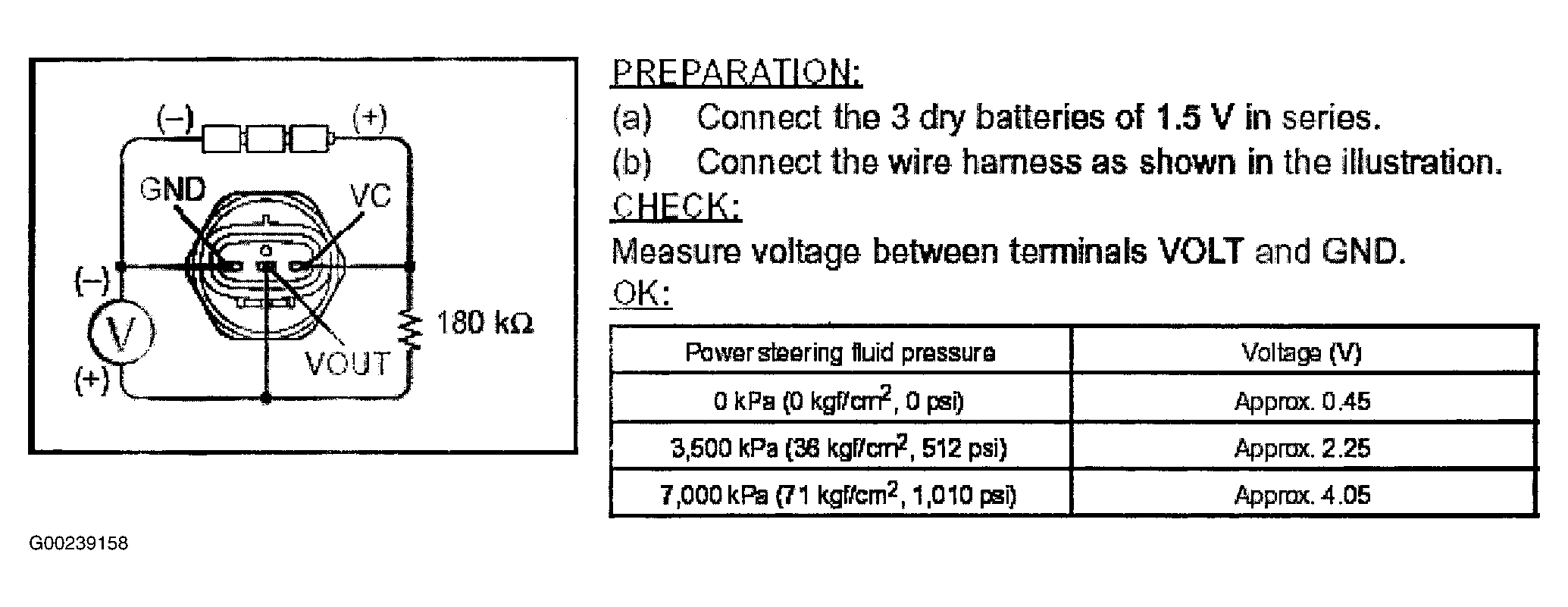

For power steering pressure sensor inspection procedures, see Fig 1. If problem exists with power steering pressure sensor, a Diagnostic Trouble Code (DTC) may be stored in Engine Control Module (ECM). See TESTING PROCEDURE under SELF-DIAGNOSTIC SYSTEM in appropriate SELF-DIAGNOSTICS article for retrieving of DTCs.
