A/C Evaporator Temperature Sensor: Camry

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2003 Toyota Tacoma, 2003 Toyota RAV4, 2003 Toyota Prius, 2003 Toyota Matrix, and 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

For A/C evaporator temperature sensor inspection and wiring diagram, see Fig 1-Fig 3 .

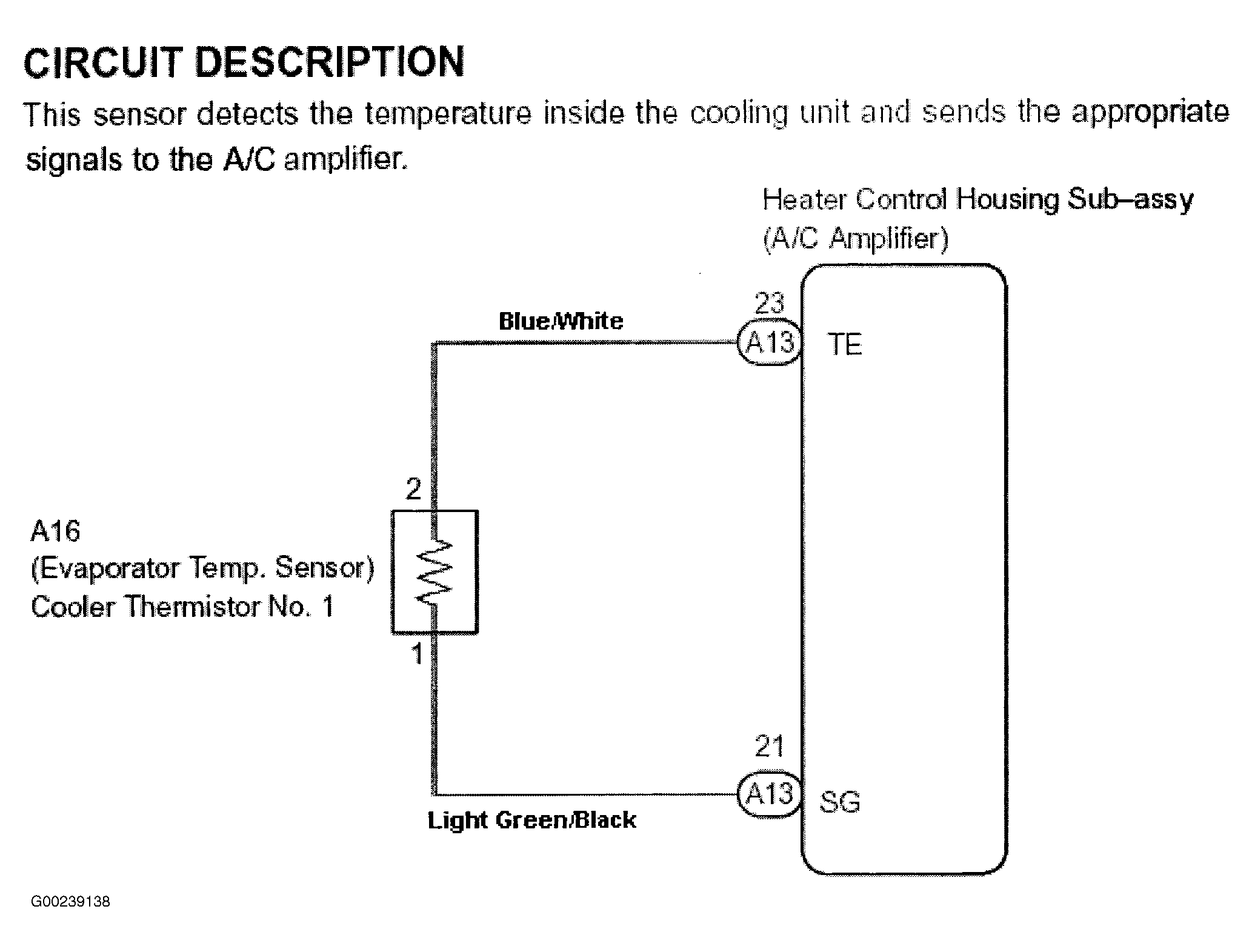

Fig 1: A/C Evaporator Temperature Sensor Wiring Diagram (Camry)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

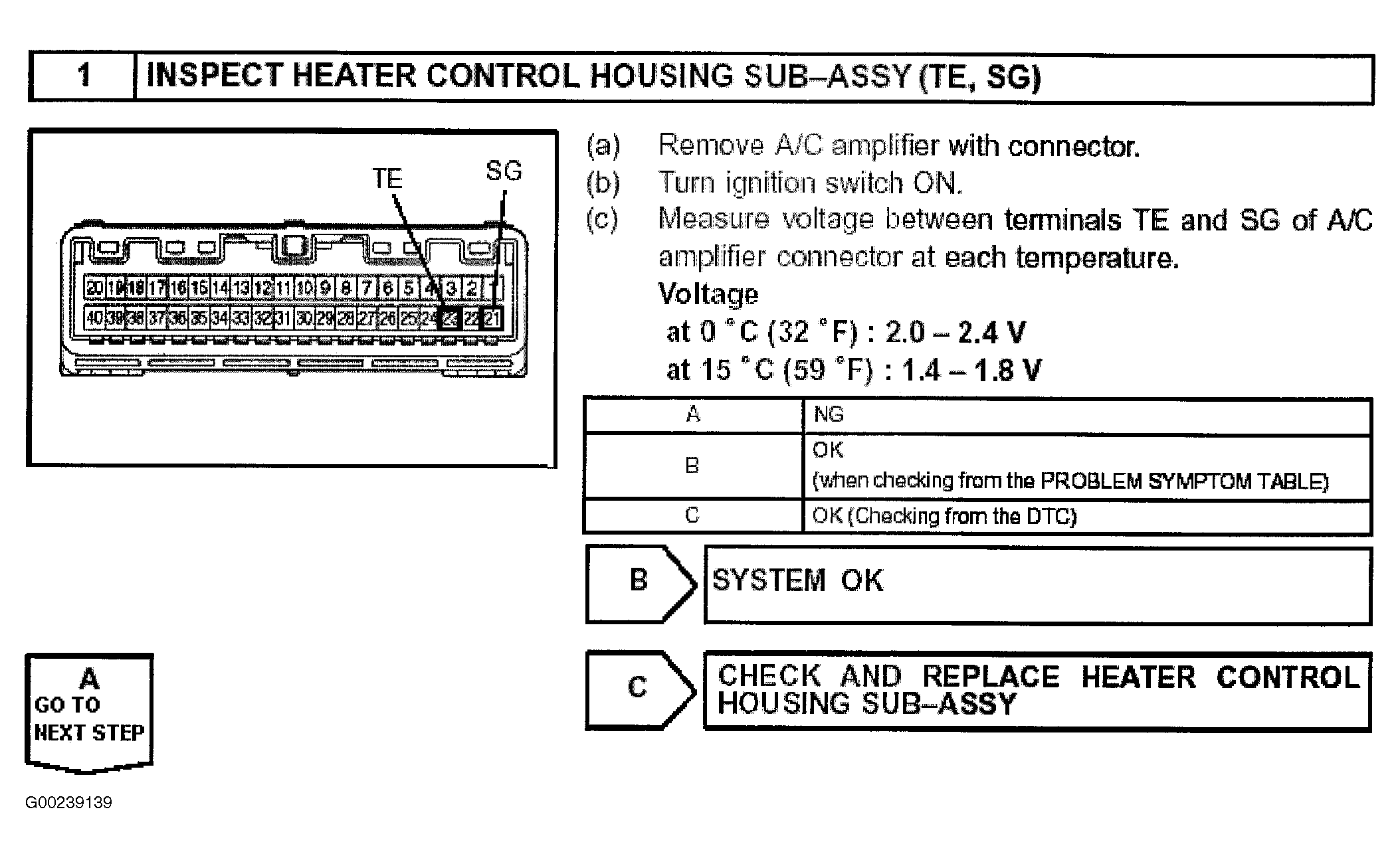

Fig 2: A/C Evaporator Temperature Sensor Inspection - Step 1 (Camry)

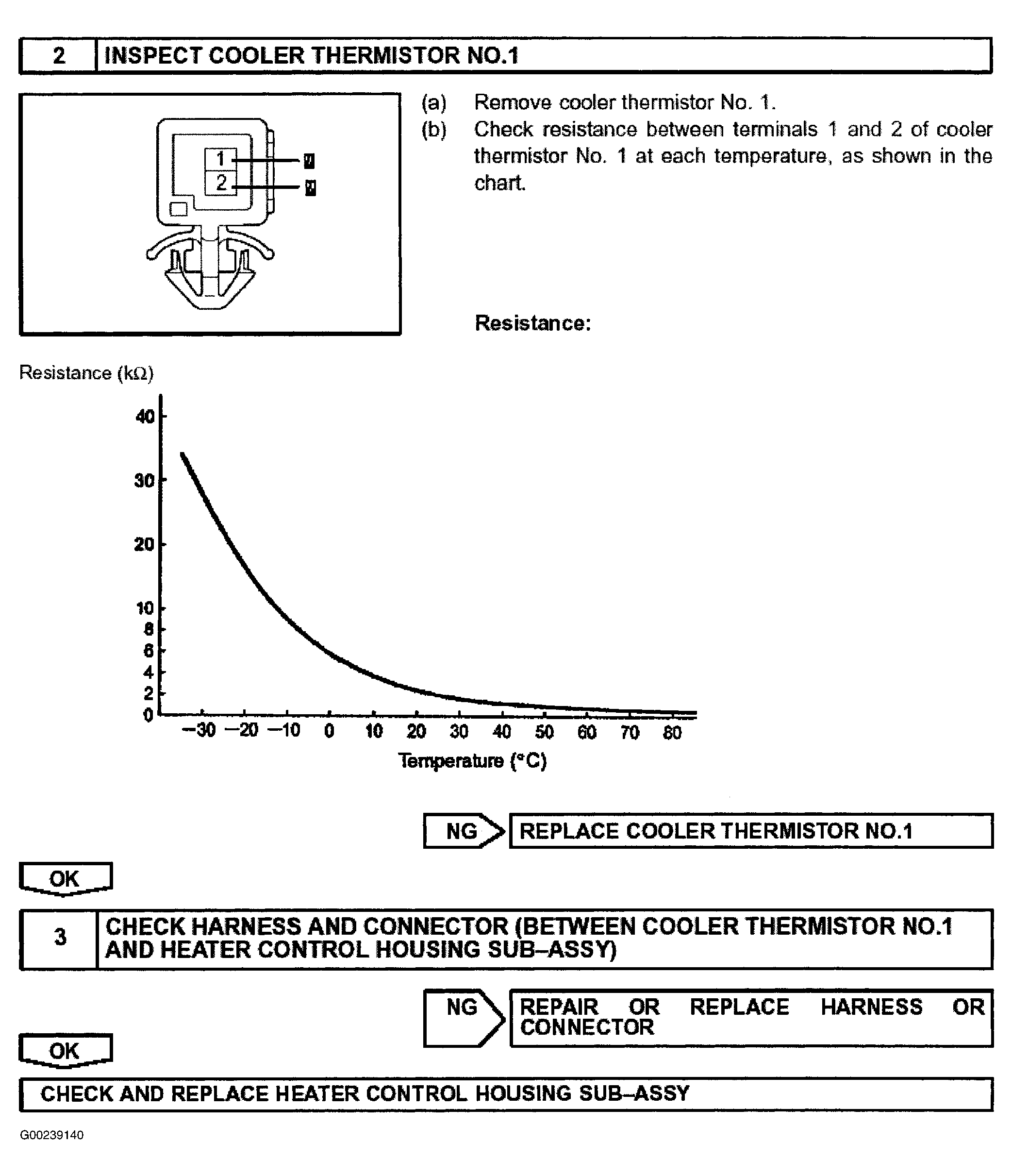

Fig 3: A/C Evaporator Temperature Sensor Inspection - Steps 2-3 (Camry)
