HCAC Vacuum Switching Valve

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2003 Toyota Tacoma, 2003 Toyota RAV4, 2003 Toyota Prius, 2003 Toyota Matrix, and 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Read service precautions before proceeding with service procedure. See SERVICE PRECAUTIONS .

For HCAC vacuum switching valve inspection and testing, see Fig 1 and Fig 2.

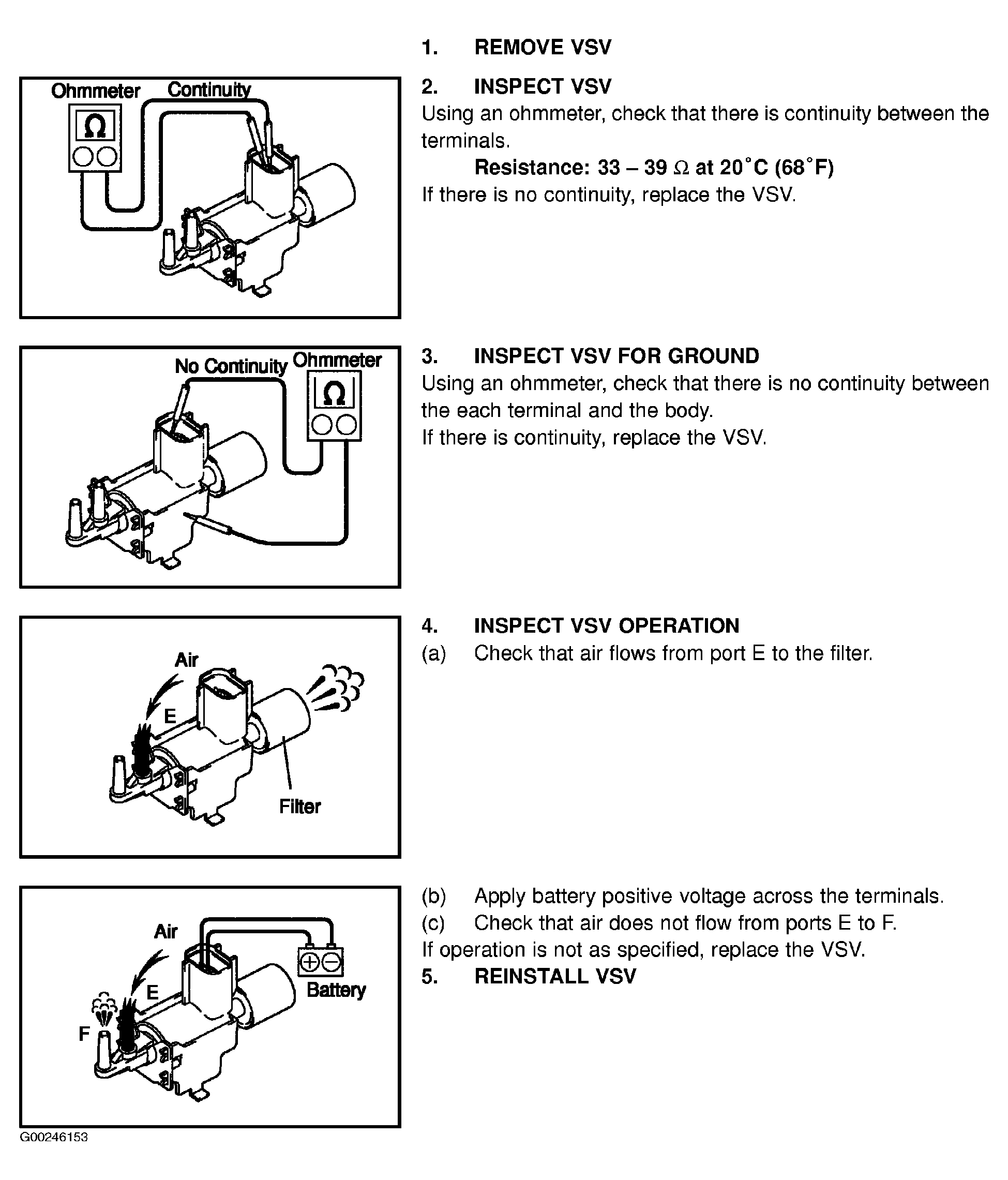

Fig 1: Testing Hydrocarbon Absorber Catalyst Vacuum Switching Valve (Prius)
G00246153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Locating Hydrocarbon Absorber Catalyst Vacuum Switching Valve (Prius)
G00020827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
