Vapor Pressure Sensor (Camry Except PZEV)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2003 Toyota Tacoma, 2003 Toyota RAV4, 2003 Toyota Prius, 2003 Toyota Matrix, and 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

For testing of vapor pressure sensor on Camry without Partial Zero Emission Vehicle (PZEV) option, see Fig 1-Fig 2 . Before replacing ECM, check ECM connectors and ground circuits. See ENGINE CONTROL MODULE POWER & GROUND CIRCUITS .

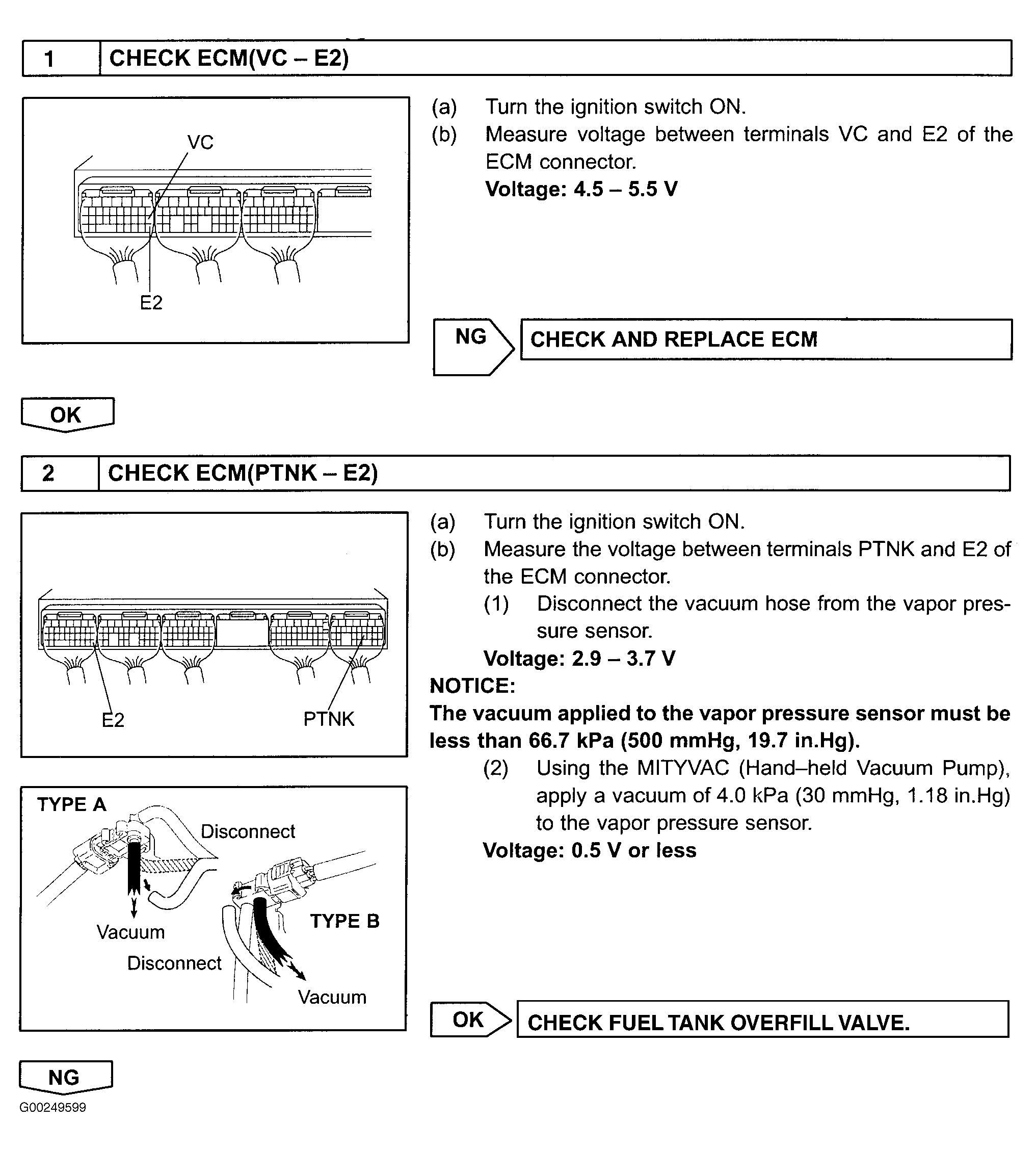

Fig 1: Testing Vapor Pressure Sensor (Camry Except PZEV - 1 Of 2)

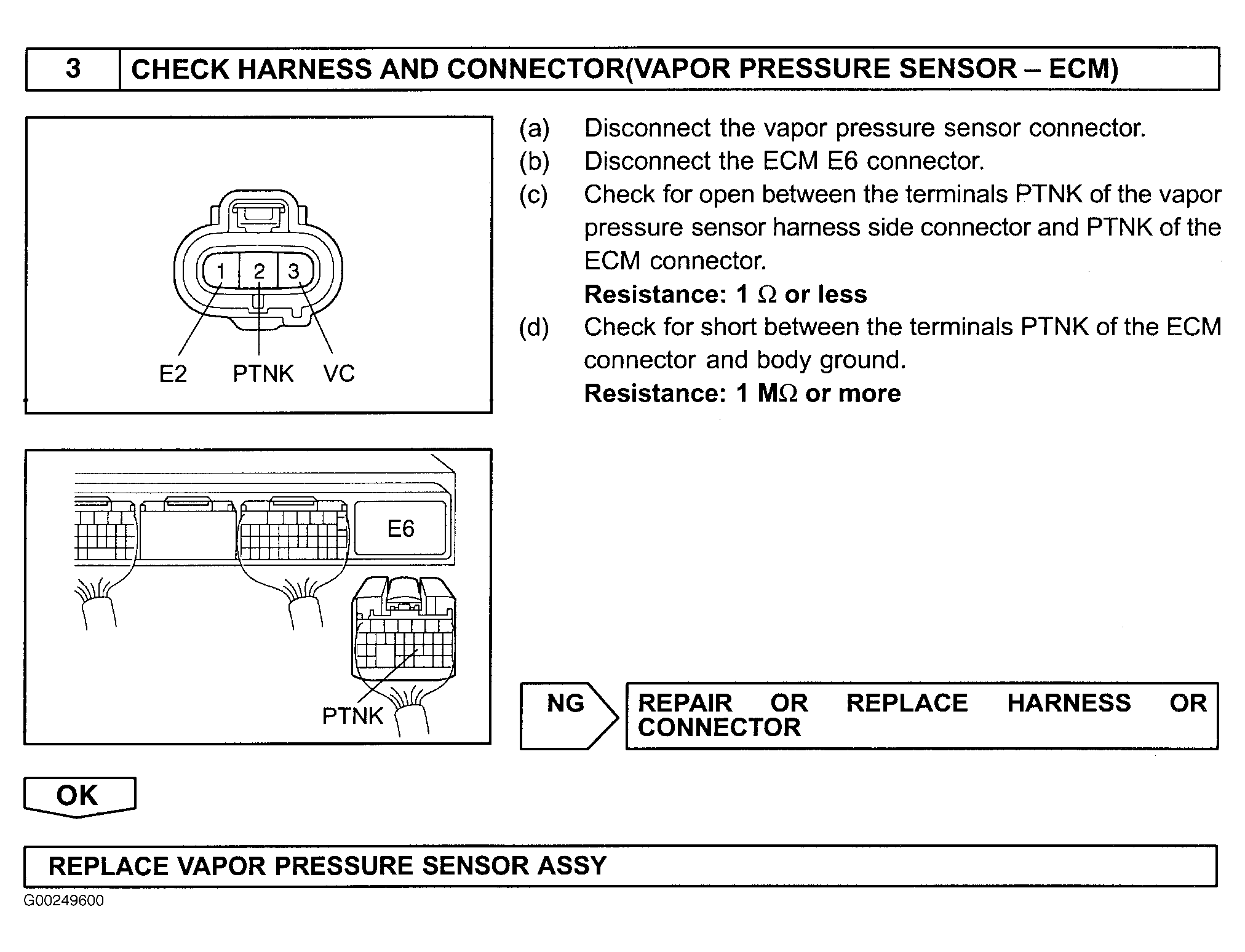

Fig 2: Testing Vapor Pressure Sensor (Camry Except PZEV - 2 Of 2)
