Charcoal Canister (Camry PZEV)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2003 Toyota Tacoma, 2003 Toyota RAV4, 2003 Toyota Prius, 2003 Toyota Matrix, and 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

For testing of charcoal canister on Camry with Partial Zero Emission Vehicle (PZEV) option, see Fig 1-Fig 4 .

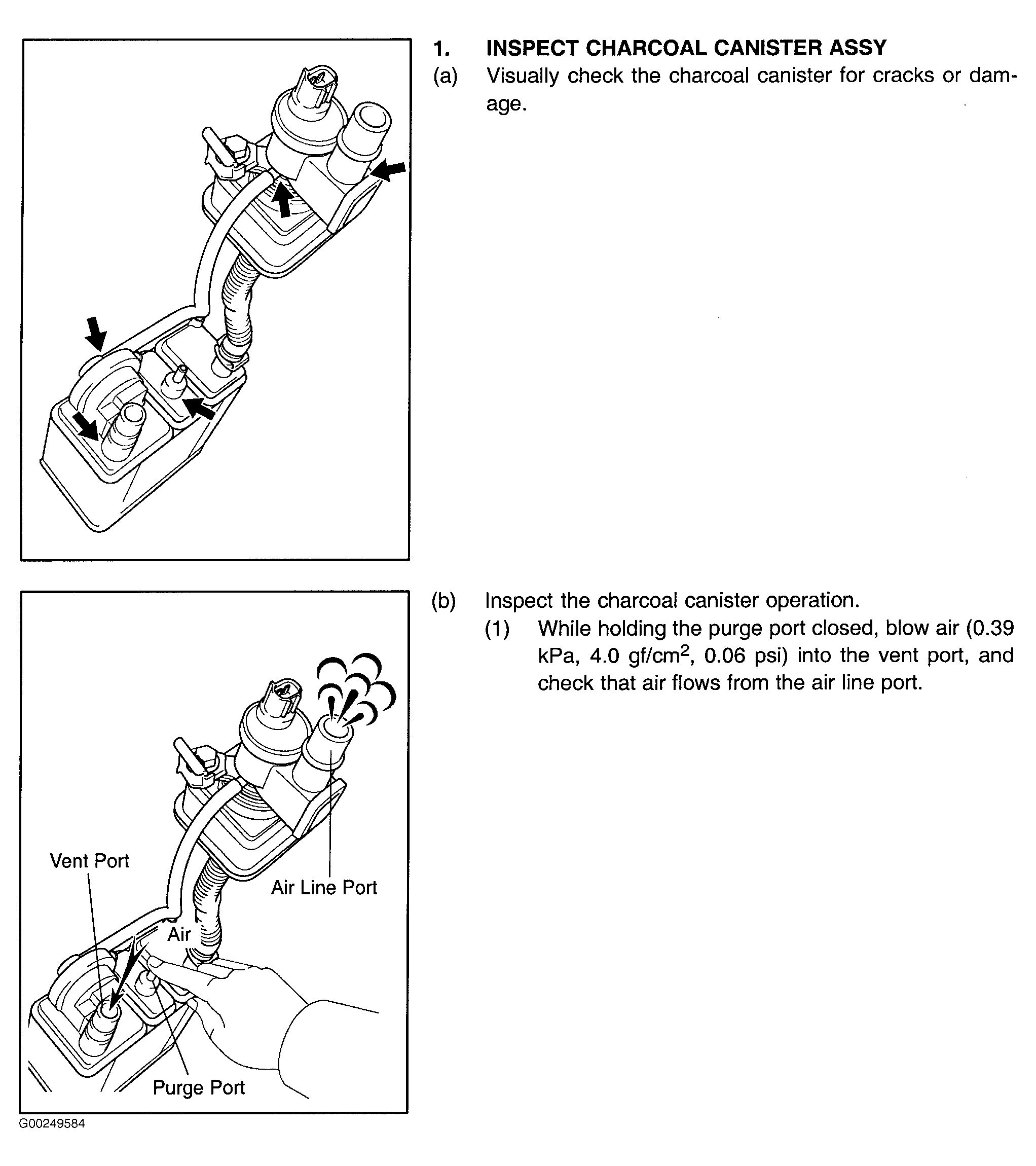

Fig 1: Testing Charcoal Canister - 1 Of 4 (Camry PZEV)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

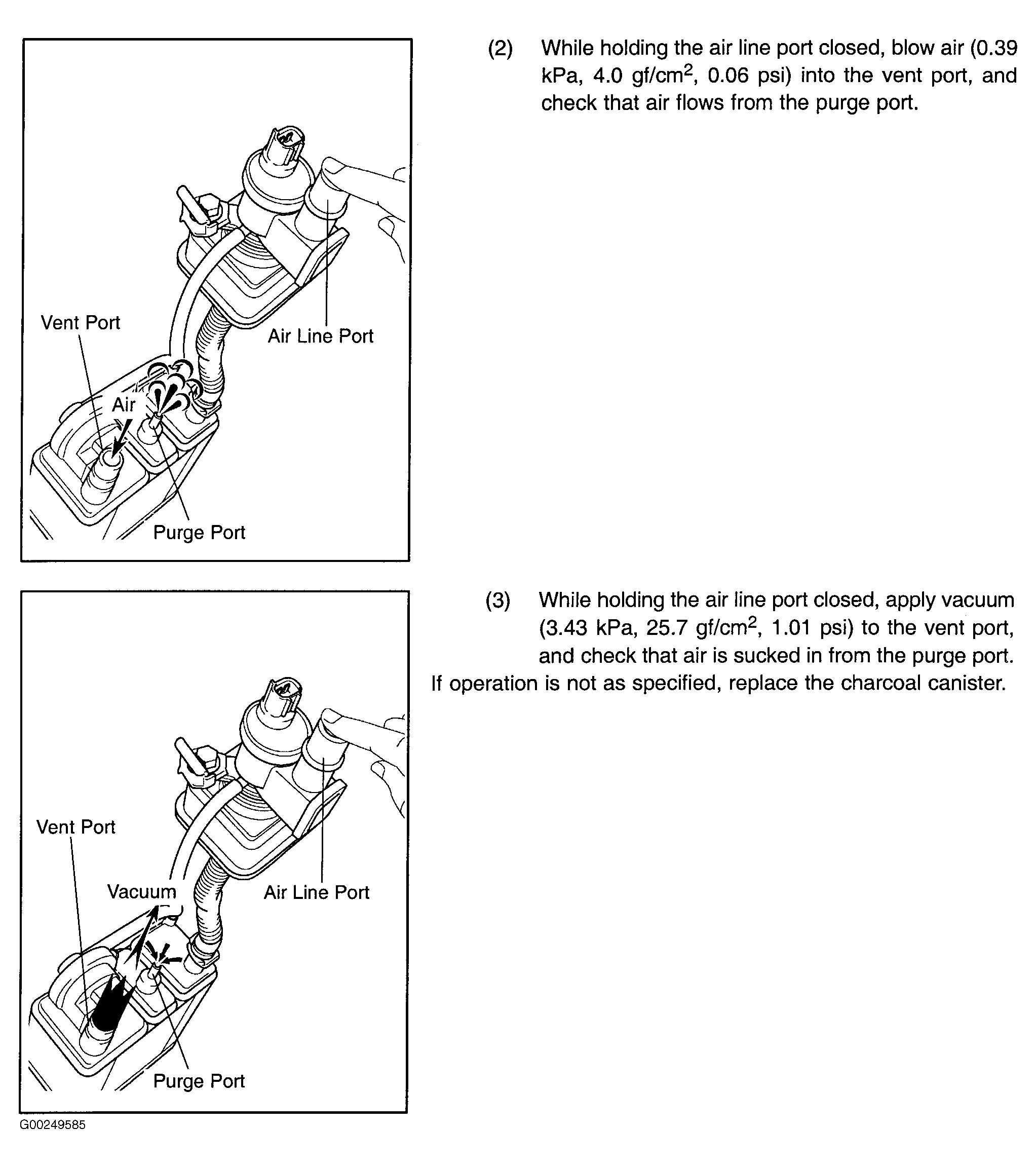

Fig 2: Testing Charcoal Canister - 2 Of 4 (Camry PZEV)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

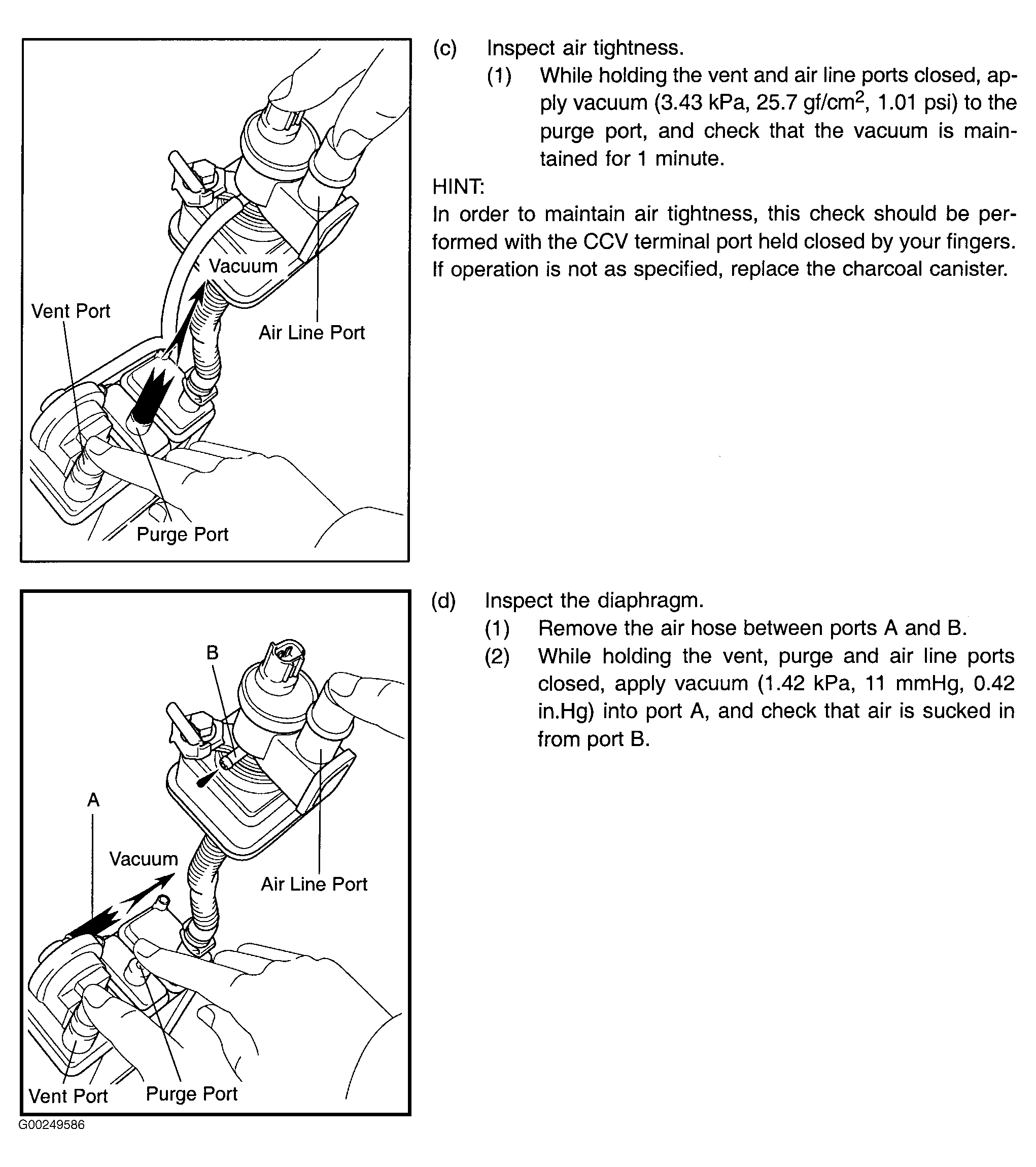

Fig 3: Testing Charcoal Canister - 3 Of 4 (Camry PZEV)

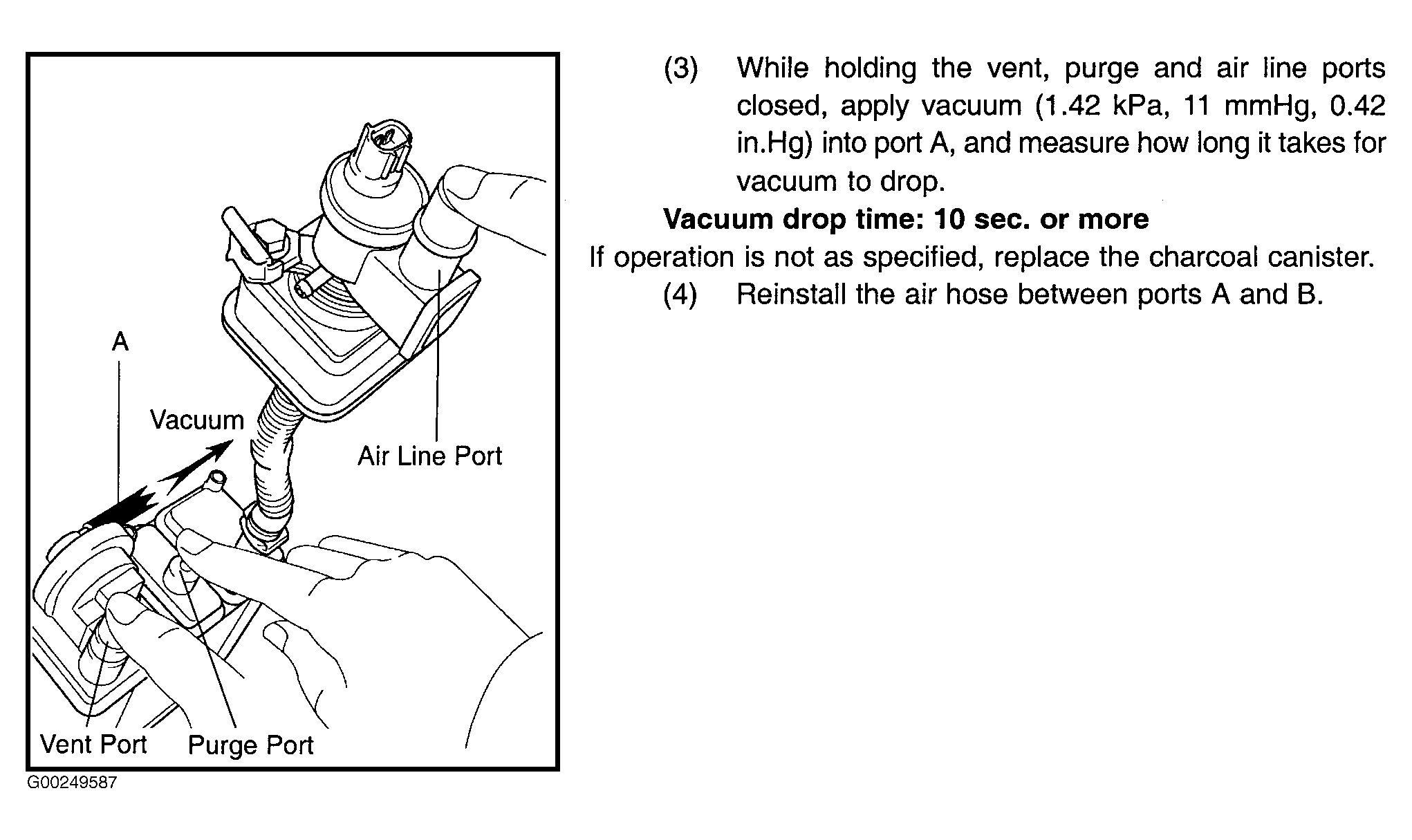

Fig 4: Testing Charcoal Canister - 4 Of 4 (Camry PZEV)
