Canister Closed Valve Vacuum Switching Valve (Camry Except PZEV)

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2003 Toyota Tacoma, 2003 Toyota RAV4, 2003 Toyota Prius, 2003 Toyota Matrix, and 2003 Toyota MR2. However, it is still accessible from the selected car via links, so may be relevant.

For canister closed valve vacuum switching valve test on Camry without Partial Zero Emission Vehicle (PZEV) option, see Fig 1-Fig 2 .

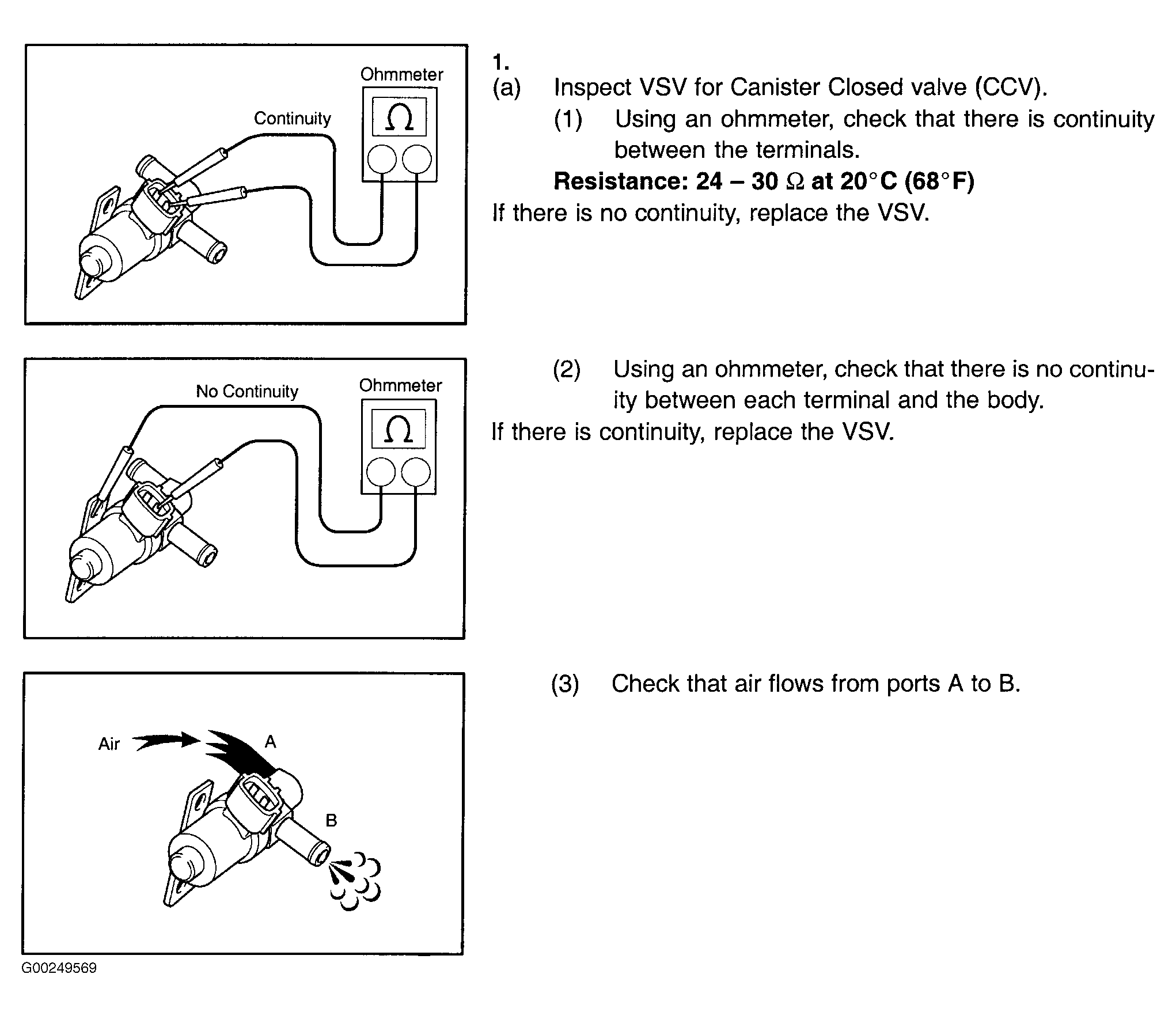

Fig 1: Testing Canister Closed Valve Vacuum Switching Valve - 1 Of 2 (Camry Except PZEV)
G00249569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

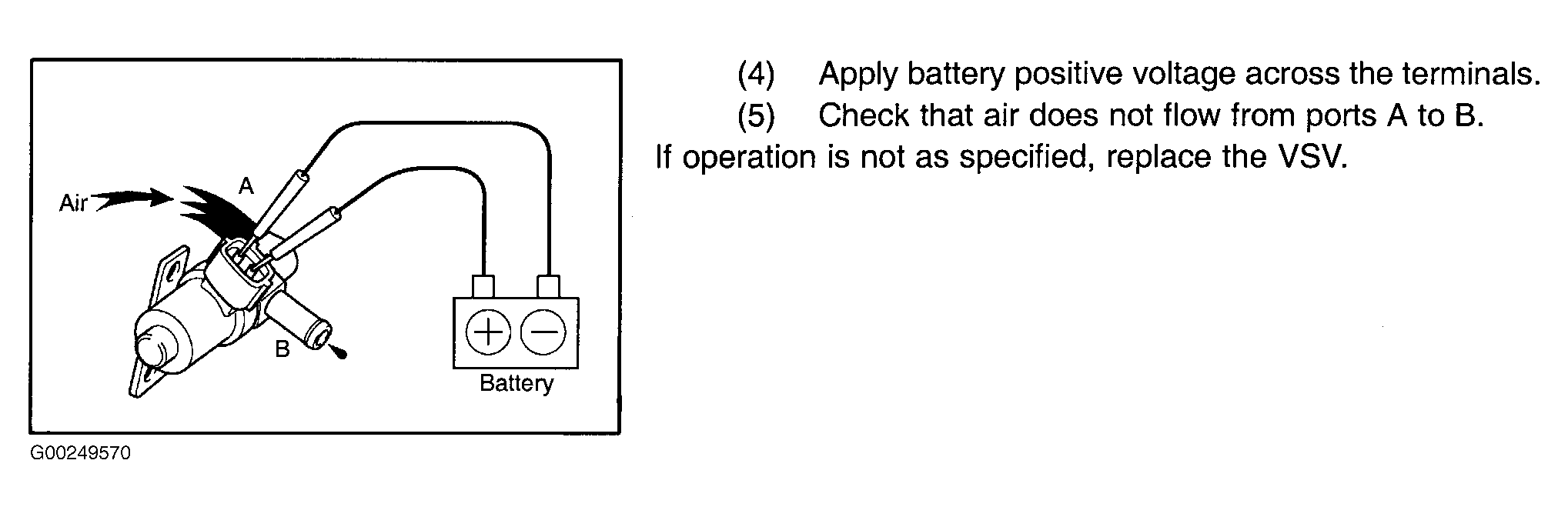

Fig 2: Testing Canister Closed Valve Vacuum Switching Valve - 2 Of 2 (Camry Except PZEV)
G00249570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
