Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

For diagnosis and repair, see Fig 1-Fig 18 . For wiring diagram, see Fig 19.

Fig 1: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure (1 Of 18)

G00207221

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure (2 Of 18)

G00207222

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure (3 Of 18)

G00207223

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

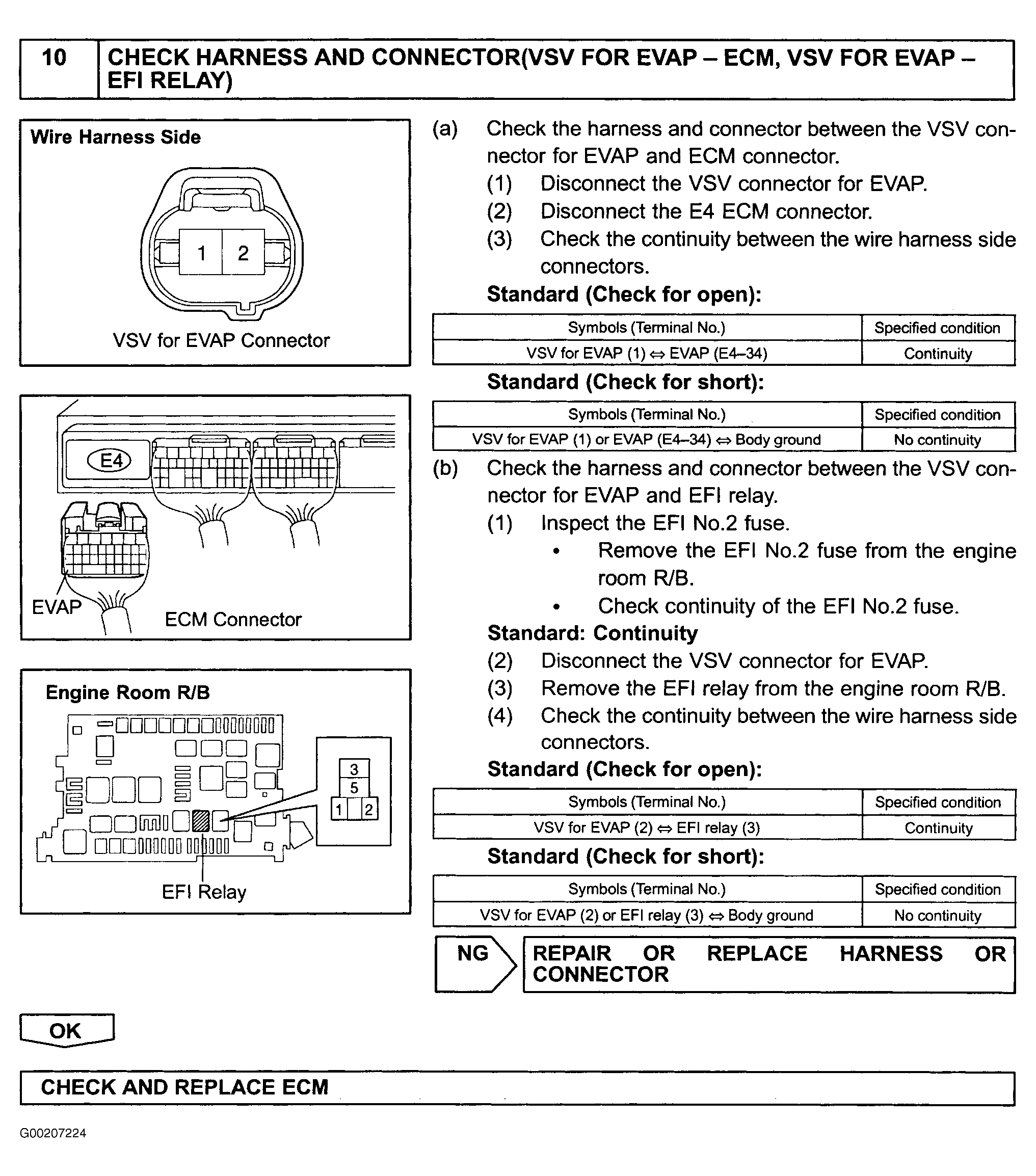

Fig 4: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure (4 Of 18)

G00207224

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure (5 Of 18)

G00207225

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

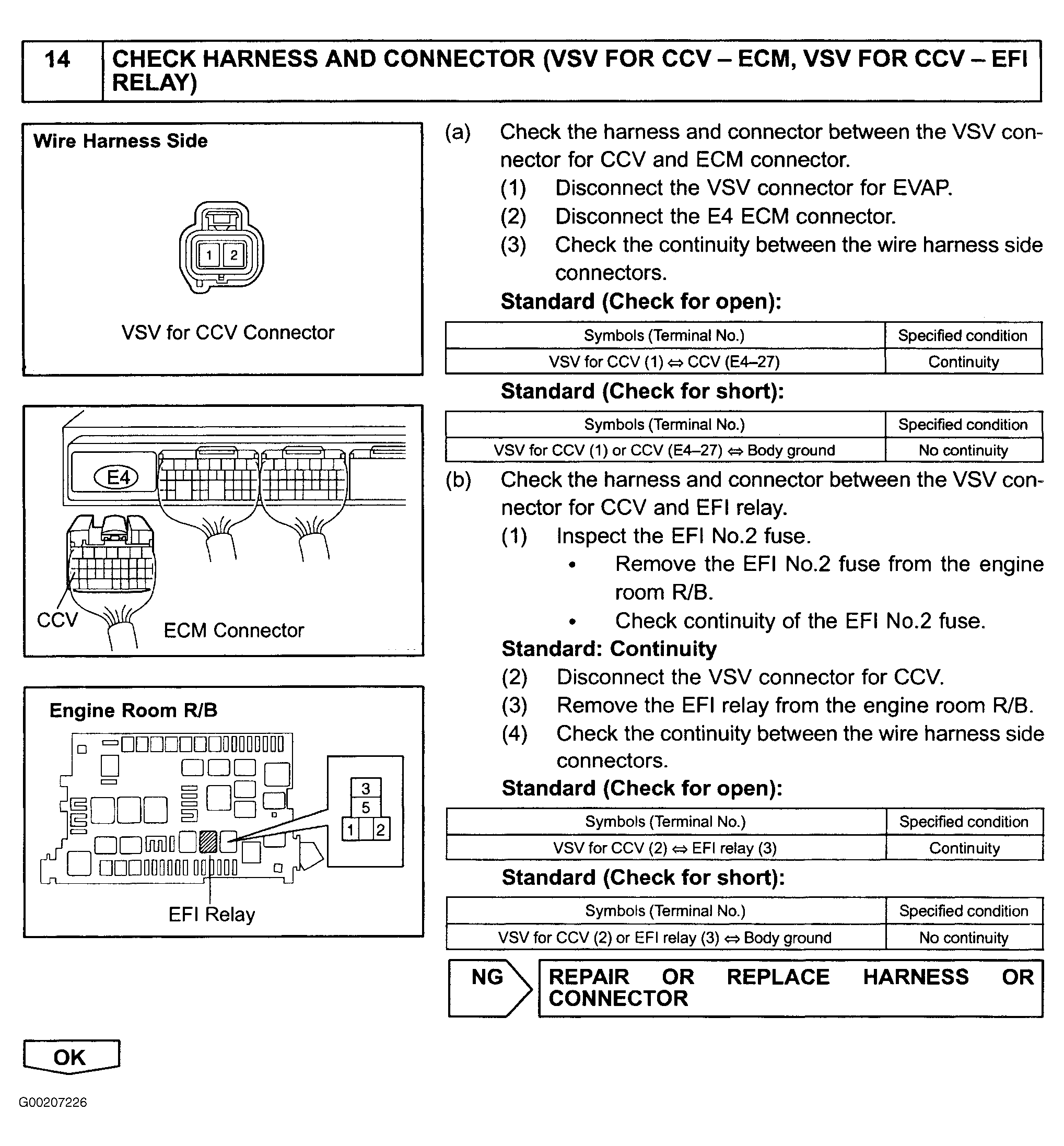

Fig 6: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure (6 Of 18)

G00207226

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure (7 Of 18)

G00207227

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

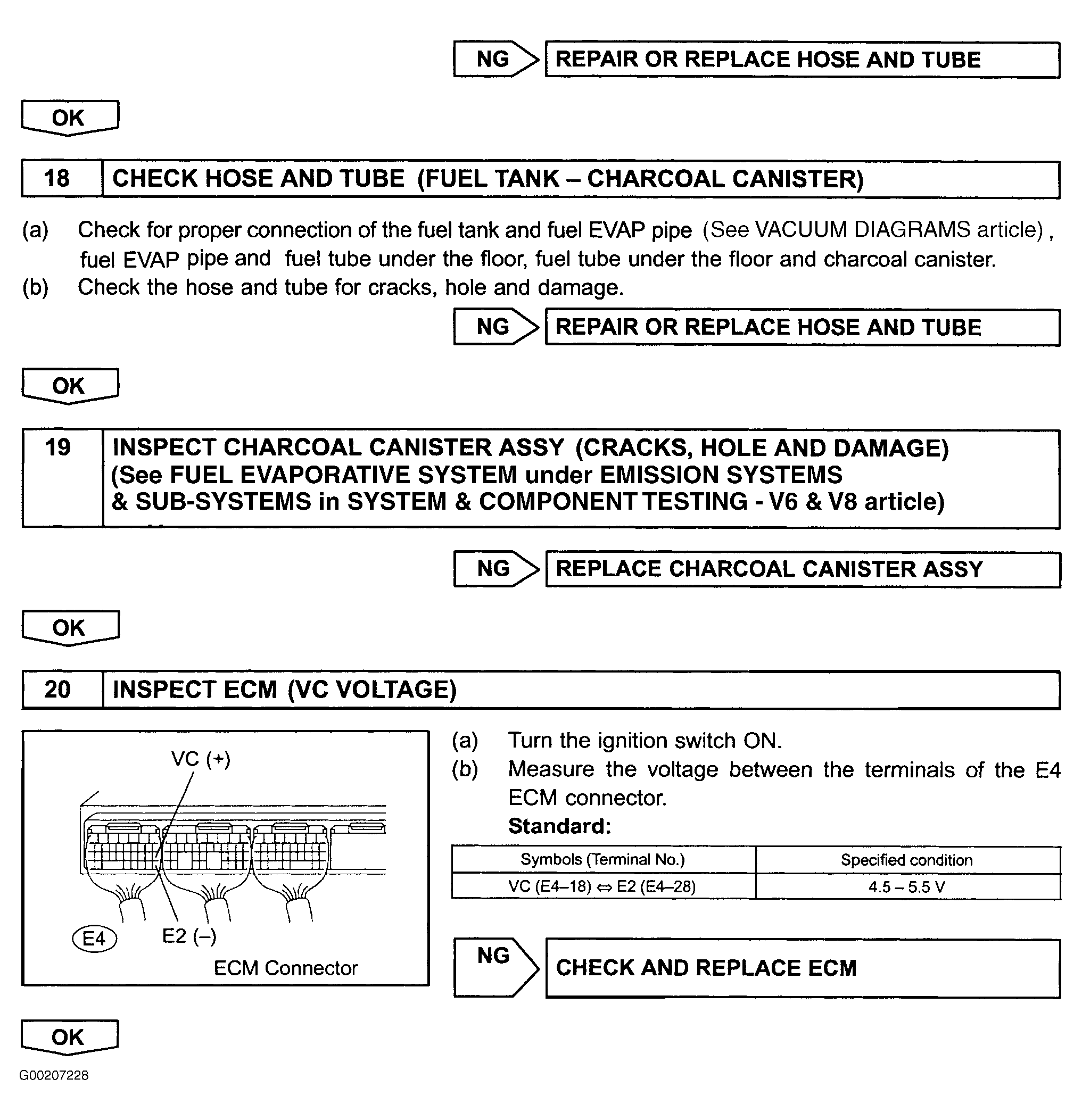

Fig 8: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure (8 Of 18)

G00207228

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

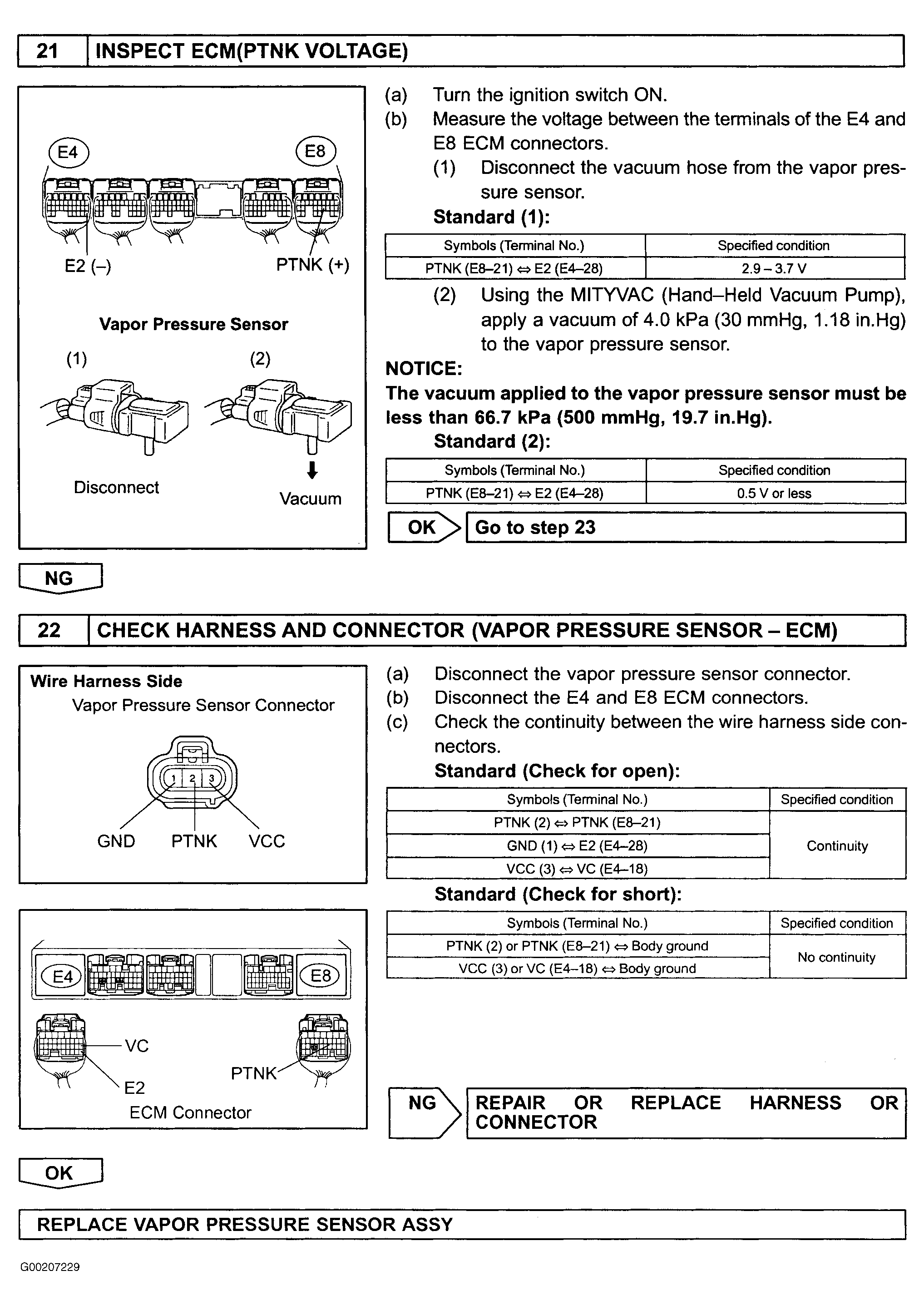

Fig 9: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure (9 Of 18)

G00207229

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

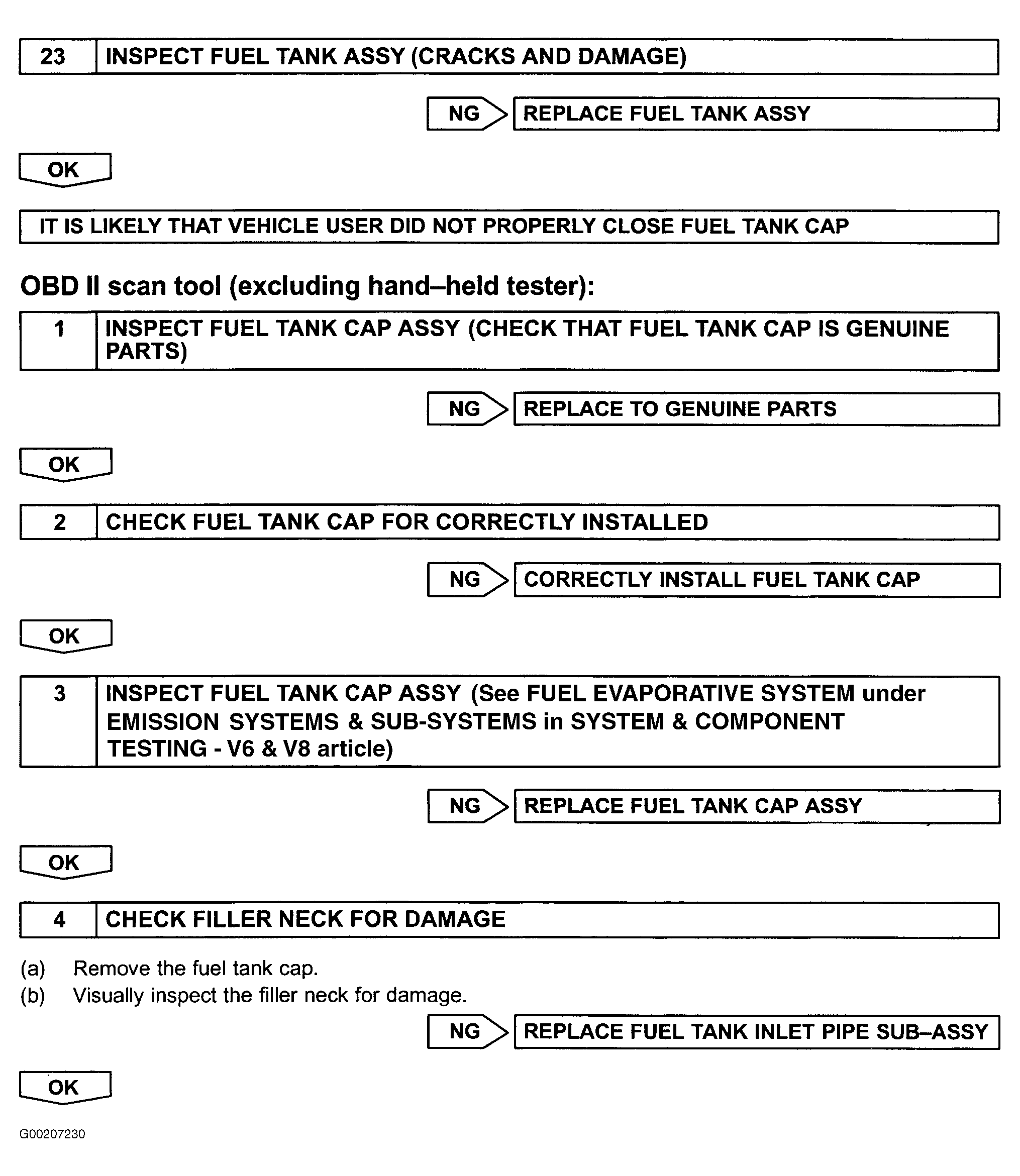

Fig 10: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure (10 Of 18)

G00207230

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

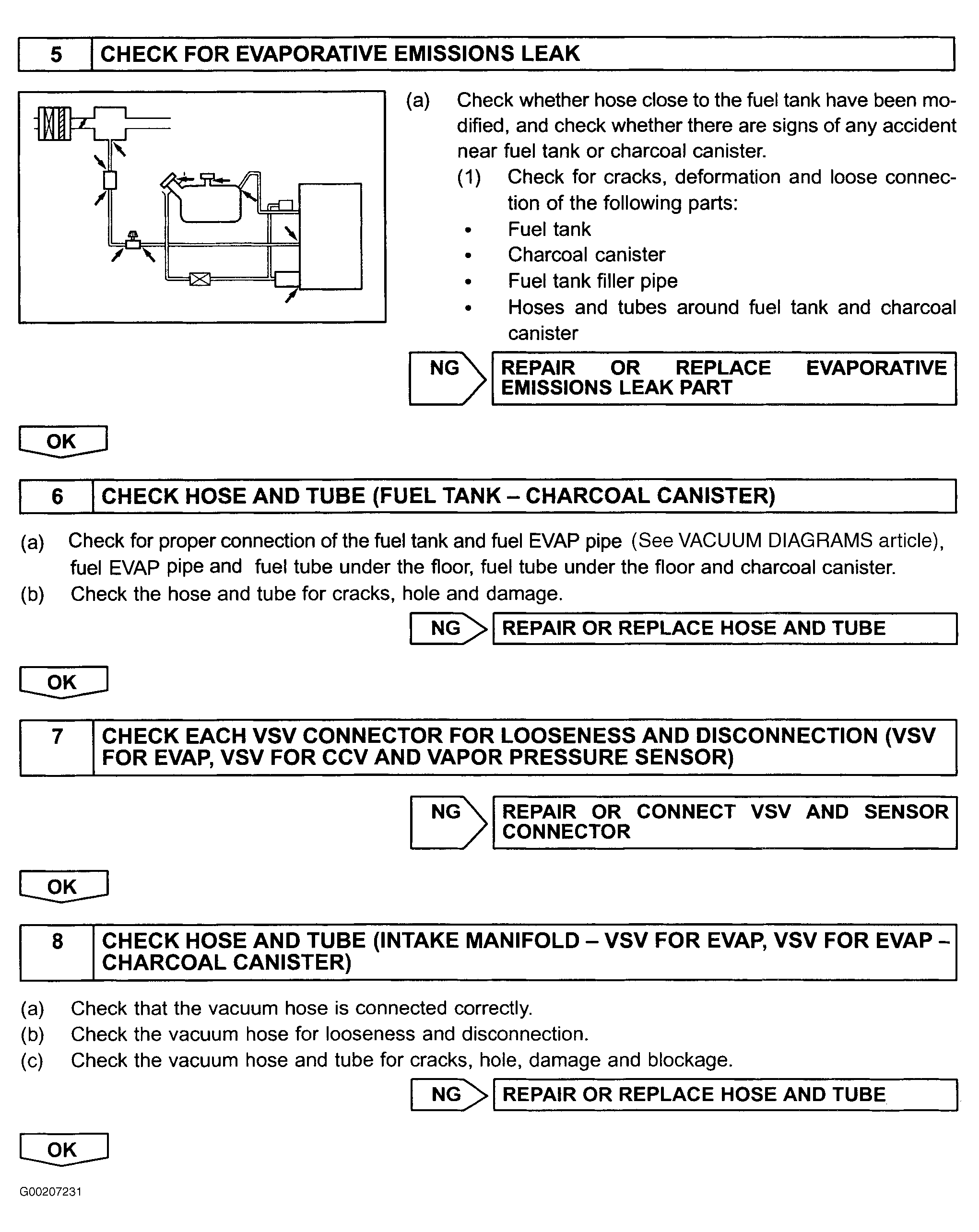

Fig 11: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure (11 Of 18)

G00207231

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

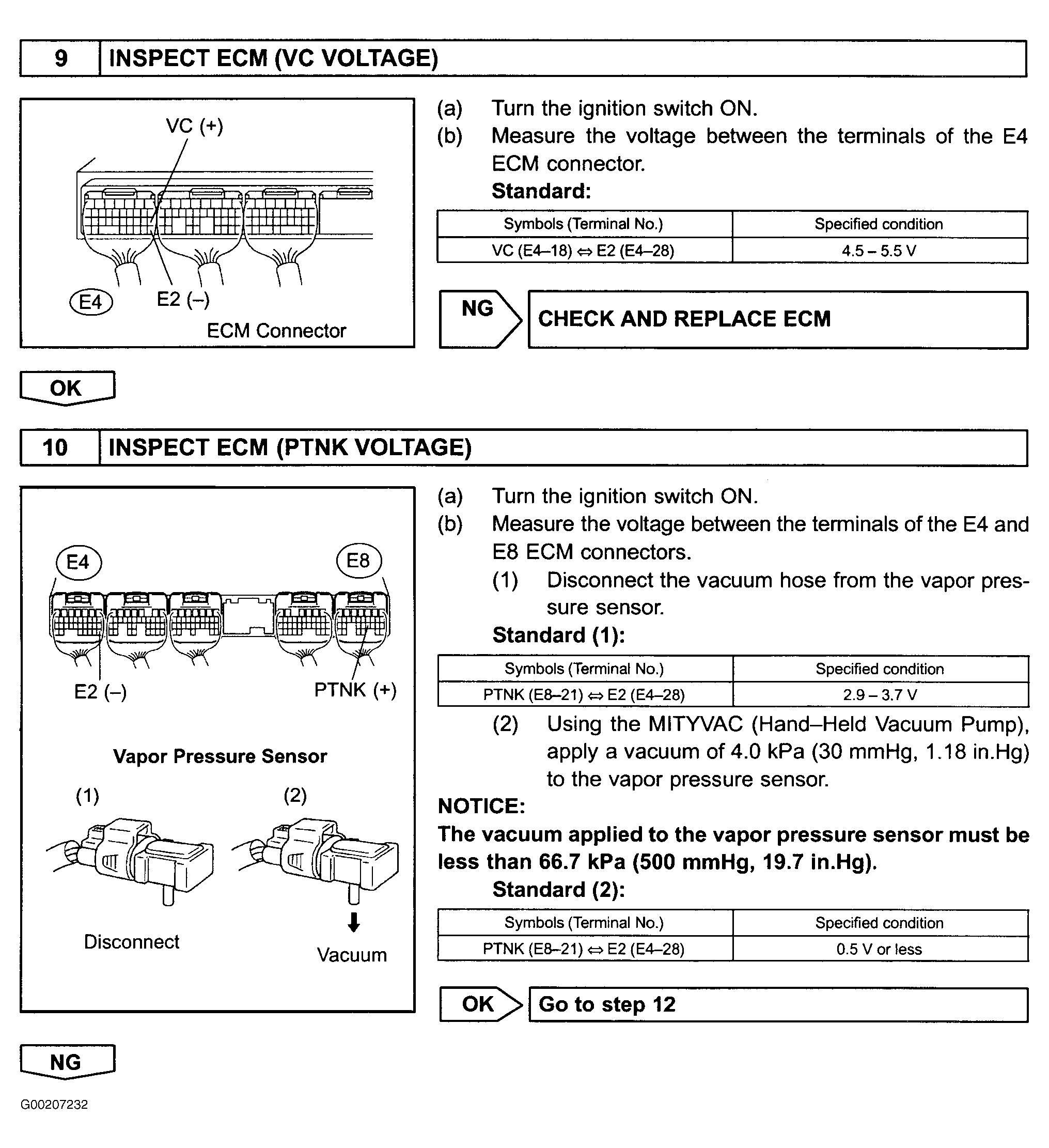

Fig 12: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure (12 Of 18)

G00207232

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

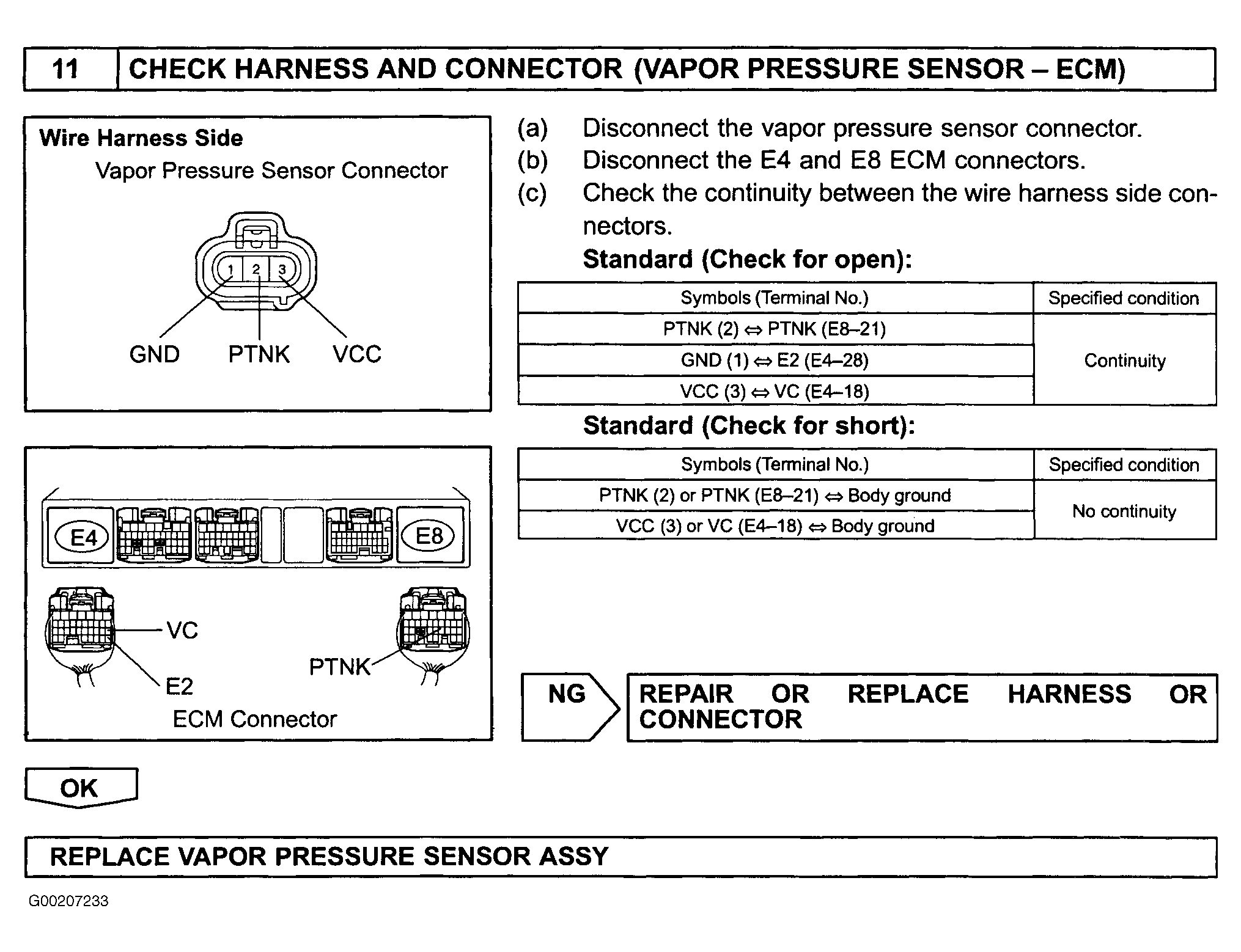

Fig 13: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure (13 Of 18)

G00207233

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

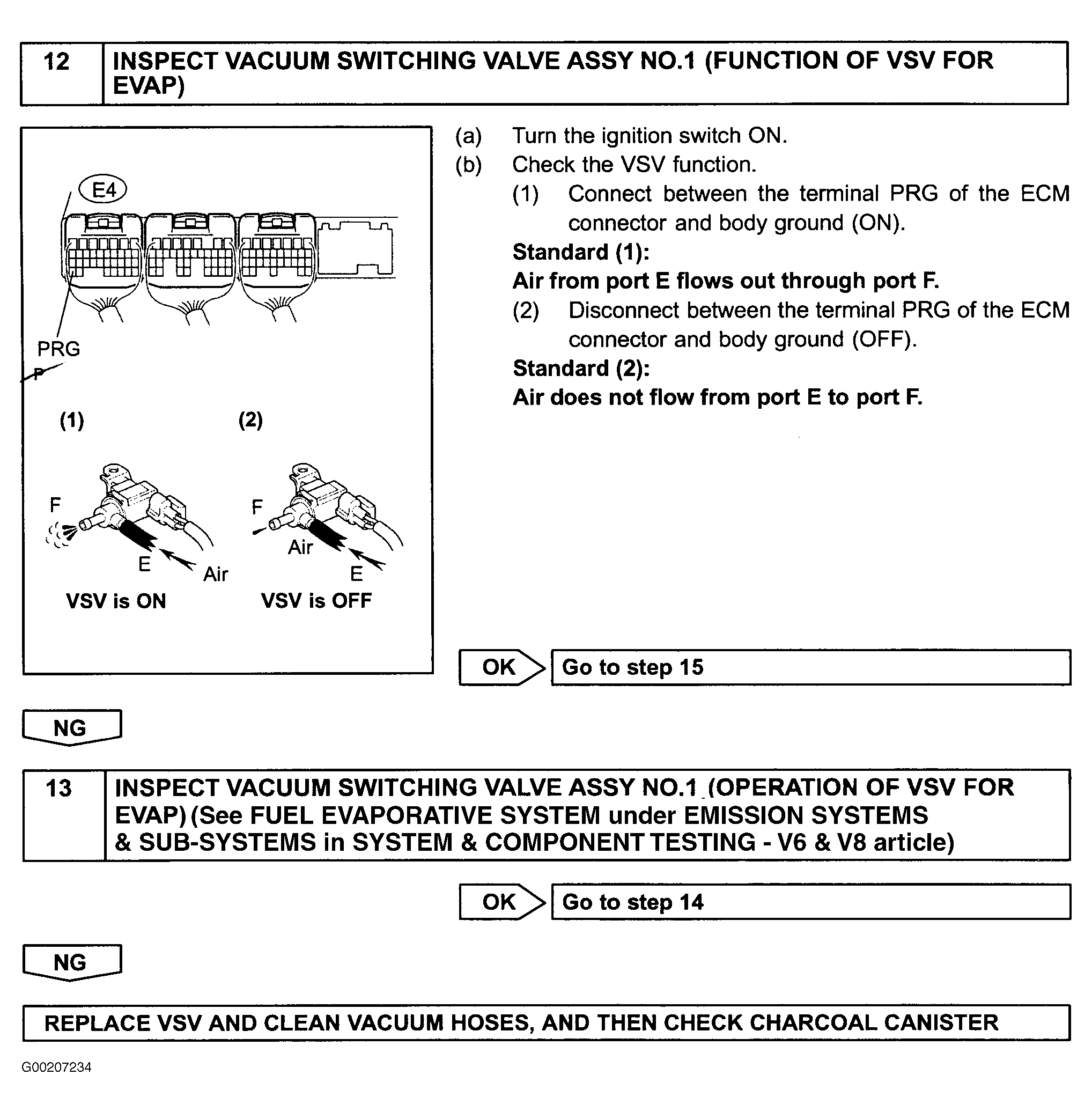

Fig 14: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure (14 Of 18)

G00207234

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure (15 Of 18)

G00207235

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

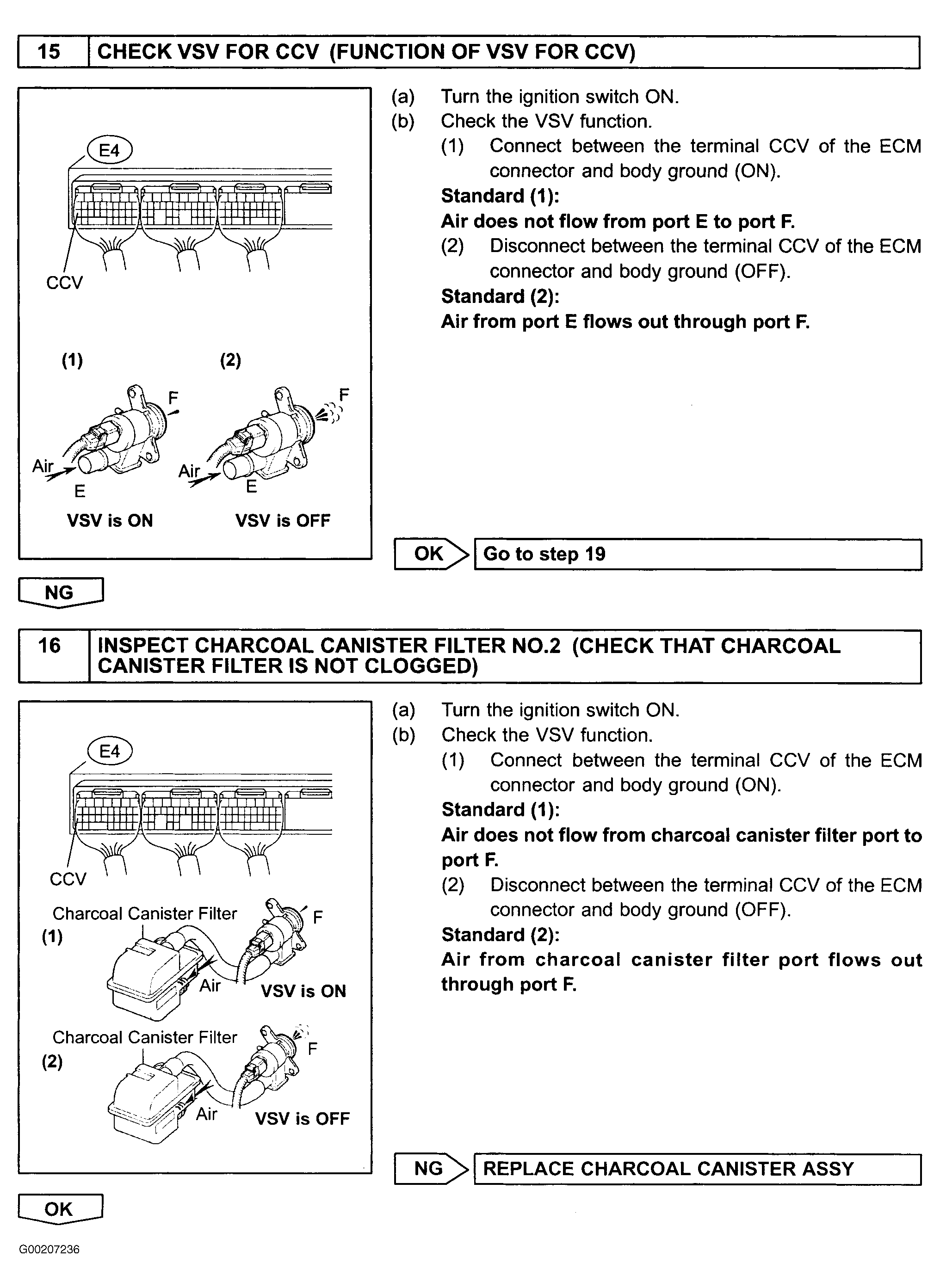

Fig 16: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure (16 Of 18)

G00207236

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

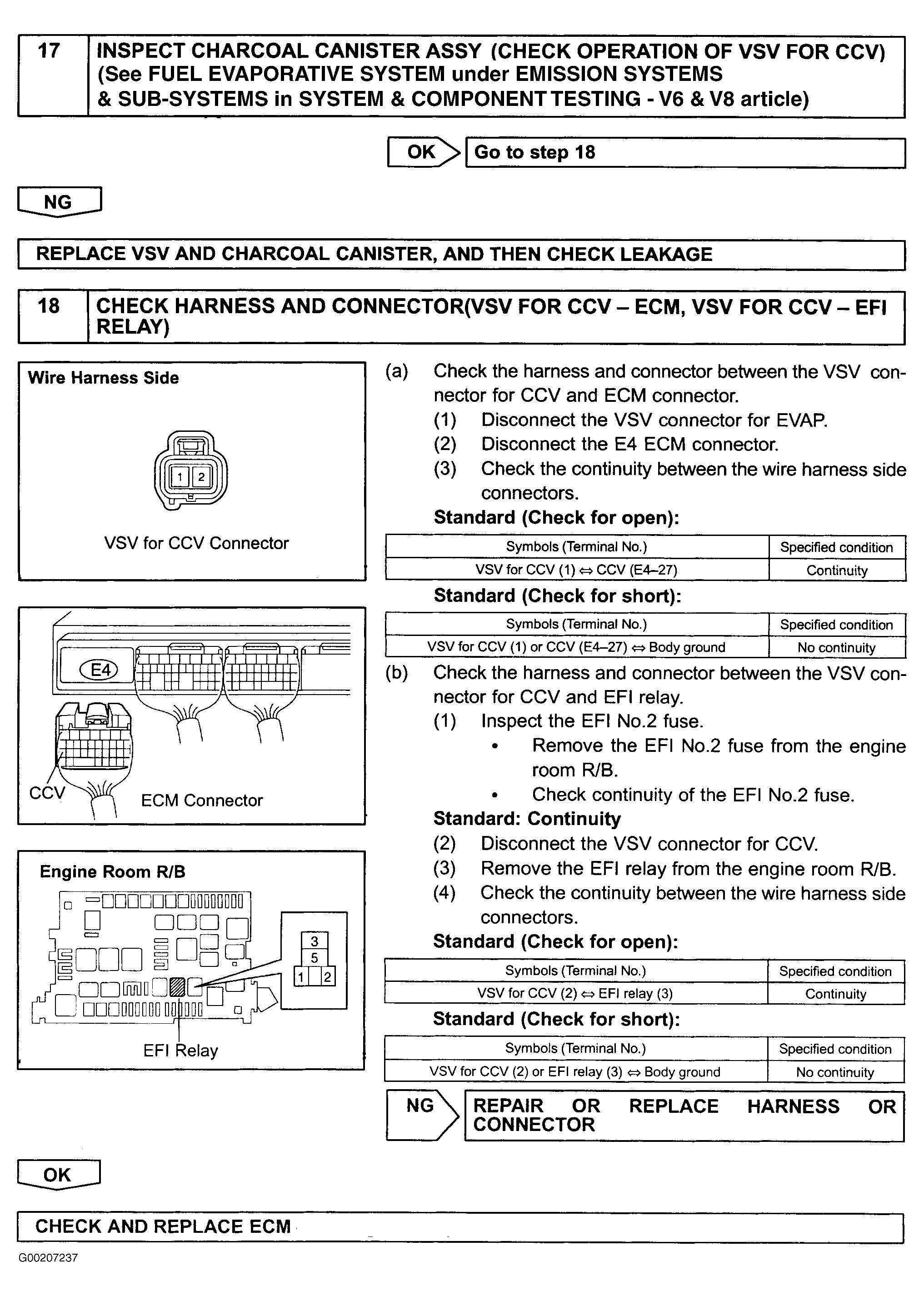

Fig 17: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure (17 Of 18)

G00207237

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

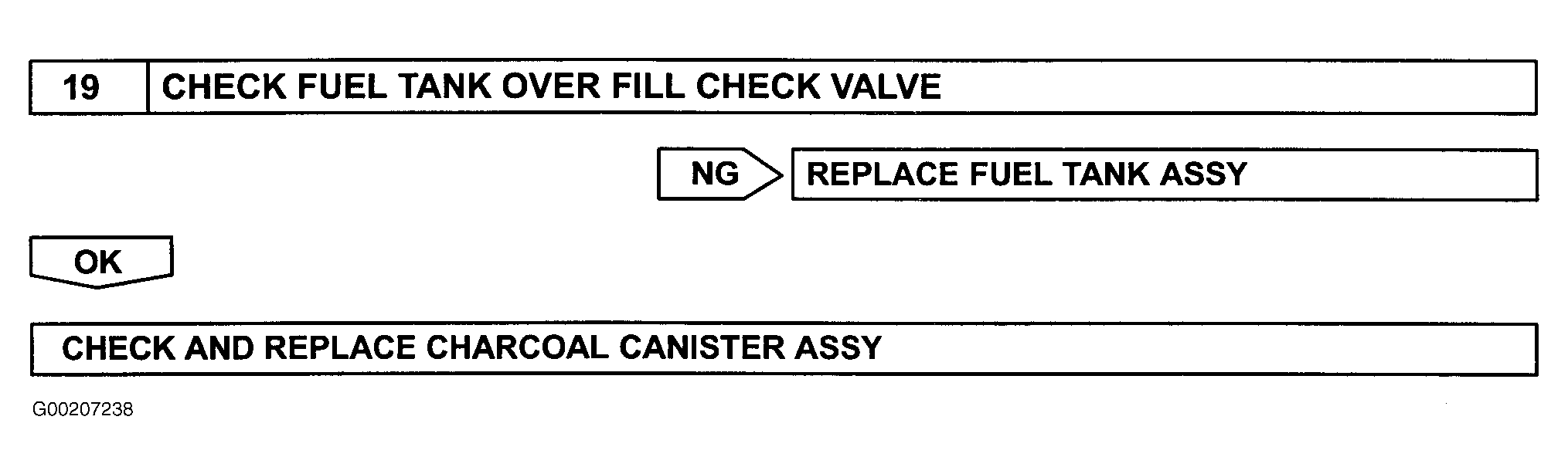

Fig 18: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure (18 Of 18)

G00207238

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

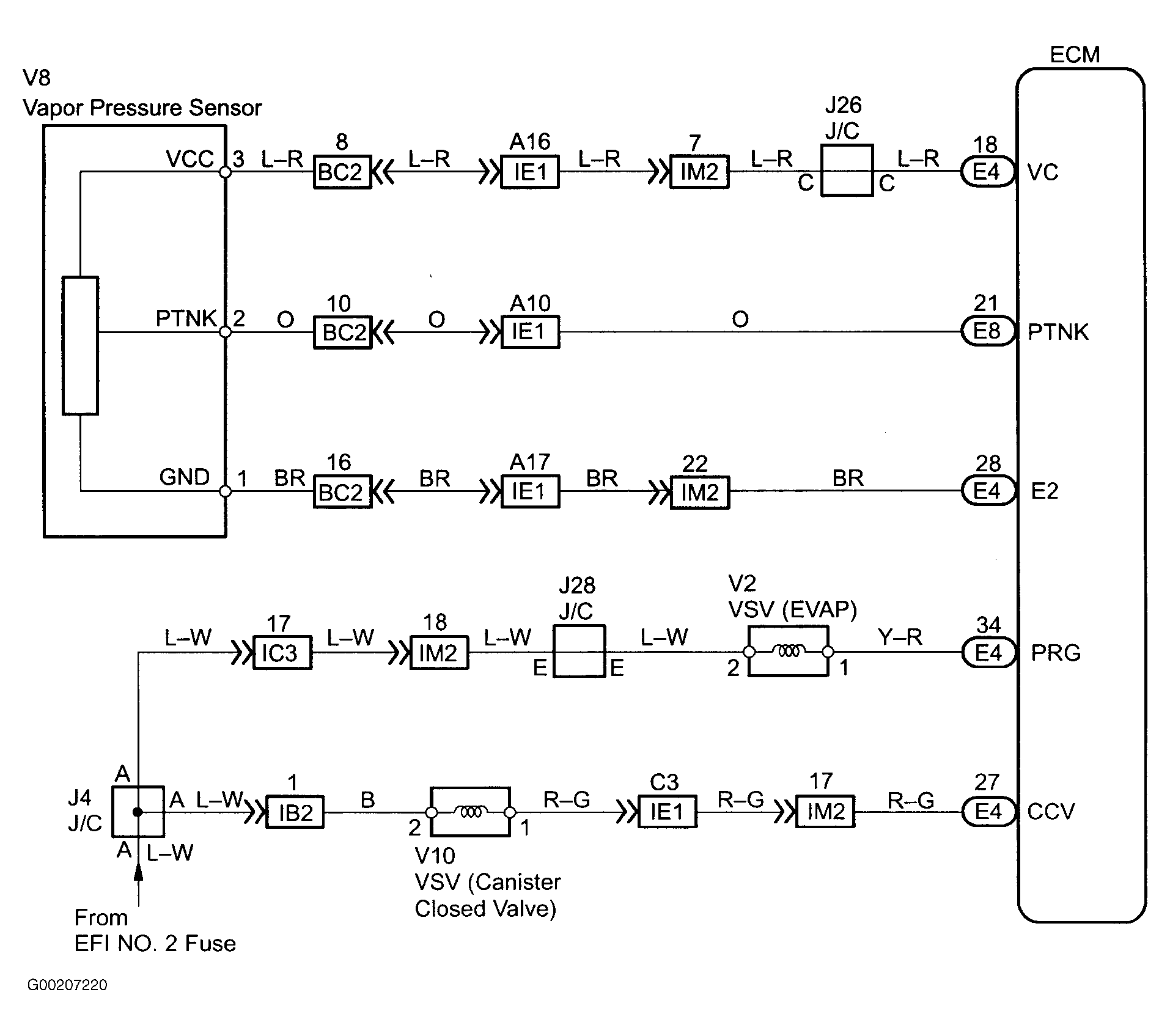

Fig 19: EVAP System Wiring Diagram

G00207220

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
