Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If using Toyota hand-held tester, begin with step 1. If not using Toyota hand-held tester, begin with step 2.

Using Toyota hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame records engine conditions when malfunction is detected.

For diagnosis and repair procedure, see Fig 2-Fig 4 .

For wiring diagram, see Fig 1. When access to, or replacement of ECM is necessary, Engine Control Module (ECM) is located behind glove box. See Figure. For ECM connector terminal view, see Figure. For testing of systems or components, see BASIC DIAGNOSTIC PROCEDURES - 4-CYLINDER article or SYSTEM & COMPONENT TESTING - 4-CYLINDER article. For removal and installation of components, see REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article.

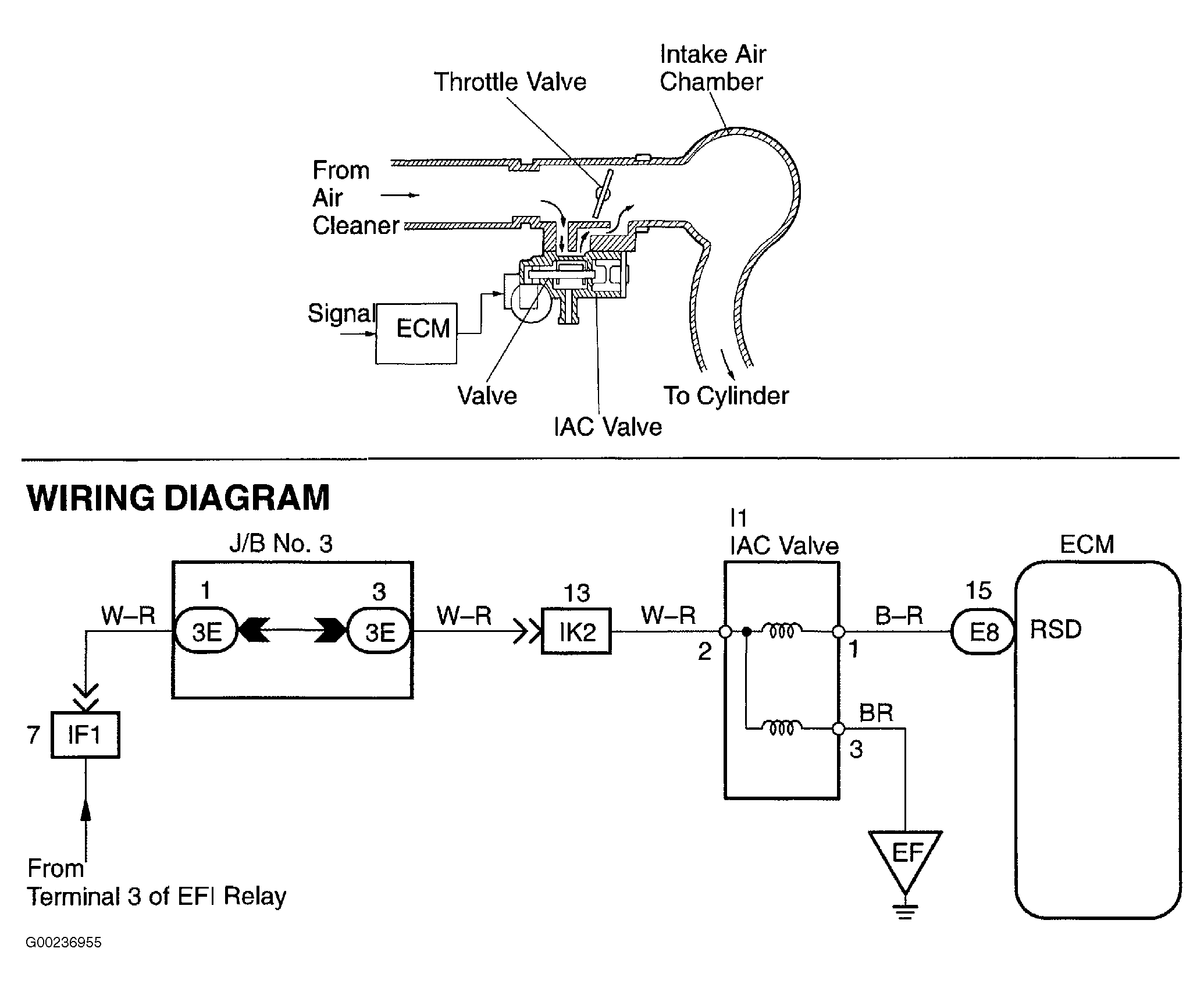

Fig 1: Idle Air Control Valve Circuit Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

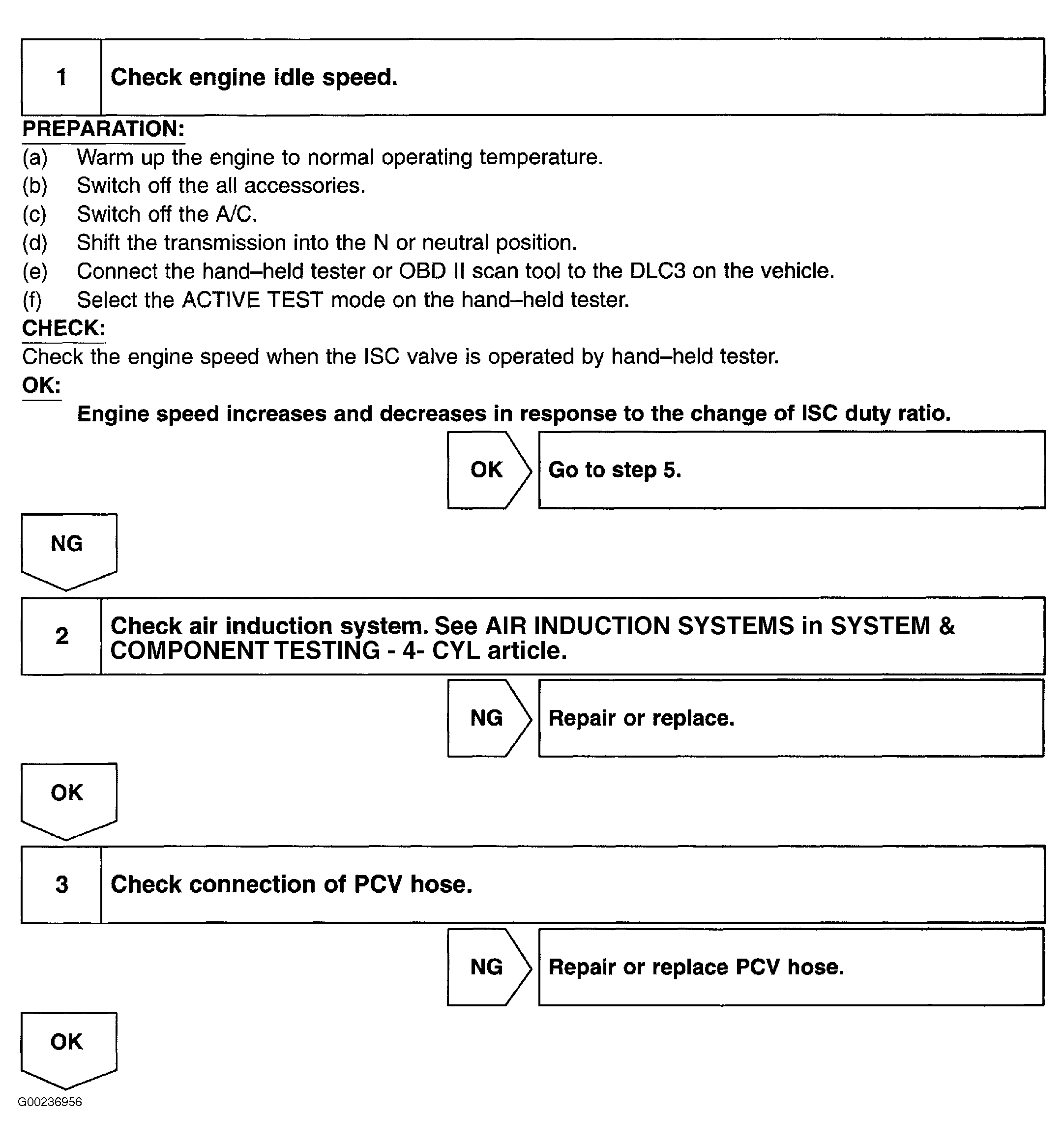

Fig 2: DTC P0505 & DTC P0511 Diagnostic Procedure (Steps 1-3)

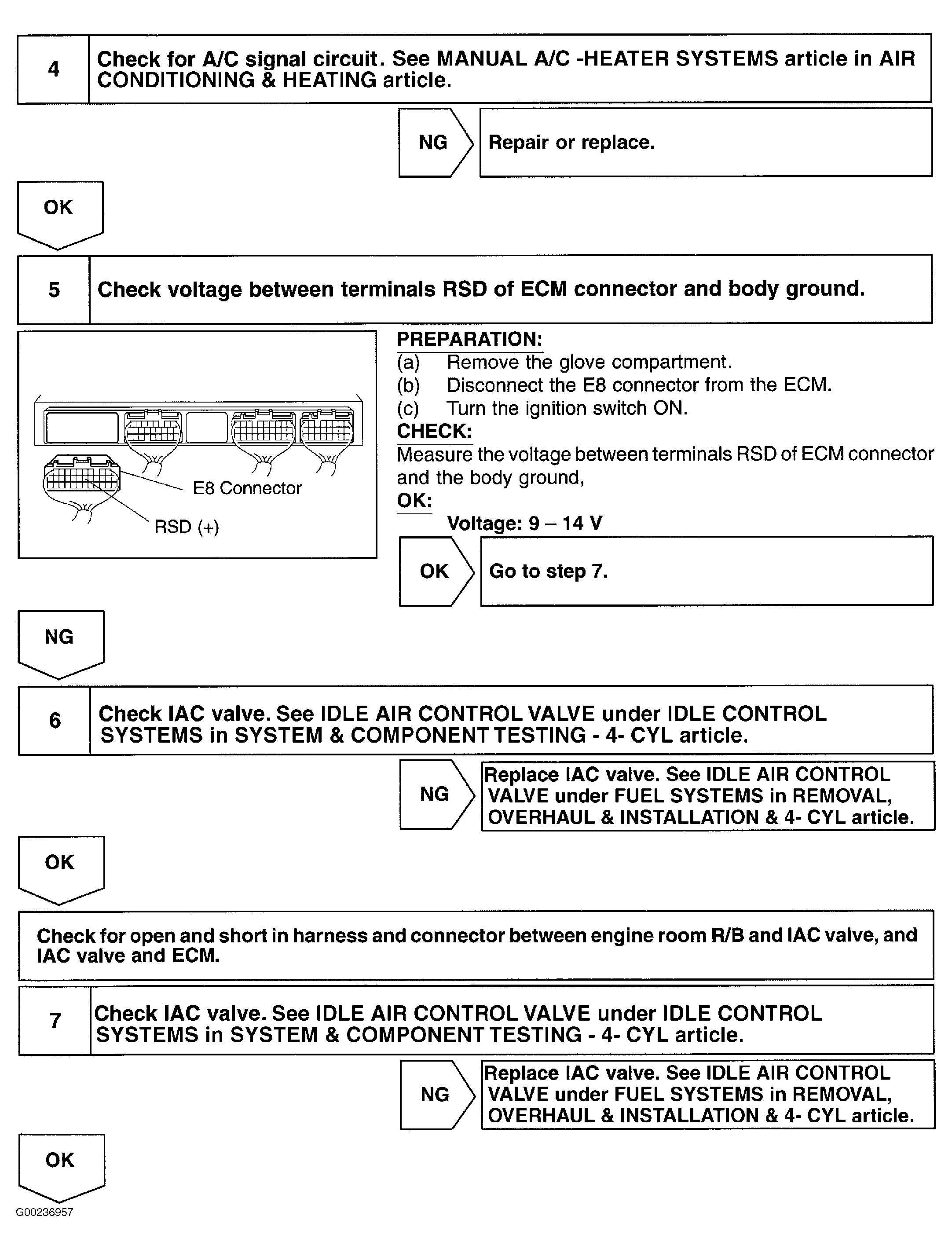

Fig 3: DTC P0505 & DTC P0511 Diagnostic Procedure (Steps 4-7)

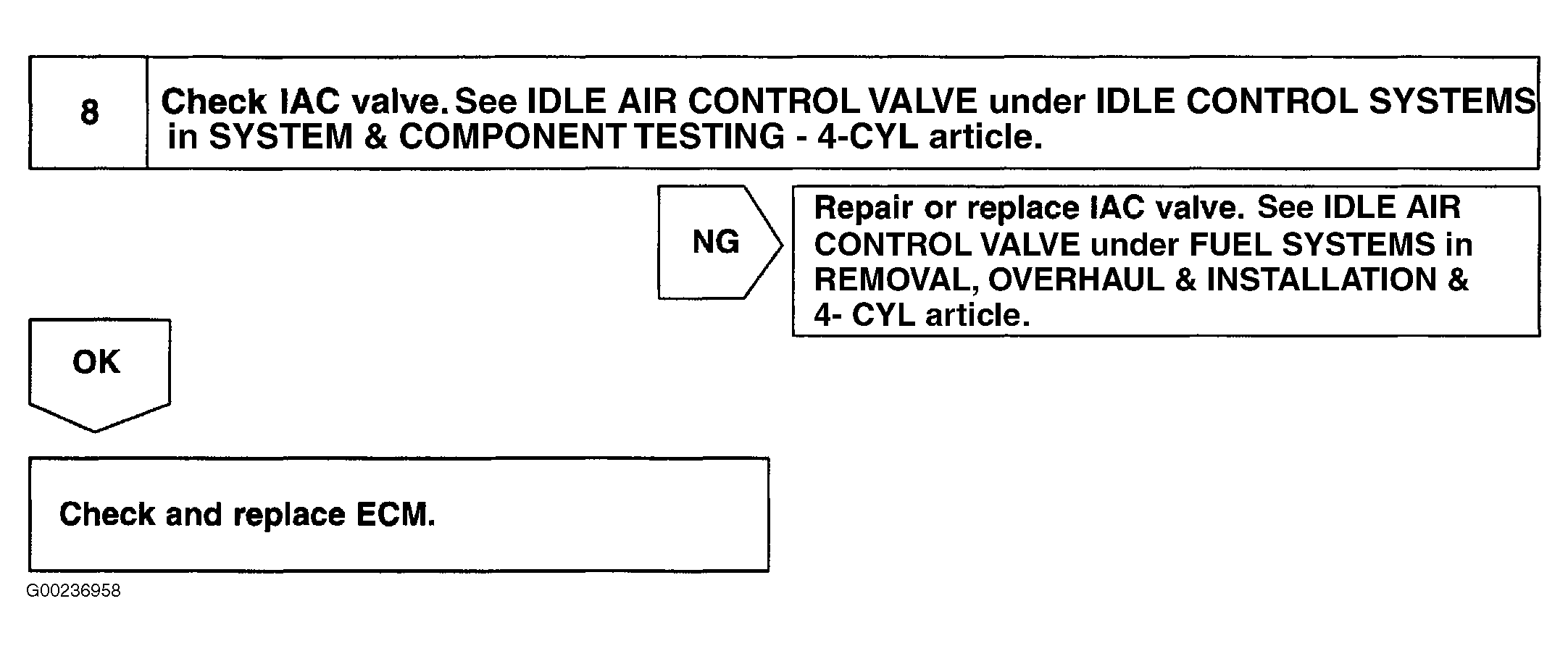

Fig 4: DTC P0505 & DTC P0511 Diagnostic Procedure (Step 8)
