Diagnosis & Repair
WARNING: This page is about a different car, the 2003 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
This DTC uses two-trip detection logic. Using Toyota hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame data records engine conditions when malfunction is detected.

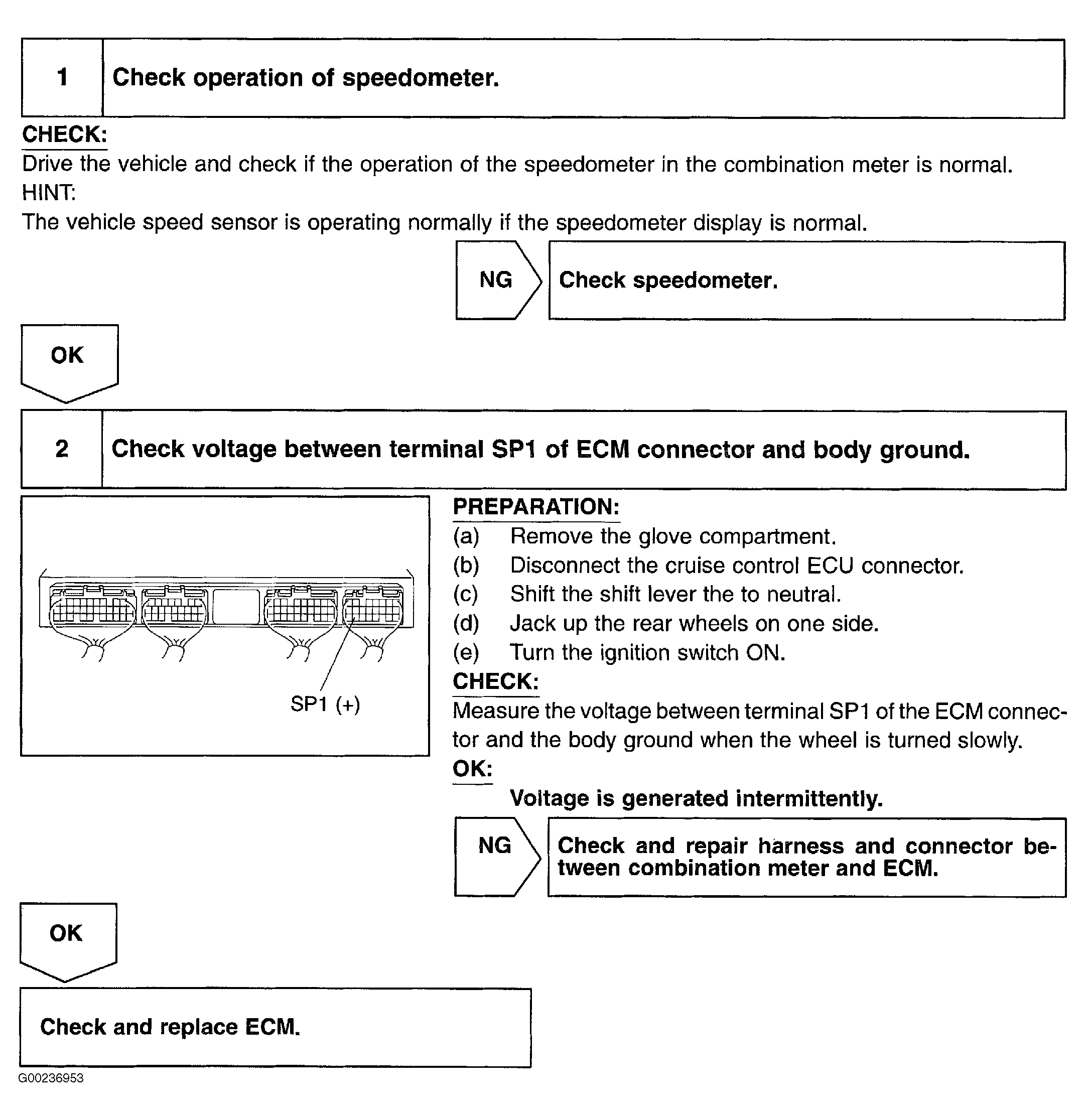

For diagnosis and repair procedure, see Fig 1.

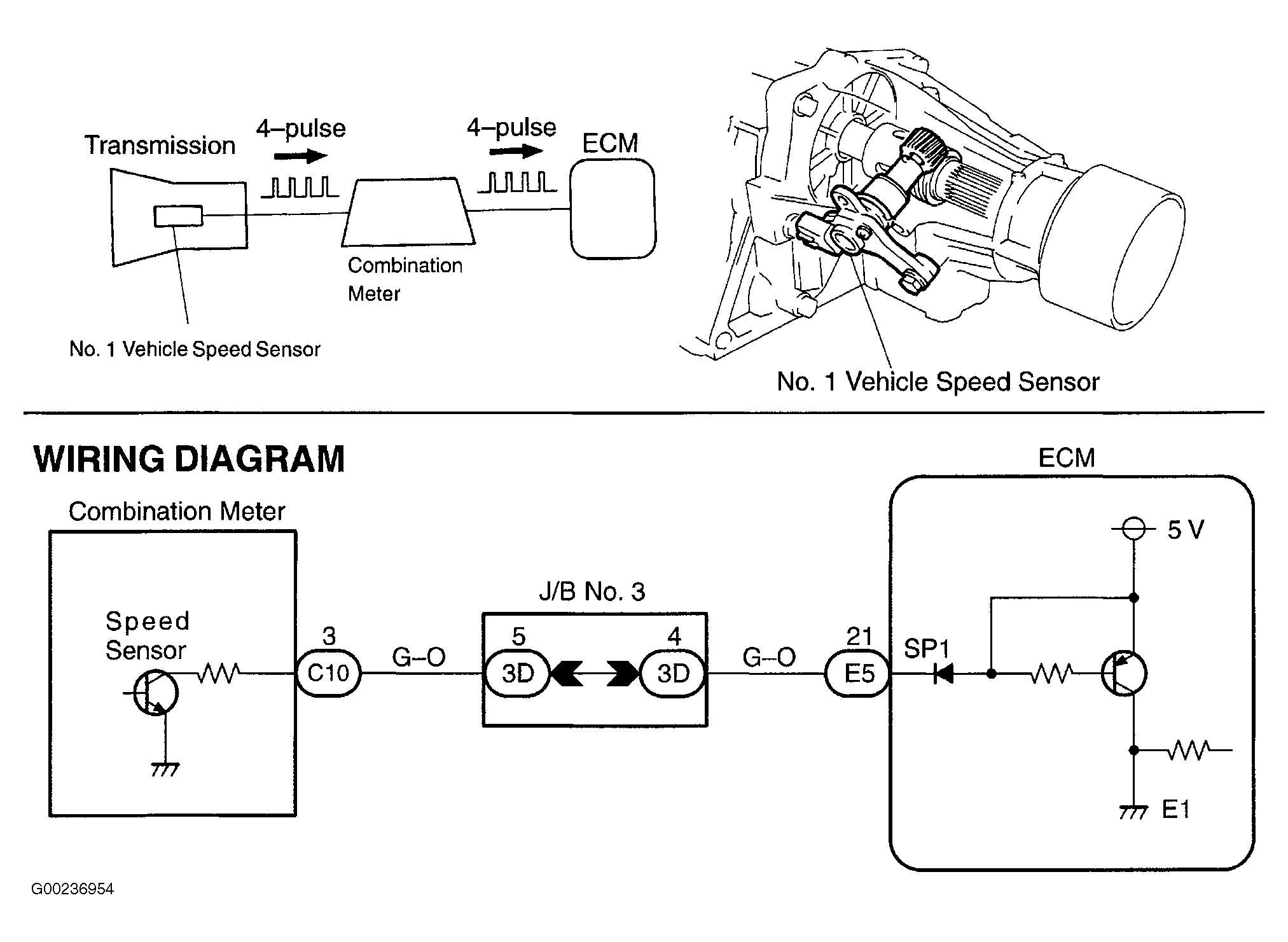

For component location and circuit wiring diagram, see Fig 2. When access to, or replacement of ECM is necessary, Engine Control Module (ECM) is located behind glove box. See Figure. For ECM connector terminal view, see Figure. If speedometer does not operate properly, repair speedometer as necessary. See appropriate INSTRUMENT PANELS article in ACCESSORIES & EQUIPMENT. For testing of vehicle speed sensor, see VEHICLE SPEED SENSOR under ENGINE SENSORS & SWITCHES in SYSTEM & COMPONENT TESTING - 4-CYLINDER article.
