Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

Using Toyota hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame data records engine conditions when malfunction is detected.

For diagnosis and repair procedure, see Fig 3, Fig 4 & Fig 5 .

For ignition coil with ignitor 4-pin connector view and circuit wiring diagram, see Fig 1 & Fig 2 . When access to, or replacement of ECM is necessary, Engine Control Module (ECM) is located behind glove box. See Figure. For ECM connector terminal view, see Figure. For testing of systems or components, see BASIC DIAGNOSTIC PROCEDURES - 4-CYLINDER article or SYSTEM & COMPONENT TESTING - 4-CYLINDER article. For removal and installation of components, see REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article.

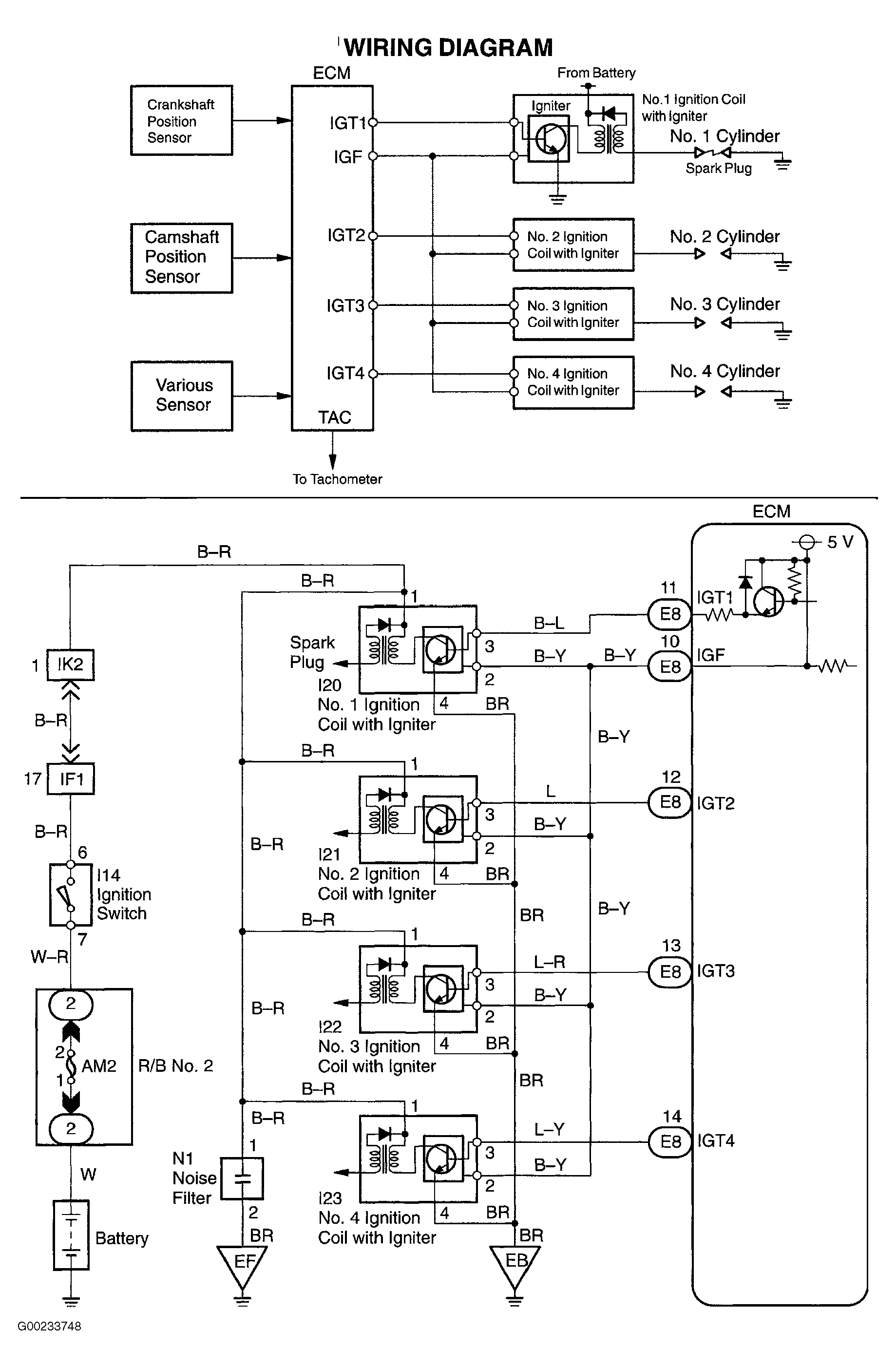

Fig 1: Ignition Coil Primary/Secondary Circuit Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Ignition Coil Electrical Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

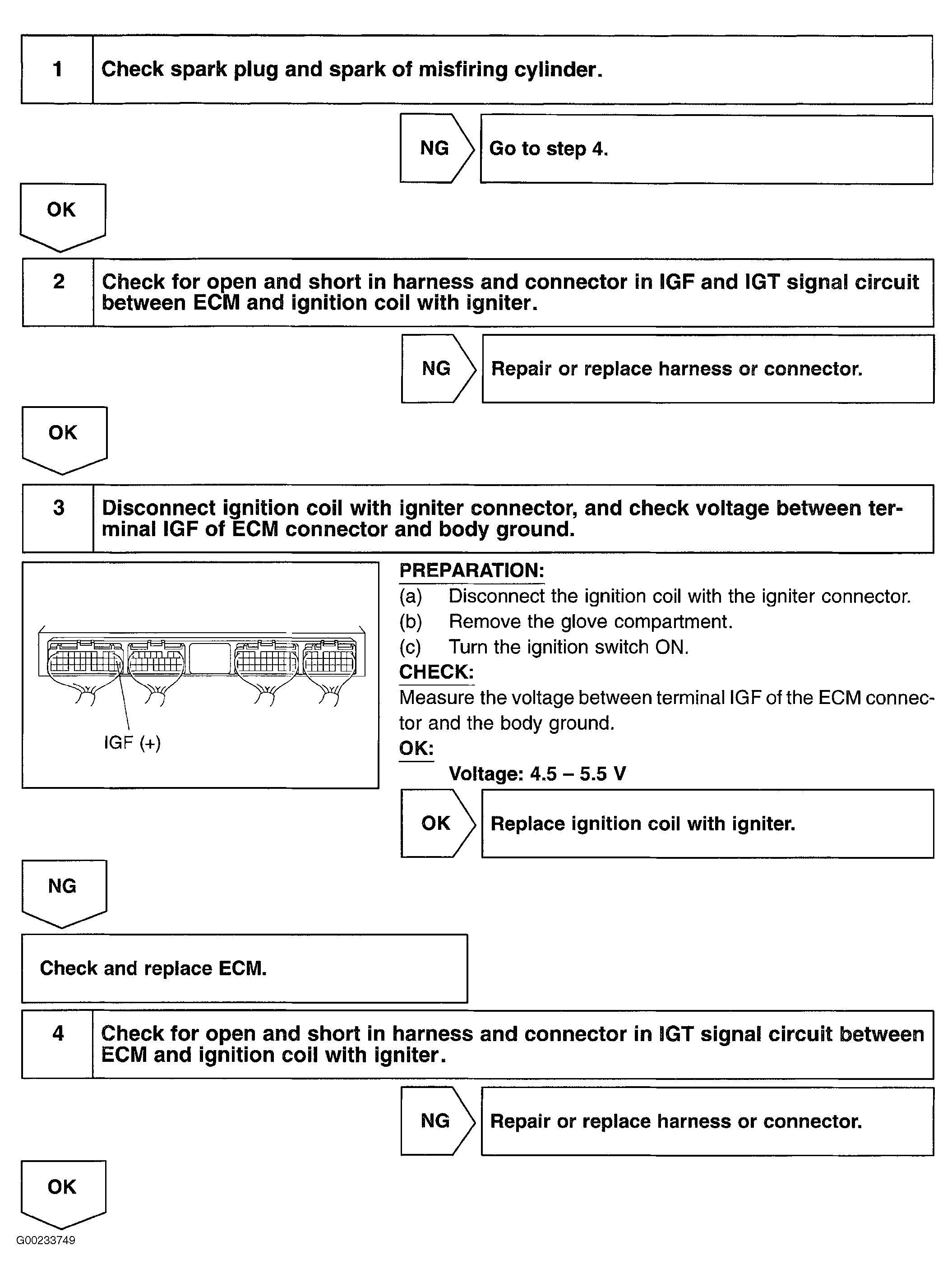

Fig 3: DTC P0351, DTC P0352, DTC P0353 &/OR DTC P0354 Diagnostic Procedure (Steps 1-4)

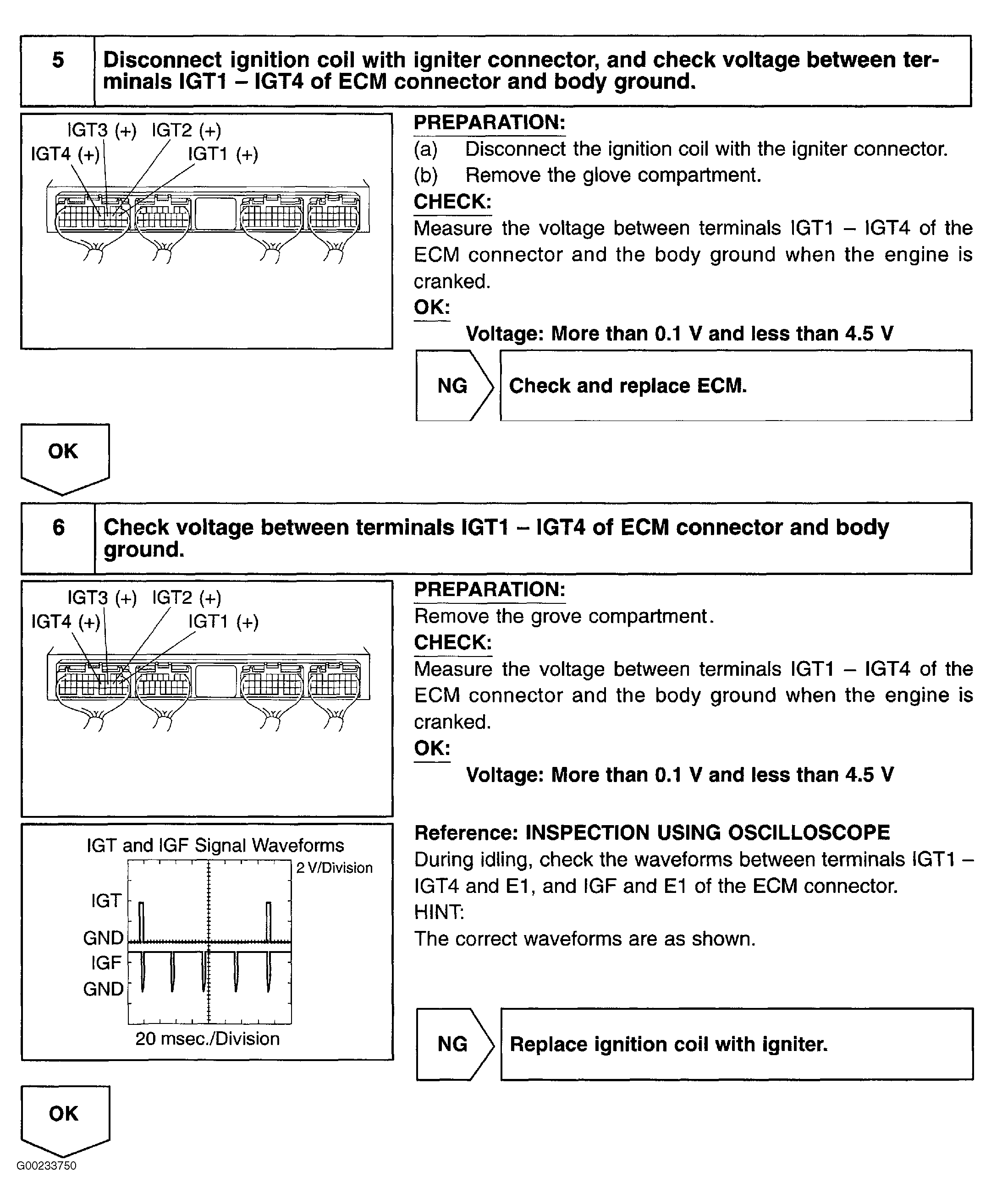

Fig 4: DTC P0351, DTC P0352, DTC P0353 &/OR DTC P0354 Diagnostic Procedure (Steps 5-6)

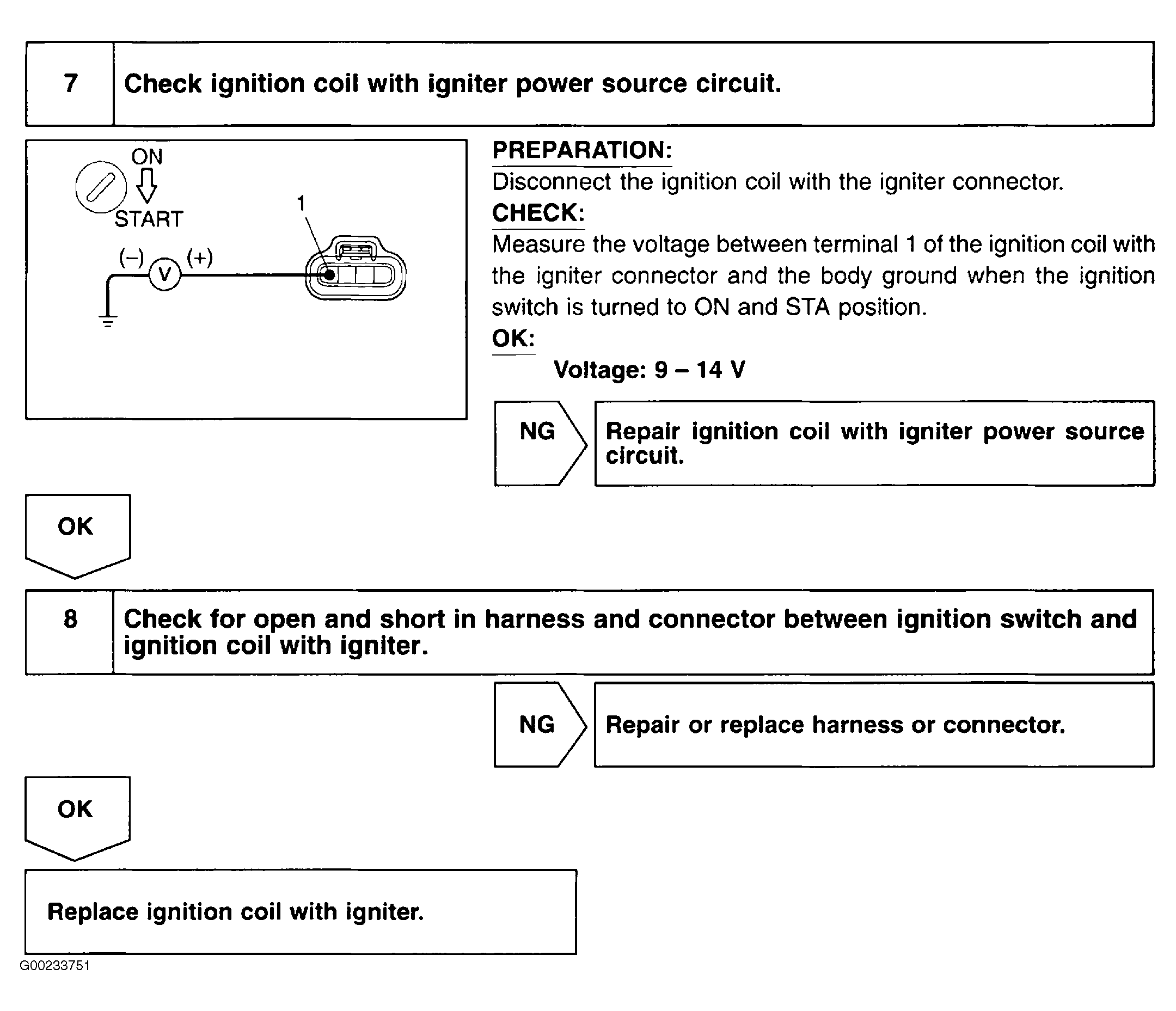

Fig 5: DTC P0351, DTC P0352, DTC P0353 &/OR DTC P0354 Diagnostic Procedure (Steps 7-8)
