Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

Using Toyota hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame data records engine conditions when malfunction is detected.

For diagnosis and repair procedure, see Fig 1 & Fig 2 .

Normal mode vibration frequency of knock sensor is 6.6 kHz. If oscilloscope is available, knock sensor operation may be checked by reading knock sensor waveform patterns with engine at 4000 RPM. Knock sensor waveform patterns may be checked by connecting oscilloscope between body ground and ECM 31-pin connector E8 terminal No. 28 (Black wire). Knock sensor waveform patterns should be properly displayed. See Fig 3.

When access to, or replacement of ECM is necessary, Engine Control Module (ECM) is located behind glove box. See Figure. For ECM connector terminal view, see Figure. For testing of systems or components, see BASIC DIAGNOSTIC PROCEDURES - 4-CYLINDER article or SYSTEM & COMPONENT TESTING - 4-CYLINDER article. For removal and installation of components, see REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article.

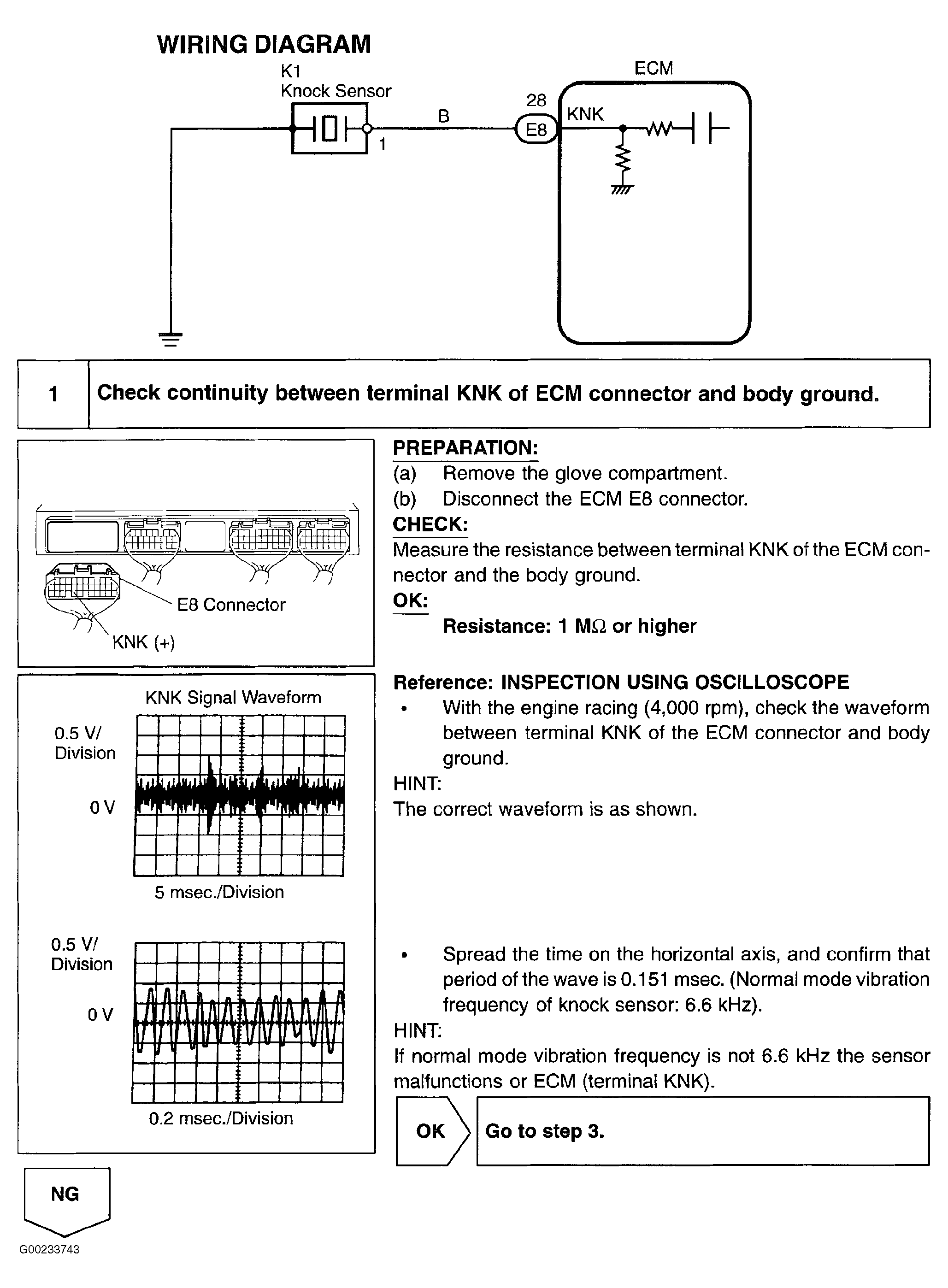

Fig 1: DTC P0325 Diagnostic Procedure (Step 1)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

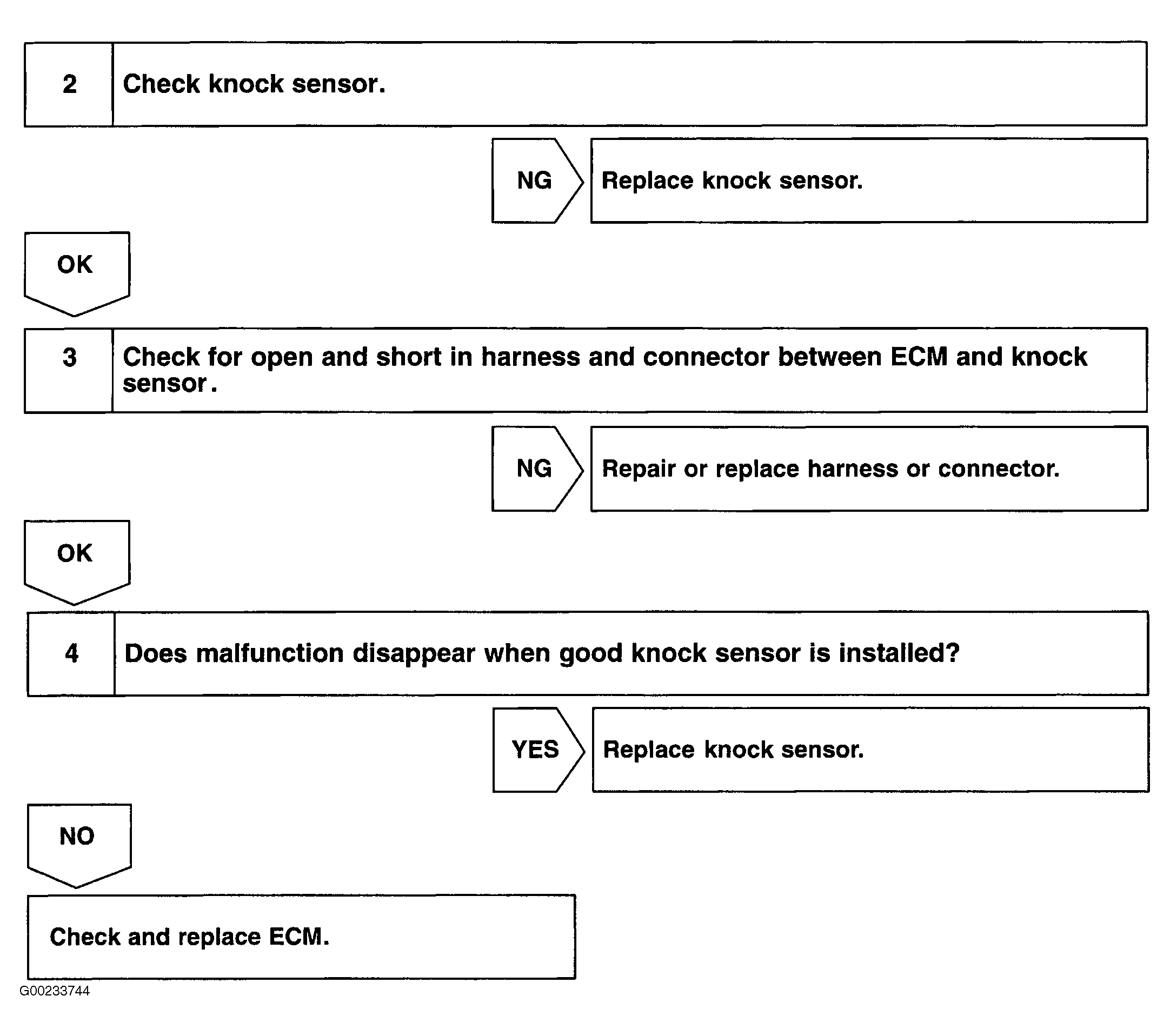

Fig 2: DTC P0325 Diagnostic Procedure (Steps 2-4)

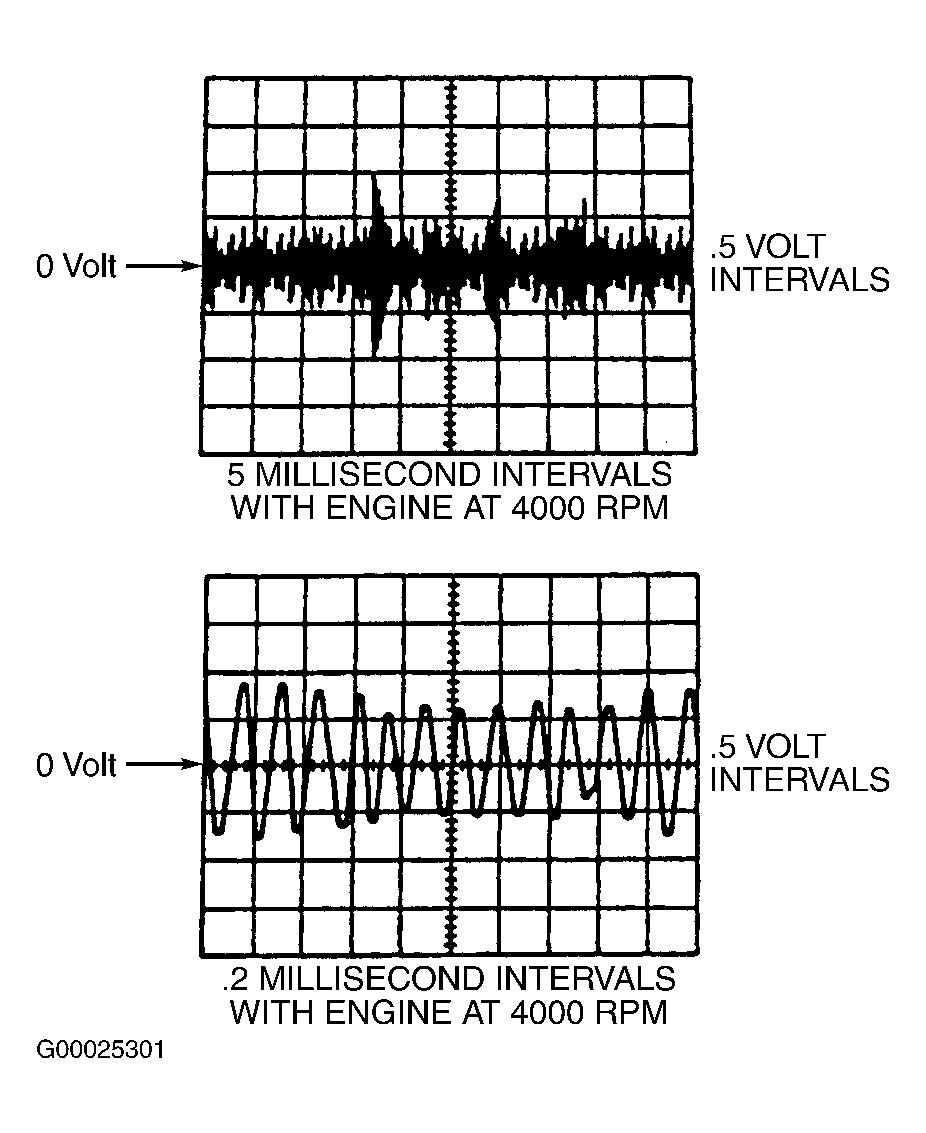

Fig 3: Identifying Knock Sensor Waveform Patterns
