Diagnosis & Repair
WARNING: This page is about a different car, the 2003 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Using Toyota hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame data records engine conditions when malfunction is detected.

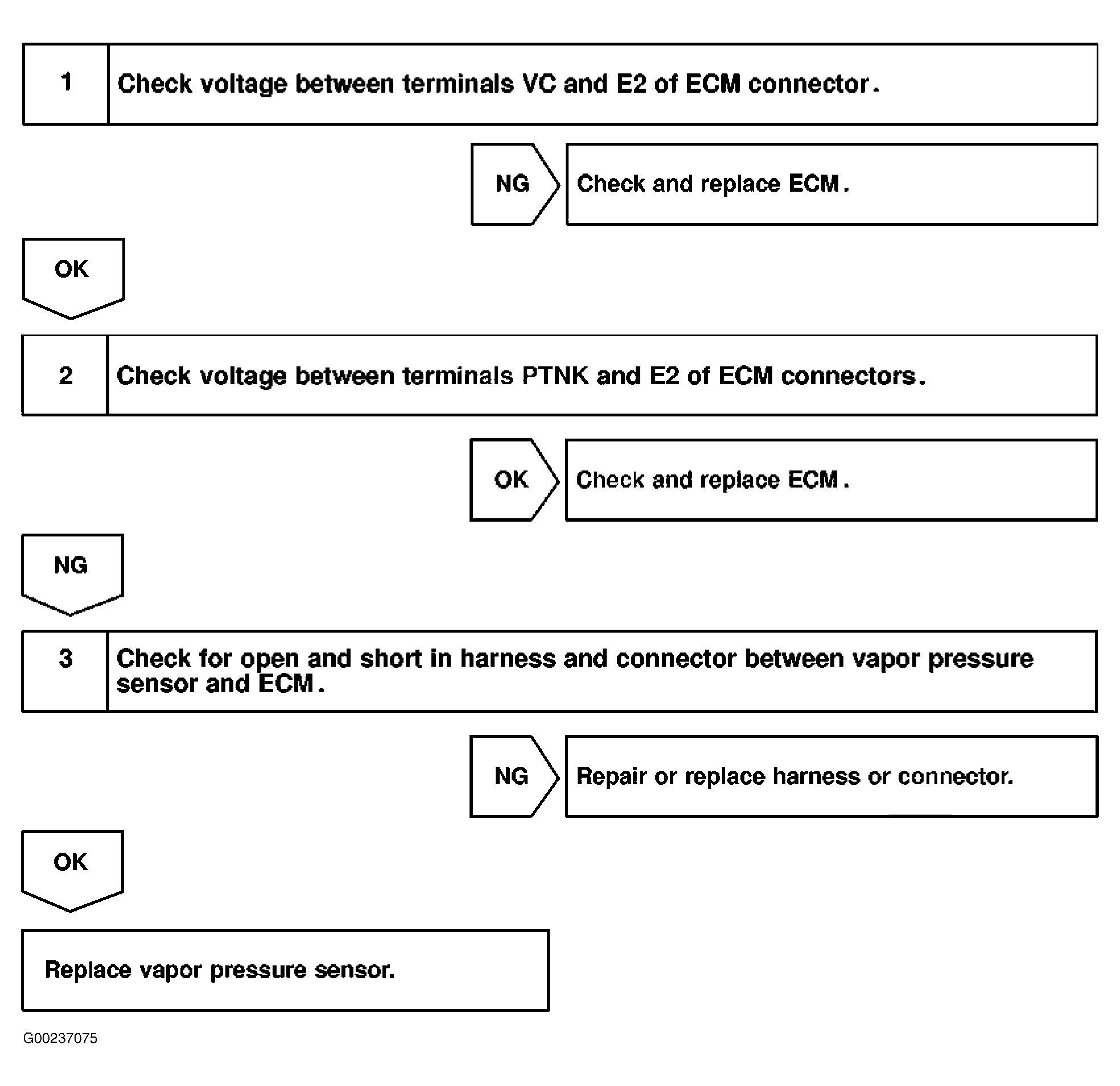

For diagnosis and repair procedure, see Fig 1. For step 1) of procedure, refer to step 21) in Figure. For step 2) of procedure, refer to step 22) in Figure. For VPS circuit wiring diagram, see Figure.
For ECM location, see Figure. For ECM connector view, see Figure. For testing of systems or components, see SYSTEM & COMPONENT TESTING - V6 & V8 article. For removal and installation of components, see REMOVAL & INSTALLATION - V6 & V8 article.
