Possible Causes

WARNING: This page is about a different car, the 2003 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

These DTCs use two-trip detection logic. For DTC detection conditions and possible causes see Fig 1.

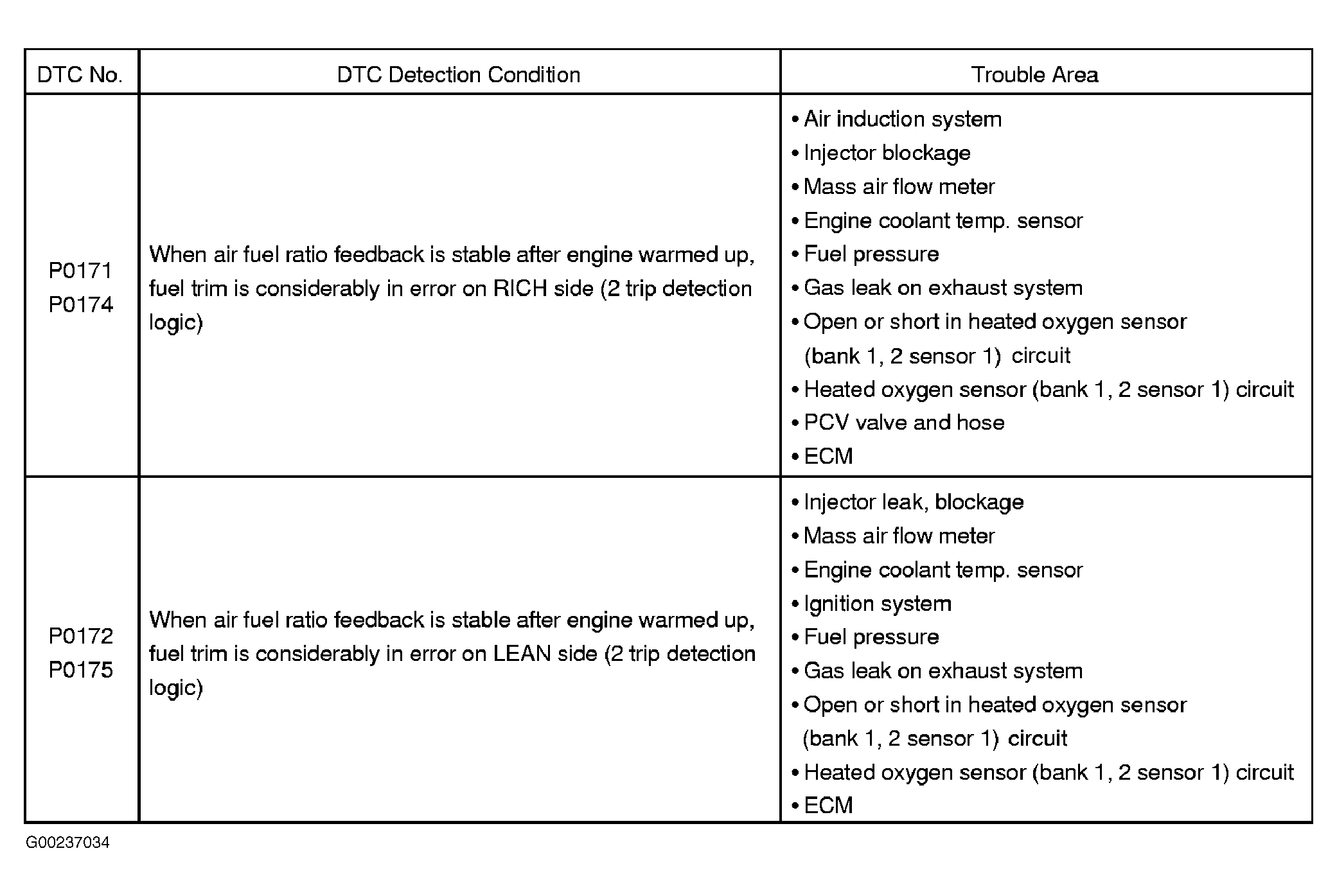

Fig 1: DTC Detection Conditions & Possible Causes
G00237034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
