NOTE: These DTCs use two-trip detection logic. Using Toyota hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame data records engine conditions when malfunction is detected.

To minimize time wasted diagnosing EVAP system leaks, it is recommended to perform CONFIRMATION READINESS TEST first in order to verify system monitor "readiness status" and verify DTC is output before proceeding with repair procedure.

For diagnosis and repair procedure with Toyota hand-held tester, see Fig 1-Fig 10 . For diagnosis and repair procedure with generic OBD II scan tool, see Fig 1 and Fig 11-Fig 19 .

For access to, or replacement of ECM, Engine Control Module (ECM) is located behind glove box. See Figure. For ECM connector view, see Figure. For emission system component locations, see Figure. For circuit wiring diagram, see Fig 20. For vacuum or EVAP hose routing, see VACUUM DIAGRAMS article. For testing of systems or components, see BASIC DIAGNOSTIC PROCEDURES - V6 & V8 article or SYSTEM & COMPONENT TESTING - V6 & V8 article. For removal and installation of components, see REMOVAL & INSTALLATION - V6 & V8 article.

Fig 1: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure (Introduction)

G00207221

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 1-5)

G00207222

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 6-9)

G00207223

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

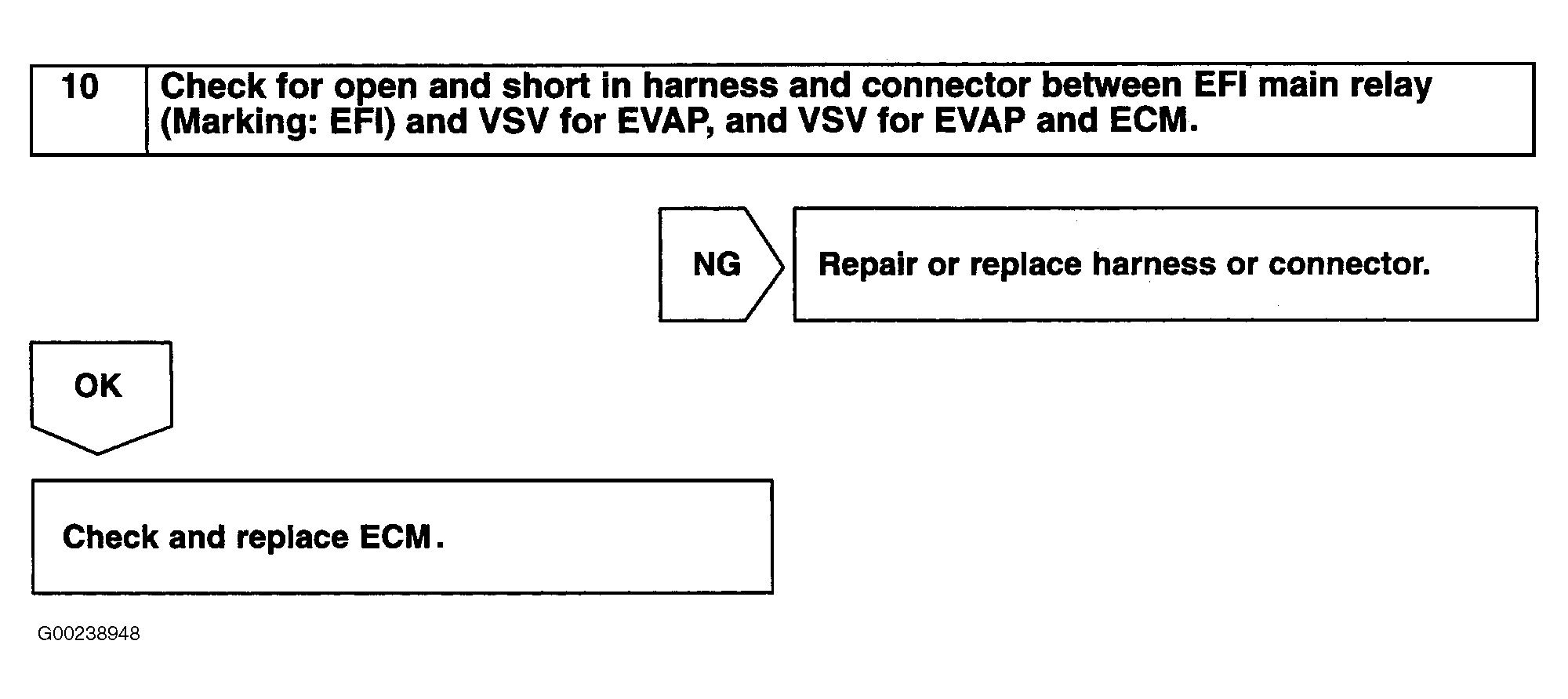

Fig 4: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure Using Toyota Hand-Held Tester (Step 10)

G00238948

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

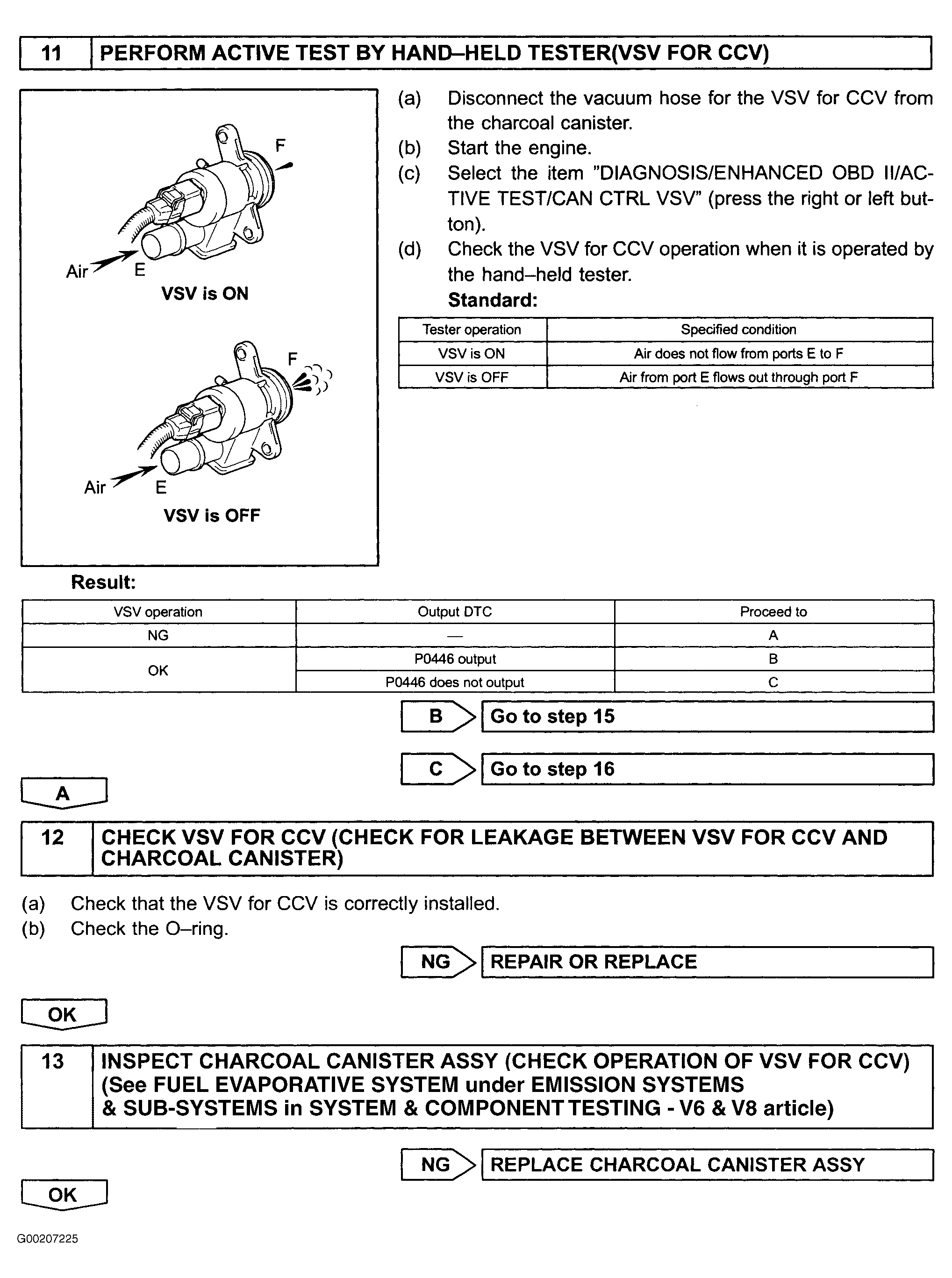

Fig 5: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 11-13)

G00207225

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

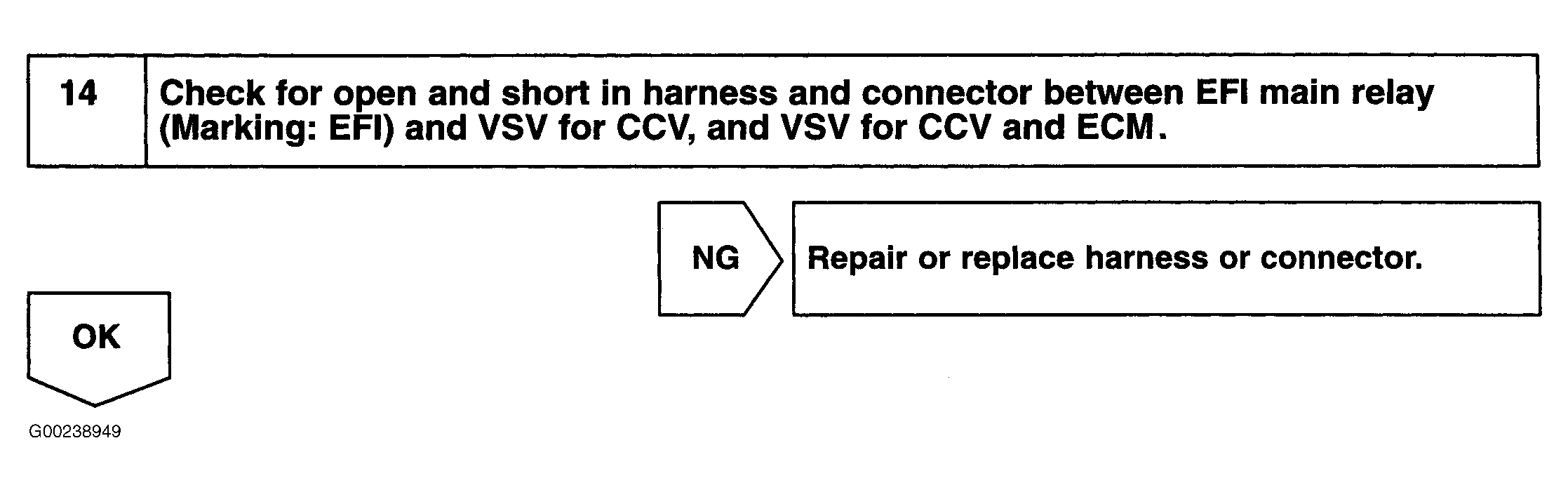

Fig 6: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure Using Toyota Hand-Held Tester (Step 14)

G00238949

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

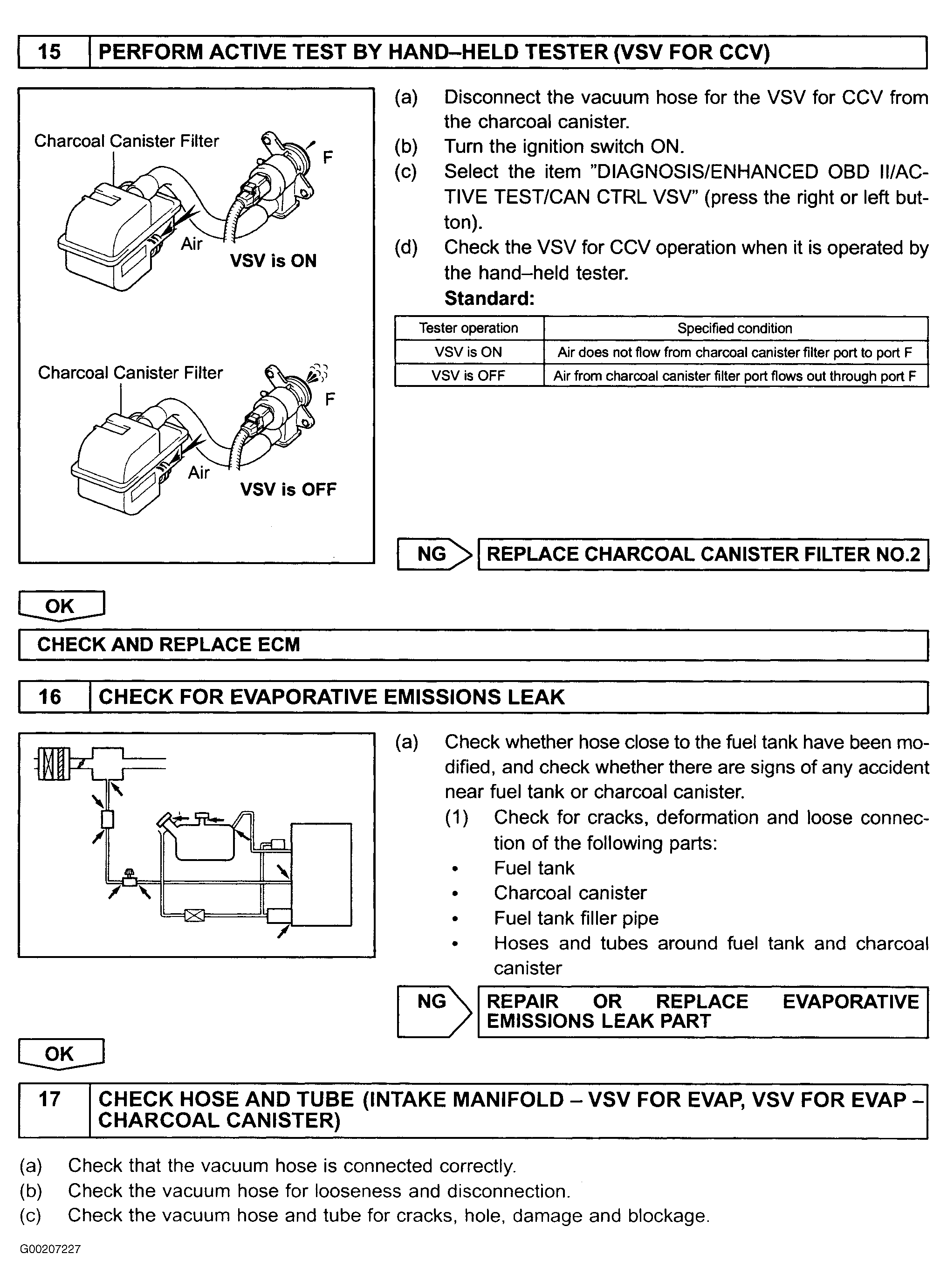

Fig 7: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 15-17)

G00207227

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

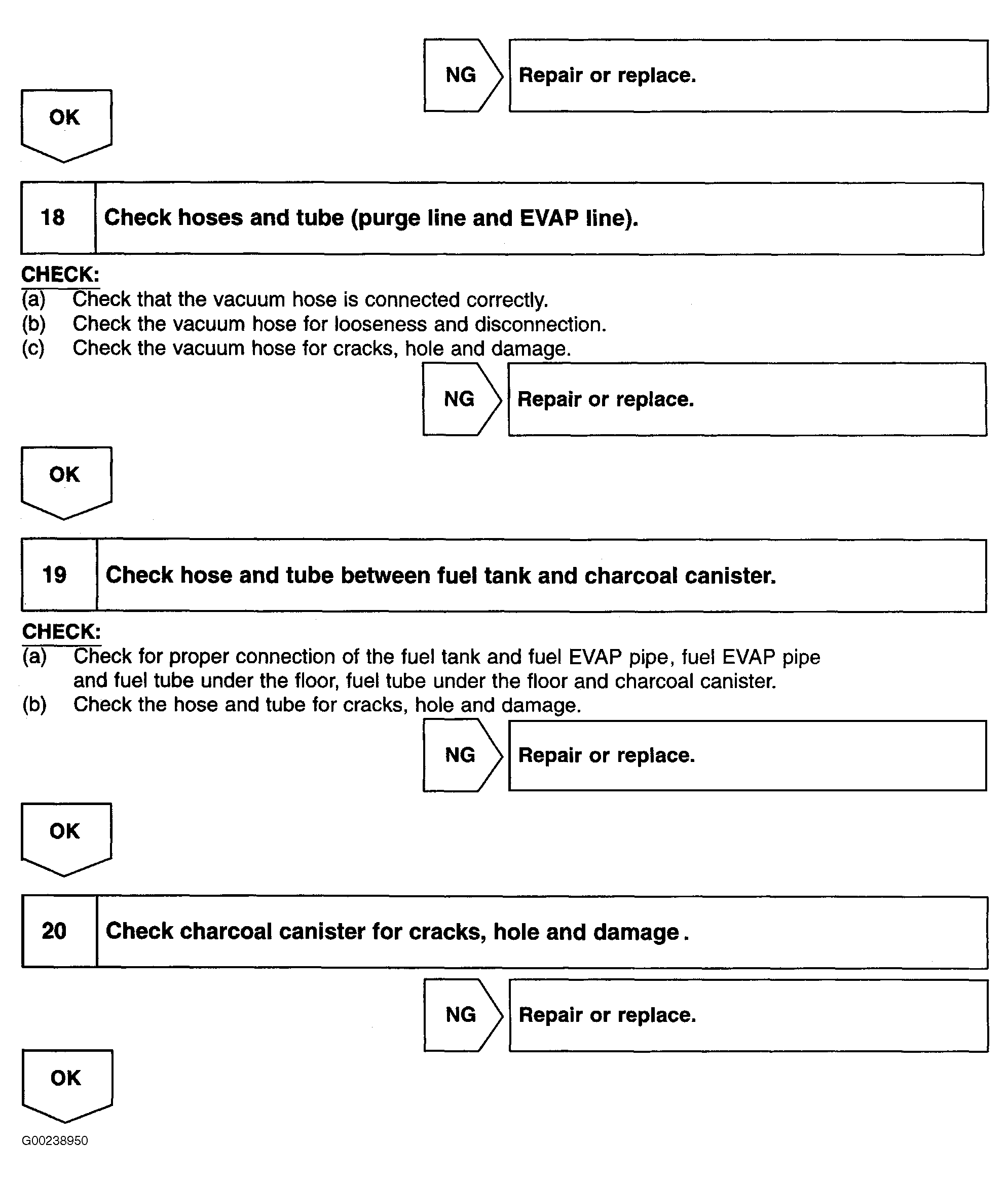

Fig 8: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 18-20)

G00238950

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 21-22)

G00238951

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

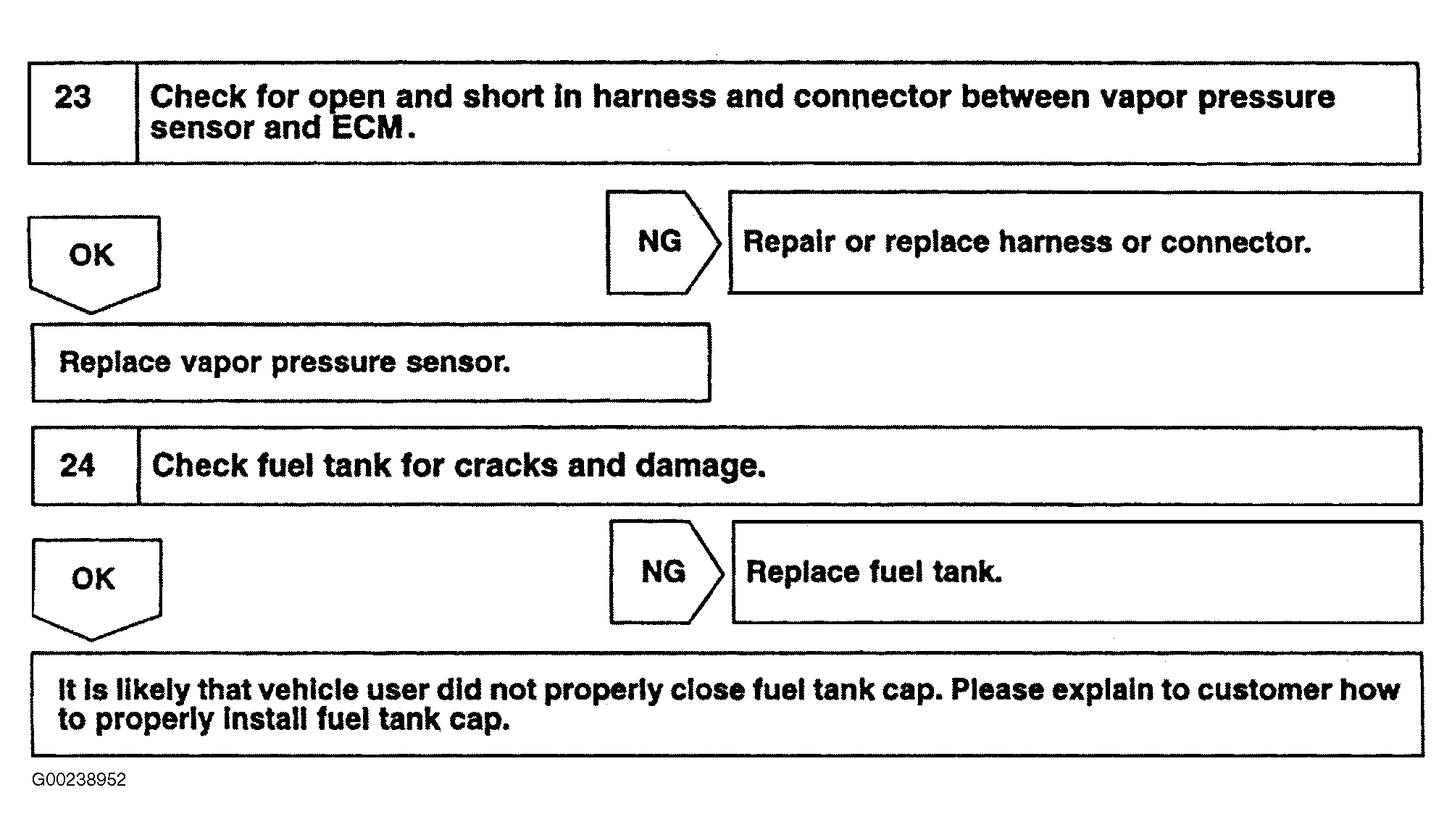

Fig 10: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure Using Toyota Hand-Held Tester (Steps 23-24)

G00238952

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

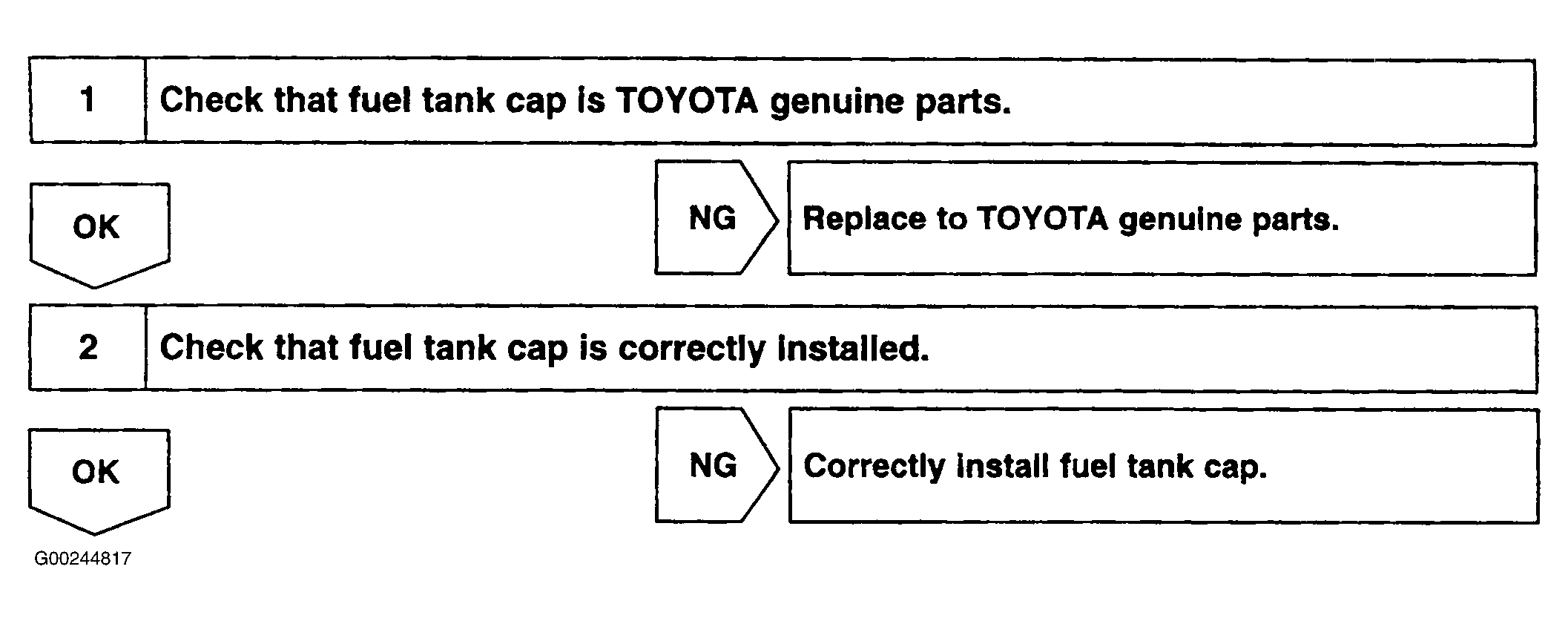

Fig 11: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure Using OBD II Scan Tool (Steps 1-2)

G00244817

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

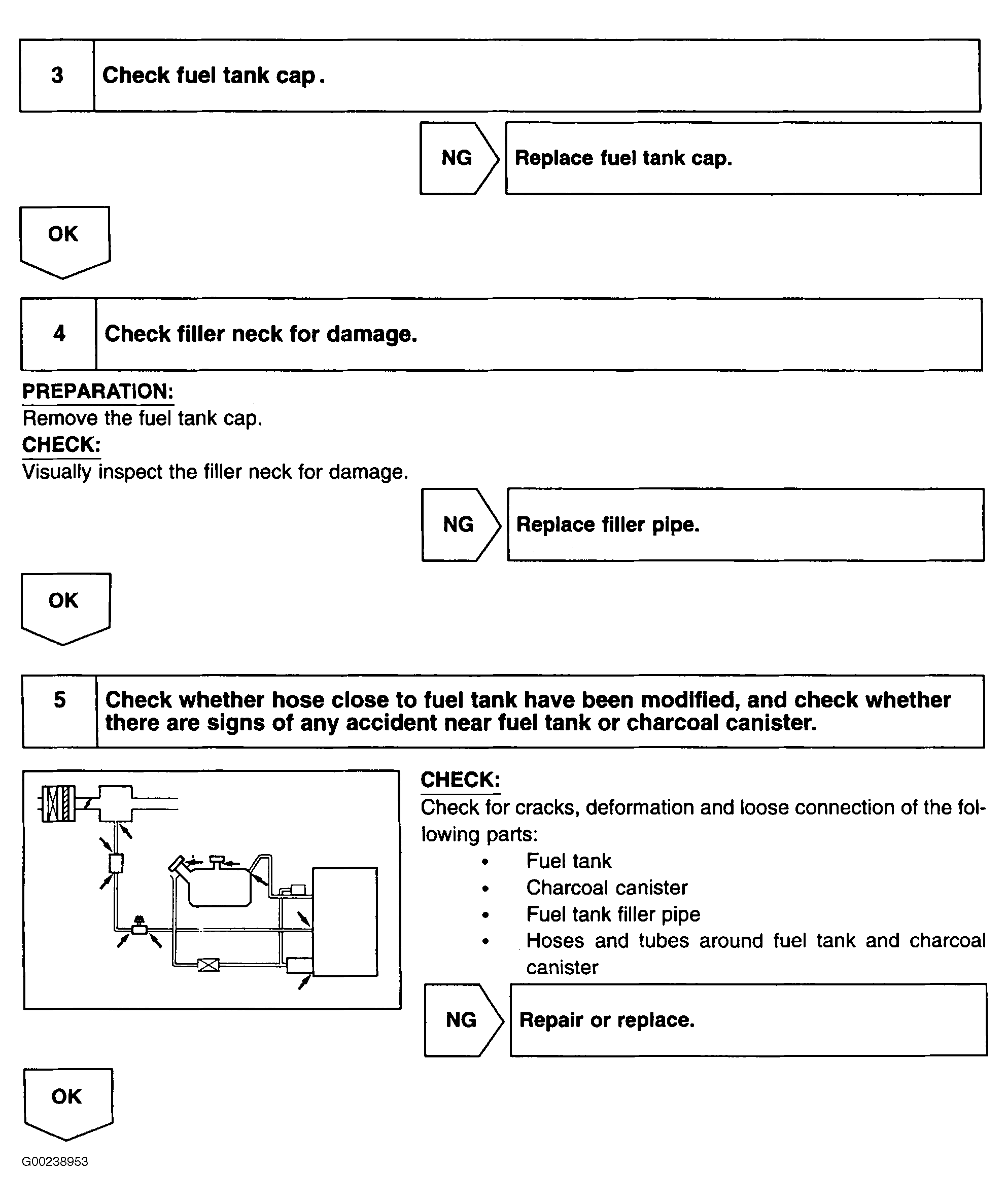

Fig 12: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure Using OBD II Scan Tool (Steps 3-5)

G00238953

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

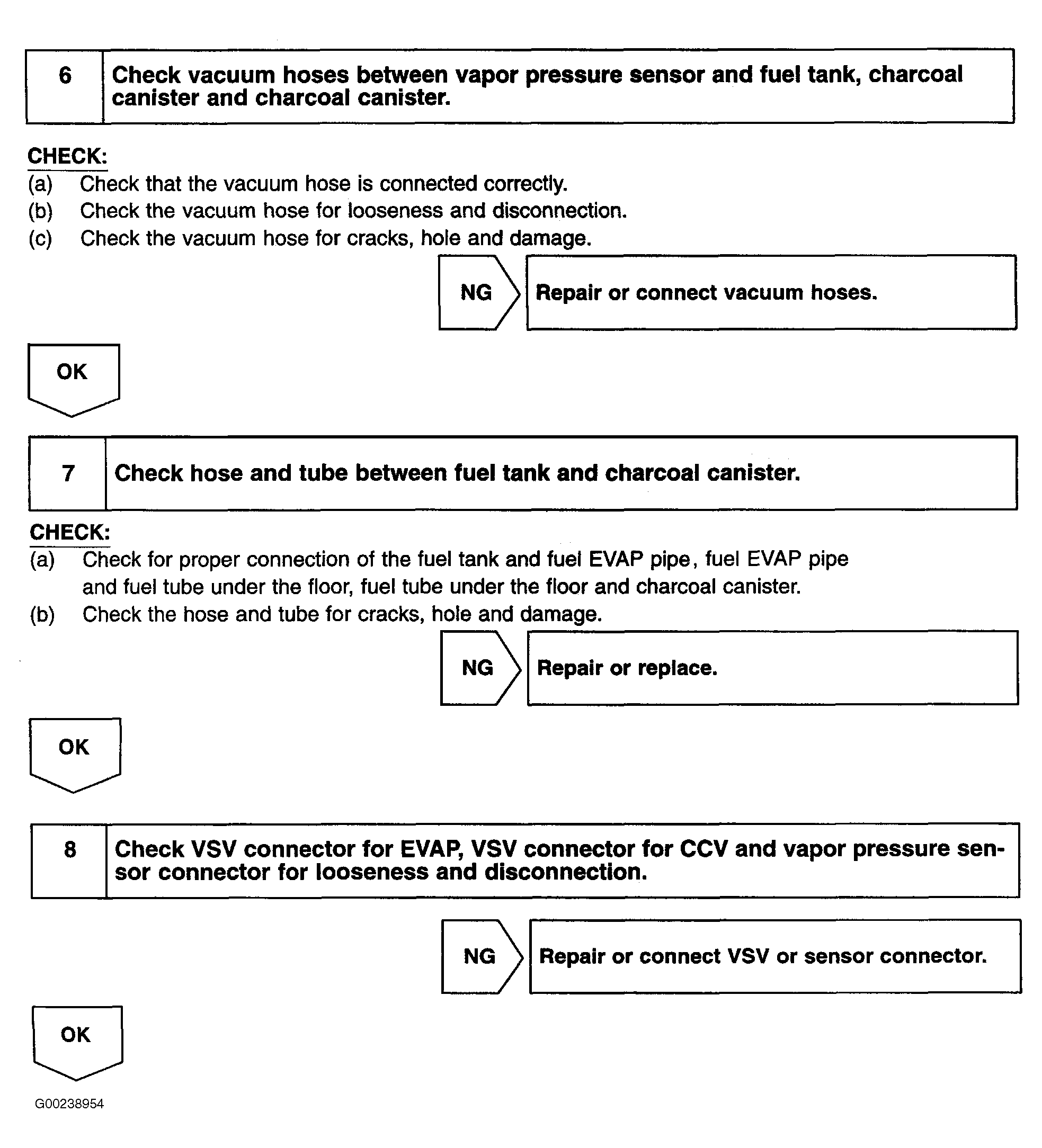

Fig 13: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure Using OBD II Scan Tool (Steps 6-8)

G00238954

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

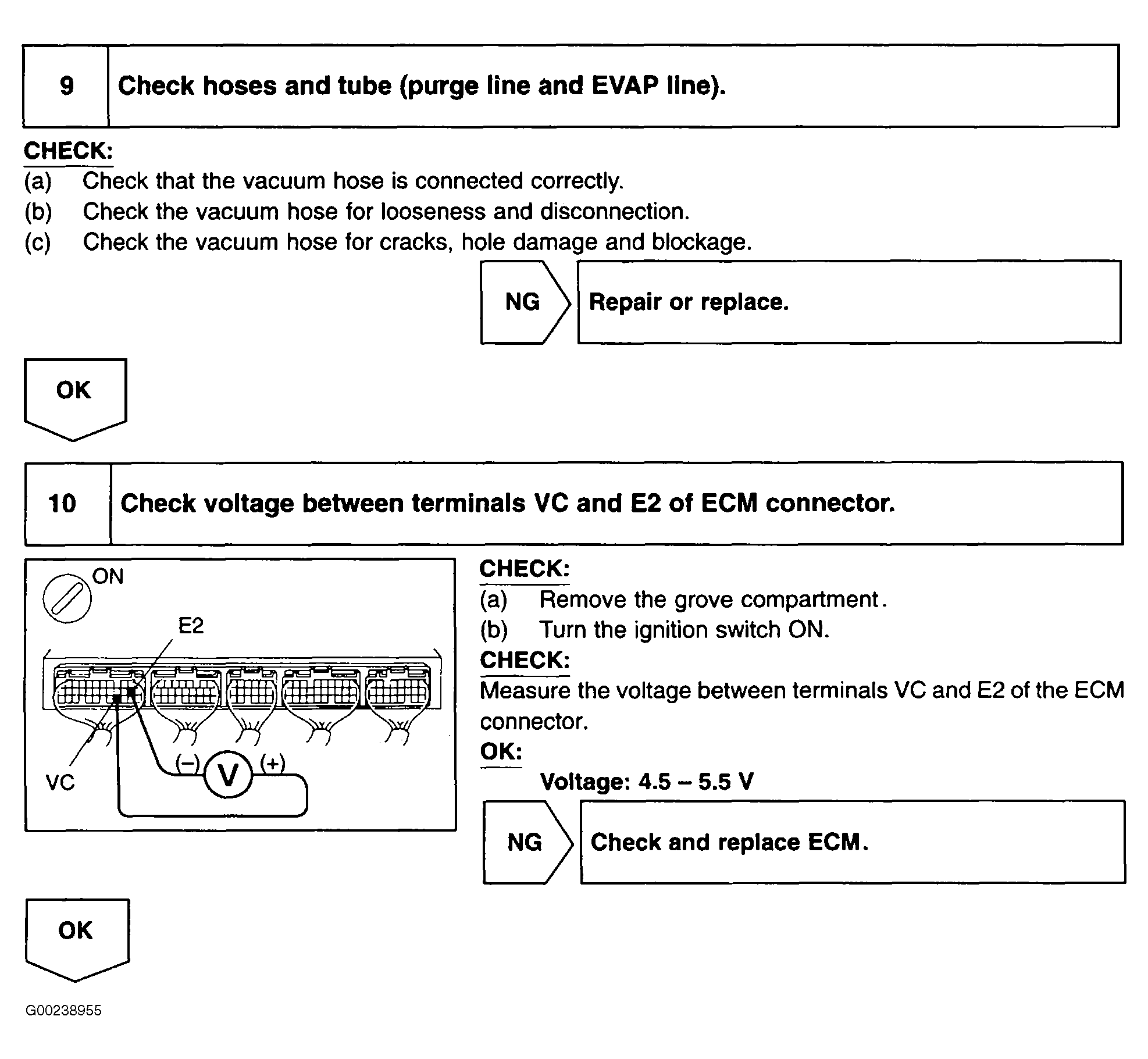

Fig 14: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure Using OBD II Scan Tool (Steps 9-10)

G00238955

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

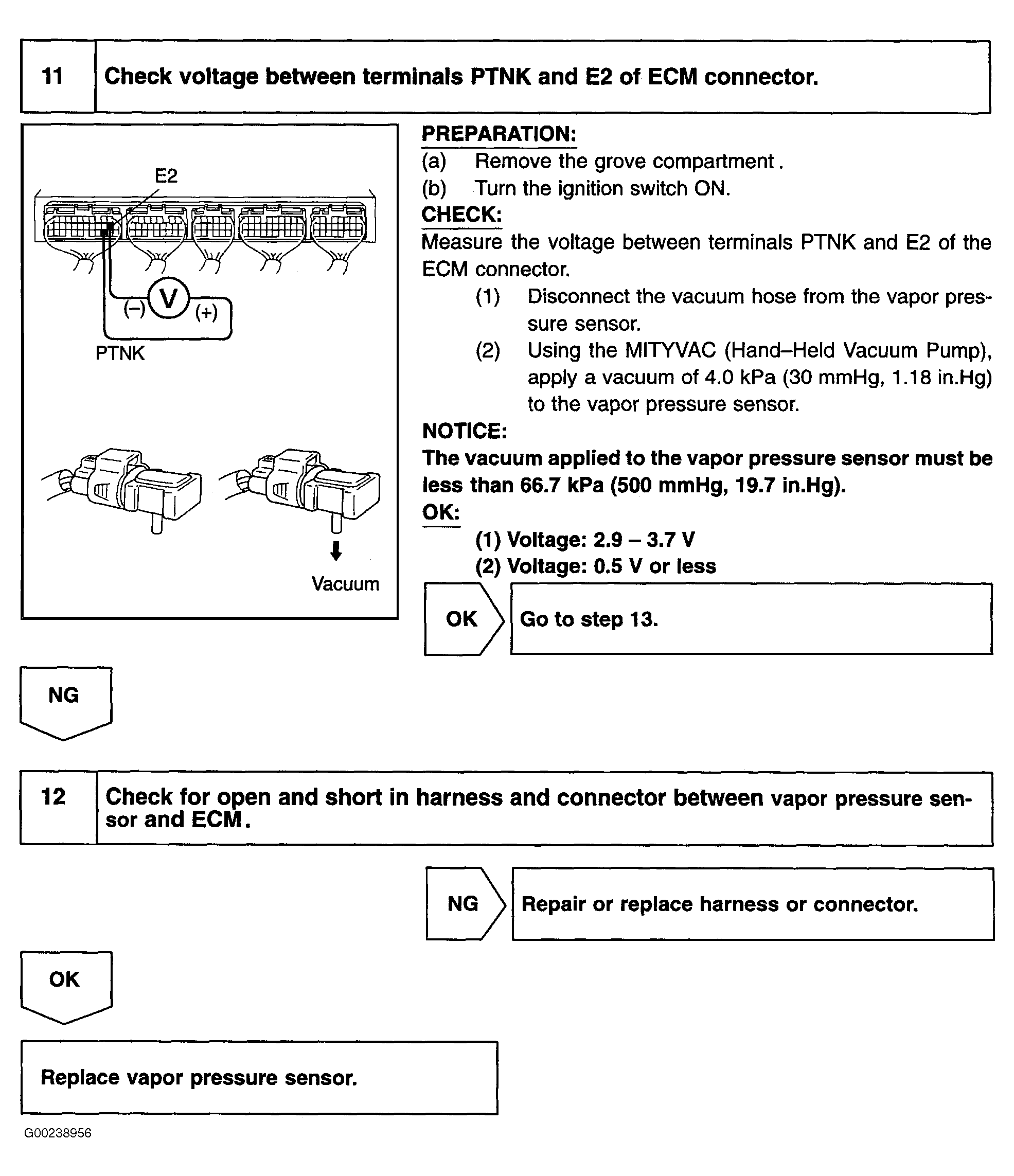

Fig 15: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure Using OBD II Scan Tool (Steps 11-12)

G00238956

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

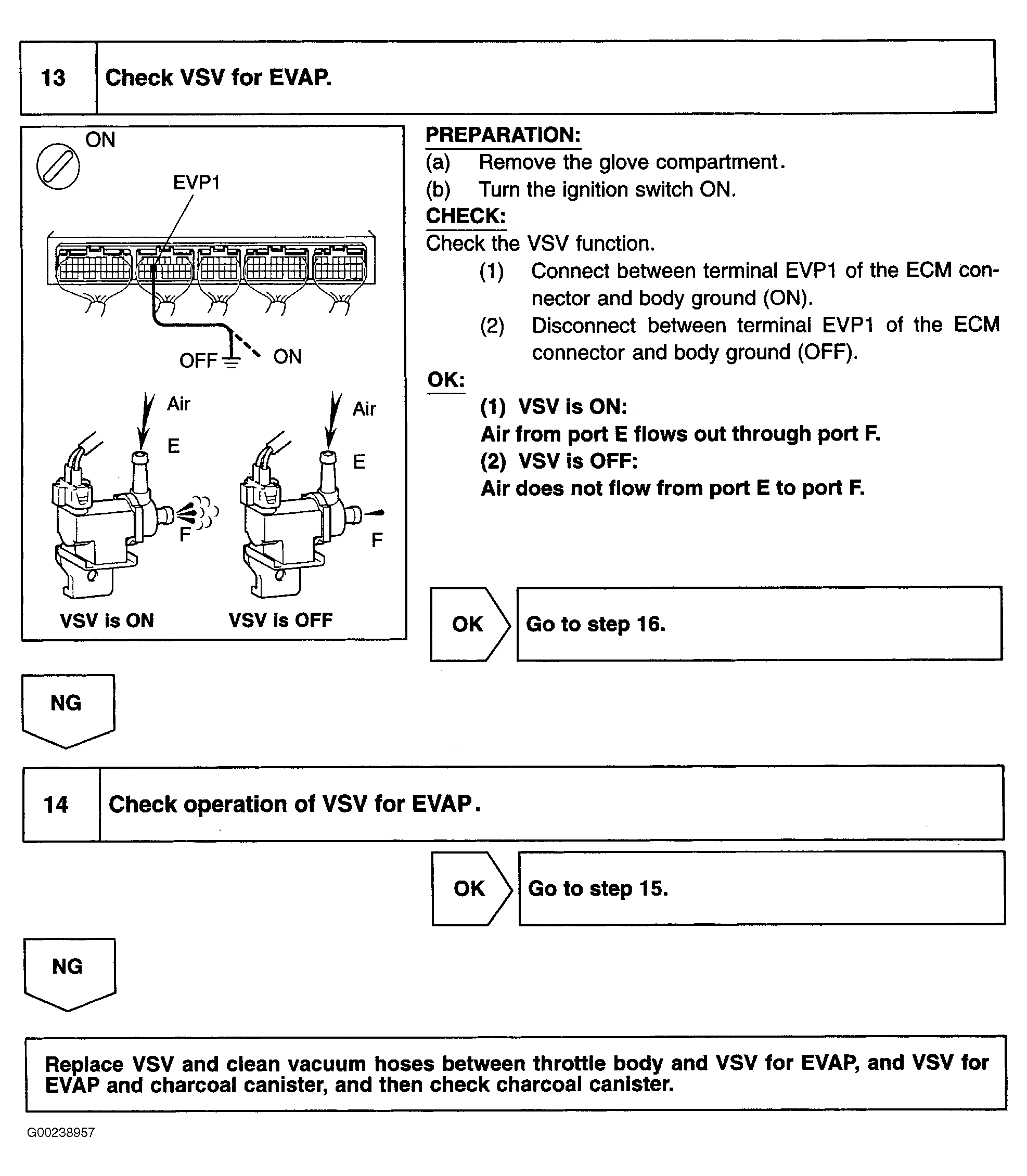

Fig 16: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure Using OBD II Scan Tool (Steps 13-14)

G00238957

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

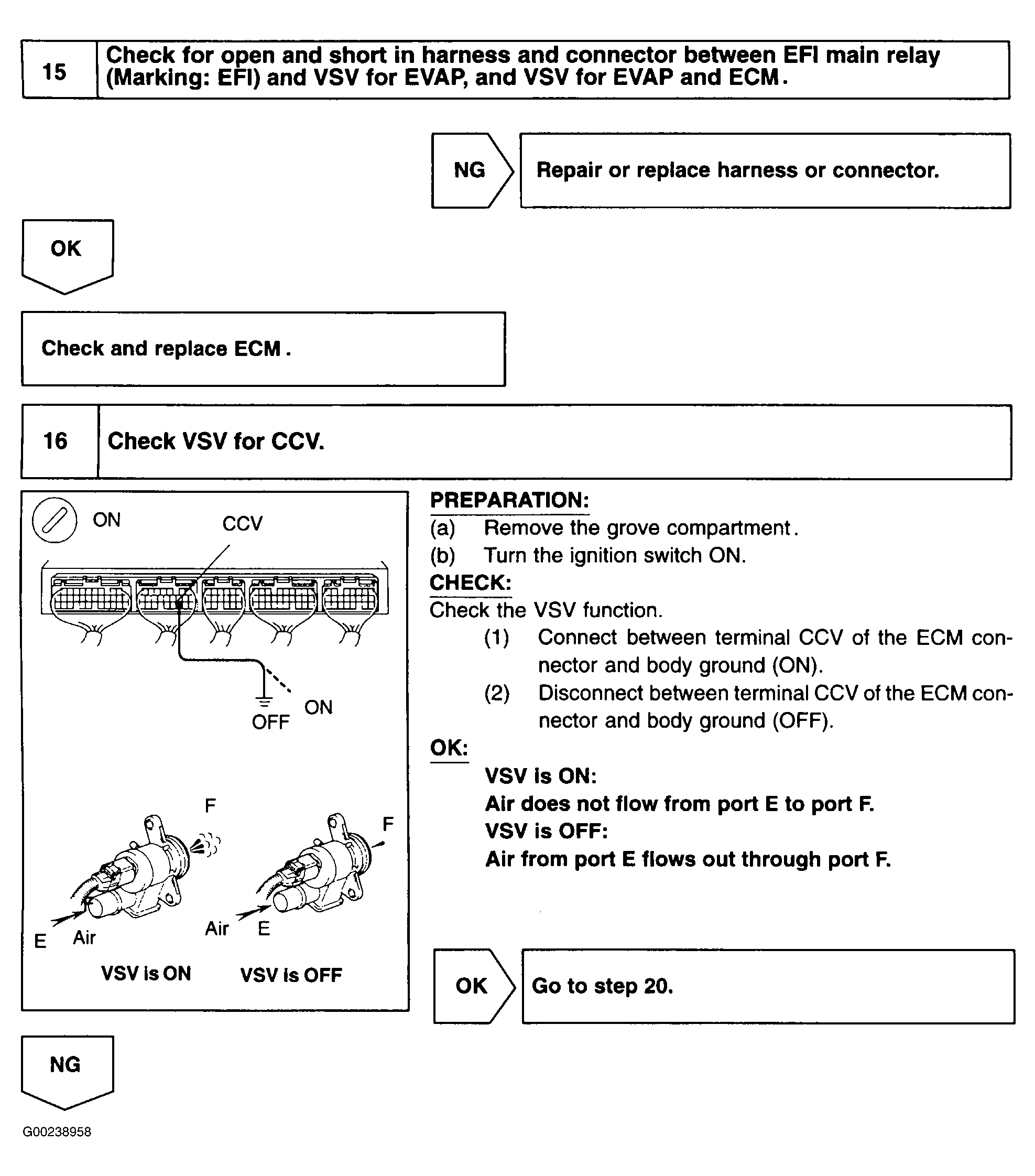

Fig 17: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure Using OBD II Scan Tool (Steps 15-16)

G00238958

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

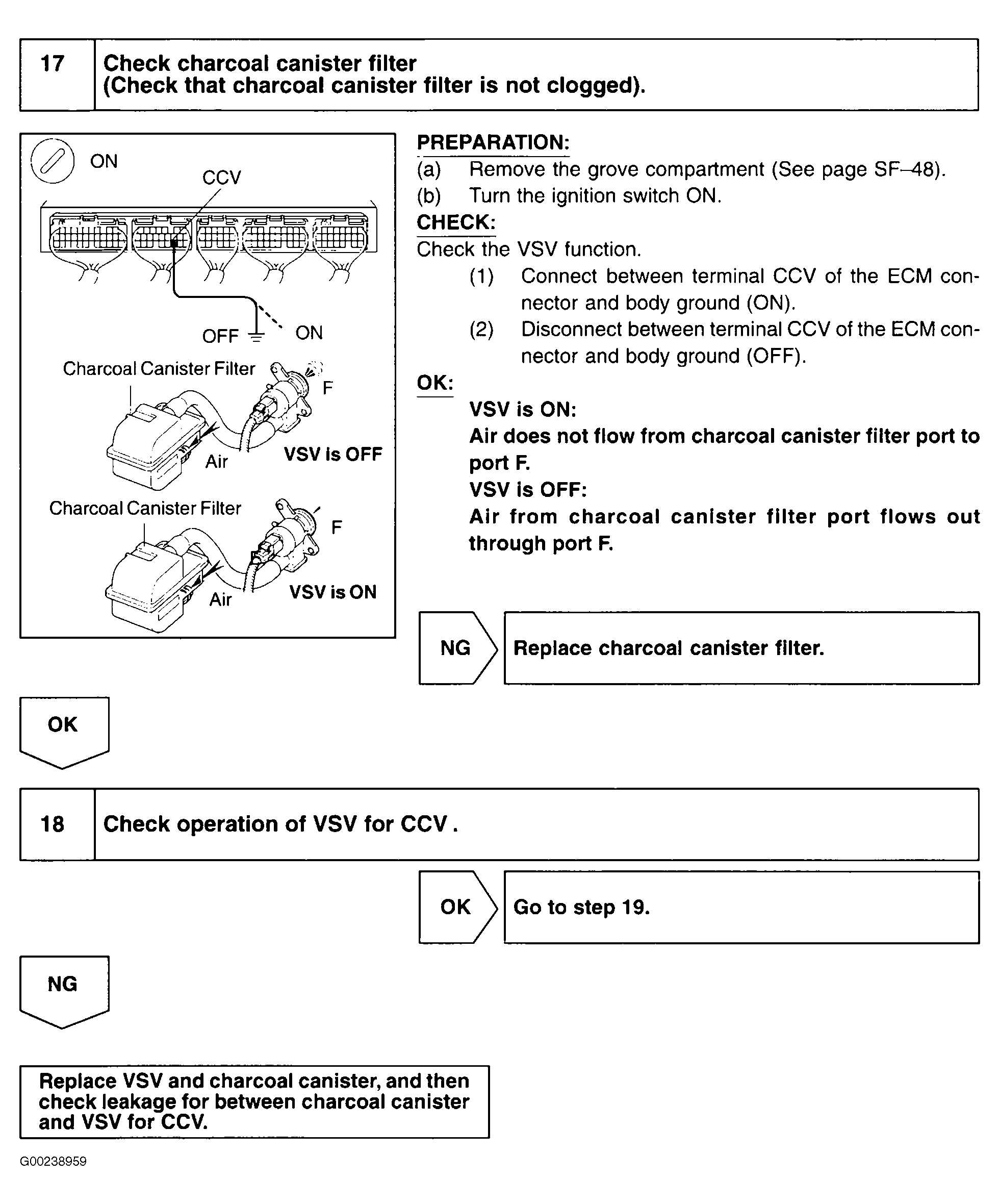

Fig 18: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure Using OBD II Scan Tool (Steps 17-18)

G00238959

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

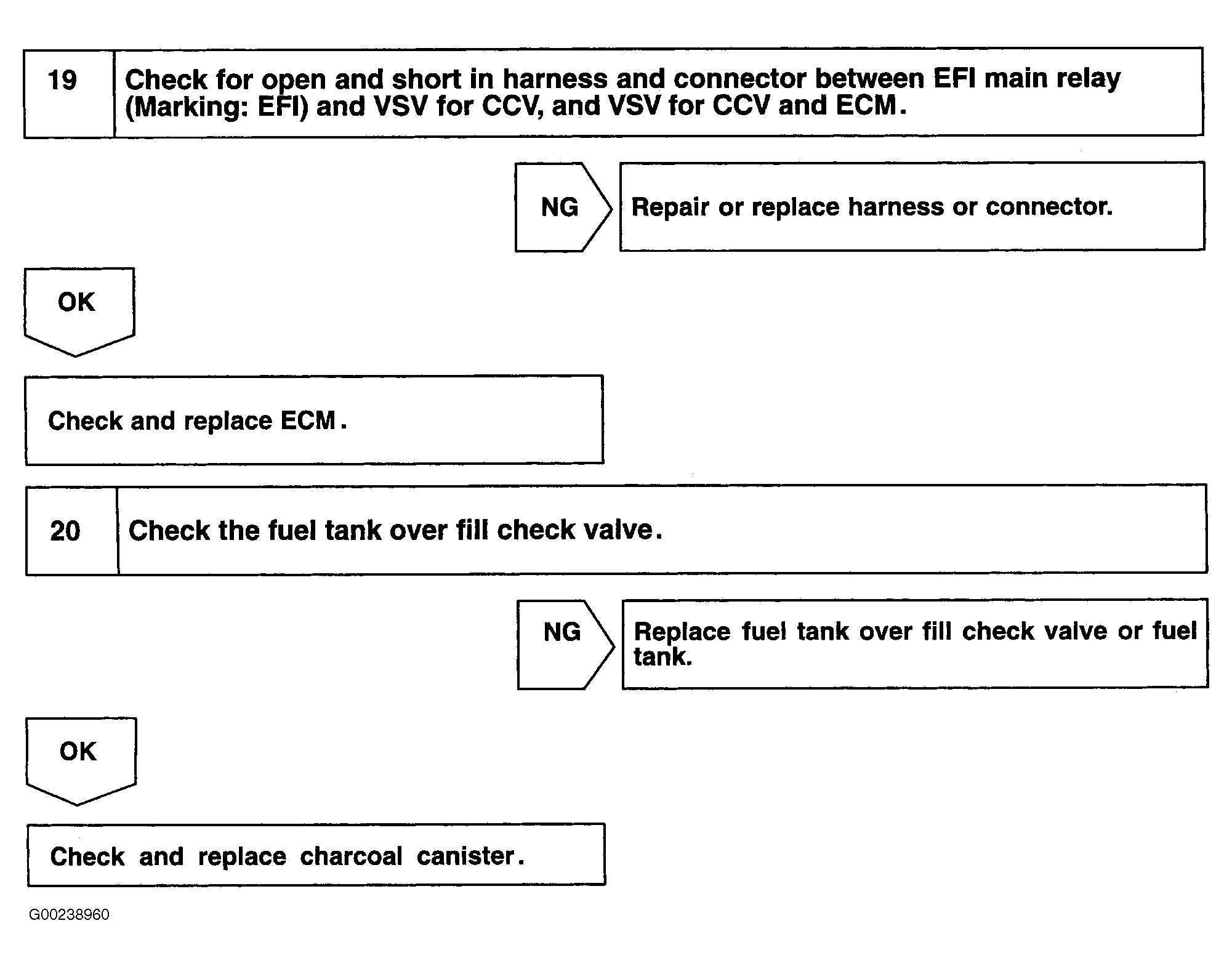

Fig 19: DTCs P0441, P0442, P0446 & P0456 Diagnostic Procedure Using OBD II Scan Tool (Steps 19-20)
