Diagnosis & Repair

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Using hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame data records engine conditions when malfunction is detected.

For circuit wiring diagram, diagnosis and repair procedure, see Fig 1-Fig 3 .

For locating emission related components, see Figure.

For ECM location, see Figure. For ECM connector view, see Figure. For testing of systems or components, see SYSTEM & COMPONENT TESTING - V6 & V8 article. For removal and installation of components, see REMOVAL & INSTALLATION - V6 & V8 article.

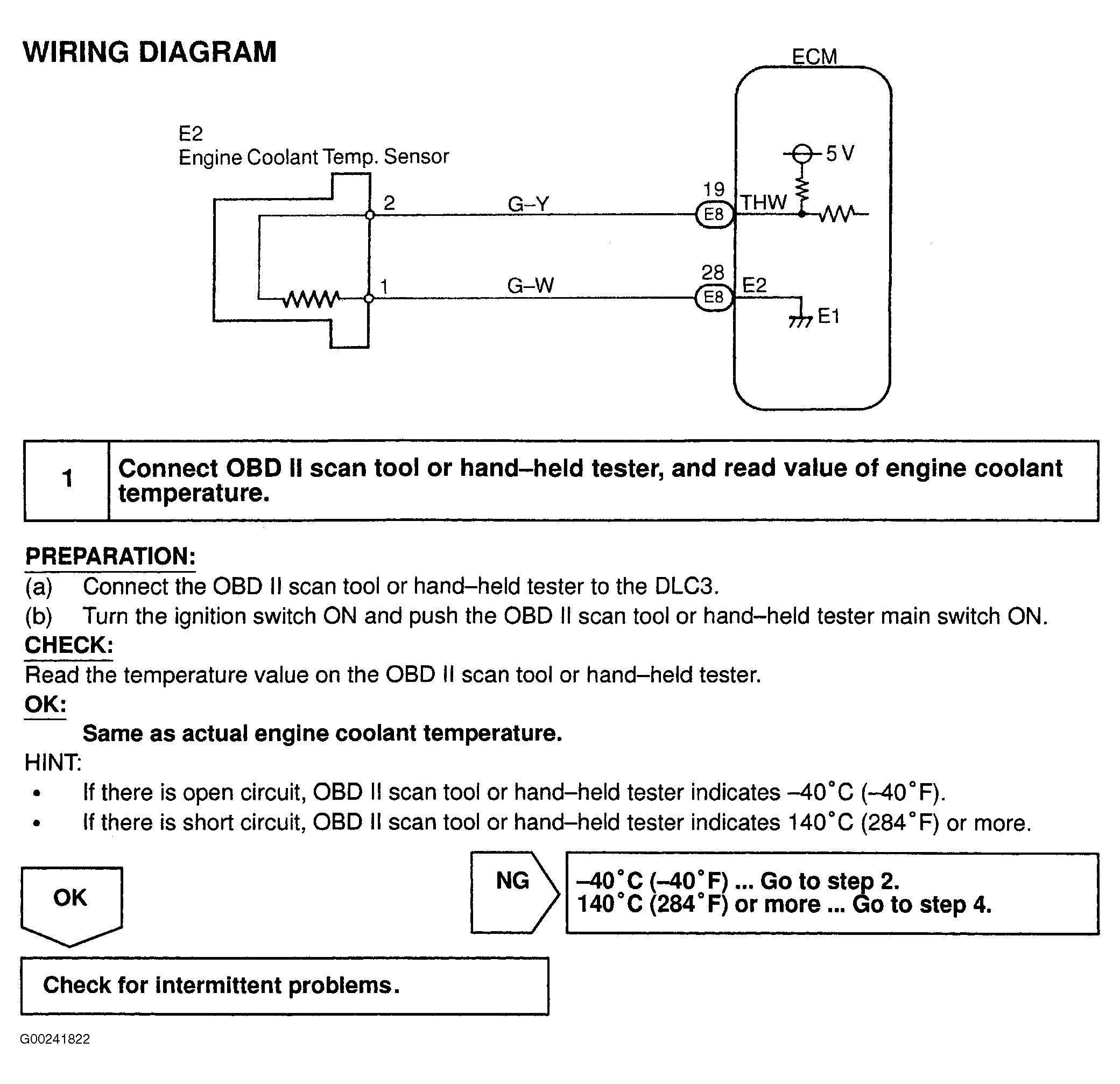

Fig 1: DTCs P0115, P0117 & P0118 Diagnostic Procedure (Step 1)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: DTCs P0115, P0117 & P0118 Diagnostic Procedure (Steps 2-3)

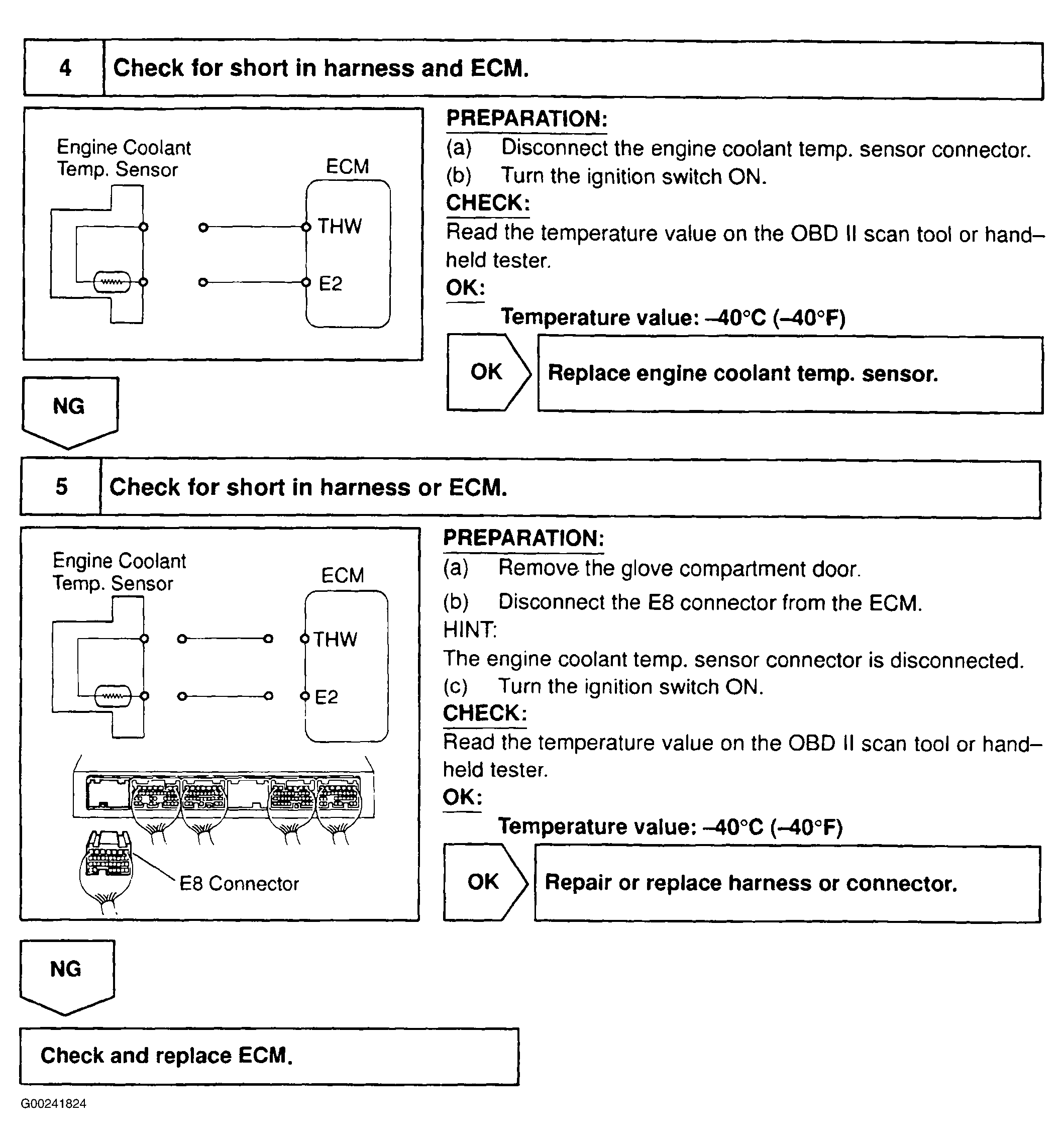

Fig 3: DTCs P0115, P0117 & P0118 Diagnostic Procedure (Steps 4-5)
