NOTE: Using Toyota hand-held tester or scan tool, read FREEZE FRAME data. Freeze frame data records engine conditions when malfunction is detected.

For diagnosis and repair procedure, see Fig 1-Fig 2 . For fuel injector driver circuit wiring diagram, see Fig 3.

When instructed to "Perform Confirmation Driving Pattern", go to TEST DRIVE CONFIRMATION procedure.

When access to, or replacement of ECM is necessary, Engine Control Module (ECM) is located behind glove box. See Figure. For ECM connector terminal view, see Figure.

For vacuum or EVAP hose routing, see VACUUM DIAGRAMS article. For testing of systems or components, see BASIC DIAGNOSTIC PROCEDURES - 4-CYLINDER article or SYSTEM & COMPONENT TESTING - 4-CYLINDER article. For adjustments, see ON-VEHICLE ADJUSTMENTS - 4-CYLINDER article. For removal and installation of components, see REMOVAL, OVERHAUL & INSTALLATION - 4-CYLINDER article.

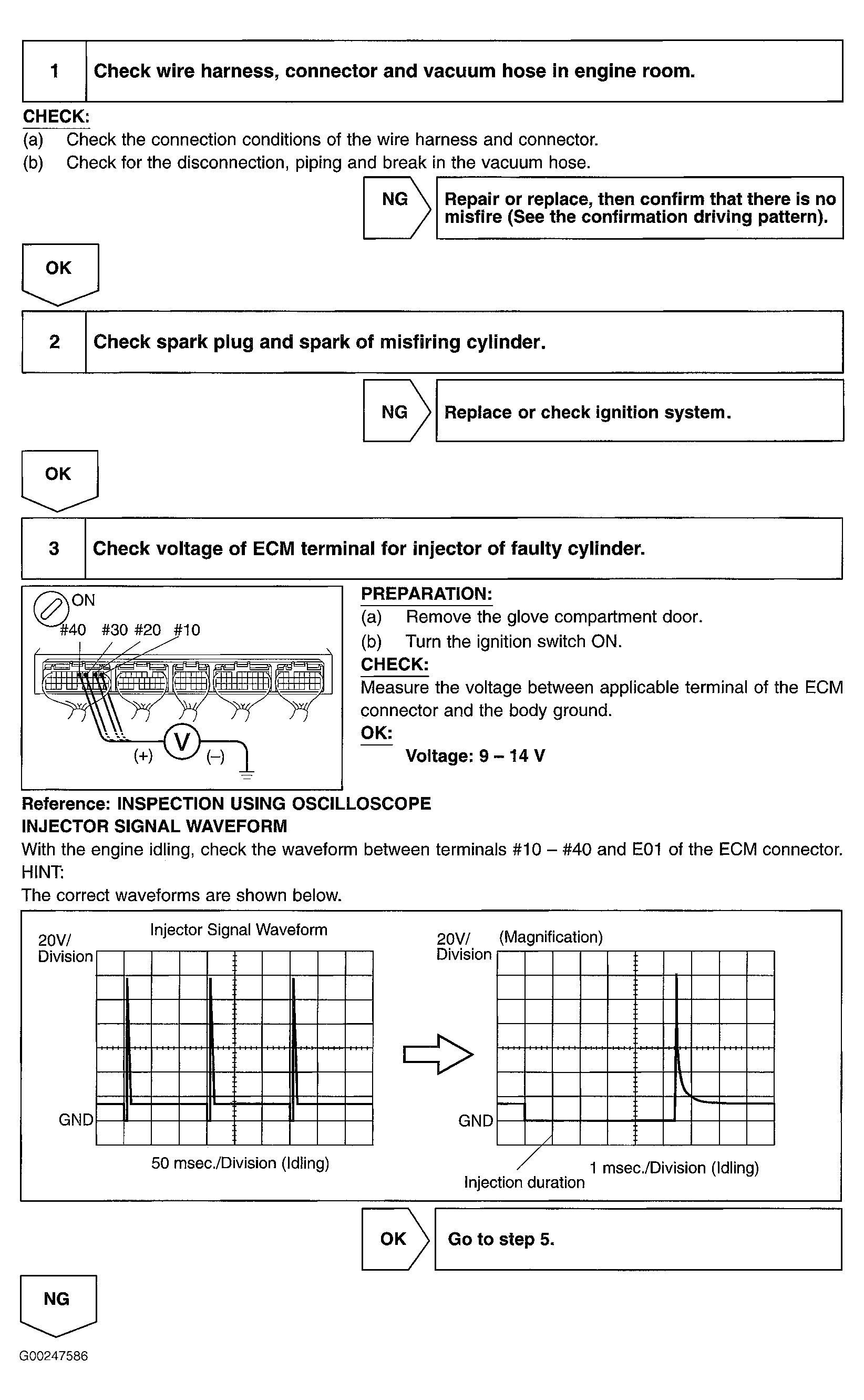

Fig 1: DTCs P0300-P0304 Diagnostic Procedure (Steps 1-3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

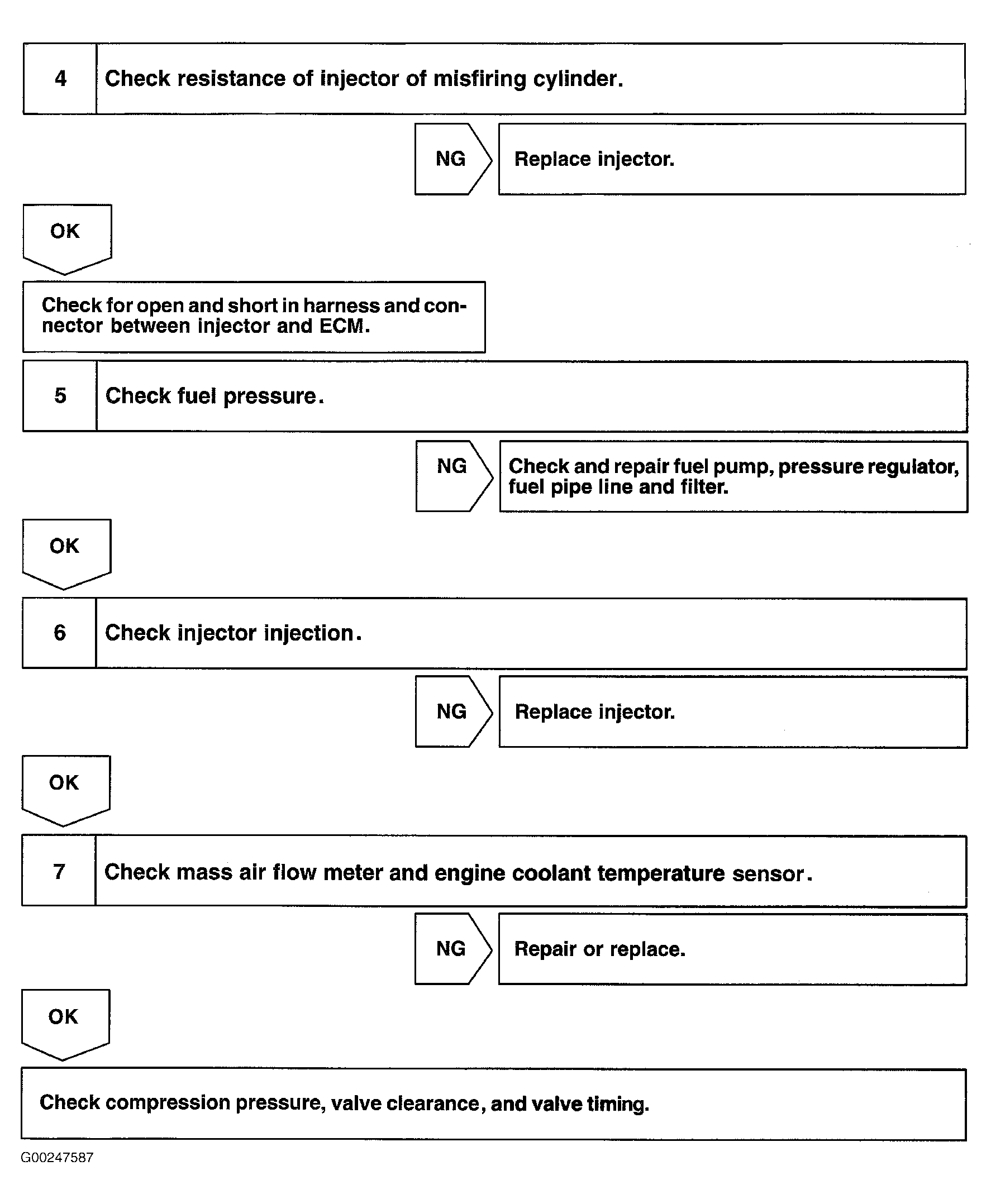

Fig 2: DTCs P0300-P0304 Diagnostic Procedure (Steps 4-7)

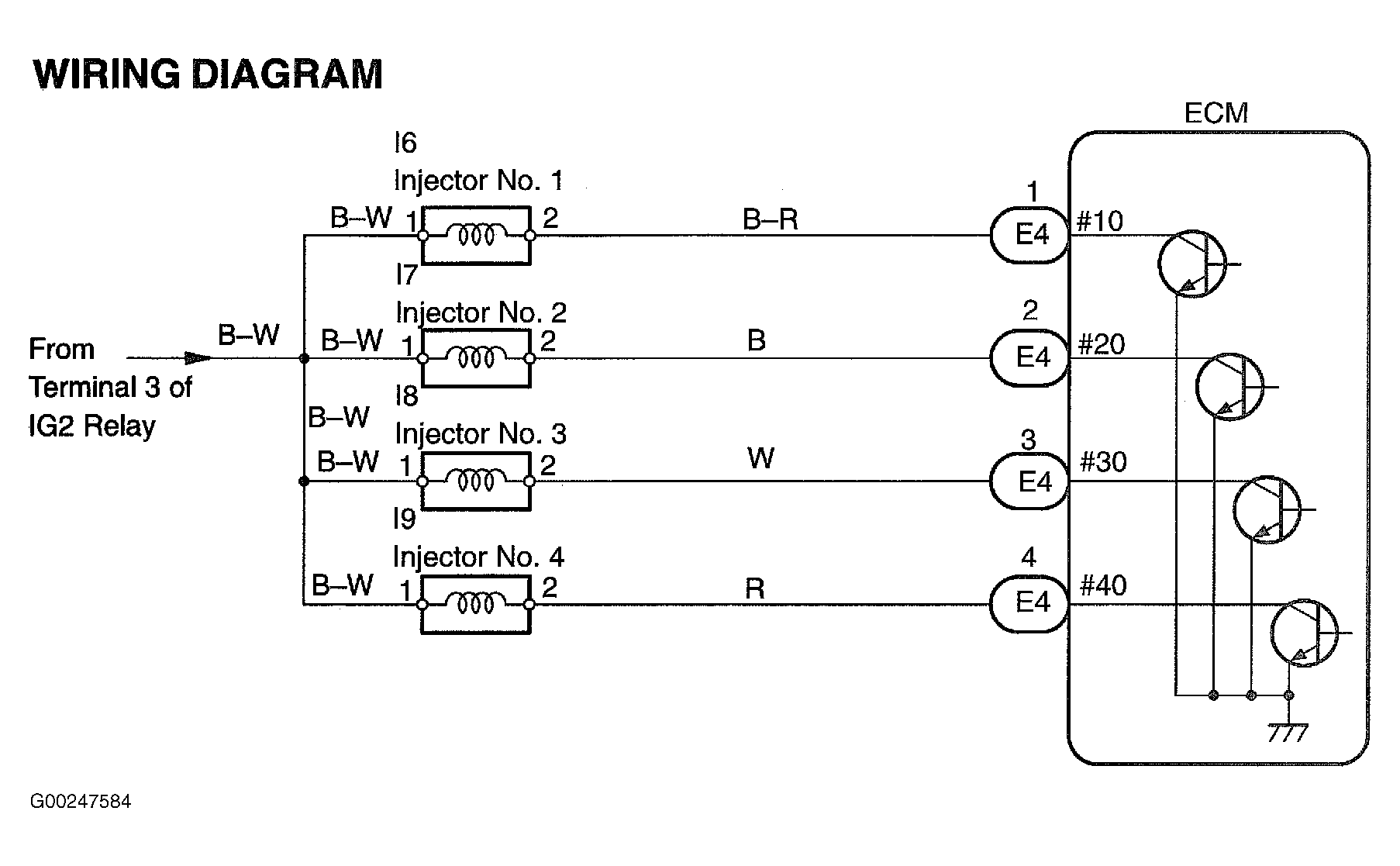

Fig 3: Fuel Injector Driver Circuit Wiring Diagram
