Throttle Position Sensor: TACOMA

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tacoma, 2002 Toyota RAV4, 2002 Toyota Prius, 2002 Toyota MR2, and 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.
  1. Manufacturer does not list procedure for Throttle Position (TP) sensor adjustment. Only information available is for checking resistance of TP sensor.
  2. Disconnect electrical connector from TP sensor. Note electrical terminals on TP sensor. See Fig 10. Apply vacuum to throttle opener located on throttle body. See Fig 10.
  3. Using ohmmeter, check resistance between specified terminals in relation to throttle position. See THROTTLE POSITION SENSOR RESISTANCE  table. Replace components as necessary if resistance is not within specification.
THROTTLE POSITION SENSOR RESISTANCE

Application Throttle Position Terminals Ohms
Camry & Camry Solara .... VC & E2 (1) 1200-3200
Celica, Corolla & ECHO Fully Closed VTA & E2 200-5700
Fully Open VTA & E2 2000-10,200
  VC & E2 2500-5900
Highlander Fully Closed VTA & E2 200-5700
Fully Open VTA & E2 2000-10,200
  VC & E2 2500-5000
MR2
Models With Standard Type Manual Transaxle Fully Closed VTA & E2 200-5700
Fully Open VTA & E2 2000-10,200
  VC & E2 2500-5900
Models With Sequential Manual Transaxle .... VC & E2 (1) 1200-3200
Prius .... VC & E2 (1) 1200-3200
RAV4 Fully Closed VTA & E2 200-5700
Fully Open VTA & E2 2000-10,200
  VC & E2 2500-5900
Tacoma (2) Fully Closed VTA & E2 200-5700
Fully Open VTA & E2 2000-10,200
  VC & E2 2500-5900
(1) Resistance at 68°F (20°C).
(2) Apply vacuum to throttle opener before checking TP sensor.
Fig 1: Identifying Throttle Position Sensor Terminals (Camry & Camry Solara)
G00023070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

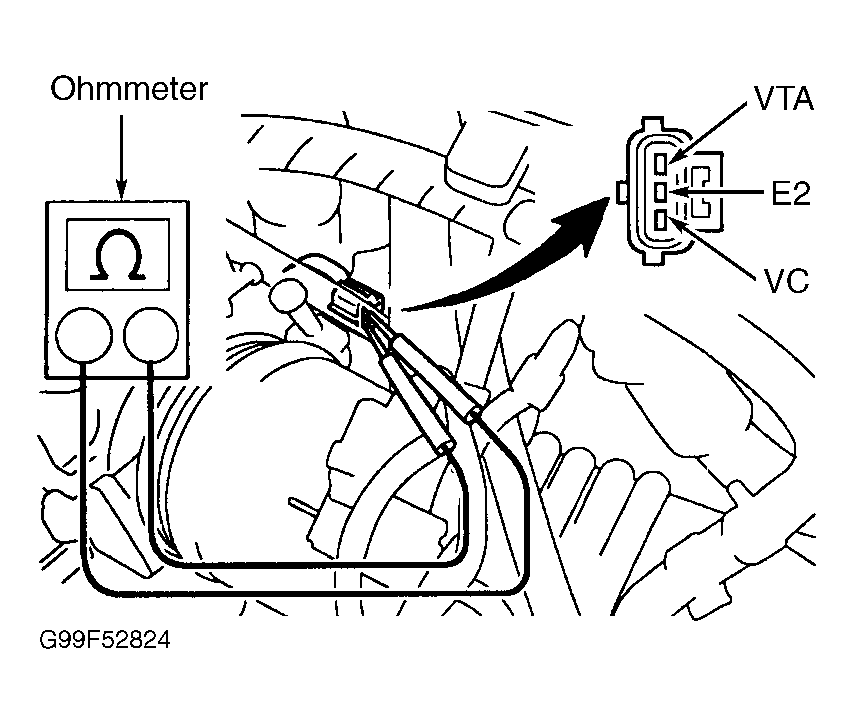

Fig 2: Identifying Throttle Position Sensor Terminals (Celica)
G99F52824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

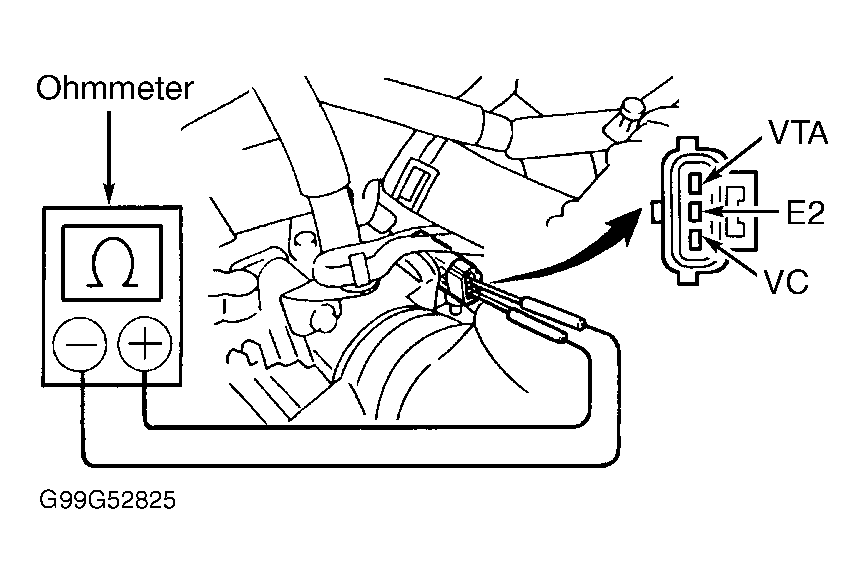

Fig 3: Identifying Throttle Position Sensor Terminals (Corolla)
G99G52825Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

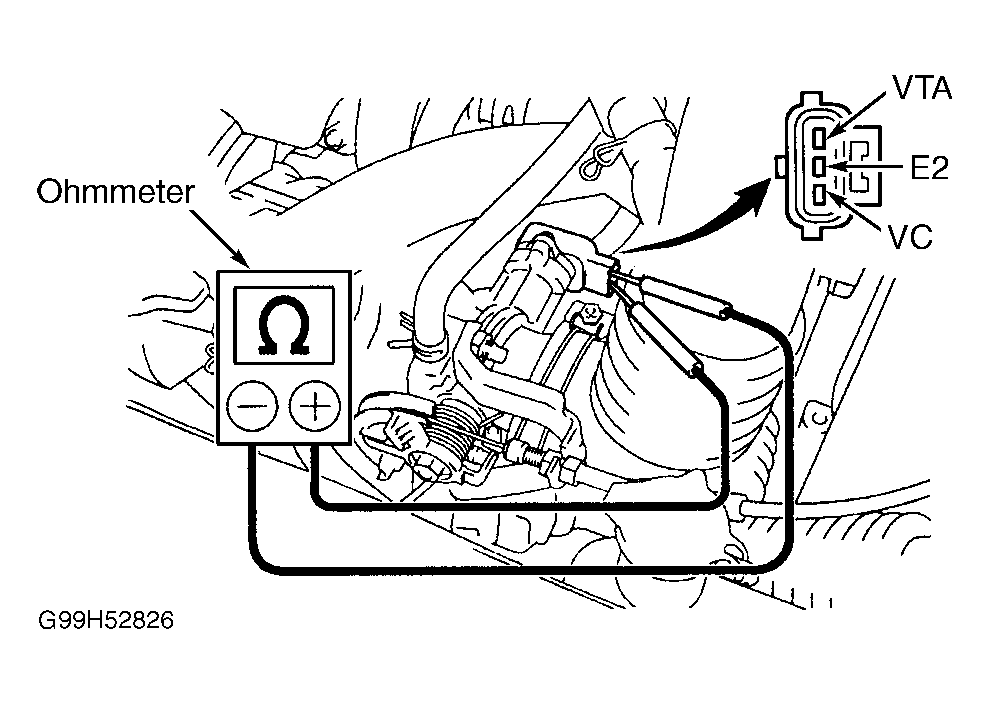

Fig 4: Identifying Throttle Position Sensor Terminals (ECHO)
G99H52826Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Identifying Throttle Position Sensor Terminals (Highlander)
G00016694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Identifying Throttle Position Sensor Terminals (MR2 With Standard Type Manual Transaxle)
G00016693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Identifying Throttle Position Sensor Terminals (MR2 With Sequential Manual Transaxle)
G00016697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 8: Identifying Throttle Position Sensor Terminals (Prius)
G00016725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

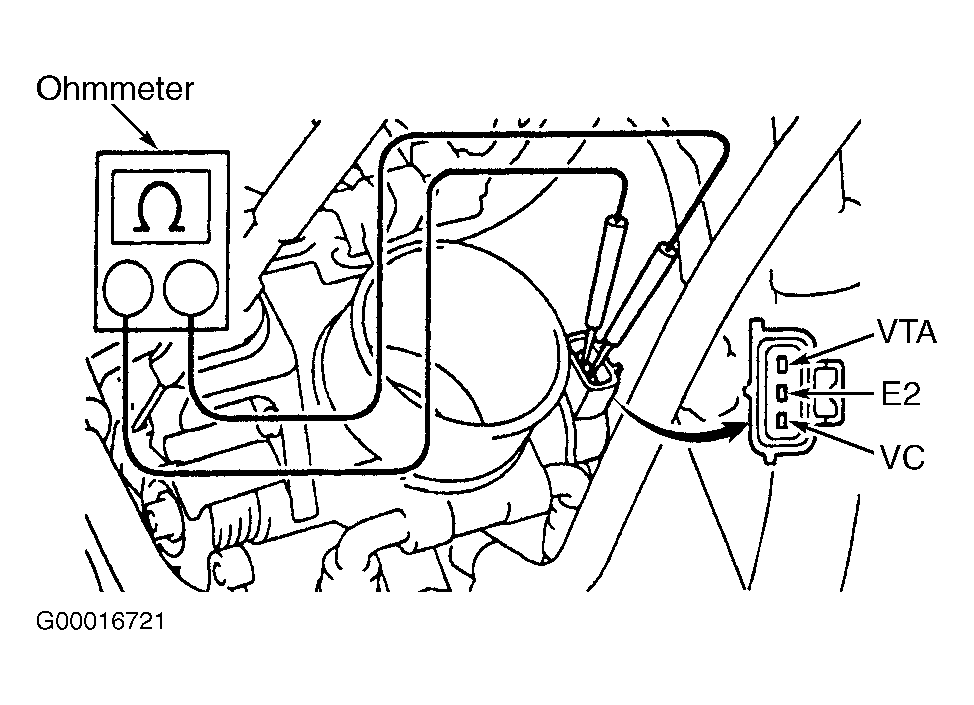

Fig 9: Identifying Throttle Position Sensor Terminals (RAV4)
G00016721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

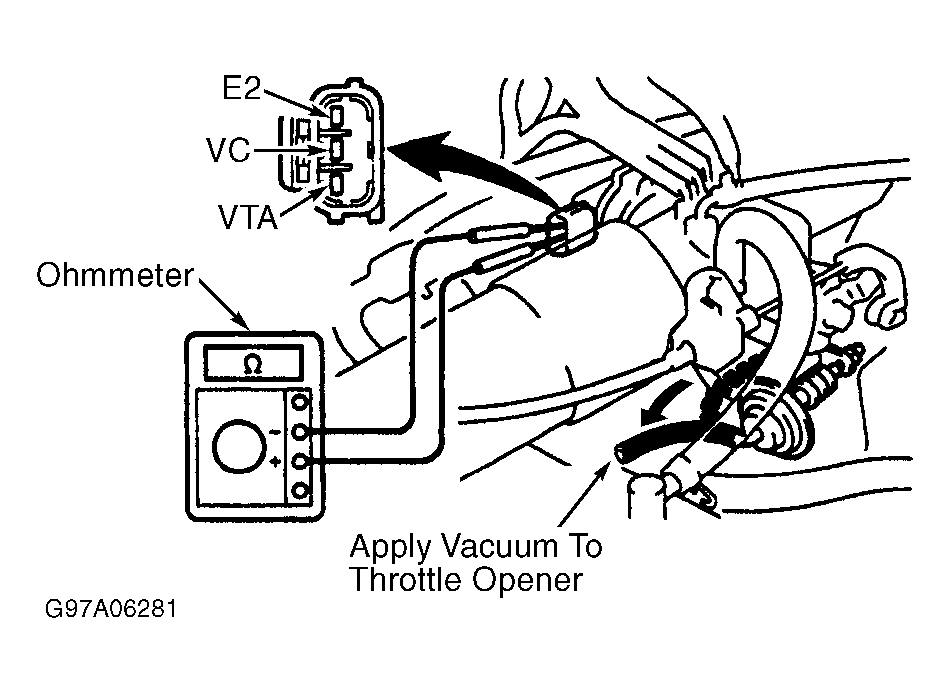

Fig 10: Identifying Throttle Position Sensor Terminals & Locating Throttle Opener (Tacoma)
G97A06281Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
